APC AP4450A Netshelter Rack Automatic Transfer Switch - 1U - 15A - 100/120V - 5-15 IN - 10 5-15R OUT - 50/60Hz

ITEM #: APC-AP4450A MFG #: AP4450A

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    AP4450A - Overview

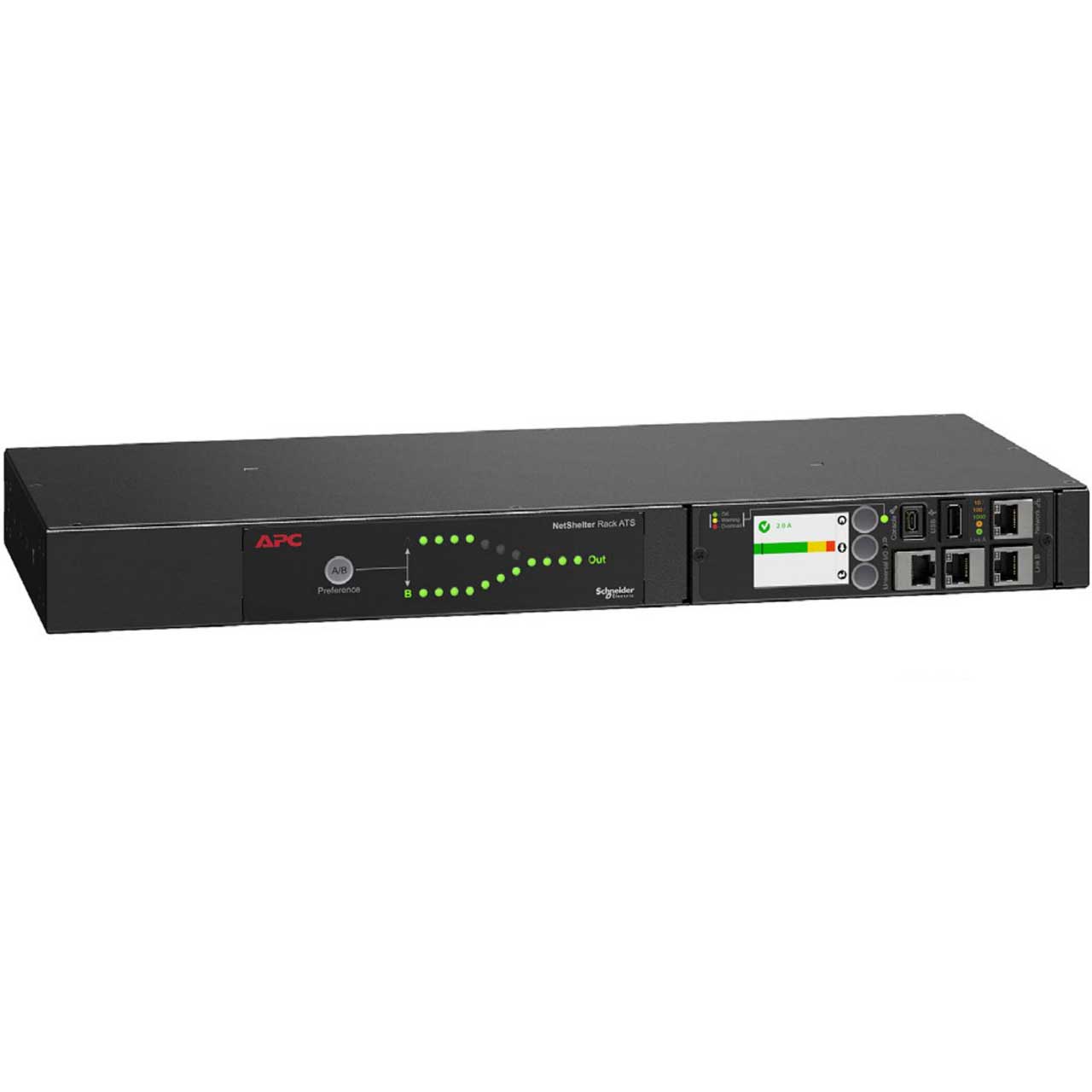

    The APC NetShelter Rack Automatic Transfer Switch (ATS) AP4450A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. The Rack ATS has been upgraded with the Network Management Card 3 (NMC3) and various other technical advancements for network port sharing, environmental monitoring, and enhanced security. The Rack ATS offers industry-leading transfer time and improved outlet connections to ensure seamless power switching without interrupting the critical loads. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT. This includes a variety of input-output connections in 1 Phase 100/120V, 200/208V, or 230V to multiple outlets ranging from 1440VA to 7440VA allowing users to address the most common power distribution requirements.

    • Features:

      • Switching time <10ms.
      • Field-replaceable NMC.
      • Temperature and humidity sensor support.
      • Dual input power cords.
      • 2-years standard warranty and 5-years extended warranty.
      • 32 Rack ATS Network Port Sharing(NPS).
      • Flash Upgradeable.
      • APC Wi-fi USB device support.
      • Gigabit Ethernet Support.
      • LCES1 Mini NMC3 Network Management Card.
      • EcoStruxure IT Ready.
    • Specifications:

      • Input Voltage: 100V, 120V.
      • Output Voltage: 100V, 120V.
      • Voltage Tolerance: ± 10%.
      • Rated Current: 15A.
      • Regulatory Derated Input Current (North America): 12A
      • Frequency: 50/60Hz.
      • Load Capacity: 1440 VA.
      • (Number of Inlet sockets) Inlet Standard:(2) NEMA 5-15P.

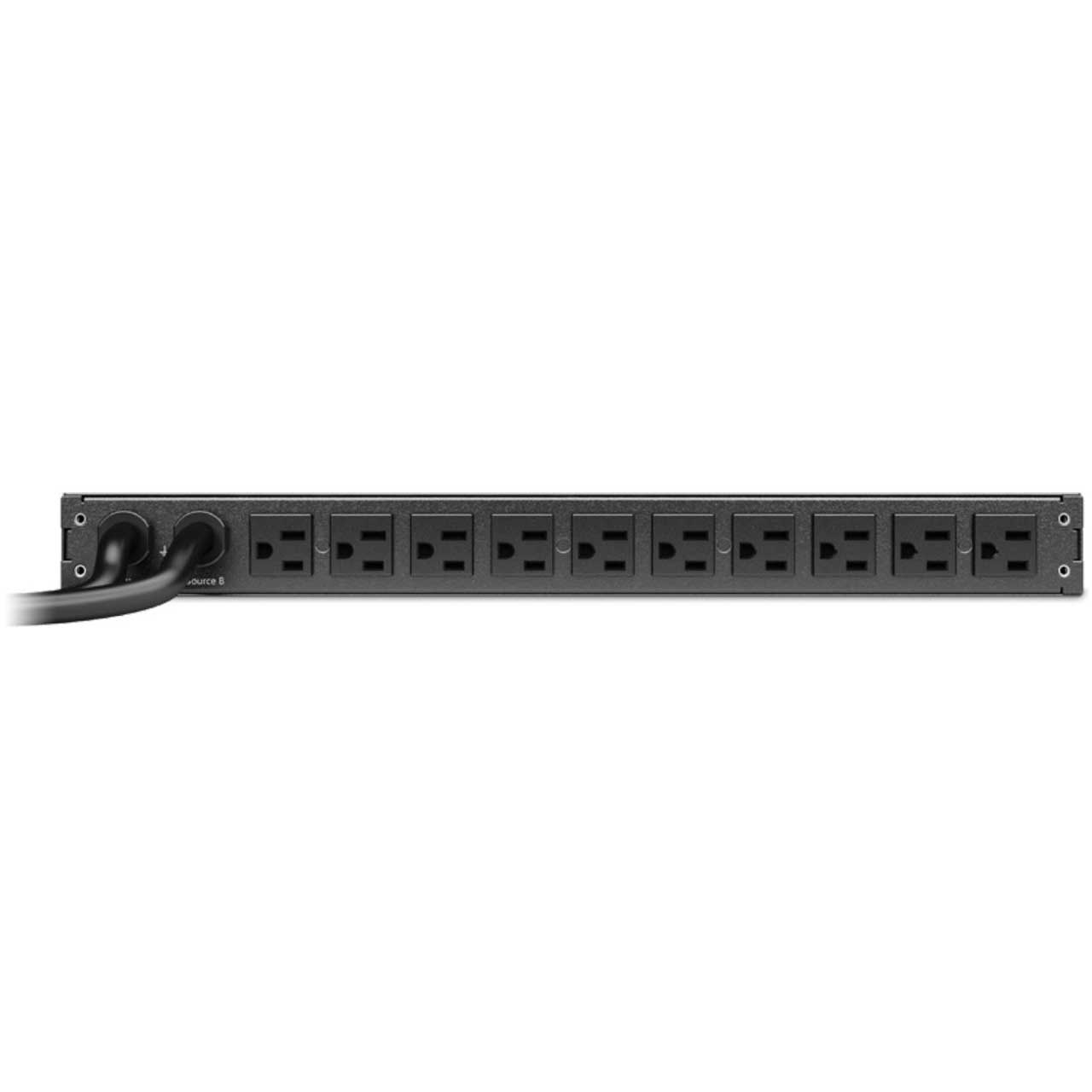

      • (Number of Outlet sockets): Outlet Standard: (10) NEMA 5-15R.
      • Number of Rack Unit; 1U.
      • Dimension (H x W x D); 43.7 x 431.8 x 236.2 mm.
      • Weight: 4.4 kg.

    AP4450A - Required Accessories
