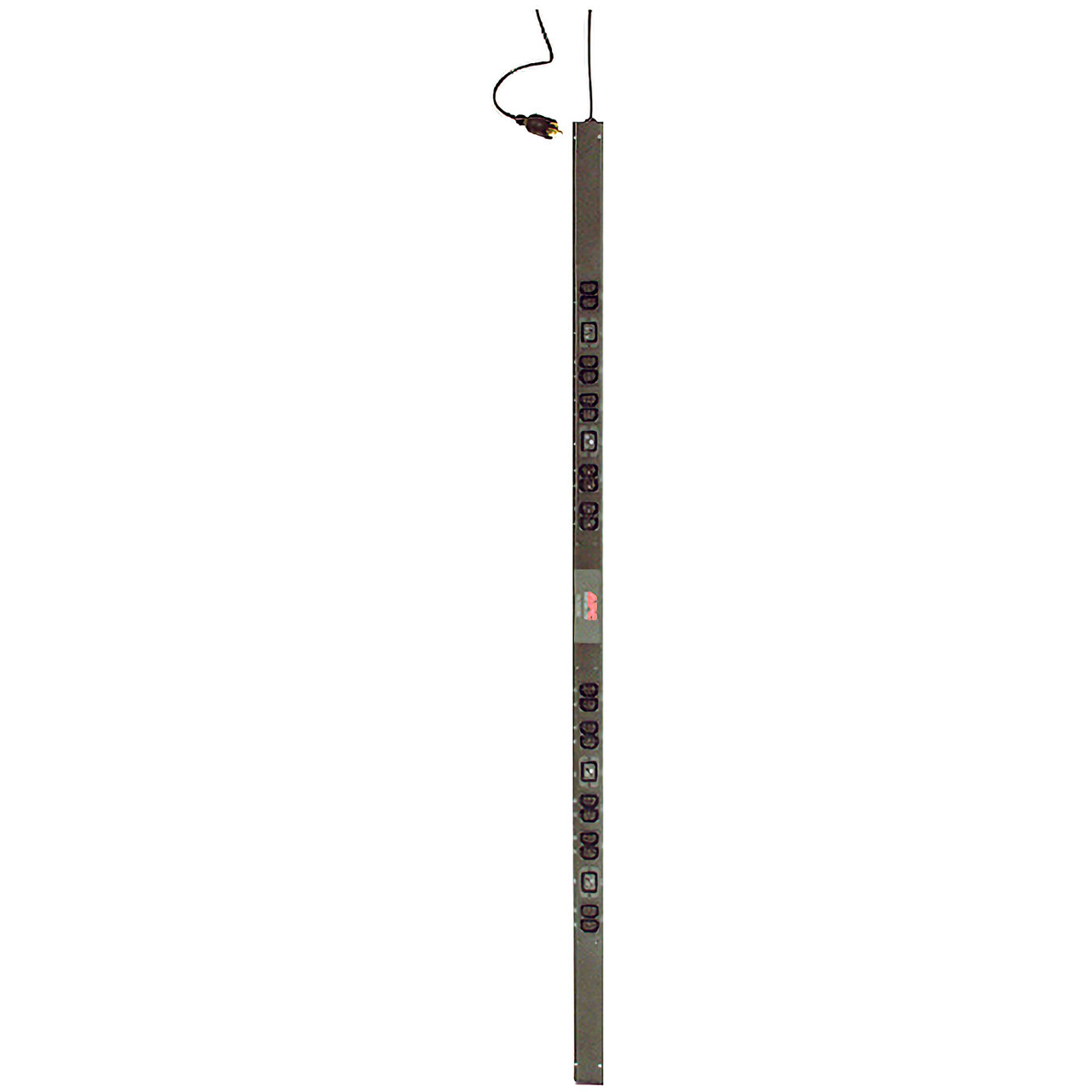

APC AP7540 Rack PDU Basic Zero U 20A 208V - Twenty C13 Plugs and Four C19 Plugs

AP7540 - Overview

• Features:

  • Supports up to 20A, 208V power distribution
  • Equipped with 20 C13 and 4 C19 outlets for versatile power connections
  • Zero U design saves rack space
  • Built to withstand demanding data center environments


• Specifications:

  • Color: Black
  • Product or Component Type: PDU
  • PDU Type: Basic
  • Cord Length: 10ft (3.05m)
  • Number of Cables: 1
  • Input Voltage: 200V, 208V, 230V
  • Height: 63.74" (161.9cm)
  • Width: 2.20" (5.6cm)
  • Output Voltage: 208V
  • Depth: 1.73" (4.4cm)
  • Net Weight: 10.71lbs (US)(4.86kg)
  • Mounting Location: Side
  • Mounting Preference: No preference
  • Input Plug Type: NEMA L6-20P
  • Mounting Mode: Rack-mounted
  • Mounting Position: Vertical
  • Line Rated Current: 16A
  • Input Current Limits: 20A
  • Load Capacity: 3300VA
  • Input Frequency: 50/60Hz
  • Outlet Type and Quantity: 20 IEC 60320 C13, 4 IEC 60320 C19


• Item Includes:

  • APC AP7540 Rack PDU
  • Installation guide
  • Rack Mounting brackets
  • Toolless Mounting Kit
