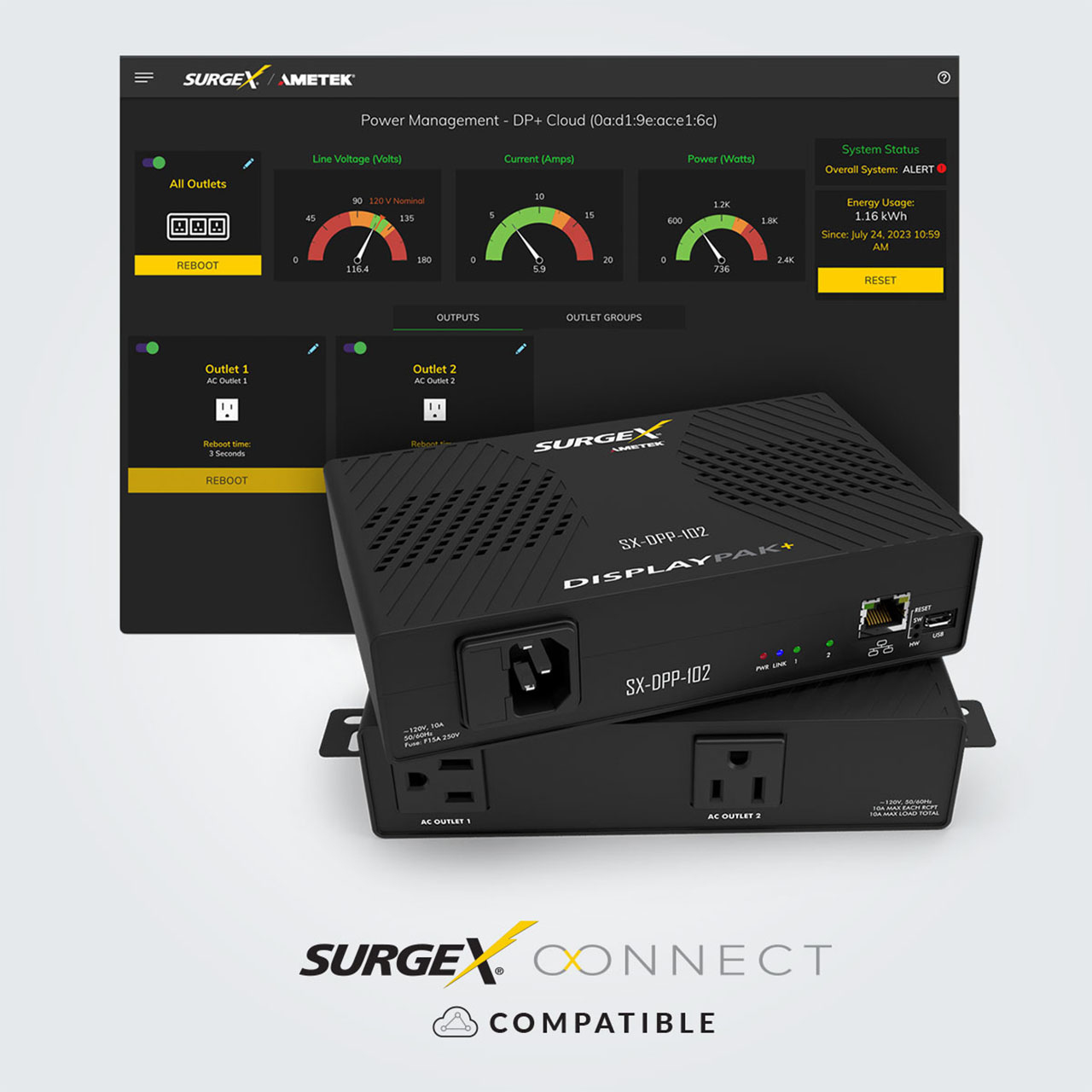

The SurgeX DisplayPak+ SX-DPP-102 is a compact, Wi-Fi and cloud-enabled, two outlet PDU. It operates at 120VAC and features a detachable line cord. Each of the outlets are individually switchable. Additionally, there is a Micro USB port and an RJ-45 port that can be used for control, configuration, and firmware updates.
The DisplayPak+ User Interface Software supports a wide range of remote-control features, including sequencing, scheduling, measurement, AutoPing, and adjustable trigger functions. The supported protocols are 802.11, HTTP, HTTPS, SNMPv1, SNMPv3, NTP, mDNS, 802.1X, and LDAP. Measurement capabilities include voltage, current, power, frequency, and energy consumption. Events and measurements are recorded in the device's internal memory. In the case of a triggered event the DisplayPak+ can send a notification.
The SX-DPP-102 shall have a load rating of 10A at 120V, provide surge protection, EMI and RFI filtration. The DisplayPak+ can withstand surge pulses up to 6000V.
