APC AP8865 NetShelter Metered Rack PDU with 36x C12 / 6x C19 and 2x NEMA 5-20R Outlets - 3 Phase 30A

ITEM #: APC-AP8865 MFG #: AP8865

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$2,375.00

Our Price:

$1,850.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.


AP8865 - Overview

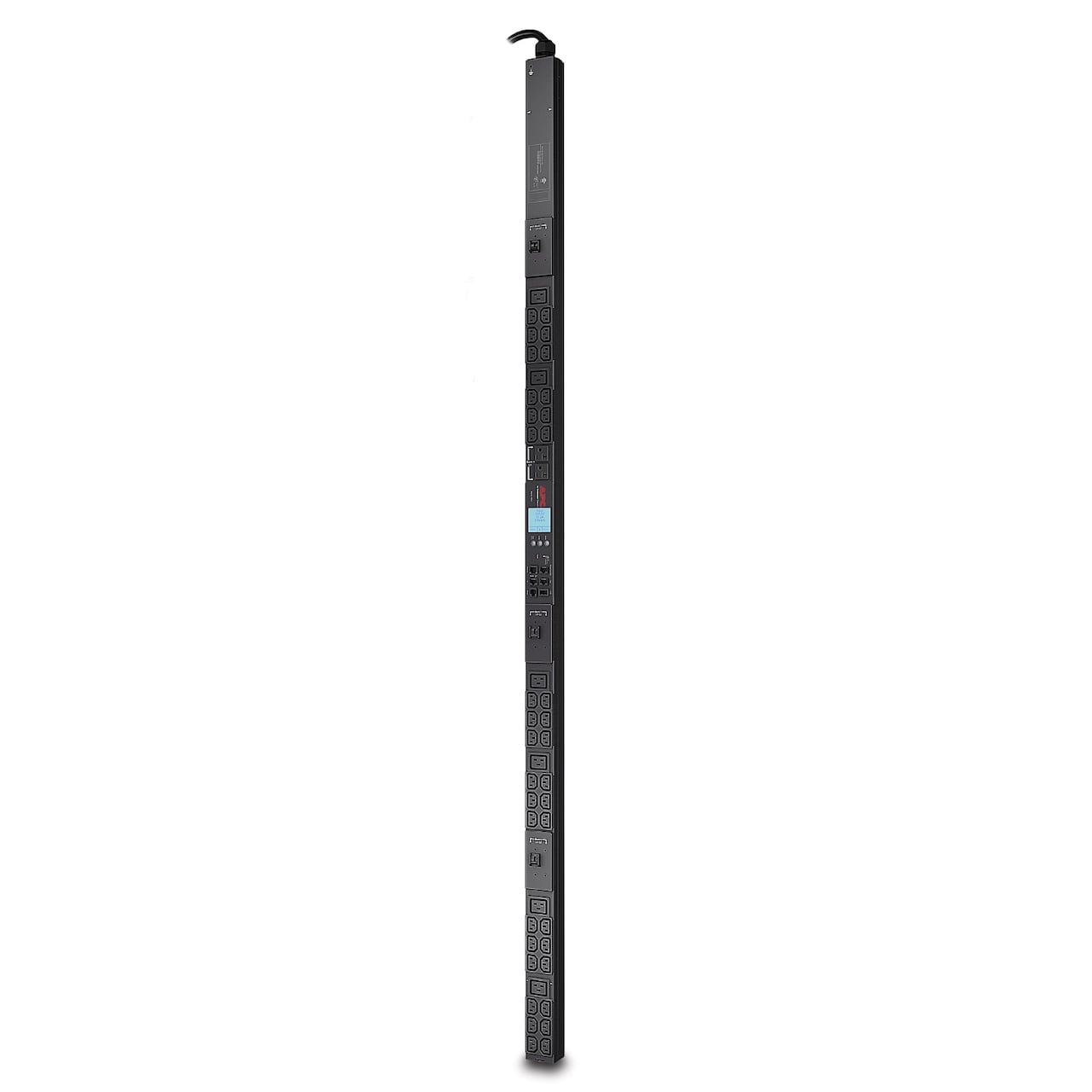

The APC AP8865 is a NetShelter Metered Rack PDU with 36x C12, 6x C19 and 2x NEMA 5-20R Outlets. It's a 3 Phase 30APC Metered Rack PDUs distributing reliable rack power via a single input with multiple output receptacles. Real-time remote monitoring and user-defined alarms help prevent potential circuit overloads that can cause accidental power loss to critical equipment. Easily access, configure, and manage this metered PDU from remote locations. A network management interface provides standards-based management via Web, SNMP, and Command Line Interface. Locking IEC receptacles enable locking power cord compatibility to reduce the probability of accidentally disconnecting cords and dropping loads. Volts, amps, real power (kW), and energy (kWh) data is provided to support energy management. An embedded log memory to reports historic metered data. Display details current, power, and voltage measurements and offers local user access. An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separately model AP9335T or AP9335TH). Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events and breakers are ultra-low profile.

  • Specifications:

    • Color: Black
    • Product or Component Type: PDU
    • PDU Type: Metered
    • Cord Length: 5.97ft (1.82m)
    • Number of Cables: 1
    • Input Voltage: 208V 3-phase
    • Height: 70.5" (1791mm)
    • Width: 2.2" (56mm)
    • Output Voltage: 120V, 208V
    • Depth: 1.8" (46mm)
    • Product Weight: 16.67lbs (7.56kg)
    • Mounting Location: Side

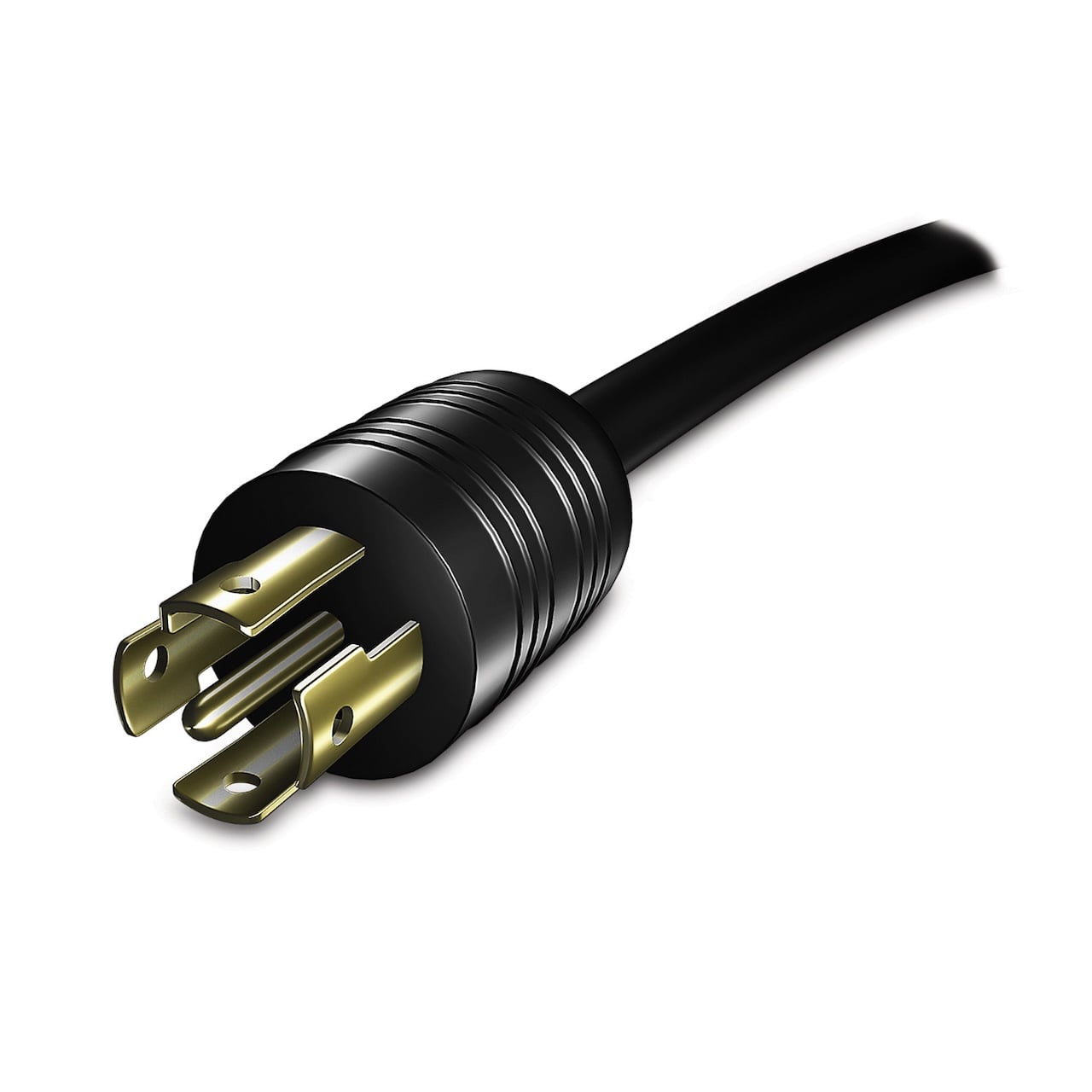

    • Input Plug Type: NEMA L21-30P
    • Mounting Mode: Rack-mounted
    • Rack Units: 0U
    • USB Compatible: No
    • Mounting Position: Vertical
    • Line Rated Current: 24A
    • Max Line Current: 30A
    • Input Current Limits: 30A
    • Load Capacity: 8600VA
    • Input Frequency: 50/60Hz
    • Outlet Type and Quantity:
      - 2x NEMA 5-20R
      - 36x IEC 60320 C13
      - 6x IEC 60320 C19.

  • Item Includes:

    • 1x AP8865 PDU
    • 1x Installation guide
    • 1x Rack Mounting brackets
    • 1x Safety guide
    • 1x Serial configuration cable.
