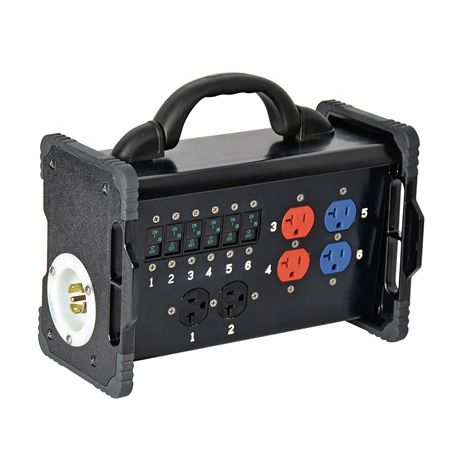

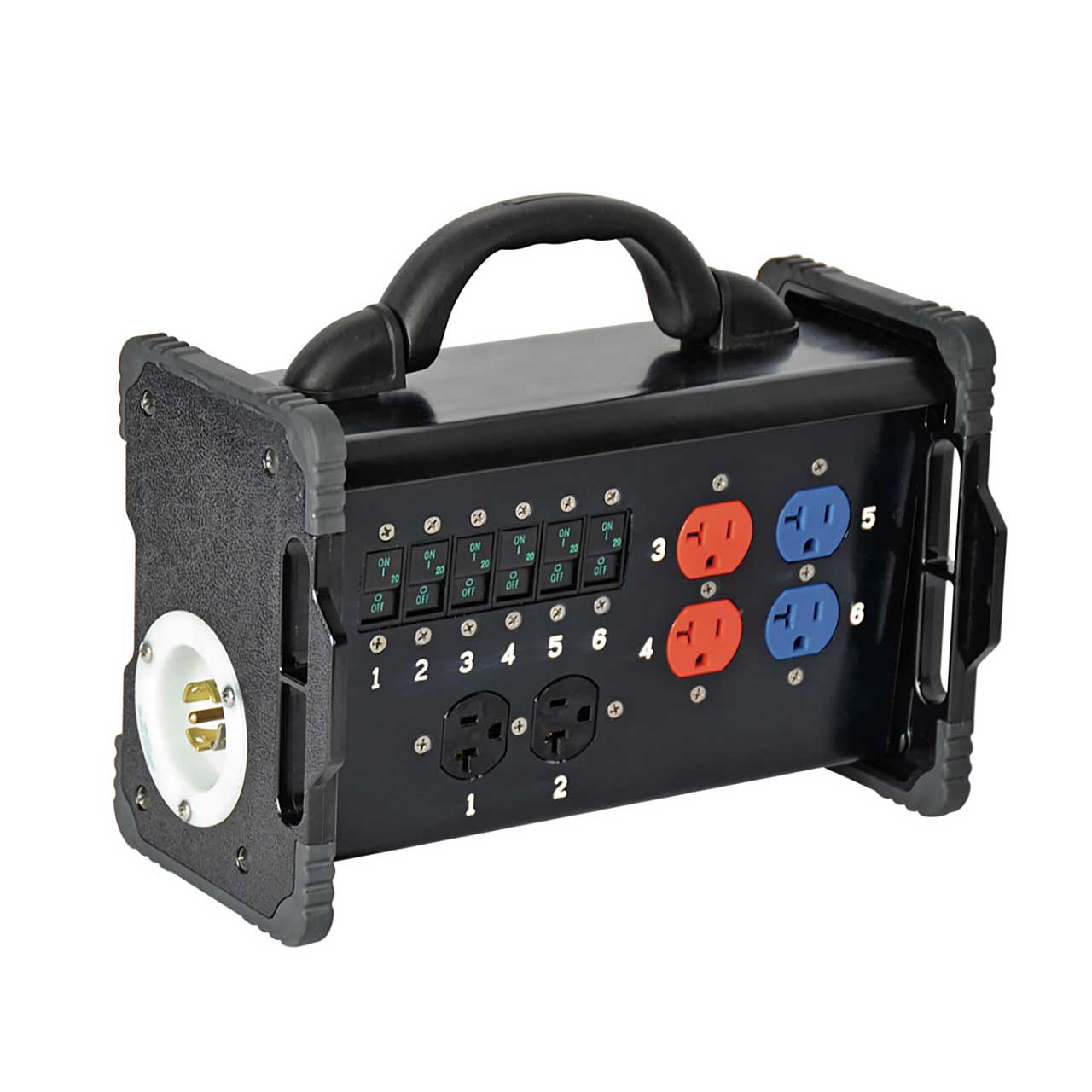

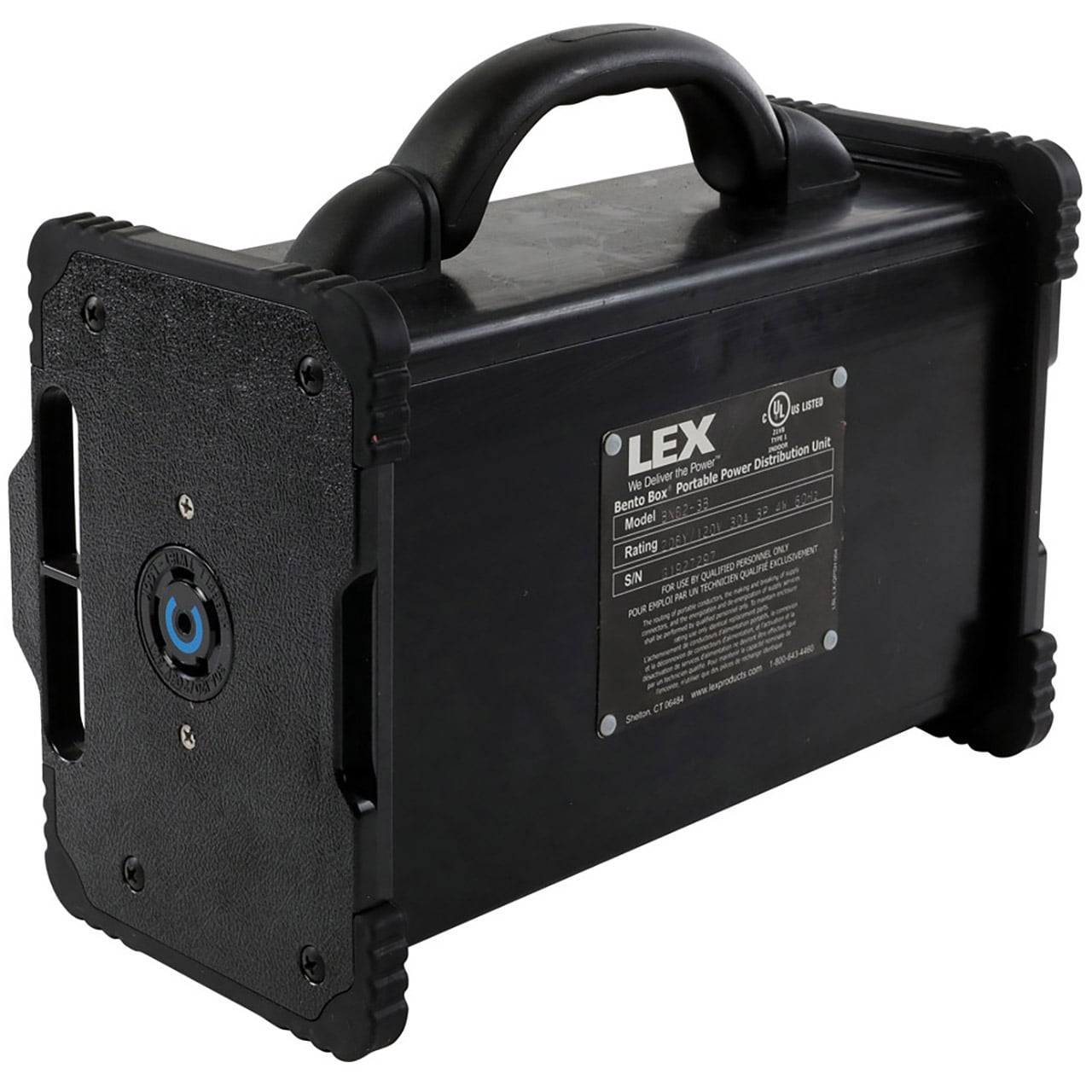

LEX BNB2-3B 30 Amp Bento Box to (3) NEMA 5-20 Duplex Receptacles Power Distribution Box with Feed Thru

BNB2-3B - Overview

• Features:

  • Fed from 30 Amp power, this compact unit provides (6) NEMA 5-20, 20 Amp breaker protected outlets for lighting and audio equipment as well as tools for a wide range of applications
  • Hydraulic magnetic circuit breakers help prevent nuisance tripping at higher temperatures
  • Optional bracket and threaded insert available that enables easy mounting vertically or horizontally with C-clamp
  • Stackable and compact for easy storage
  • Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
  • Circuit breakers are mounted flush for easy access and numbered for easy circuit identification
  • Collapsible handle and end plate grips for easy handling in tight spaces


• Specifications:

  • Rating: 30 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60 Hz
  • Environmental Rating: NEMA Type 1 (Indoor Use)
  • Input: 1x NEMA L21-30, 30 Amp, 4-pole, 5-wire, 120/208Y VAC, locking inlet, panel mount
  • Feed Thru: Yes
  • Main Breaker: None
  • Output: 3x NEMA 5-20 (Edison), 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, split-wired for 6x 20 Amp circuits, panel mount
  • Overcurrent Protection: 6x 20 Amp, 125 VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers
  • Enclosure Type: Bento™
  • Dimensions: 11.50"L x 5.90"W x 7.60"H
  • Weight: 6.5lbs
  • Agency Approval: cULus Listed
