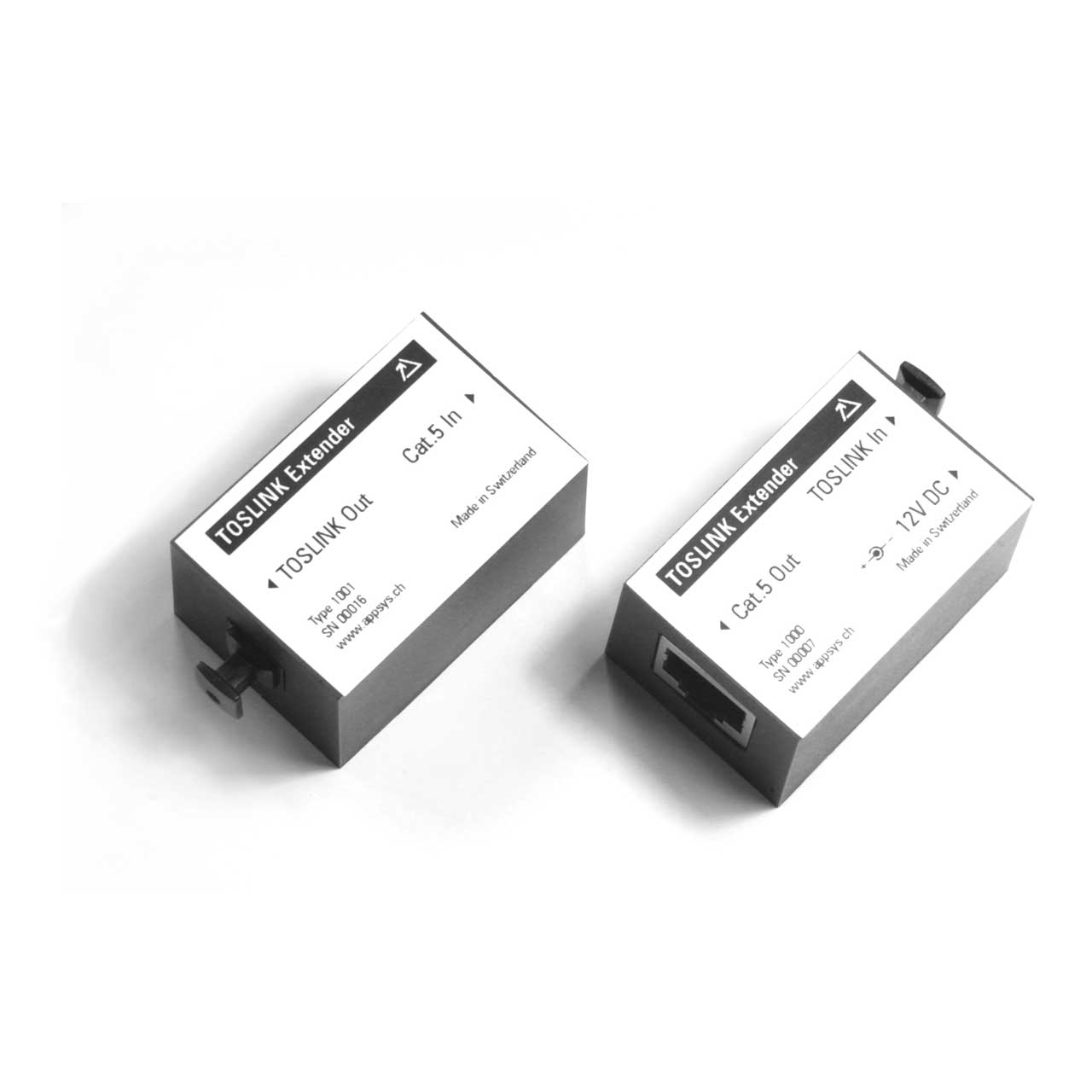

Appsys Pro Audio ADX-8 8 Channel ADAT/Toslink Extender (Complete Kit)

ADX-8 - Overview

• Features:

  • Lossless, uncompressed 1:1 transmission
  • Standard TOSLINK optical jacks at input and output
  • Eliminates hum, buzz and noise thanks to galvanic isolation (ground loop removal)
  • Near-zero latency (<1us)
  • Compatible with all digital audio formats (ADAT Lightpipe, SPDIF, AC-3 (Dolby Digital), DTS etc.)
  • Up to 96 kHz sample rate / 12.5 MBit signalling rate
  • Cost-effective installation using standard Cat5 network cabling
  • Quality product "Made in Switzerland"


• Specifications:

  • Input/Output: Optical connector, F05 Type TOSLINK compatible

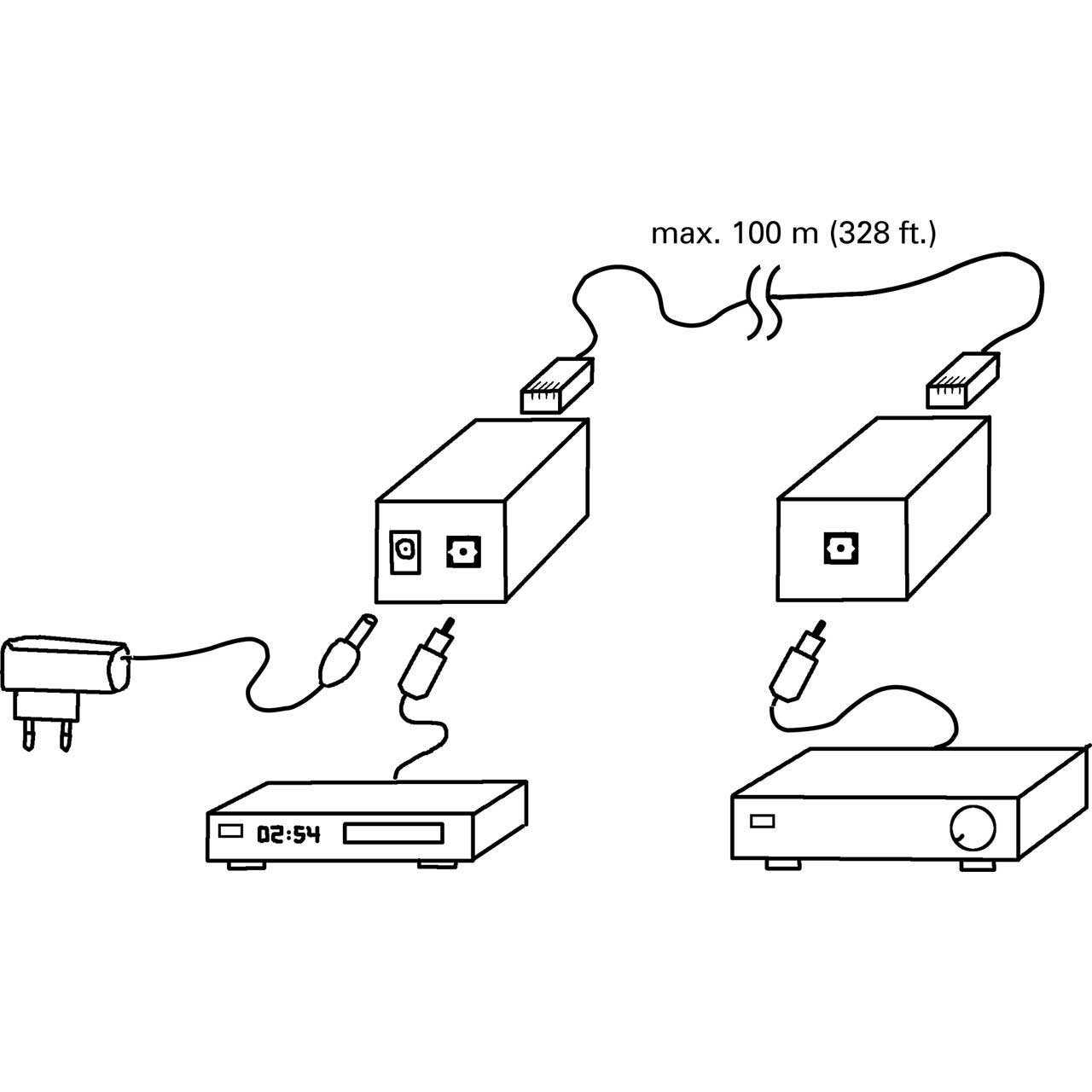

  • Maximum distance between sender and receiver: 100m (328 ft.)
  • Transmitted audio formats: ADAT, SPDIF, Dolby Digital 5.1 and other TOSLINK compatible formats (up to 96 kHz sample
    rate/15 Mbit data rate)
  • Power supply: 9-12VDC 100mA, Plug:ID=2.5mm OD=5mm Length=9mm Polarity: Center Positive


• Item Includes:

  • 1x ADX-8 Sender (TOSLINK in to Cat5 out)
  • 1x ADX-8 Receiver (Cat5 in to TOSLINK out)
  • 1x Wide-Range AC Power Adapter (country specific plug)
  • 1x User Manual


• Warranty:

  • 2 Year Manufacturer's Warranty
