Blustream ADC11AU Analog to Digital Audio Converter (ADC)

ADC11AU - Overview

• Features:

  • ADC (Analog to Digital Audio Converter) converts analog left / right stereo audio input to both S/PDIF optical and coaxial digital PCM outputs
  • Both optical digital and coaxial digital output simultaneously
  • Converts to 16-bit 48kHz digital audio
  • Plug-and-play solution


• Specifications:

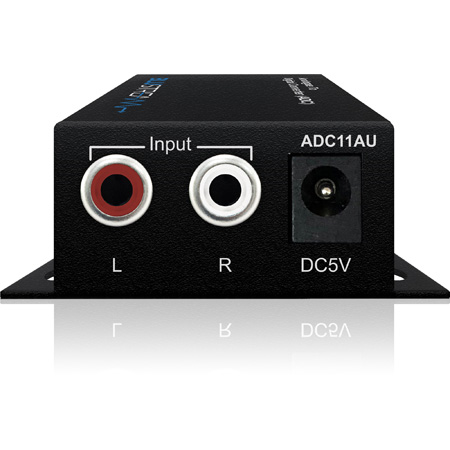

  • Audio Input Connectors: 2 x Analog stereo left / right (RCA)

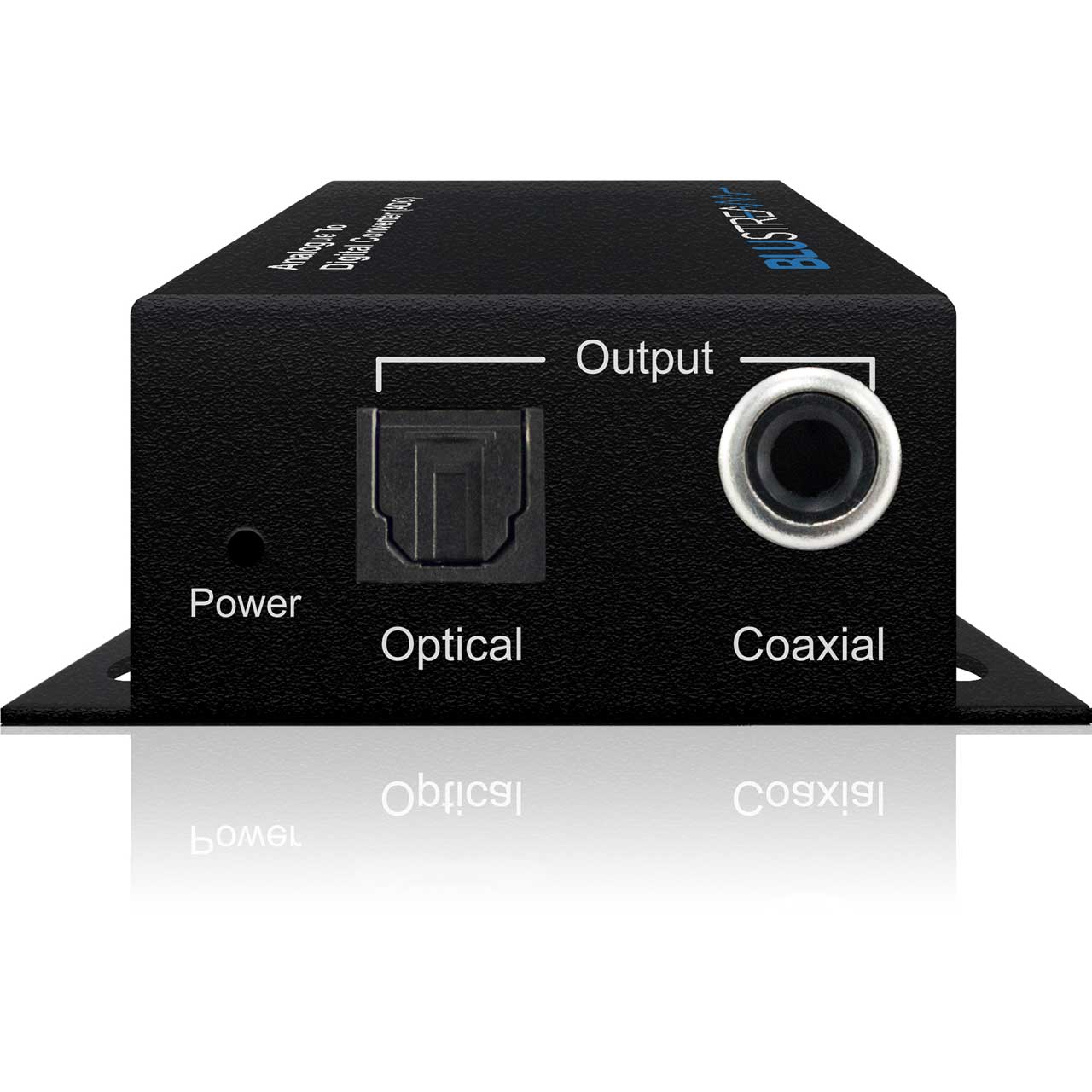

  • Audio Output Connectors: 1 x Optical (S/PDIF) & 1 x RCA (S/PDIF)
  • Product Dimensions (W x D x H): 65 x 55 x 25mm (with connections)
  • Product Dimensions (W x D x H): 55 x 55 x 25mm (without connections)
  • Product Weight: 0.1kg (excluding accessories)
  • Carton / Box Dimensions (W x D x H): 165 x 110 x 90mm
  • Shipping Weight: 0.3kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 5V/1A DC, barrel type connector


• Item Includes:

  • 1x ADC11AU
  • 1x 5V/1A DC power supply
  • 1x Mounting kit
  • 1x User manual


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242000699
