AVPro AC-EXUSB-3-WP-KIT 100M USB 3.2 GEN1 Wall Plate Extender Kit - US - White Faceplate

ITEM #: APR-EXUSB3WPKIT MFG #: AC-EXUSB-3-WP-KIT

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,670.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


AC-EXUSB-3-WP-KIT - Overview

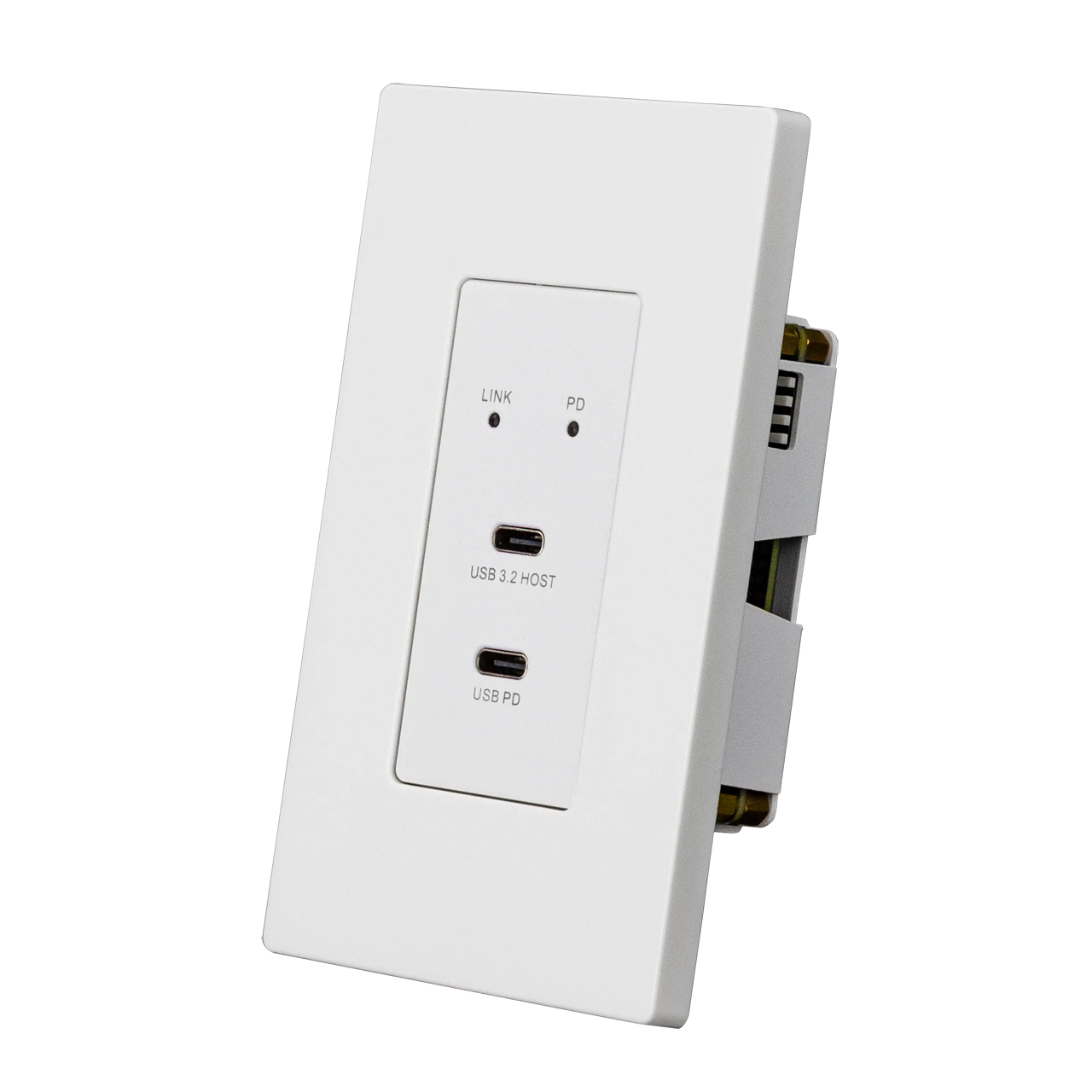

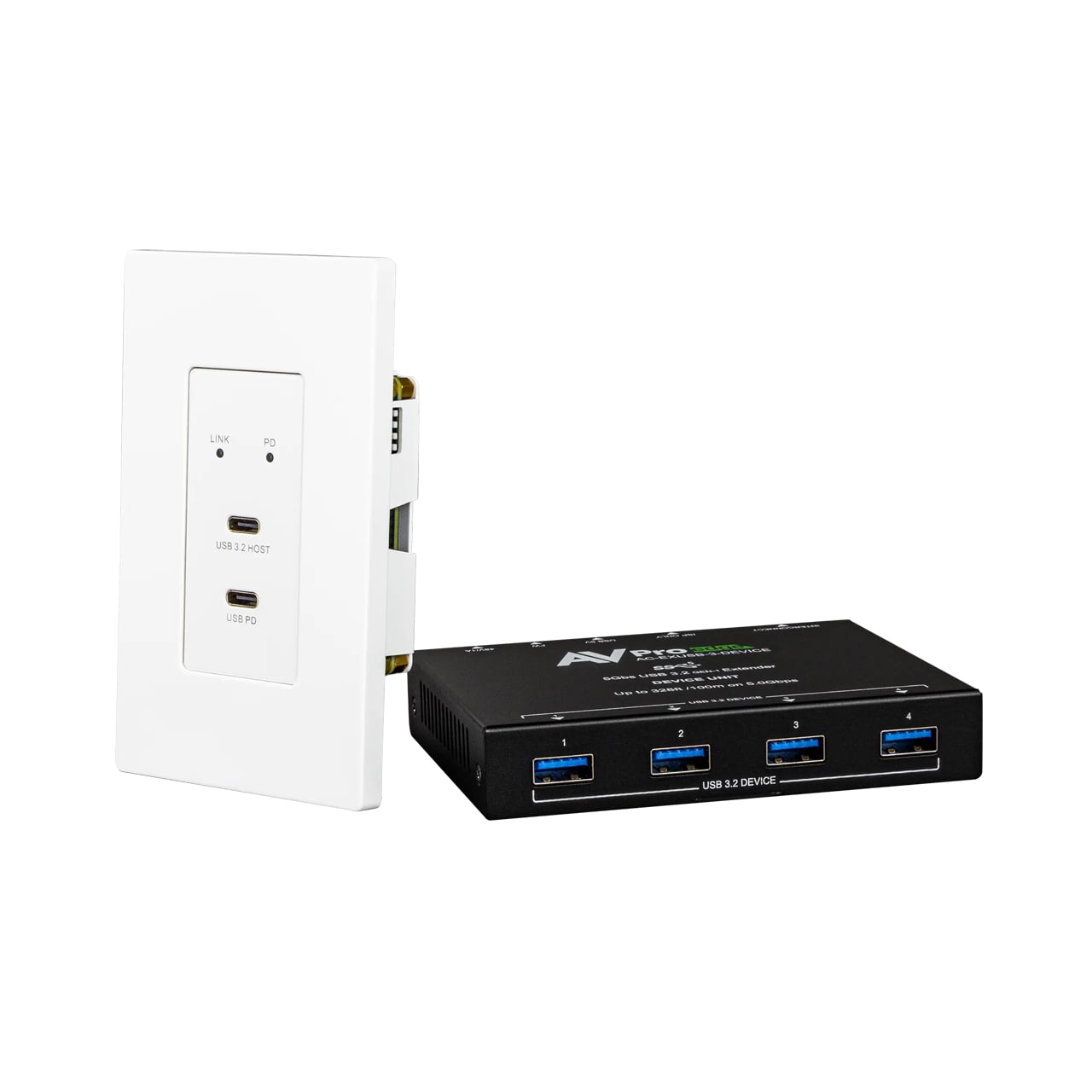

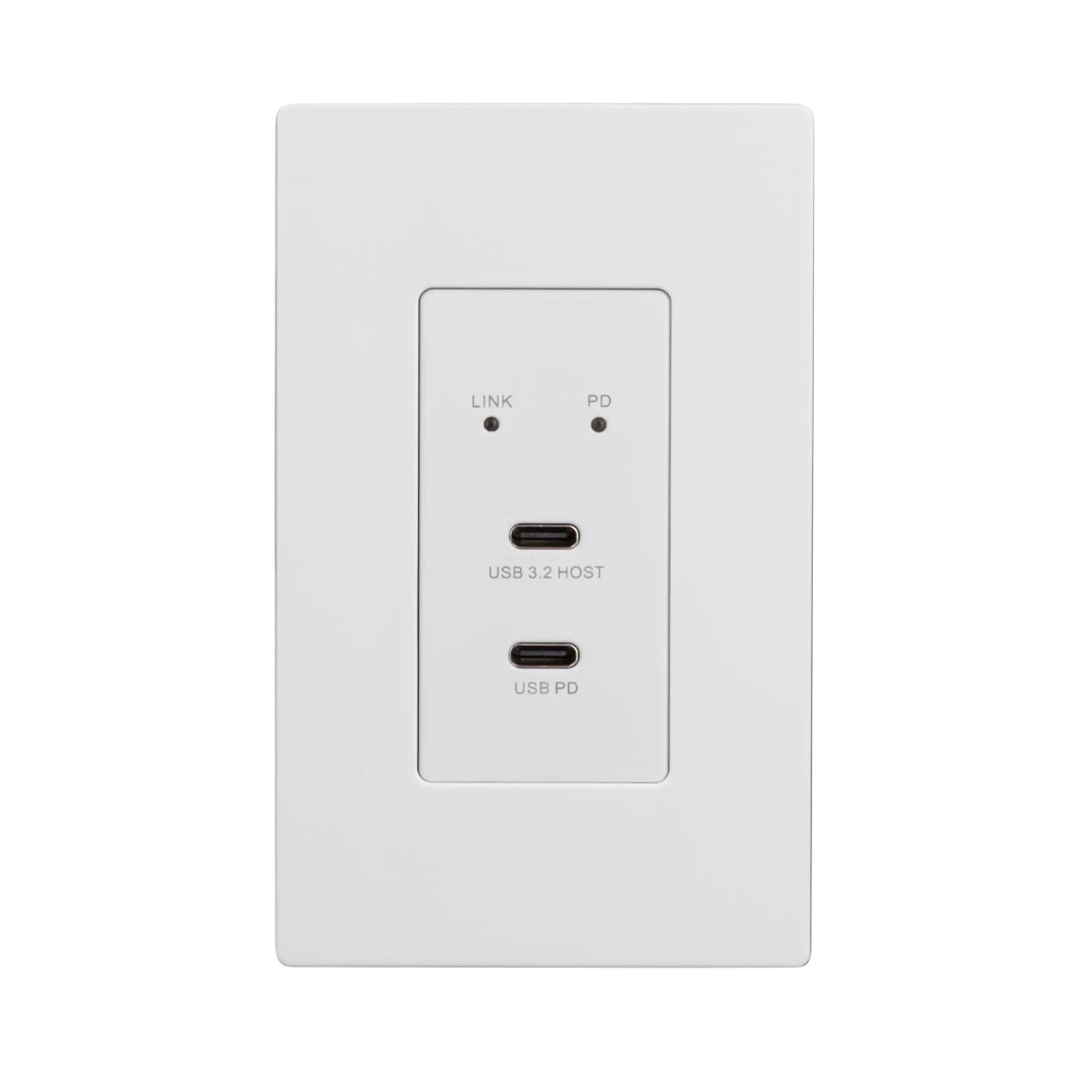

The AVPro AC-EXUSB-3-WP-KIT provides USB 3.2 Gen 1 HOST extension functionality in a sleek wall plate form factor, extending USB signals over UTP category cabling up to 328 feet (100 meters). This kit pairs a wall plate transmitter with a desktop receiver, simplifying professional AV installations by integrating USB extension capabilities directly into the wall. The wall plate features a USB Type-C 3.2 Gen 1 data port for connecting laptops and other USB hosts, plus a dedicated USB Type-C Power Delivery input for supplying up to 65W to connected devices-eliminating the need for separate charging adapters at the table.

  • Features:

    • Wall plate form factor with USB Type-C 3.2 Gen 1 connectivity
    • Up to 65W USB Power Delivery to connected devices
    • Extend USB signals up to 100 meters over CAT6A cabling
    • Supports USB 3.2 Gen 1, 2.0, and 1.0 devices simultaneously
    • Fits standard US and EU single-gang electrical boxes
    • PoH support powers receiver via category cable
    • DisplayLink support for USB video devices
    • UVC 1.5 and UAC 3.0 compliant

  • Specifications:

      Distance
    • Distance (CAT6A): 328ft (100m)

      USB Capabilities
    • Compatibility: USB 1.0, 2.0, 3.X up to 3.2 Gen1
    • Bandwidth: Up to 5 Gbps (3.2 Gen1)
    • Power:
      - USB 1.0/2.0: 5V, 500 mA
      - USB 3.X: 5V, 900 mA
    • Transfer Type: Asynchronous, Isochronous, Bulk, Control, Interrupt
    • UVC Support: Up to UVC 1.5
    • UAC Support: Up to UAC 3.0
    • Virtual Graphics: DisplayLink
    • Consumed USB Tiers: 1 Tier (This device adds one tier to the USB chain due to its embedded USB hub.)

      Consumed USB Tiers
    • USB 2.X: 1 Tier - HDBaseT Chipset
    • USB 3.X: 2 Tiers - HDBaseT Chipset + Embedded Hub

      Ports
    • HDBaseT: RJ45
    • Power: 2-Pin Locking Phoenix
    • USB Host: USB Type-C
    • USB Device: 4x USB Type-A

      Environmental
    • Operating Temperature: 23°F - 125°F (-5°C - 51°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Humidity Range: 5% - 90% RH (No Condensation)

      Power
    • Power Consumption (Total): 24W max
    • Power Supply:
      - Input: AC 100V - 240V ~ 50/60Hz
      - Output: DC 48V 1A

      Dimensions
    • Dimensions Host without Faceplate (LxWxH): 1.24" x 1.97 x 4.13 (30.6mm x 50mm x 104.8mm)
    • Dimensions Device (LxWxH): 3.1" x 4.3" x .75" (79mm x 109mm x 19mm)
    • Packaged Dimensions (LxWxH): 7.6" x 5.4" x 3.3" (192.1mm x 136.5mm x 84.1mm)
    • Weight Host (Unit): 0.33lbs (0.15kg)
    • Weight Device: 0.44lbs (0.20kg)
    • Weight (Packaged): 2.05lbs (0.93kg)

  • Warranty:

    • 10 Year Limited Warranty
