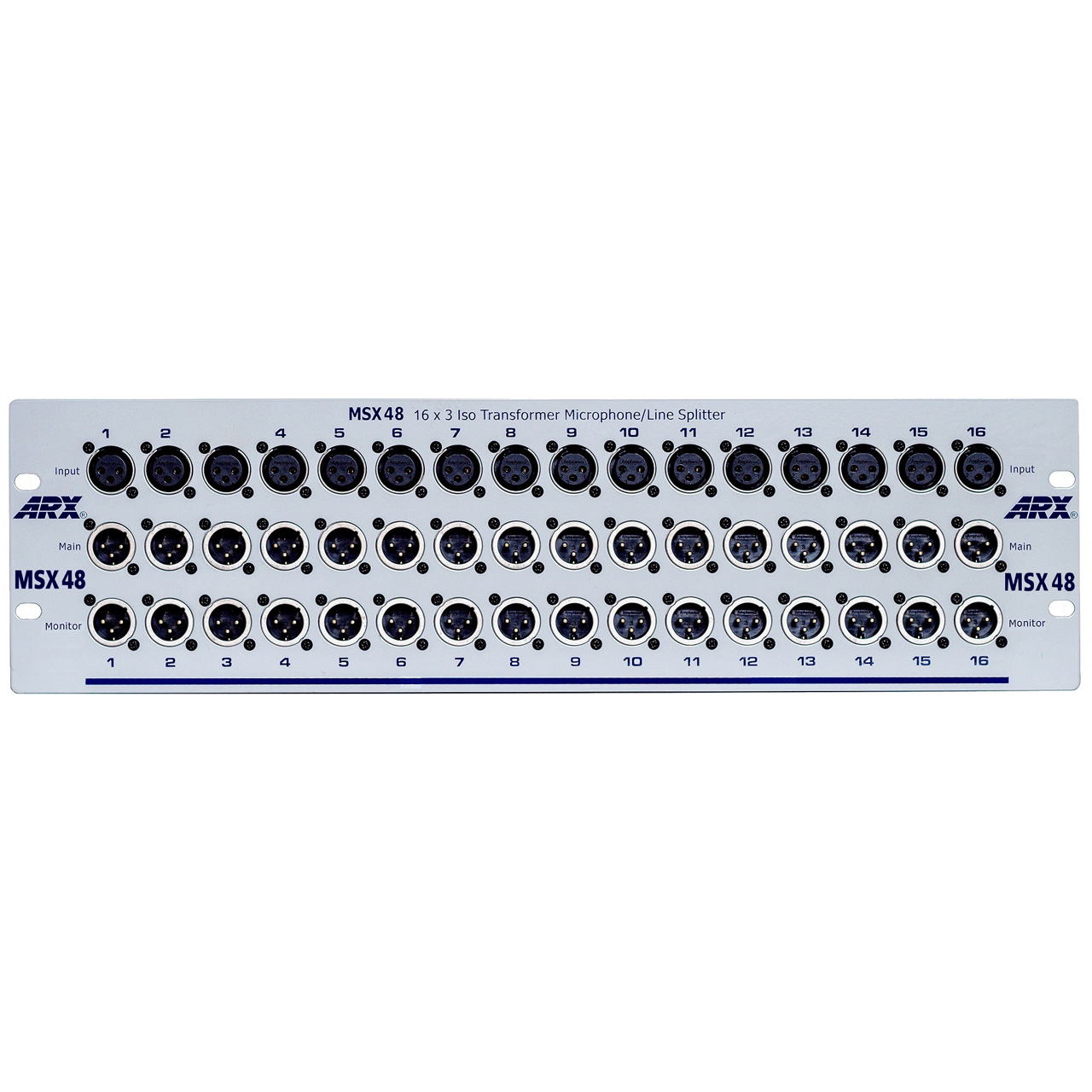

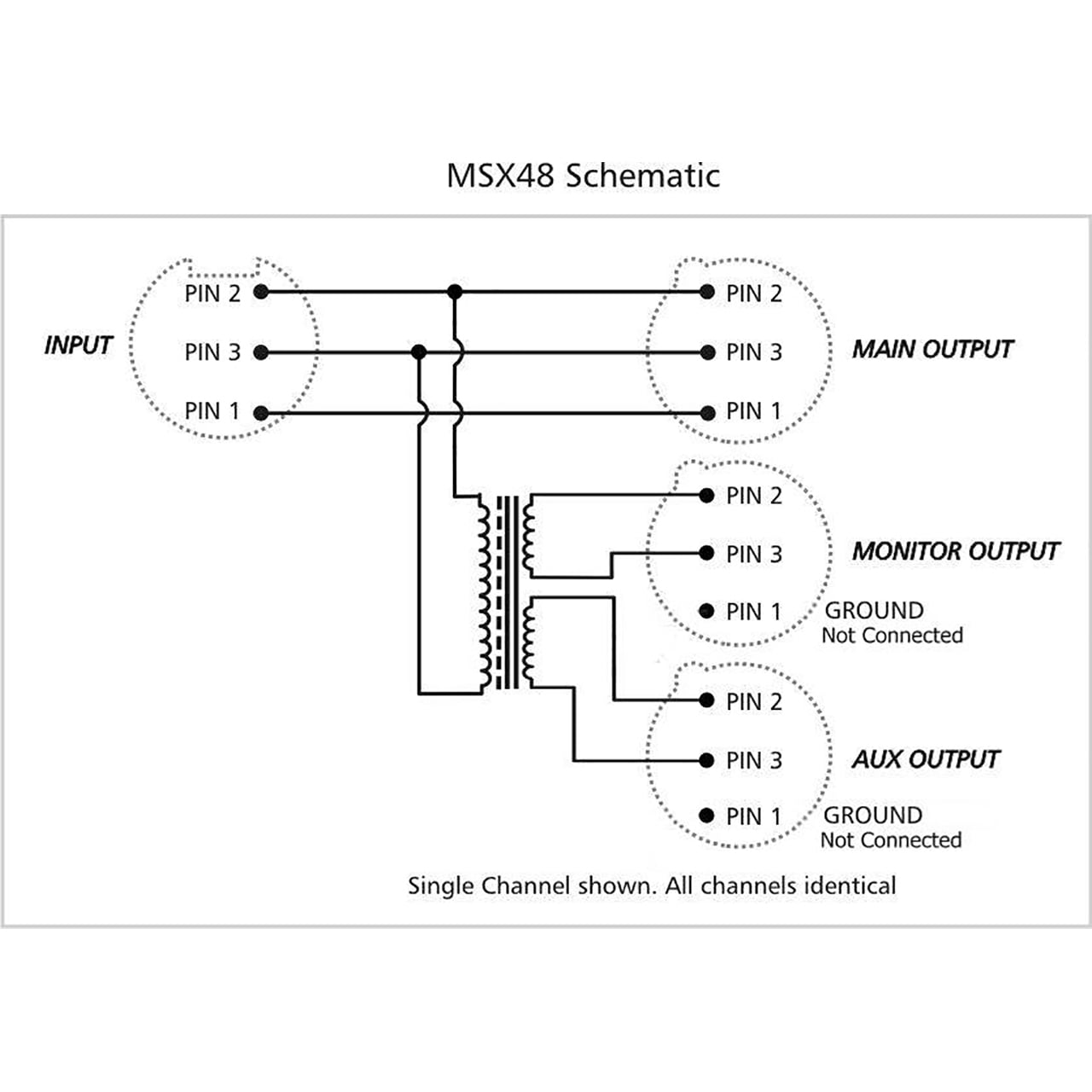

The ARX MSX48 Transformer isolated Microphone/Line Splitter has been developed to deliver the performance required by the increasing complexity of today's standards of audio production. The MSX 48 is a totally passive device requiring no power, and consists of Sixteen channels of transformer isolated ultra low noise Microphone/Line Splitter. Each of these channels has a direct looped Main/FOH feed, and a transformer isolated Monitor split on the front panel.

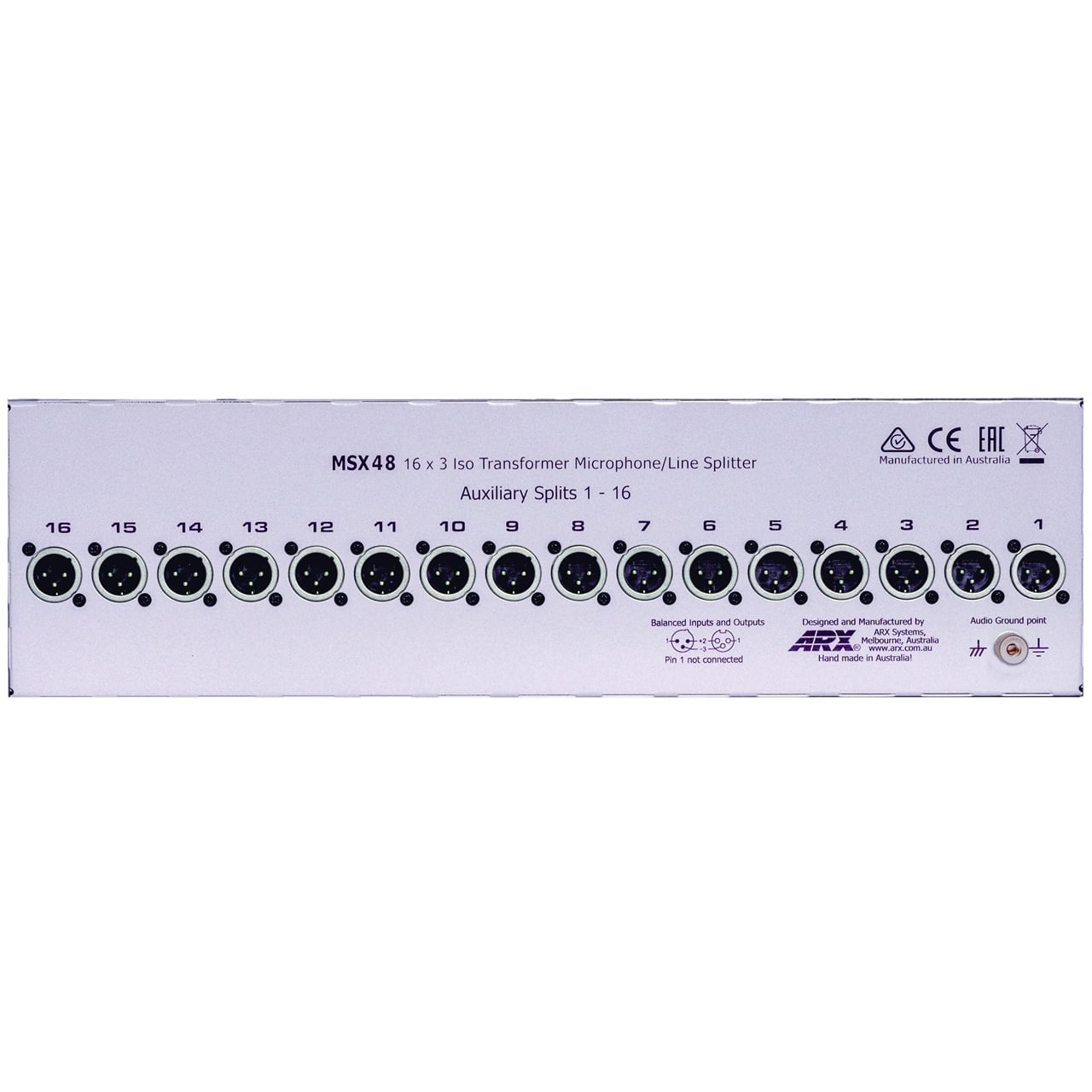

On the rear panel is an Auxiliary transformer isolated split ideal for use with a remote recording truck or TV feed. The all-steel chassis of the MSX 48 provides strong interference resistant shielding. Internally, state-of-the-art transformers deliver superb audio quality and total galvanic isolation. The MXS 48 is the user-friendly and straightforward answer to multi channel signal splitting requirements.
