ARX MSX48 16 Channel / 3 Way Transformer Splitter


Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

ARX MSX 48 - Overview

The MSX 48 is the ultimate answer to multi channel signal splitting requirements. The ARX MSX 48 Transformer isolated Microphone/Line Splitter has been developed to deliver the performance required by the increasing complexity of today's standards of audio production.

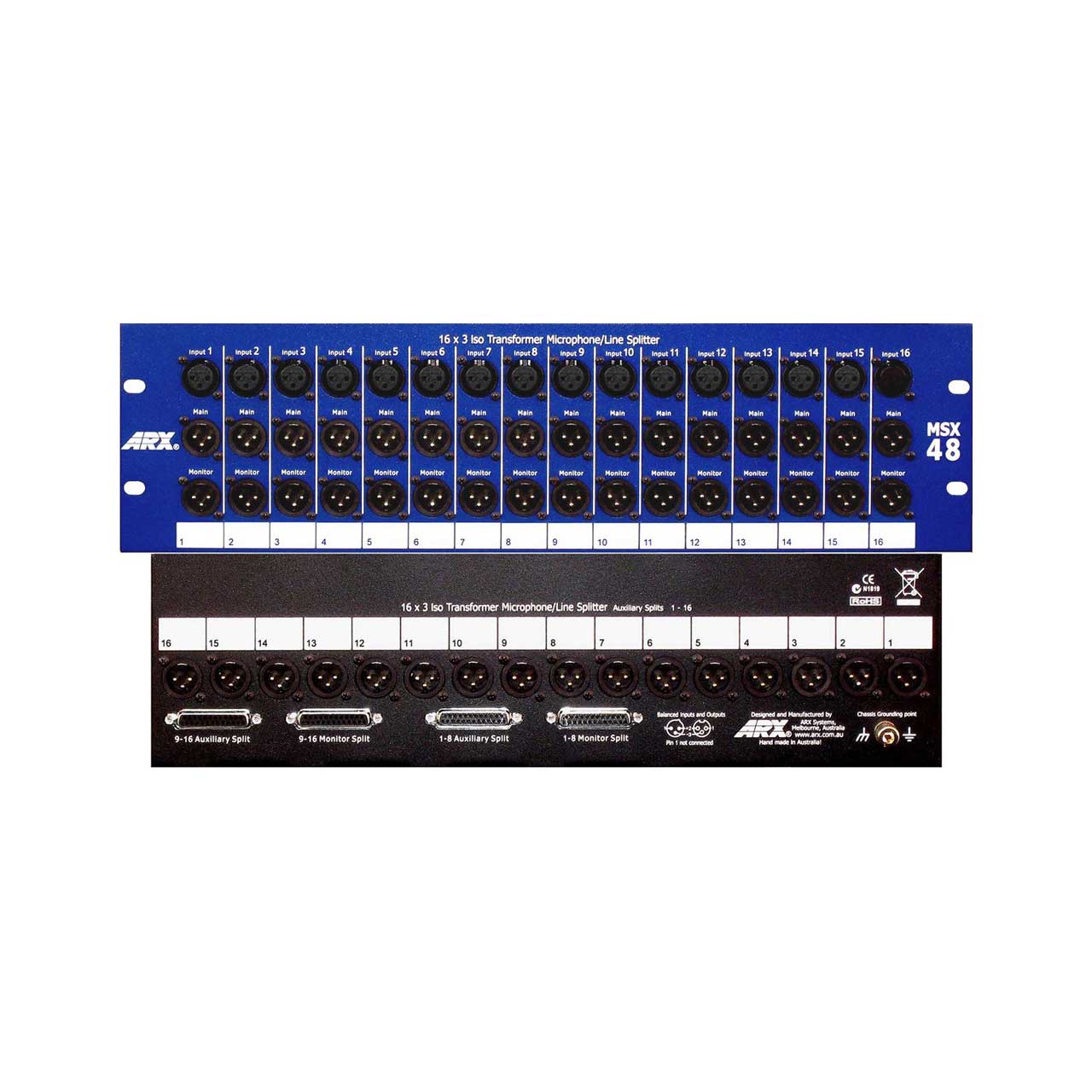

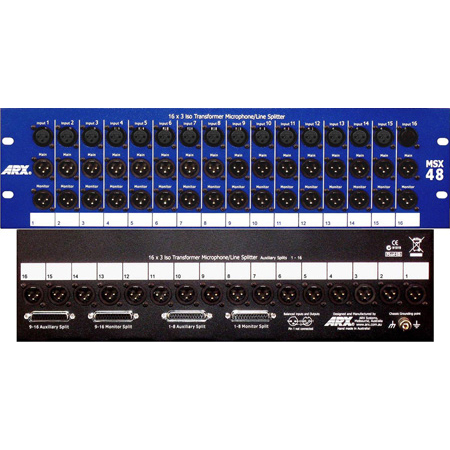

The MSX 48 is a totally passive device requiring no power, and consists of Sixteen channels of transformer isolated ultra low noise Microphone/Line Splitter. Each of these channels has a direct looped Main/FOH feed, and a transformer isolated Monitor split on the front panel. On the rear panel is an Auxiliary transformer isolated split ideal for use with a remote recording truck or TV feed. Duplicates of the Monitor and Aux splits are also provided on two sets of dual 25 pin D connectors on the rear panel, wired to Tascam wiring protocol. Numbered marker panels on the front and rear provide a space where individual channel connections can be noted. The all-steel chassis of the MSX 48 provides strong interference resistant shielding. Internally, state-of-the-art transformers deliver superb audio quality and total galvanic isolation.

  • Features:

    • Sixteen channel / three way split per channel
    • Passive unit - no power required
    • Ultra low noise design
    • D sub connectors on rear panel for Monitor and Auxiliary Splits (Tascam wiring)
    • Transformer Balanced Inputs and Outputs
    • Inputs and Main Outputs hard wired to pass Phantom Power
    • Intuitive, 'user friendly' layout
    • Flawless audio performance
