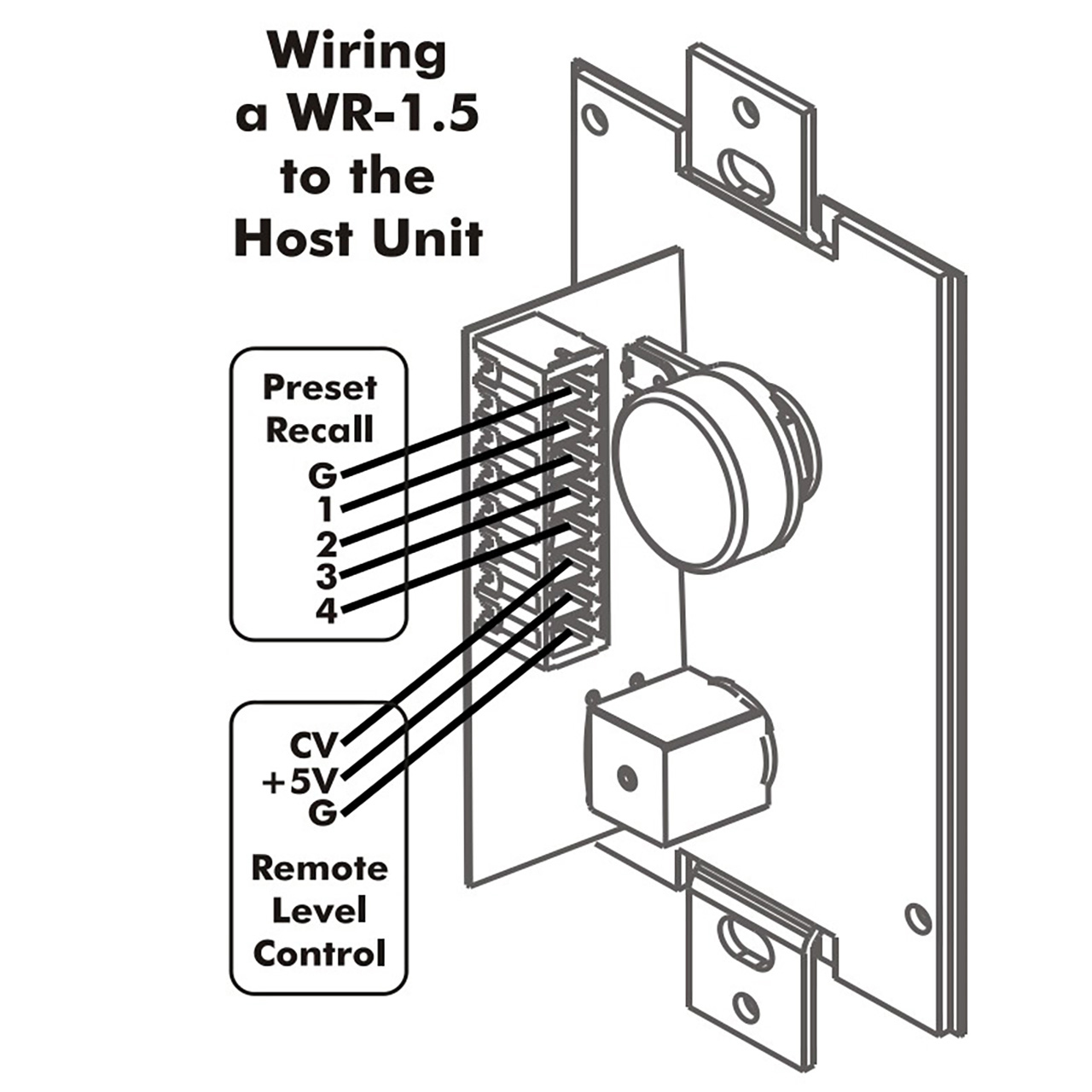

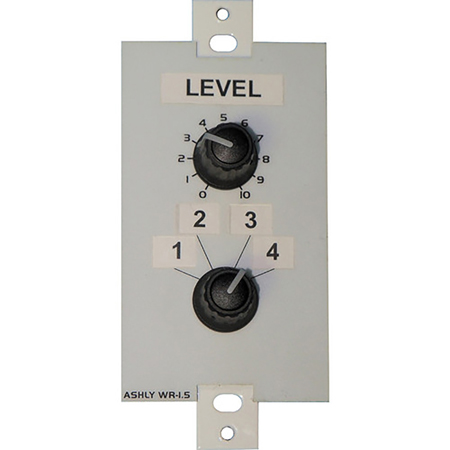

The Ashly Audio WR-1.5 remote has a single potentiometer for remote level control, plus a 4-position rotary switch for preset recall. The remote level control uses DC voltage provided by the host unit to attenuate one channel of that unit. The preset recall switch selects presets 1-4 on the host unit.
Compatible Ashly Products Include:
- nX amplifiers (level only)
- nXe and nXp amplifiers
- Pema amplifiers
- NE multi-channel amplifiers (with DSP)
- NE two-channel amplifiers (level only, with DSP)
- ne24.24M matrix processor
- NE8800/4800/4400 network processors (level only)
- NE 800, 1600, and 2400 two-channel power amplifiers
- NE 4250 and 8250 multi-channel power amplifiers (with DSP)
- NE 8800, 4800, and 4400 DSP processors (using logic I/O)
