Audio-Technica ATCS-A60TX IR Receiving Unit for ATCS-60 IR Conference System

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Audio-Technica ATCS-A60TX IR Receiving Unit for ATCS-60 IR Conference System

    Manufacturer: Audio-Technica

    Item #: AT-ATCS-A60TX   •   MFG #: ATCS-A60TX



    List Price:$1,440.00
    Our Price:$925.00

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.


    • Special Order Item: non-cancelable, non-returnable, non-refundable.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


    Share!

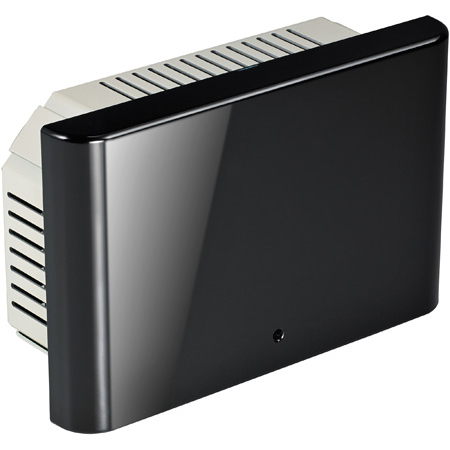

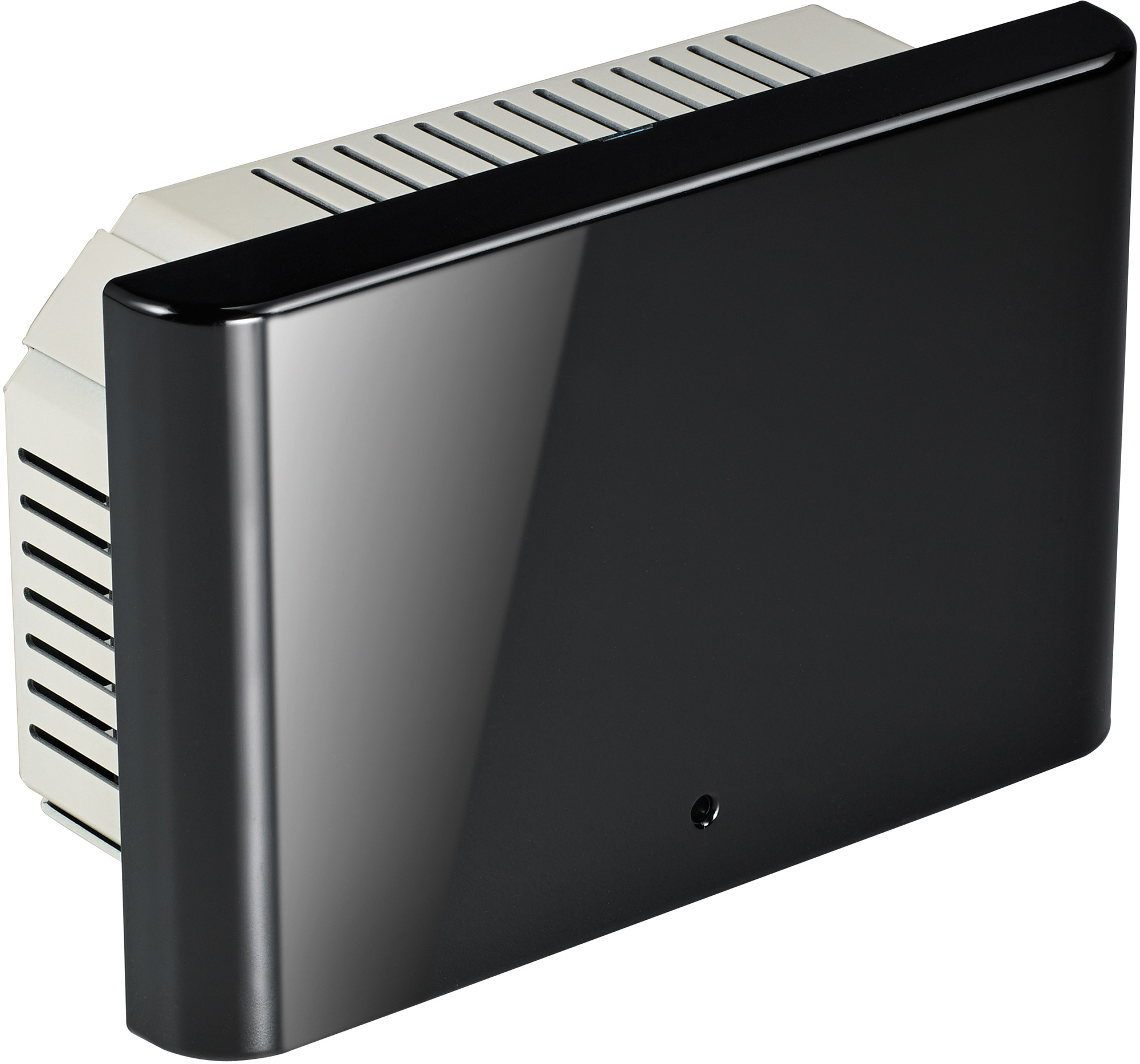

    The ATCS-A60TX is a long range infrared Transmitter for the ATCS-C60 conference system.

    In the digital era, safeguarding of sensitive data and information is paramount. With Audio-Technica's infrared conference system your wireless signal will not leave the room; it is impossible to capture from another building, for example. Compared to a UHF system which uses radio waves that behave in the same way as a radio station transmitting over a broad area, the infrared system excels at protecting your information, as no leakage is possible.


    • Features

      • Works in unison with the ATCS-A60RX receiver and ATCS-A60MX mixer
      • Expands the operational area of infrared transmission and reception in a very large room, or in a room with a high ceiling
      • The ATCS-A60MX can control up to four A60TX infrared transmitters and four A60RX infrared receivers
      • In a very large room, the system can manage up to 4 A60MX controllers for a total of 16 A60RX receivers and 16 A60TX transmitters
      • The joint use of A60TX and A60RX can extend transmission of infrared signal within a room by up to 20m
      • Infrared transmission keeps the information inside the room
      • Multiple conference systems can thus be used in adjacent rooms while ensuring the protection of your data
      • The A60TX transmitter is equipped with a ¼" thread mount adapter to allow simple and quick fixing onto a camera, tripod, wall or ceiling
      • Connects to the ATCS-A60MX controller via a 75Ω BNC coaxial cable

    • Specifications

      • Overall System
      • Operating Frequencies: Infrared
      • Number Of Channels: Voice: 5 channels, Monitor: 4 channels, Data: 2 channels
        Antenna & Distribution
      • Operating Bandwidth: 8 - 10 MHz
      • Operating Distance: 20 m (approx.)
      • Operating Temperature Range: 0° to +40°C
      • Connections: BNC Terminal (75 ohms) x1
      • Power Supply: 24 V DC (provided by ATCS-A60MX)
      • Dimensions: 149 mm x 44 mm x 97 mm (W x H x D)
      • Weight: 386 g (approx.)
        Infrared
      • Bandwidth: 1 - 10 MHz
      • Modulation Method: FM modulation
      • Data Communication: 9,600 bps

    • Warranty

      • 5 Years
