ClearCom RS-702 Two-channel Encore Analog Partyline Intercom System Beltpack 4

ITEM #: CLCM-RS-702 MFG #: RS-702

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$640.00

Availability: In Stock
iAvailability Description Popup


    RS-702 - Overview

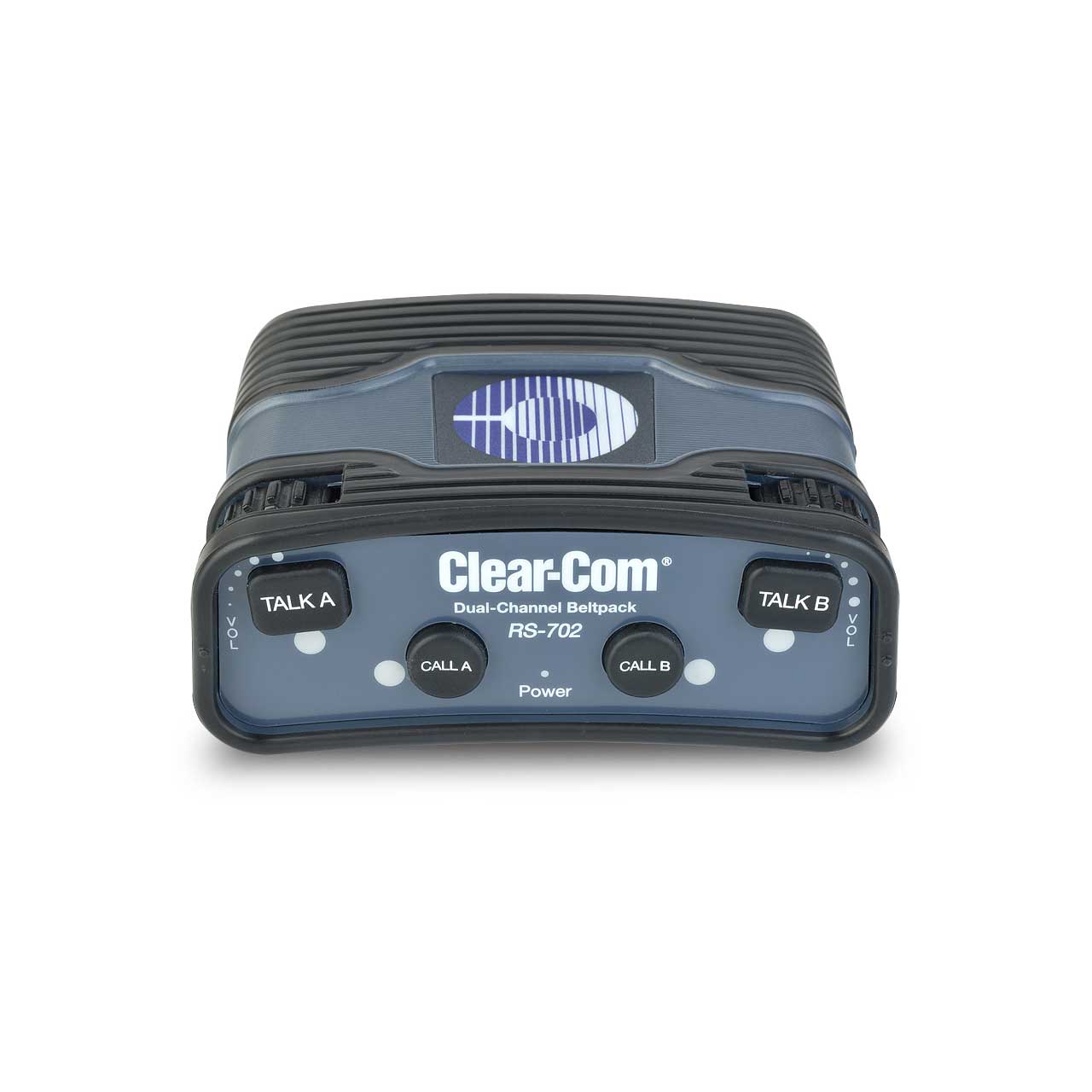

    The Clear-Com RS-702 is a 2-channel wired beltpack with an XLR-6 line connector and XLR-4M headset connector that combines high headroom with low-noise audio in a rugged, ergonomic housing. A thumbwheel level adjustment is available for Program In. The RS-702's wide dynamic range and audio contouring enable the "Clear-Com Sound" from quiet to noisy environments.

    The RS-702 is compatible with all Encore partyline products, as well as the PL-Pro line and other partyline systems via Encore interfaces.

    Live broadcasting is about delivering the highest quality programming, instantly and on cue. As viewers' expectations of broadcasting change, your production communication becomes increasingly more critical - there is no second take.

    Managing a busy broadcast schedule requires coordination between the newsroom, production control room, electronic news gathering area, master control and studio, and mobile units, making reliable communications a must. Clear-Com has the industry experience, knowledge, and intercom systems to help you make this possible.

    The Clear-Com Concept
    Clear-Com is a closed-circuit intercom system that consistently provides high-clarity communication in high-noise and low-noise environments. A basic system consists of a single- or multi-channel power supply or main station connected to various single- or multi-channel remote stations, such as beltpacks and loudspeaker stations. Clear-Com manufactures a wide variety of both portable and fixed-installation units. All are compatible with each other. Clear-Com intercom systems can also interface with other communication systems and devices.

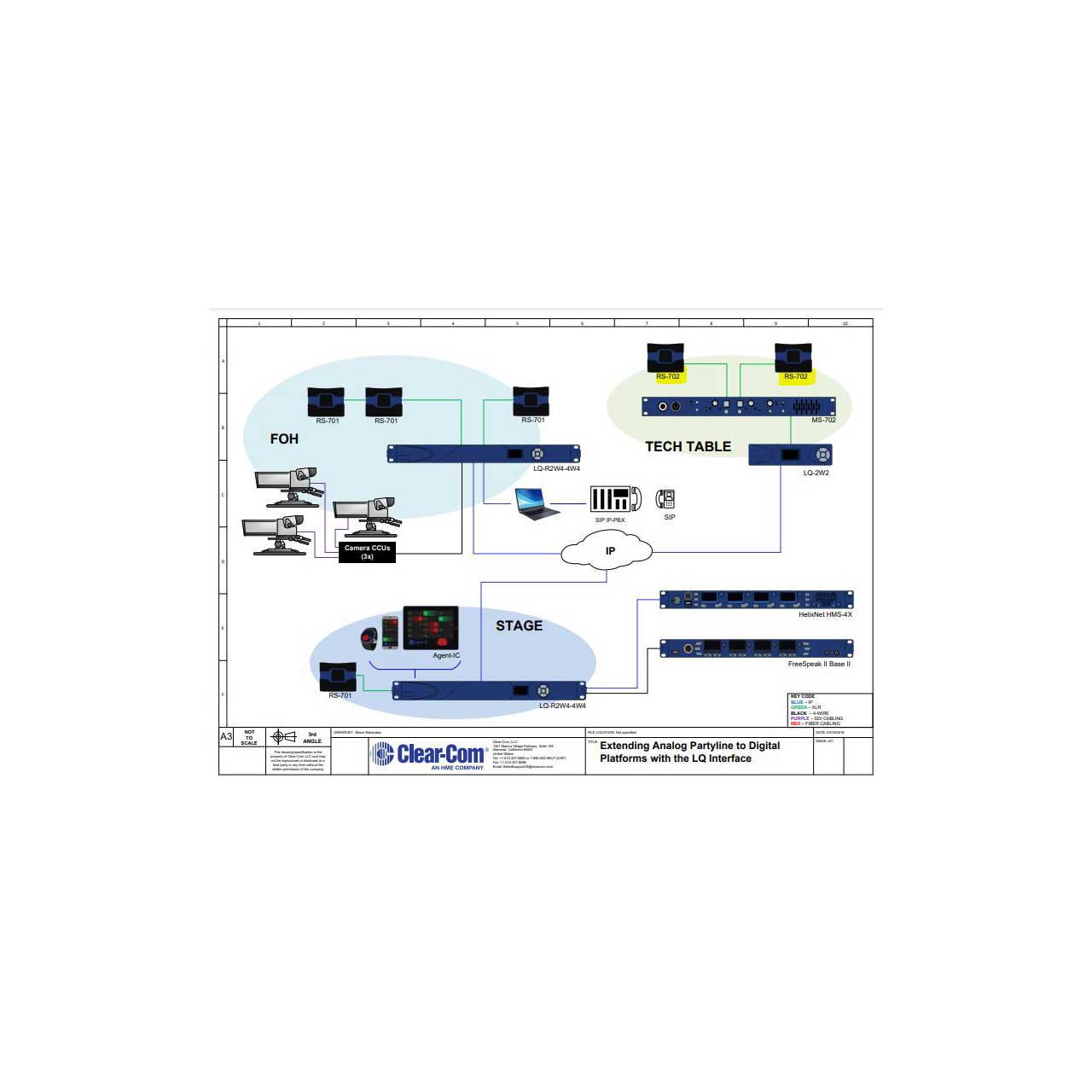

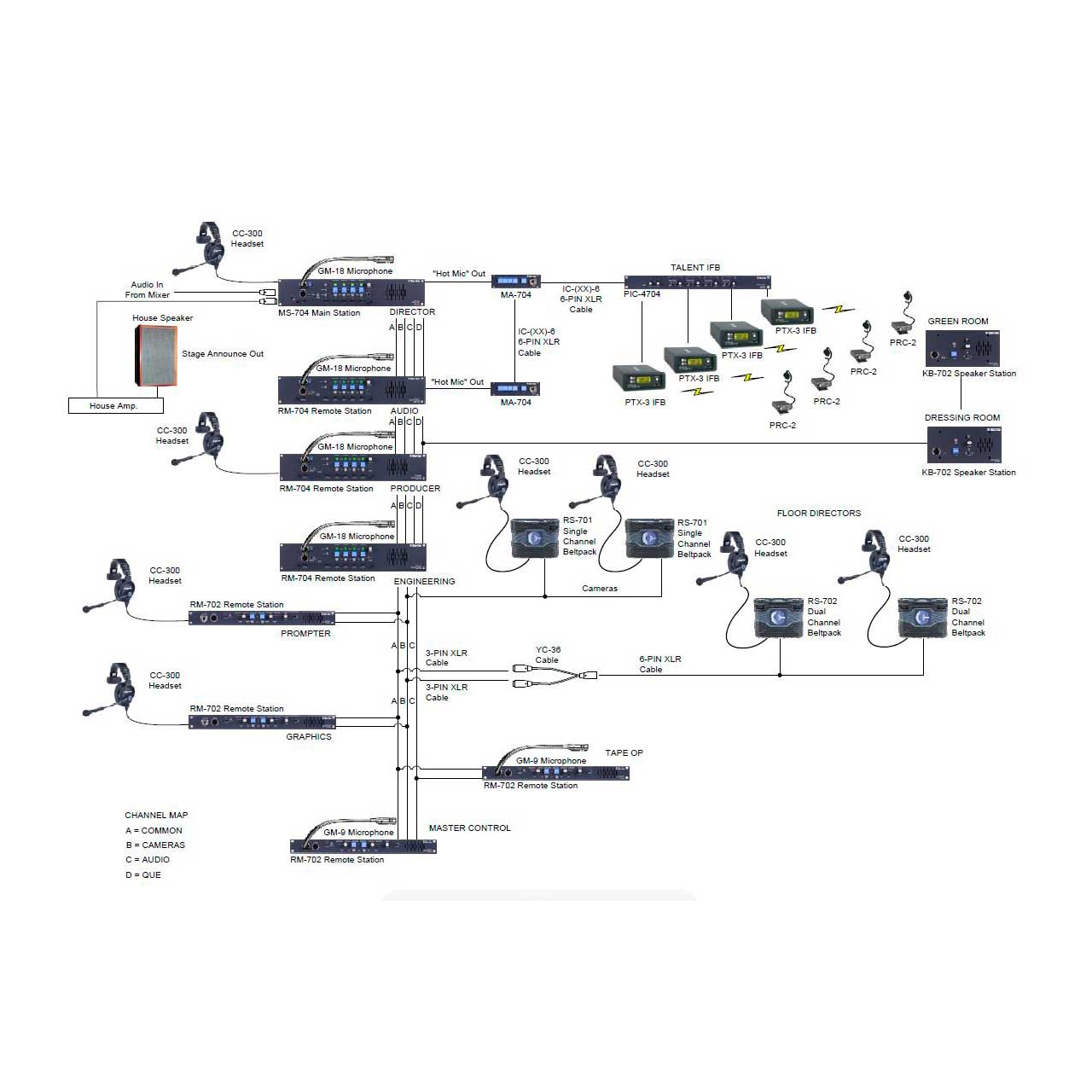

    Please Note! This item is just one component of a larger system. Please refer to the diagram for ideas and recommendations for your Clear-Com intercom system. Diagram shown is a recommendation for a small broadcast station with simple partyline.

    • Features:

      • 2-Channel Beltpack with XLR-6 Connector
      • Visual LED indicators on top of keypad
      • Tactile buttons for Call and Talk
      • Recessed rotary controls for Volume with end stops
      • Concealed, programmable DIP switches
      • XLR-6 line connectors for 2-channel + program audio
      • Fully compatible with current and previous Clear-Com analog partyline systems
      • Low operating current for more beltpack daisy-chaining
      • Rugged and strong construction
      • "Clear-Com Sound" for intelligible audio

    • Specifications:

      • Microphone Pre-Amplifier
      • Mic to Line (without limiter acting)
      • Frequency Response: 280 - 15kHz ± 3dB
      • Microphone output to line - Audio Level (-50dBm Electret input): -9dBm
      • Microphone output to line - Distortion: <0.1%
      • Microphone output to line - Signal to Noise: >65dB
      • Clear-Com Sound: Yes

        Headphone Amplifier
      • Frequency Response - Line to Headphone: 150 - 20kHz ± 3dB
      • Headphone input from line - Audio Level (-9dBm Electret input): 7dBm
      • Headphone input from line - Distortion: <0.5%
      • Headphone input from line - Signal to Noise: >50dB
      • Earphone to Mic - Crosstalk: >80dB
      • Sidetone - Adjustment Range (-80db mic input): >45dB

        Keypad Indicators
      • Power: Green LED
      • Talk A and B: Green LED
      • Call A and B: Orange LED

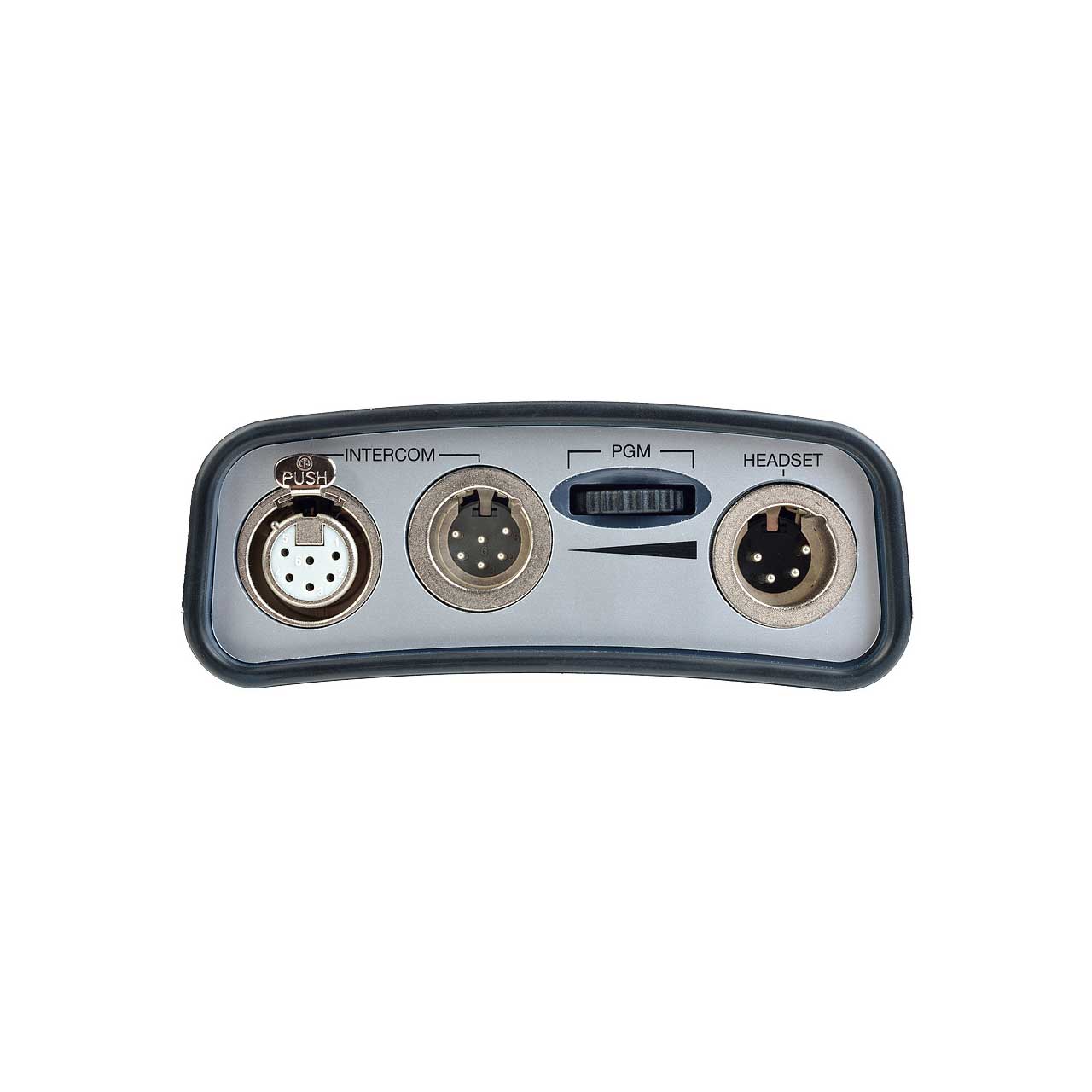

        Connectors
      • Intercom Line: (2) 6-pin XLR-M-F
      • Ch. 1 2-Wire

        Intercom Channel
      • Pin 1: Common
      • Pin 2: PL Power (+28V DC)
      • Pin 3: PL Ch-B
      • Pin 4: PL Ch-A
      • Pin 5: Program Audio
      • Pin 6: Program Audio
      • Headset: 4-pin XLR-M

        Headset Connector
      • Pin 1: Mic - (Mic Common)
      • Pin 2: Mic +
      • Pin 3: Spkr-
      • Pin 4: Spkr+ (and 0.5*VCC DC, supply between Pin 4 and Pin 1)
      • Program Audio Input: XLR-6, Pin 5 and Pin 6

        Power
      • Input Voltage Range: 12-30V DC
      • Input Current (Idle): <=25mA
      • Input Current (Max): <=40mA

        Call Voltage
      • 16.5V DC
      • Minimum Voltage Needed: 3.3V

        Environmental
      • 32°- 158°F (0°- 70°C)
      • Relative Humidity: 0 - 90%, non-condensing

    • Item Includes:

      • 1x Clear-Com RS-702 Encore Two-channel Standard Dual Listen Monaural Beltpack

    • GTIN:

      0609385475849
