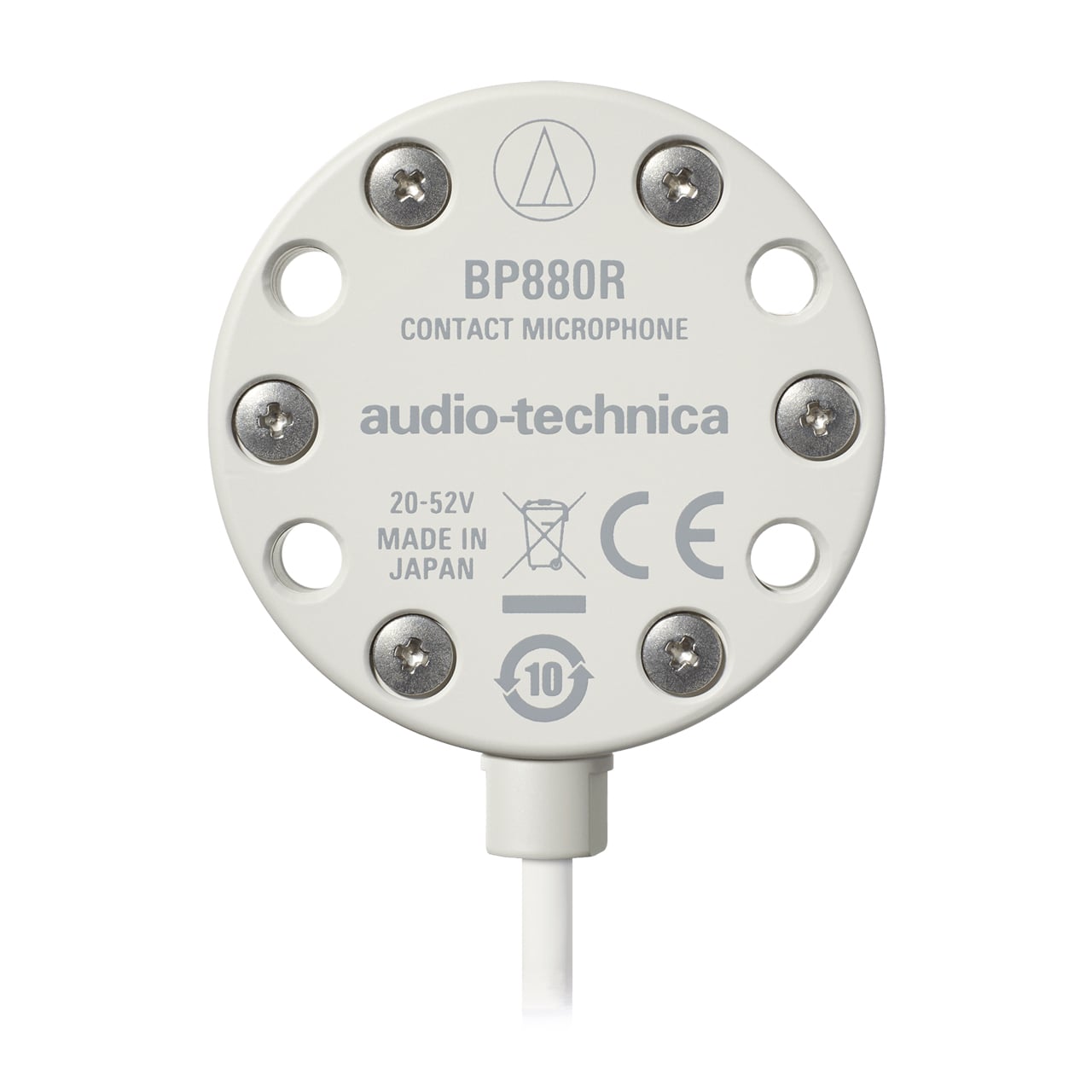

Audio-Technica BP880R IPX7 Piezoelectric Contact Mic for Impacts & Vibrations in Sports Broadcasts / Films - 65ft Cable

ITEM #: AT-BP880R MFG #: BP880R

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$564.00

Our Price:

$479.00

Availability: Preorder - Expected Availability Dec 2026.
iAvailability Description Popup


BP880R - Overview

Ideal for sports broadcasters, filmmakers, and other audio specialists eager to enhance their productions with special sound effects!

The Audio-Technica waterproof BP880R contact microphone is built to pick up the impact and surface vibrations created by skaters, skiers, swimmers, and other athletes, the BP880R is the perfect tool for immersing home viewers in all the action. It's also an excellent choice for applications beyond sports, such as capturing foley sound effects for film and video projects or picking up audio details during theater performances. Because the microphone only picks up impacts and vibrations it has very little sensitivity to airborne sound waves. Therefore, it naturally provides sound effects without ambient noise.

The phantom-powered BP880R features a high-sensitivity piezoelectric sensor and internal preamplifier, enabling it to transmit clear signals over long cable runs: Since the microphone's fixed 65.6' (20 m) cable has a low-impedance output, it can be extended to greater lengths using balanced cables.

Housed in a low-profile, dezincification-resistant (DZR) brass body coated to prevent corrosion from chlorinated water, and outfitted with a waterproof cable, the BP880R is designed to withstand daily use and abuse in harsh broadcast environments. The mic can be submerged in water and ice,* buried underground, installed in flooring, or attached to foul poles or other objects in the field of play. The weatherproof body has four through holes for mounting with screws and nuts or with zip ties, and a 1/4" threaded hole for mounting with a single screw.

The BP880R offers professional broadcasters and filmmakers a way to differentiate their productions from the crowd, delivering high-quality, immersive sound effects that make their audiences feel part of the action.

* Waterproof performance equivalent to IPX7 standards.

Delivering the Authentic Sounds of Figure Skating

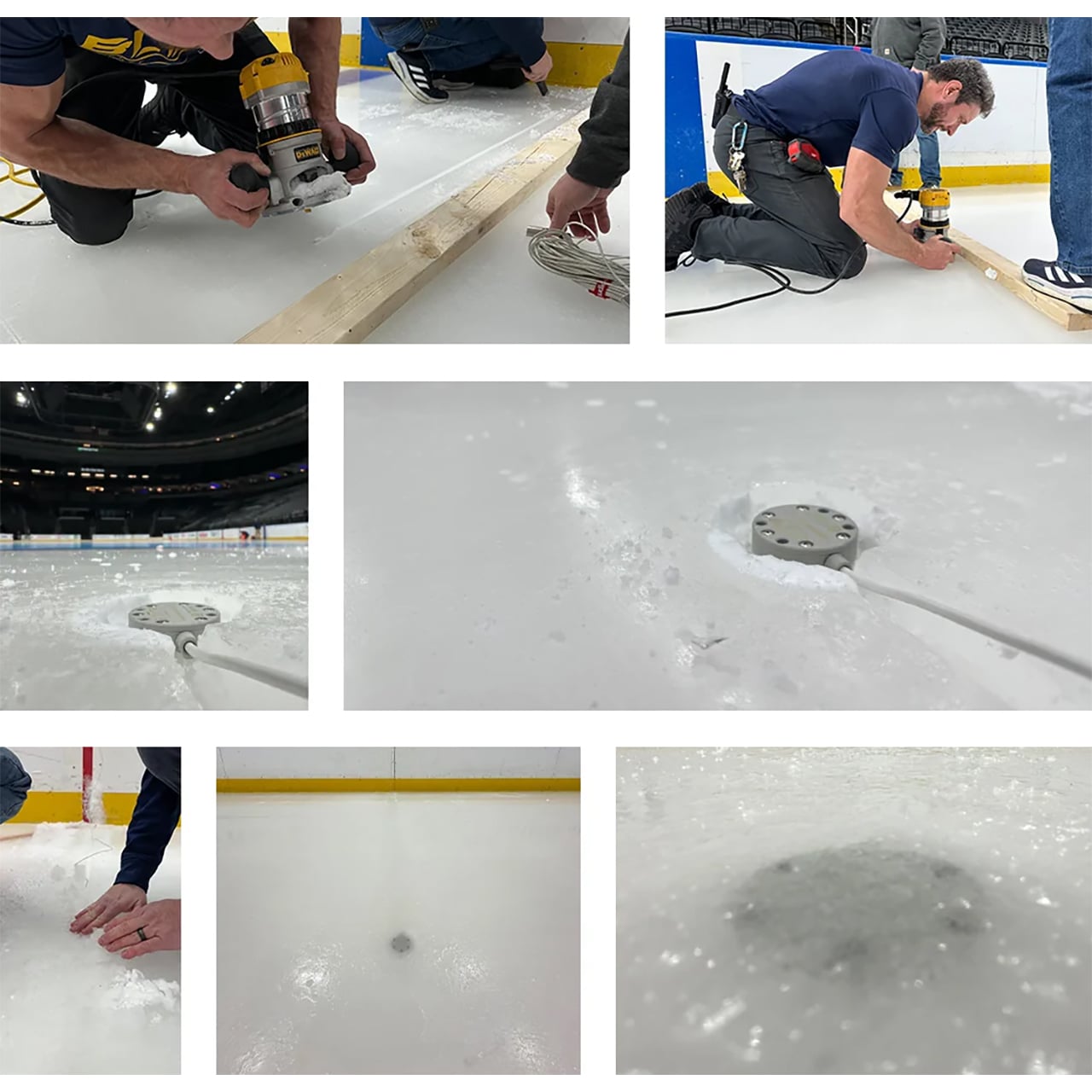

Audio-Technica's new BP880R contact microphone captures the previously elusive sounds of figure skating by placing microphones beneath the ice. Broadcasters can now hear skate blades carving, toe picks launching jumps, and landings, enhancing viewers' appreciation of the skill, power, and precision involved.

  • Features:

    • Waterproof contact microphone is designed to pick up impact and surface vibrations even when submerged in water or ice, installed in flooring, or buried underground*
    • Ideal for capturing key sonic details in sports broadcasting, film, field recording, and other applications to enhance the immersive effect of audio

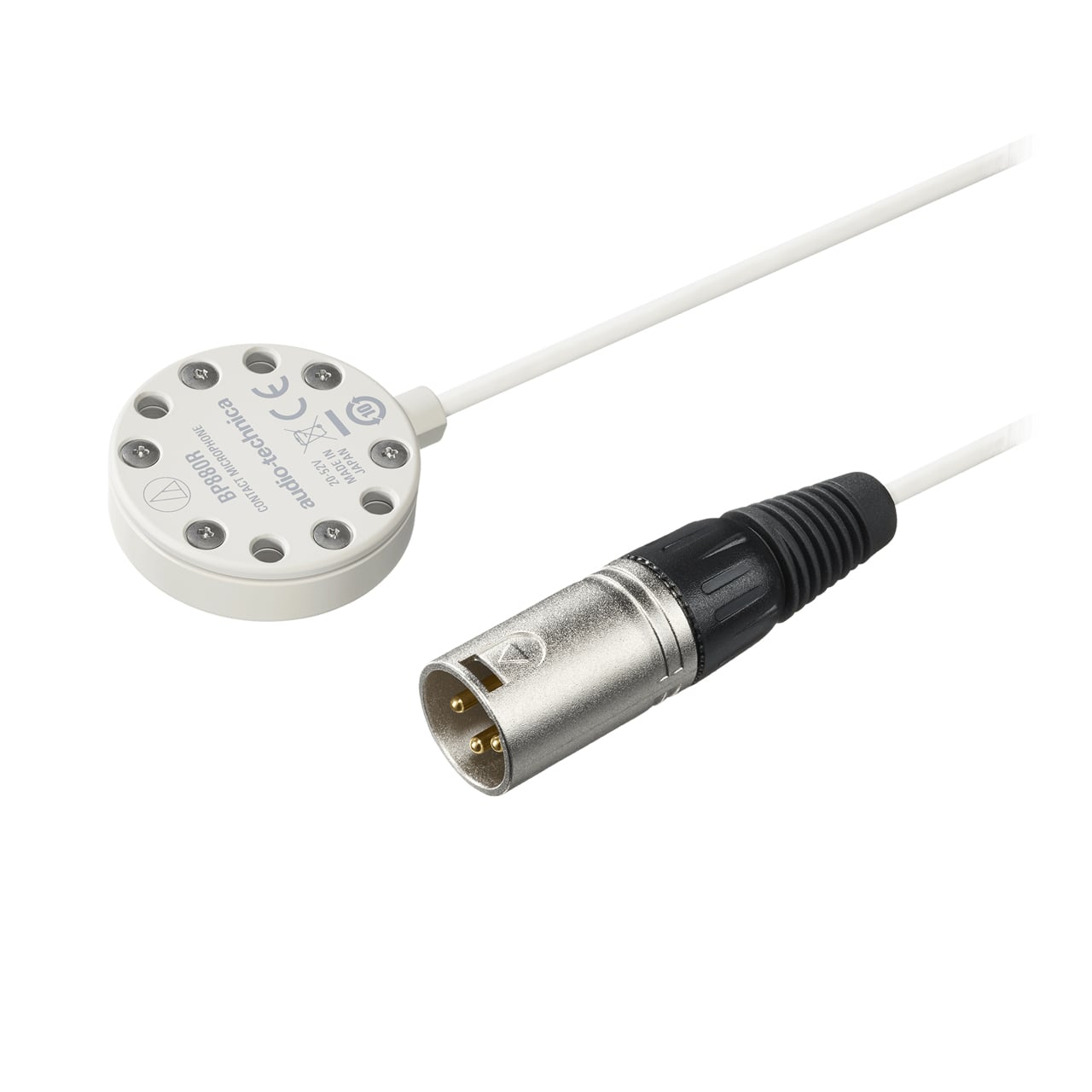

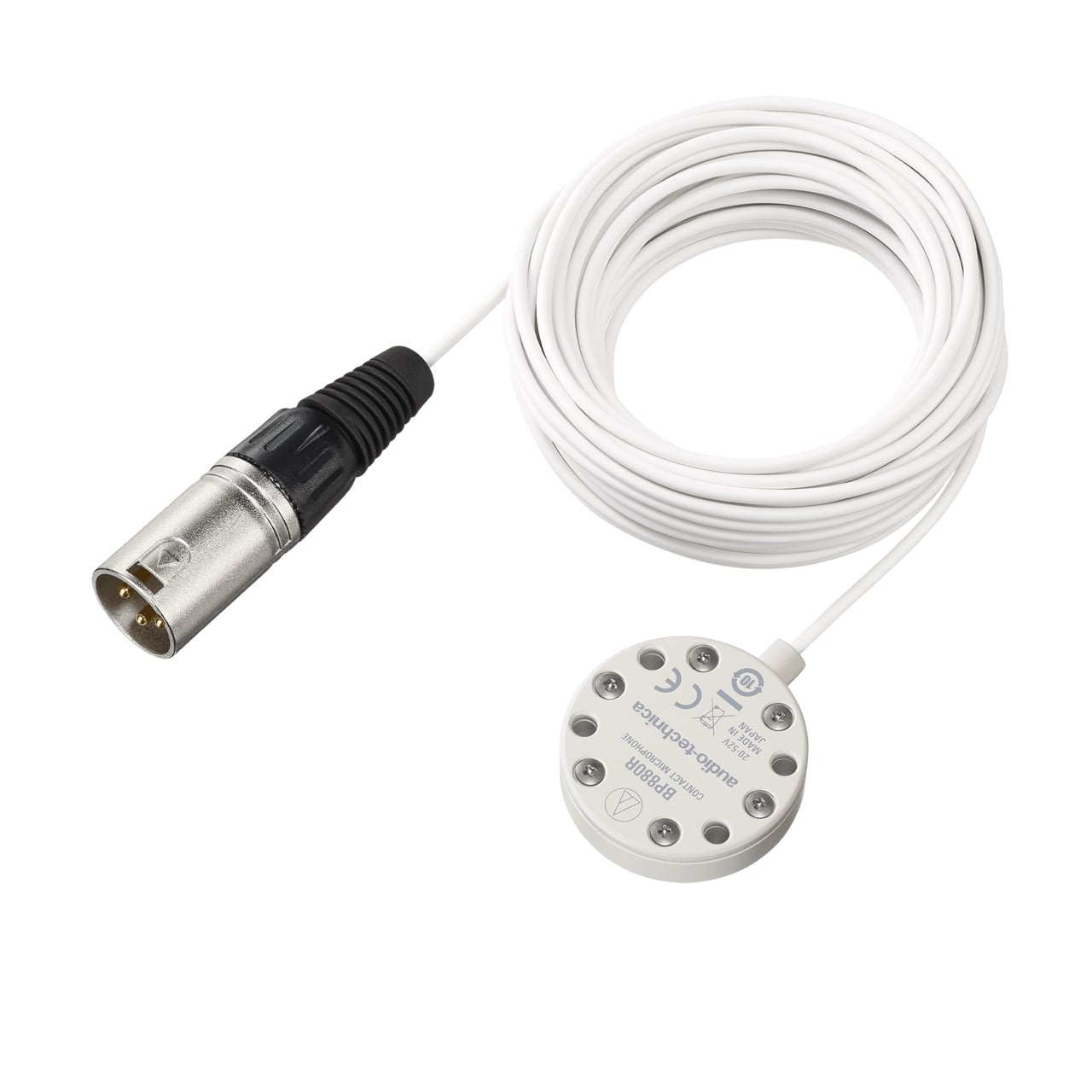

    • Fixed 65.6' (20 m) waterproof cable with XLR-M output connector**
    • Corrosion-resistant DZR brass microphone body and waterproof cable are built to withstand the rigors of daily use in harsh environments (e.g., deployment in water, ice, and earth)

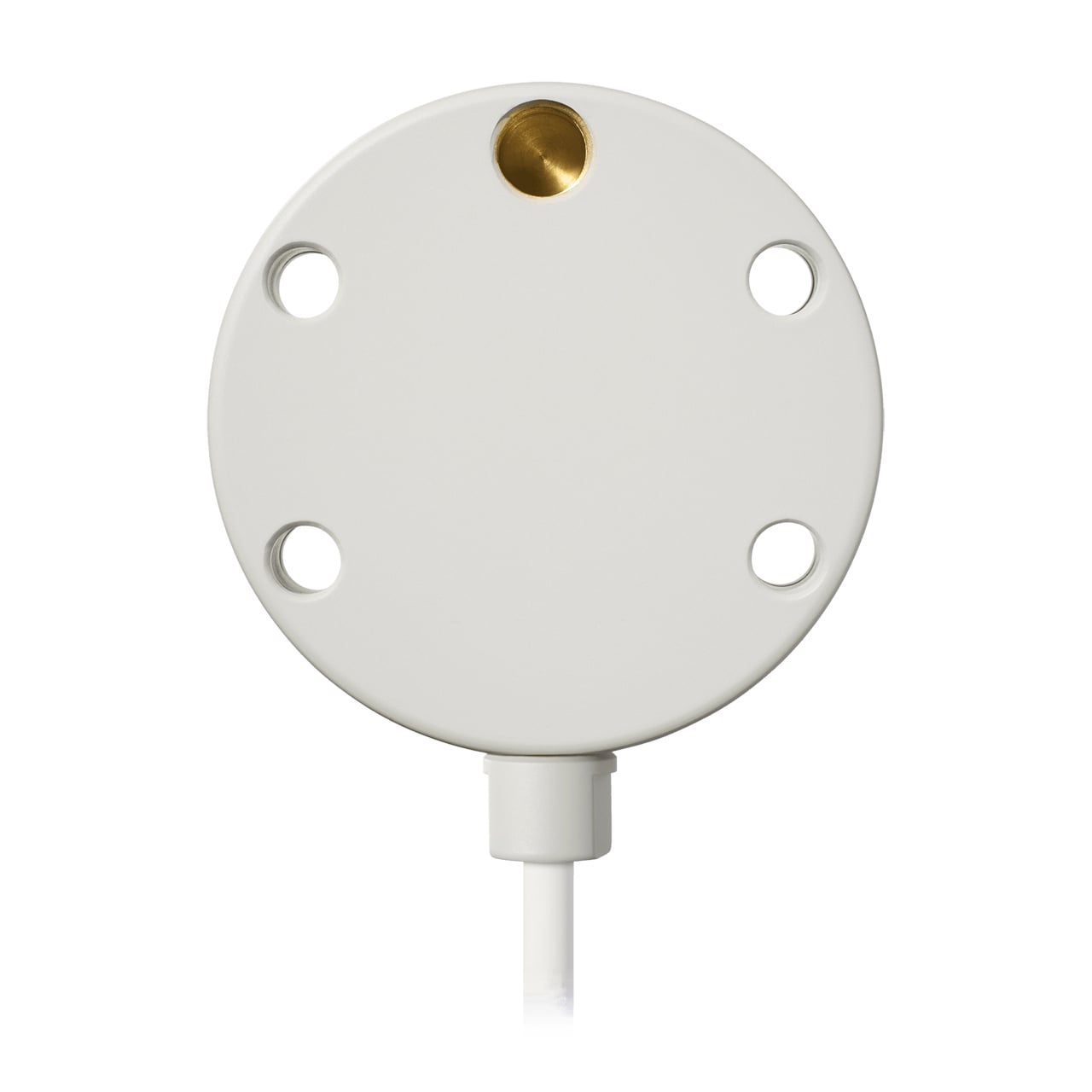

    • Through holes for mounting with screws and nuts or with zip ties, and a 1/4" threaded hole for mounting with a single screw

      *Waterproof performance equivalent to IPX7 standards.
      **Connector is not waterproof.

  • Specifications:

    • Element: Piezoelectric
    • Frequency Response: 20 to 4,000 Hz
    • Open Circuit Sensitivity: -20 dBV/G (100 mV/G) (at 500 Hz)
    • Impedance: 60 ohms
    • Phantom Power Requirements: 20 to 52 V DC, 3 mA
    • Operation Temperature Range: -4°F to 140°F (-20°C to 60°C)
    • Storage Temperature Range: -4°F to 140°F(-20°C to 60°C), 10% to 90% RH (without condensation)
    • Weight:
      - 2.8 oz (80 g) (excluding cable)
      - 15 oz (412 g) (including cable)
    • Cable: 66' (20 m)
    • Dimensions: Maximum Diameter (microphone body): 1.6" (40 mm)
    • Height: 0.41" (10.5 mm)
    • Output Connector: 3-pin XLR-M type

  • Item Includes:

    • 1x Audio-Technica BP880R IPX7 Contact Mic for Impacts & Vibrations in Sports Broadcasts / Films - 65.6-Foot Fixed Cable

  • GTIN:

    0496131016627
