Audio-Technica ESW-R4180DAN Engineered Sound Wireless Systems 8-Channel Receiver with Audio Output and Dante Support

ITEM #: AT-ESW-R4180DAN MFG #: ESW-R4180DAN

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ESW-R4180DAN - Overview

    The demand for wireless microphones has grown as a result of the increasing prevalence of videoconferencing and web conferencing. Audio-Technica’s ESW-R4180DAN Engineered Sound Wireless Systems is a DECT wireless system that offers simple, smart, and scalable high-quality audio. This system overcomes many challenges of conventional wireless microphones, such as frequency coordination and the limited number of simultaneous microphones.

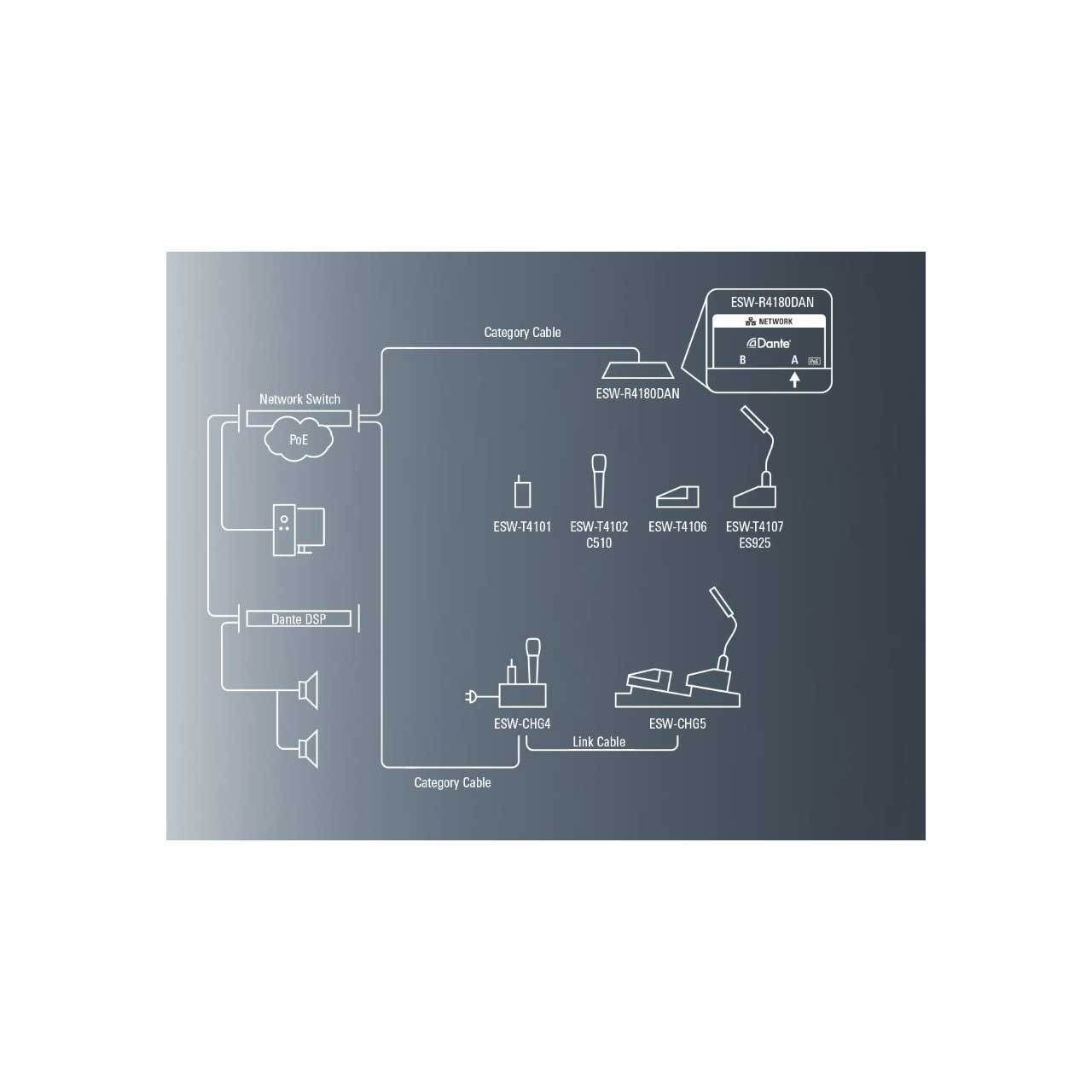

    Operation is incredibly easy for end users, with microphones ready to use by simply removing them from the charging station. At full charge, the batteries offer all-day operation. Installation is also made easy using PoE to power the receiver and Dante audio output capabilities. Wiring is as simple as connecting a single Cat 5e cable to a PoE switch. This helps streamline the installation process, with no need to worry about having to install multiple antennas. System integrators are able to configure detailed settings to meet a wide variety of end-user needs.

    Seamless setup and management are controlled via Audio-Technica’s Wireless Manager software, which is capable of managing multiple wireless systems, including UHF wireless systems, from a single screen. In addition, AES256 encryption support comes standard, providing superior security and reliable operation.

    • Features:

      • Low-profile white housing that blends in with interior décor
      • Onboard LEDs for verifying connection status at a glance
      • Included mounting brackets adjust to fit a variety of mounting methods
      • Lightweight design for secure installation
      • A standard Cat 5e cable supplies 8-channel audio output and Dante support

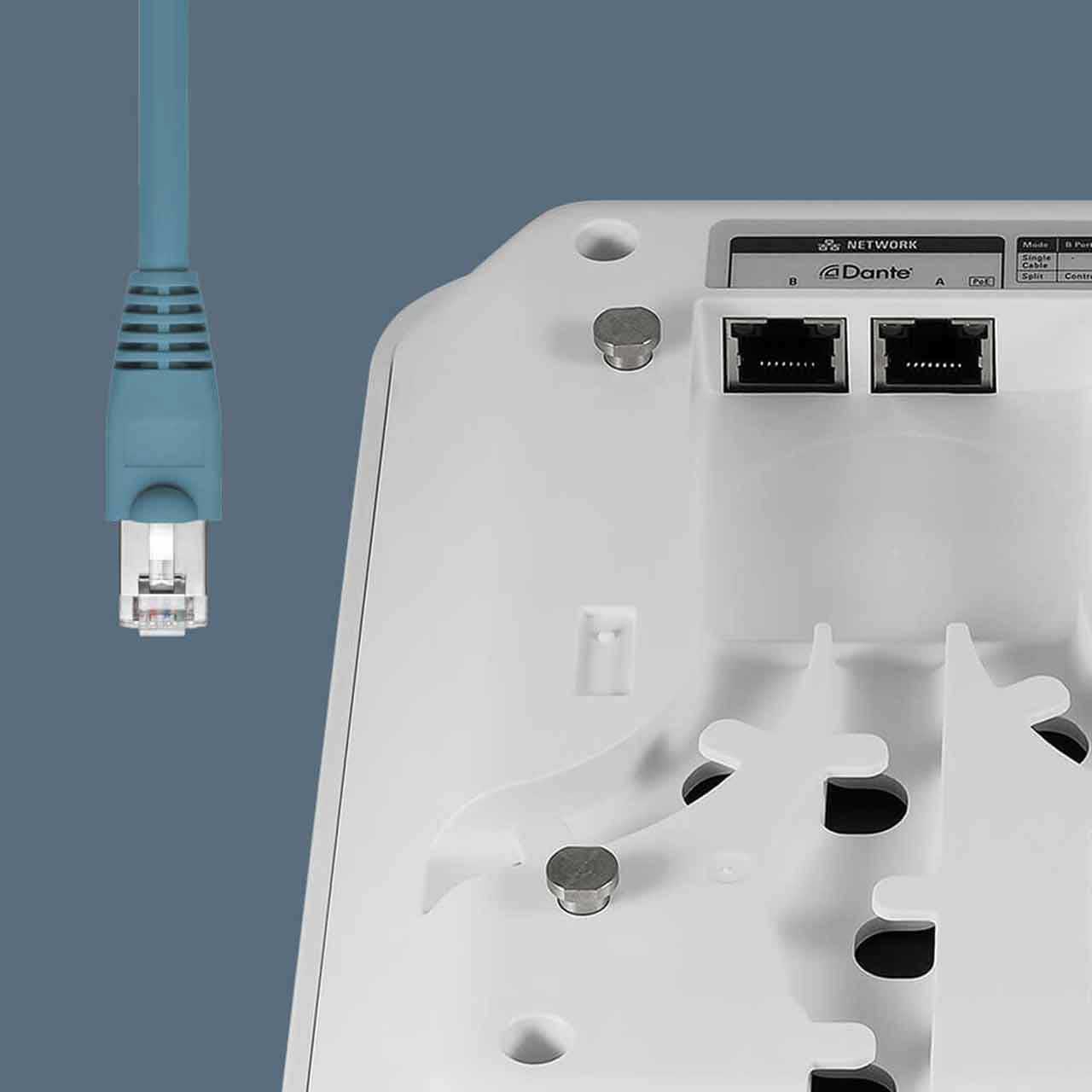

      • Dual network ports for Dante and IP control separation
      • Mixed output support for situations with limited input channels
      • High-pass filtering for each channel
      • Monitoring of transmitter status, audio level, remaining battery time, and other information in A-T Wireless Manager

    • Specifications:

      • Modulation Mode:
        A-field: π / 2-BPSK
        B-field: π / 8-8PSK
      • RF Sensitivity: < - 90 dBm
      • Network:
        Dante: 1 Gbps
        IP Control: 100 Mbps
        I/O Connector: Network/Dante: RJ-45
      • Power Consumption: 4.8 W
      • Power Supply: PoE (IEEE 802.3af Class 0)
      • Operating Temperature Range: -10° C to +50° C (14° F to 122° F)
      • Dimensions: 228.6 mm (9.0") x 228.6 mm (9.0") x 43.5 mm (1.7") (W x D x H)
      • Weight: 620 g (22 oz)


    ESW-R4180DAN - Required Accessories
