Audio-Technica ESW-T4101 Engineered Sound Wireless Systems Bodypack Transmitter

ITEM #: AT-ESW-T4101 MFG #: ESW-T4101

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ESW-T4101 - Overview

    The demand for wireless microphones has grown as a result of the increasing prevalence of videoconferencing and web conferencing. Audio-Technica’s Engineered Sound Wireless Systems is a DECT wireless system that offers simple, smart, and scalable high-quality audio. This system overcomes many challenges of conventional wireless microphones, such as frequency coordination and the limited number of simultaneous microphones.

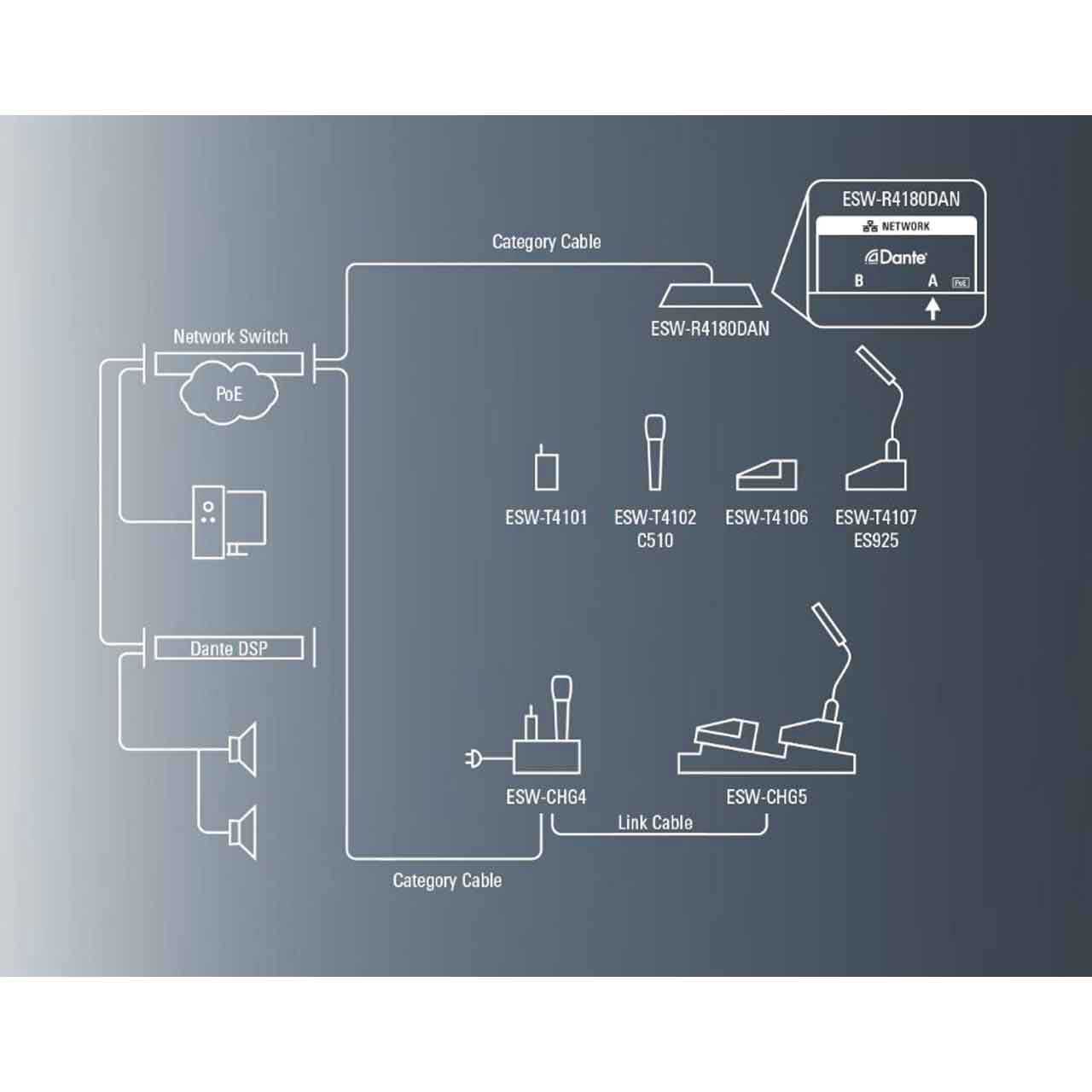

    Operation is incredibly easy for end users, with microphones ready to use by simply removing them from the charging station. At full charge, the batteries offer all-day operation. Installation is also made easy using PoE to power the ESW-R4180DAN receiver and Dante audio output capabilities. Wiring is as simple as connecting a single Cat 5e cable to a PoE switch. This helps streamline the installation process, with no need to worry about having to install multiple antennas. System integrators are able to configure detailed settings to meet a wide variety of end-user needs.

    Seamless setup and management are controlled via Audio-Technica’s Wireless Manager software, which is capable of managing multiple wireless systems, including UHF wireless systems, from a single screen. In addition, AES256 encryption support comes standard, providing superior security and reliable operation.

    Please note! Microphones sold separately. Compatible with all AT cH style mic connectors. This is sold as a kit with an AT 831CH Lav mic under part# AT-ESWT4101831CH

    • Features:

      • Built-in high-quality microphone

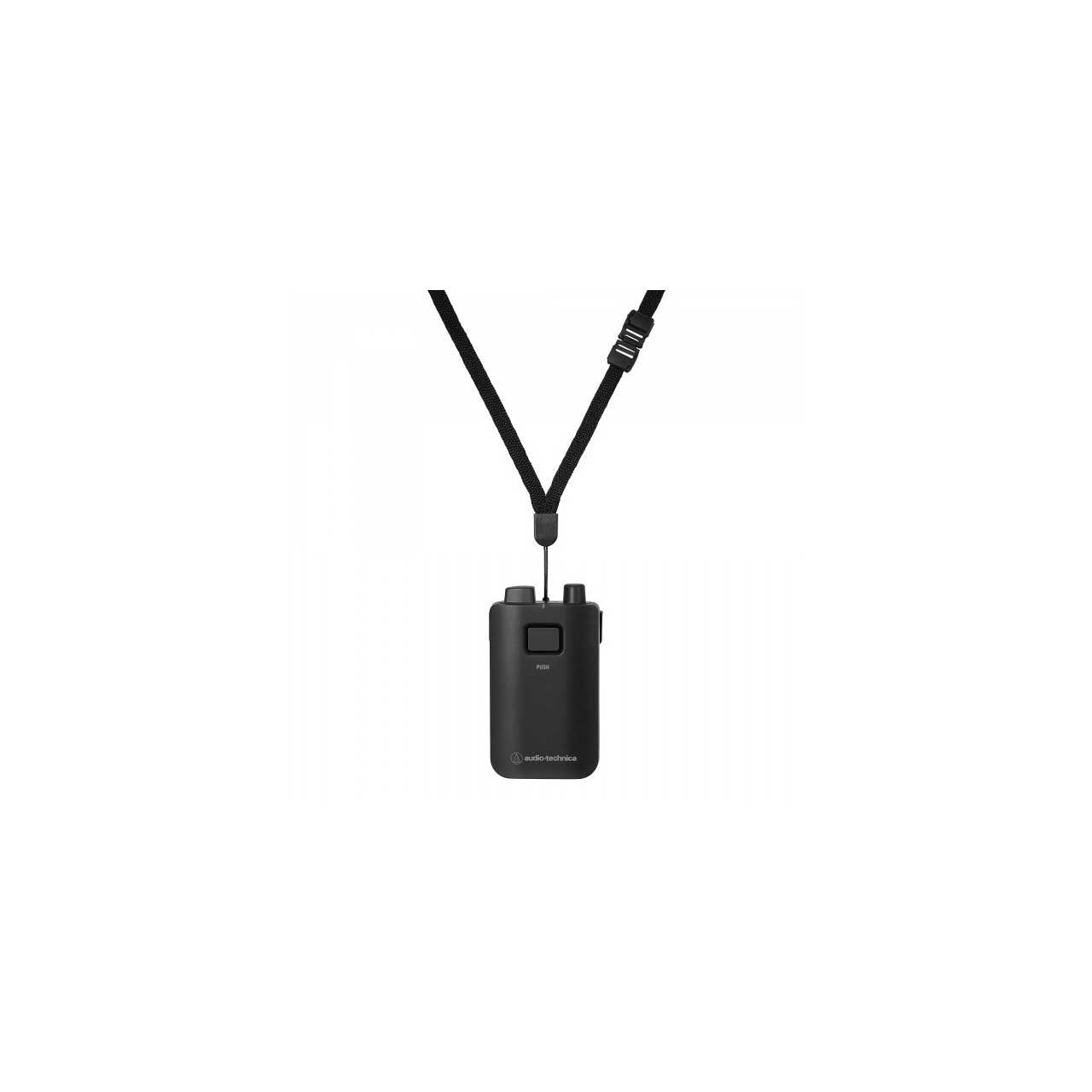

      • Transmitter neck strap included
      • Simple single-button operation
      • Lightweight design
      • Long-lasting battery for all-day operation

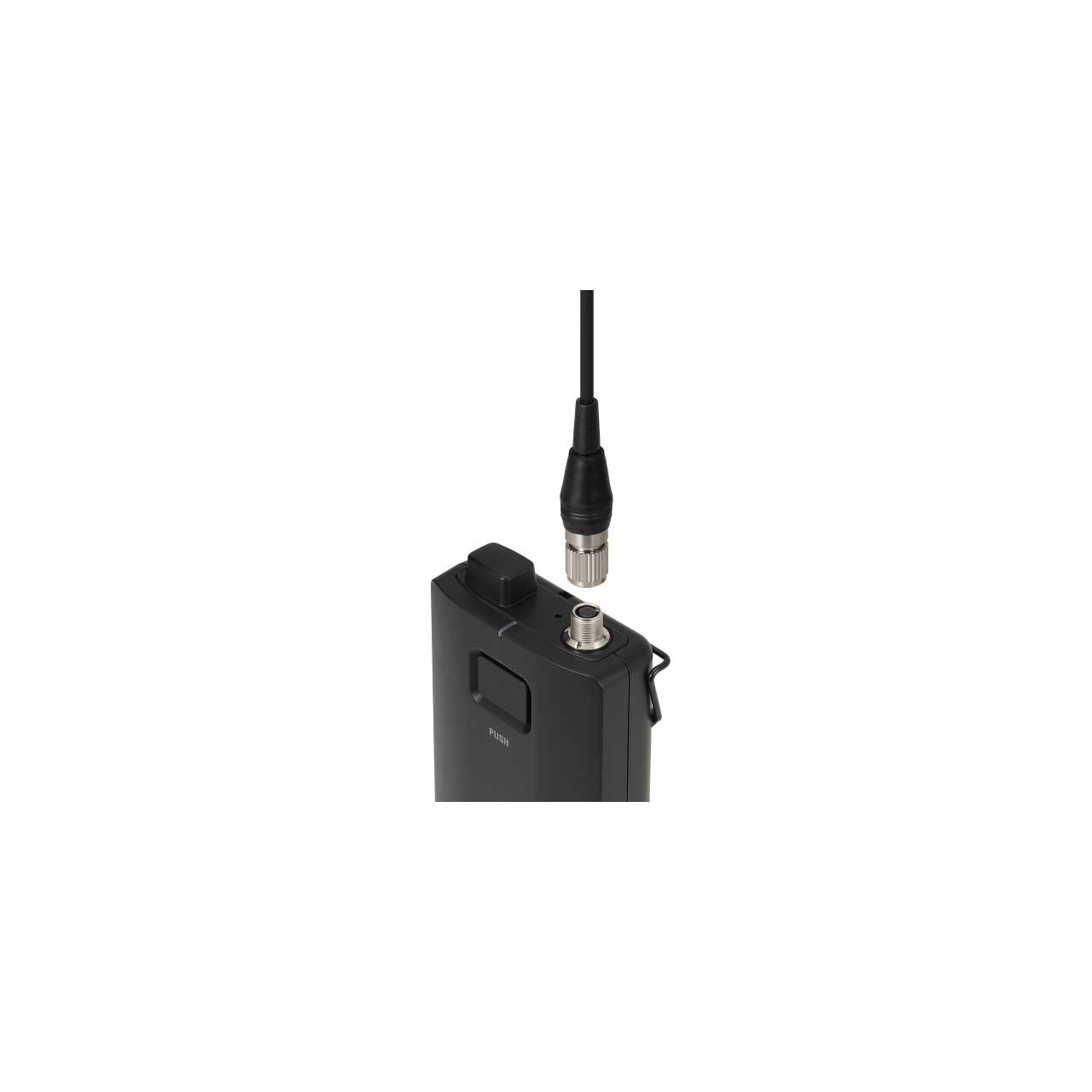

      • Compact, sweat-resistant cH-type connectors for use with a variety of Audio-Technica microphones
      • Two built-in antennas for stable operation

    • Specifications:

      • Frequency Response (internal microphone):
      • 20 to 20,000 Hz

        Modulation Mode
      • A-field: Π / 2-BPSK
      • B-field: Π / 4-QPSK

        Input Connection: Four pin locking connector
      • Pin 1: GND
      • Pin 2: MIC DETECTION
      • Pin 3: MIC INPUT
      • Pin 4: DC BIAS +5 V

        Battery:
      • Lithium-ion battery LI-220 (included)

        Battery Life:
      • 25 hours, This varies depending on usage conditions.

        Operating Temperature Range:
      • -5° C to +45° C (23° F to 113° F)

        Dimensions:
      • 56 mm (2.2") x 23.5 mm (0.93") x 90 mm (3.5") (W x D x H)

        Weight(with battery):
      • 112.3 g (3.96 oz)


    ESW-T4101 - Required Accessories
