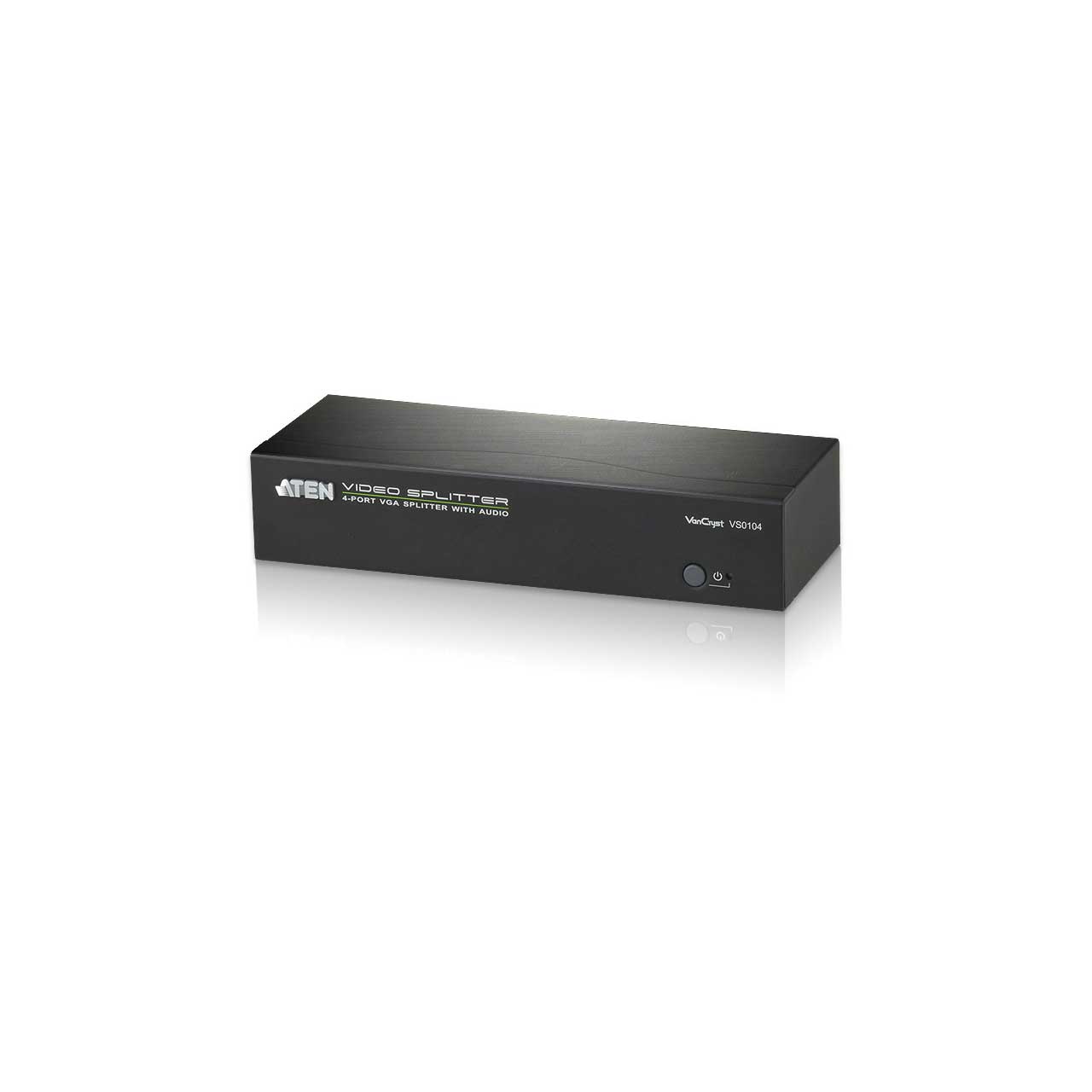

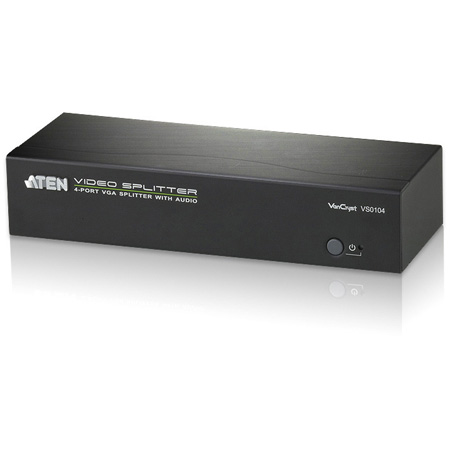

ATEN VS0104 4-Port VGA Splitter with Audio

ITEM #: ATEN-VS0104 MFG #: VS0104

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

List Price:

$115.00

Our Price:

$92.95

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    VS0104 - Overview

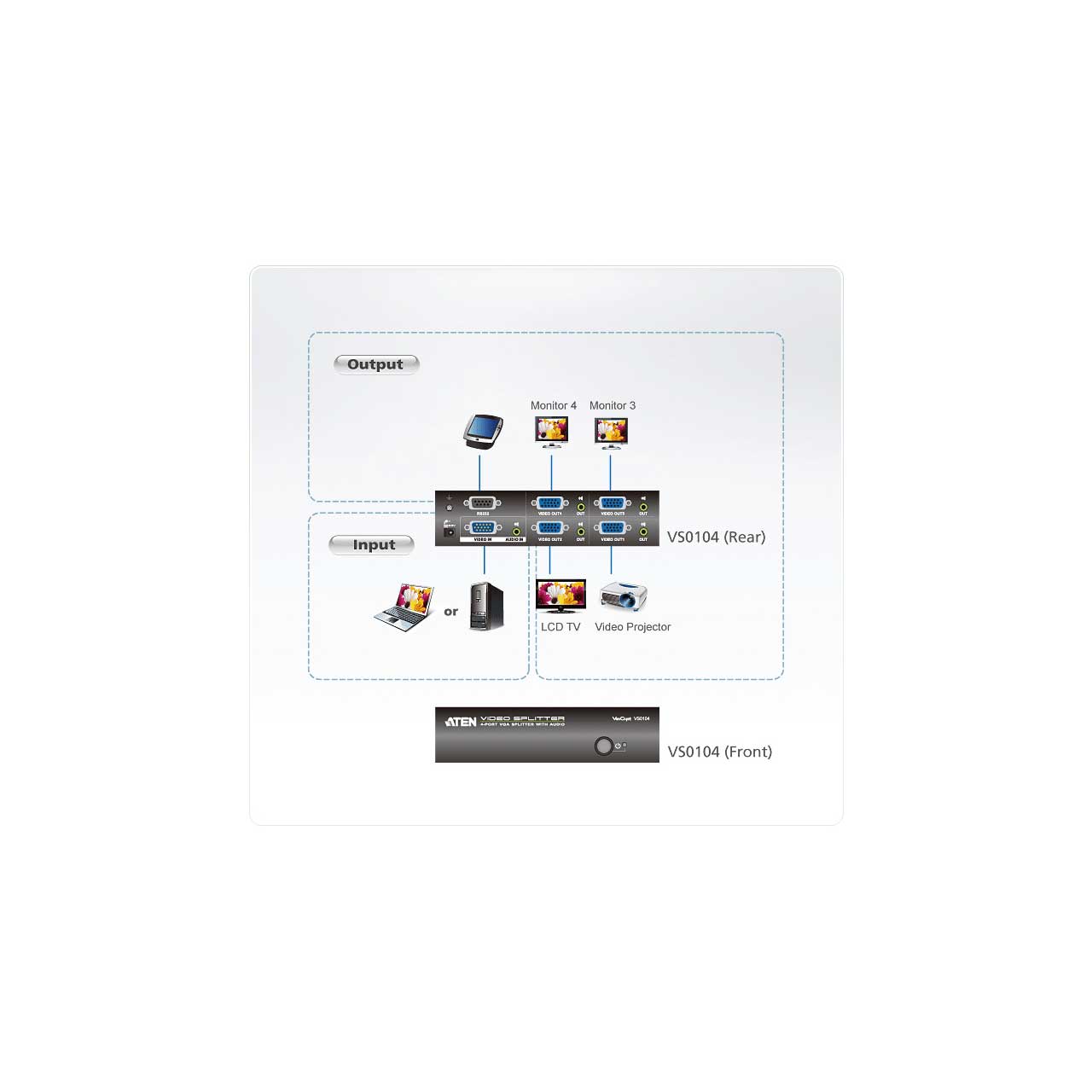

    The ATEN VS0104 4-Port VGA Splitter with Audio is VGA splitter that allow a single VGA video & audio signal to be distributed to four output displays with independent stereo control. The splitter support up to 450MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920x1440.

    Furthermore, for complete systems integration, serial control is standard through the VS0104 built-in RS-232 ports, which allow the splitter to be controlled through a high-end controller or PC.

    The VS0104 is perfect for conference rooms,training facility & multi-display broadcasting, with cascadable support up to three levels allowing a single video signal to be sent across up to 64 video displays while sustaining the highest quality possible.

    • Features:

      • One video input to 4 video outputs
      • Superior video quality - up to 1920 x 1440 @ 60Hz
      • Supports up to 450MHz bandwidth for high performance video
      • Long distance transmission - up to 65m *
      • Supports VGA, SVGA, UXGA, WUXGA, and multisync
      • EDID Expert - selects the optimum EDID settings for smooth power-up and highest quality display
      • Expandable - provides up to 64 video displays
      • Features RS-232 serial port for command controls **
      • RS-232 chain control - use RS-232 commands to control cascaded devices via VGA cable
      • Supports stereo audio
      • Plug-and-play - no software installation required
      • Note:
      • * Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality
      • ** The VS0104 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

    • Specifications:

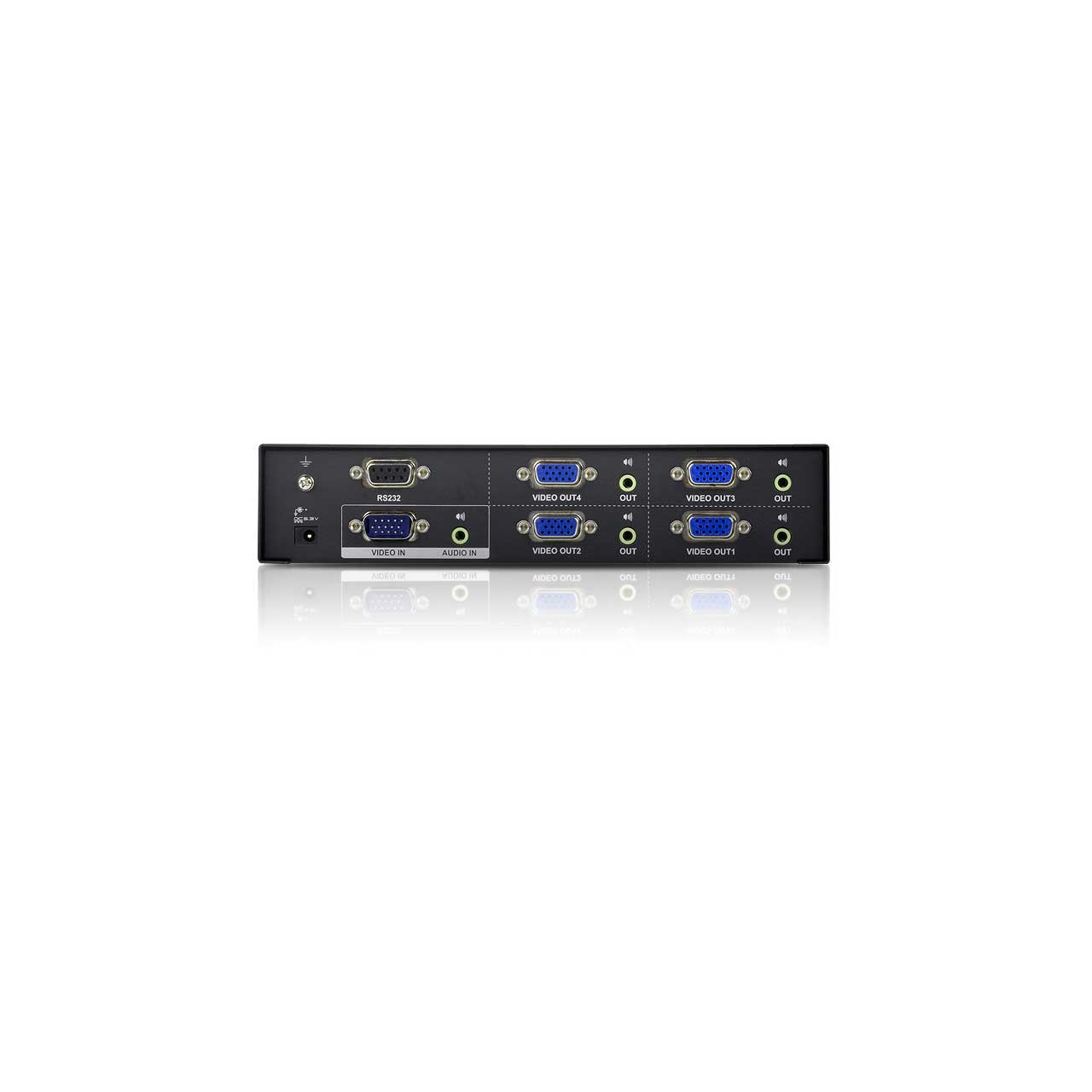

      • Video Input
      • Interface 1 x HDB-15 Male (Blue)
      • Impedance 75 Ohm
      • Max. Distance 1.8 m
      • Video Output
      • Interface 4 x HDB-15 Female (Blue)
      • Impedance 75 Ohm
      • Video
      • Max. Bandwidth 450 MHz
      • Max. Resolution Up to 1920 x 1440
      • Max. Distance Up to 30 m
      • Audio
      • Input 1 x Mini Stereo Jack Female (Green)
      • Output 4 x Mini Stereo Jack Female (Green)
      • Control
      • RS-232 1 x DB-9 Female (Black)
      • EDID Settings EDID Mode: Port 1 / Auto / Default
      • Power
      • Connectors 1 x DC Jack
      • Consumption 5.3 VDC, 1.2W
      • Environmental
      • Operating Temperature 0-50°C
      • Storage Temperature -20 - 60°C
      • Humidity 0 - 80% RH, Non-Condensing
      • Physical Properties
      • Housing Metal
      • Weight 0.68 kg
      • Dimensions (L x W x H) 20.00 x 7.61 x 4.40 cm

    • GTIN:

      0672792003899
