Atlas AH66-8T-BSG 8 Inch 2-way Stadium Horn System 65x65 Deg.

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

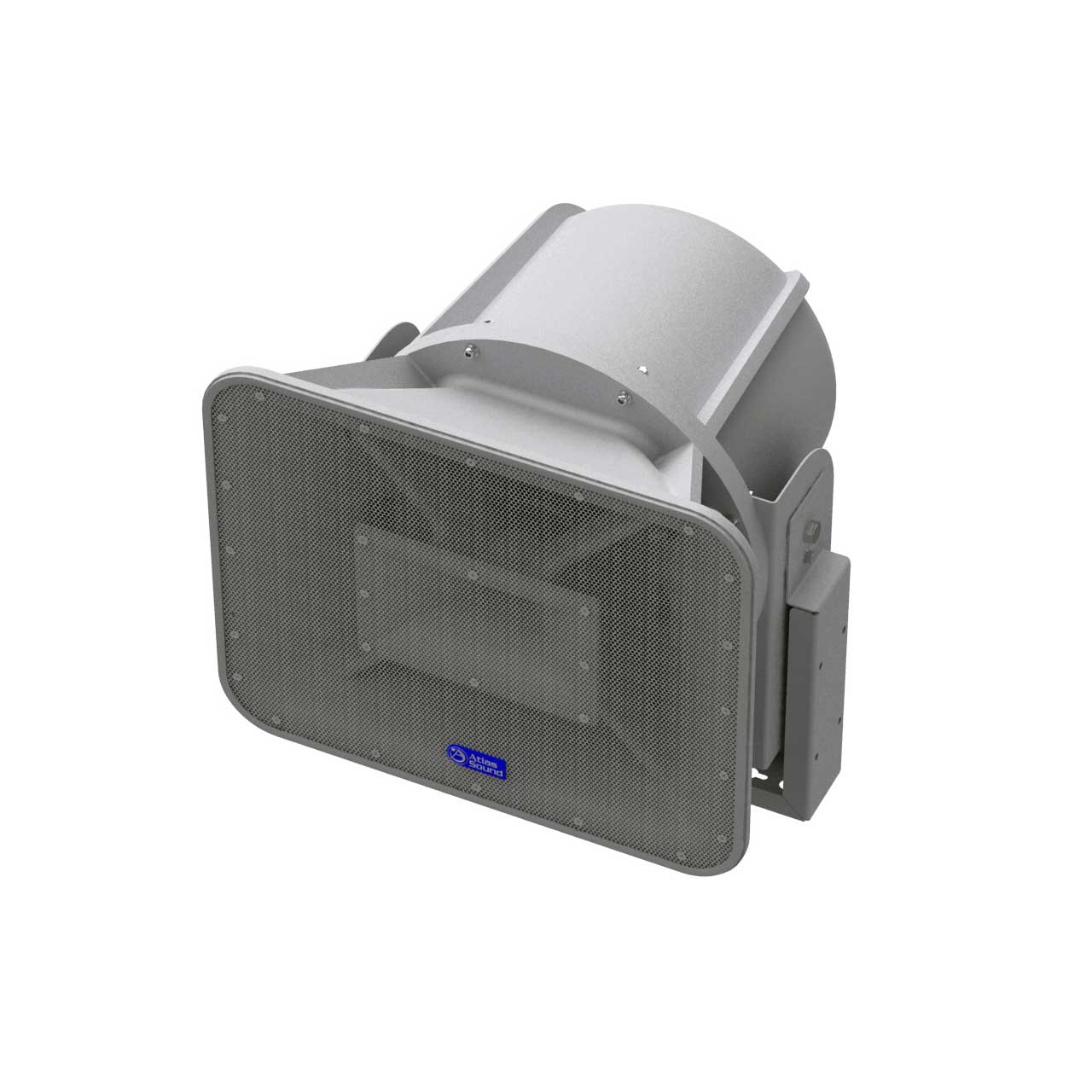

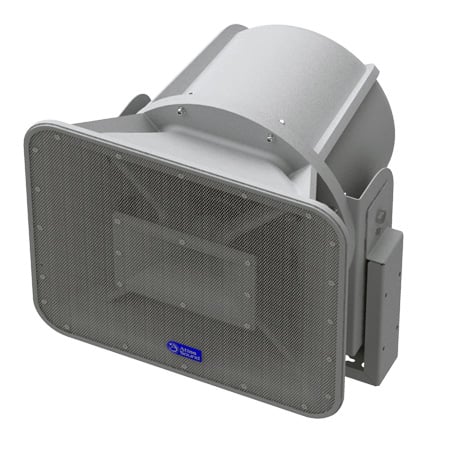

    Atlas AH66-8T-BSG 8 Inch 2-way Stadium Horn System 65x65 Deg.

    Manufacturer: Atlas Sound

    Item #: ATL-AH66-8T-BSG   •   MFG #: AH66-8T-BSG



    List Price:$947.99
    Our Price:$758.99

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


    • Special Order Item: non-cancelable, non-returnable, non-refundable.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


    Share!





    Atlas Sound model AH66-8T-BSG "stadium horn" is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required.

    Applications include football stadiums, sports arenas, baseball fields, convention centers and auditoriums.

    Weather resistant construction features of the AH66-8T-BSG include a multiple screen configuration to prevent moisture from damaging internal components, a perforated aluminum screen covers the large horn mouth, a secondary screen is in place forward of the high frequency driver and a third tightly perforated screen protects the 8" cast frame woofer. A "weep" hole is also included on the back of the large horn "bell" to allow evaporation of any condensation that might build up internally.


    • Features

      • (3) Forged Eyebolts Also Included for Suspended Installation
      • Battleship Gray Finish
      • 100 Watts Power Handling
      • Constant Directivity Design Offers Controlled Coverage of 65° Horizontal by 65° Vertical (2kHz Octave Band)
      • Driver Compliment Includes 8" Cast Frame Woofer with a Concentrically Mounted 1" Exit Compression Driver Coupled to a 65°H x 65°V HF Horn
      • Easy, Weather Resistant Connection via a Convenient Recessed Terminal Block Located on the Bottom of the Loudspeaker
      • Efficiency Rating of 100dB (1W/1m)
      • Heavy Duty Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
      • Includes a Built-In, High Efficiency 60 Watt 70.7V Transformer
      • Maximum Output of 120dB (Rated Power @ 1M)

    • Specifications

      • Power Taps 7.5, 15, 30, and 60 Watts & 8Ω
      • Frequency Response 90Hz - 15kHz
      • Driver Type 1" HF and 8" LF
      • Dispersion 65° x 65°
      • Power Rating 100 Watts
      • Sensitivity 100dB SPL
      • Height 20.95" (53.21cm)
      • Width 17.91" (45.49cm)
      • Depth 20.98" (53.28cm)
      • Weight 61.00 lbs (27.67 kgs)
