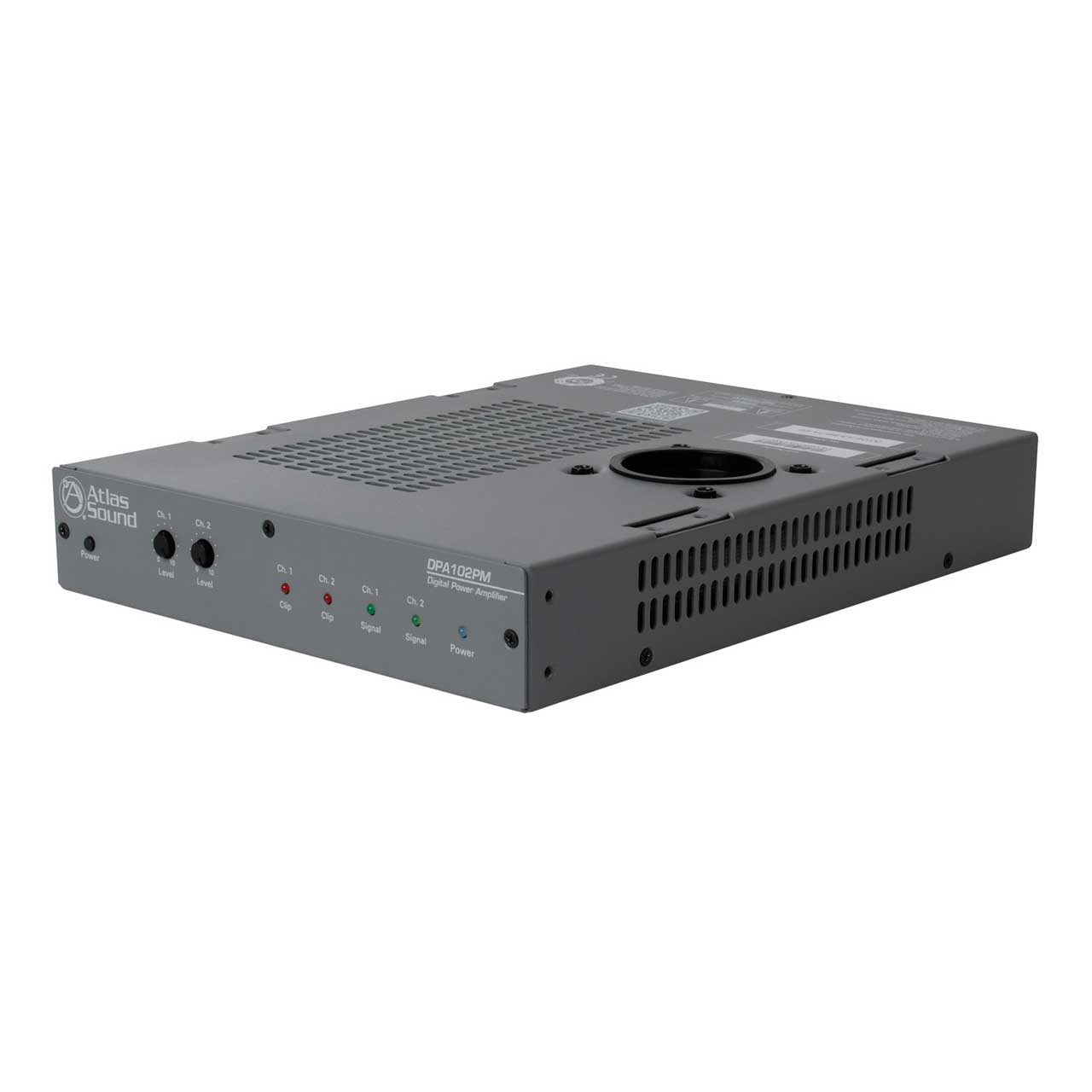

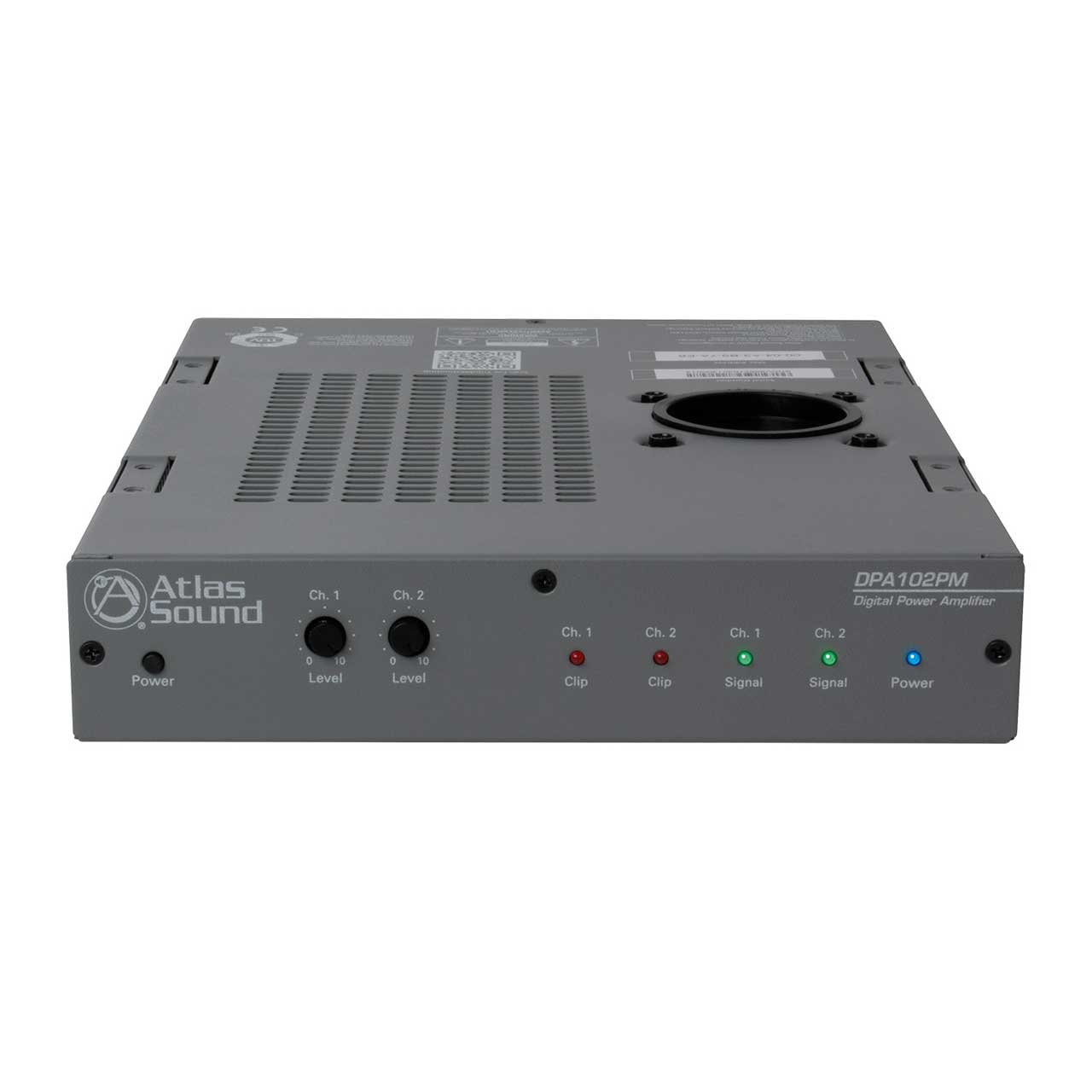

Atlas DPA-102PM Networkable 2-Channel 100Wl Power Amplifier
  • Atlas DPA-102PM Networkable 2-Channel 100Wl Power Amplifier
  • Atlas DPA-102PM Networkable 2-Channel 100Wl Power Amplifier
  • Atlas DPA-102PM Networkable 2-Channel 100Wl Power Amplifier
  • Atlas DPA-102PM Networkable 2-Channel 100Wl Power Amplifier
  • Atlas DPA-102PM Networkable 2-Channel 100Wl Power Amplifier
Questions? Ask a Markertek Expert:
800-522-2025 Email

Atlas DPA-102PM Networkable 2-Channel 100Wl Power Amplifier

Manufacturer: Atlas Sound

Item #: ATL-DPA-102PM   •   MFG #: DPA-102PM


List Price:$424.99
Our Price:$339.99

free ship
Availability: Direct Ship From Manufacturer
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



The Atlas Sound DPA Series amplifiers feature a combination of flexibility, performance and control to provide high value features for applications that require more than just great sound. Atlas DPA amplifiers can be used right out of the box as traditional power amplifiers requiring no programming, special set-up, or network connectivity. However; if you need more from the amplifier, the web enabled DPA Series has an assortment of DSP tools including level controls, EQ's, limiters, high & low pass filters, delays and summing to provide great flexibility for a range of applications. Once configured, the amplifier can be password protected to prevent unauthorized changes. The embedded control software allows the integrator to lock out the front panel controls as well as maintain proper settings. To make the DPA-102PM a "game changer" we've combined the advantages of on board DSP with an integral web server to give you the ability to remotely control DSP functions and levels as well as monitor output levels and the status of any DPA amplifier on the network. To make it easier to identify and set-up DPA amplifiers on the network, Atlas Sound provides DPA Discovery a tool available for PC's and Apple mobile devices.

  • Specifications

    • Output Power 50 Watts per Channel @ 8Ÿ
    • 100 Watts per Channel @ 4Ÿ
    • Factory Ship Settings Two CH 4Ÿ,
    • Front Panel Levels Active,
    • DSP Set to Flat & 0dB
    • THD 0.2% at rated output
    • Frequency Response -3dB 20Hz @ 20kHz (DSP Filters Engaged)
    • DSP Elements Input Level, Output Level, Output Limiter, 5 Band Parametric EQ per channel, HI & Lo Cut Filters,
    • Delay 60mS per channel, Matrix mixer

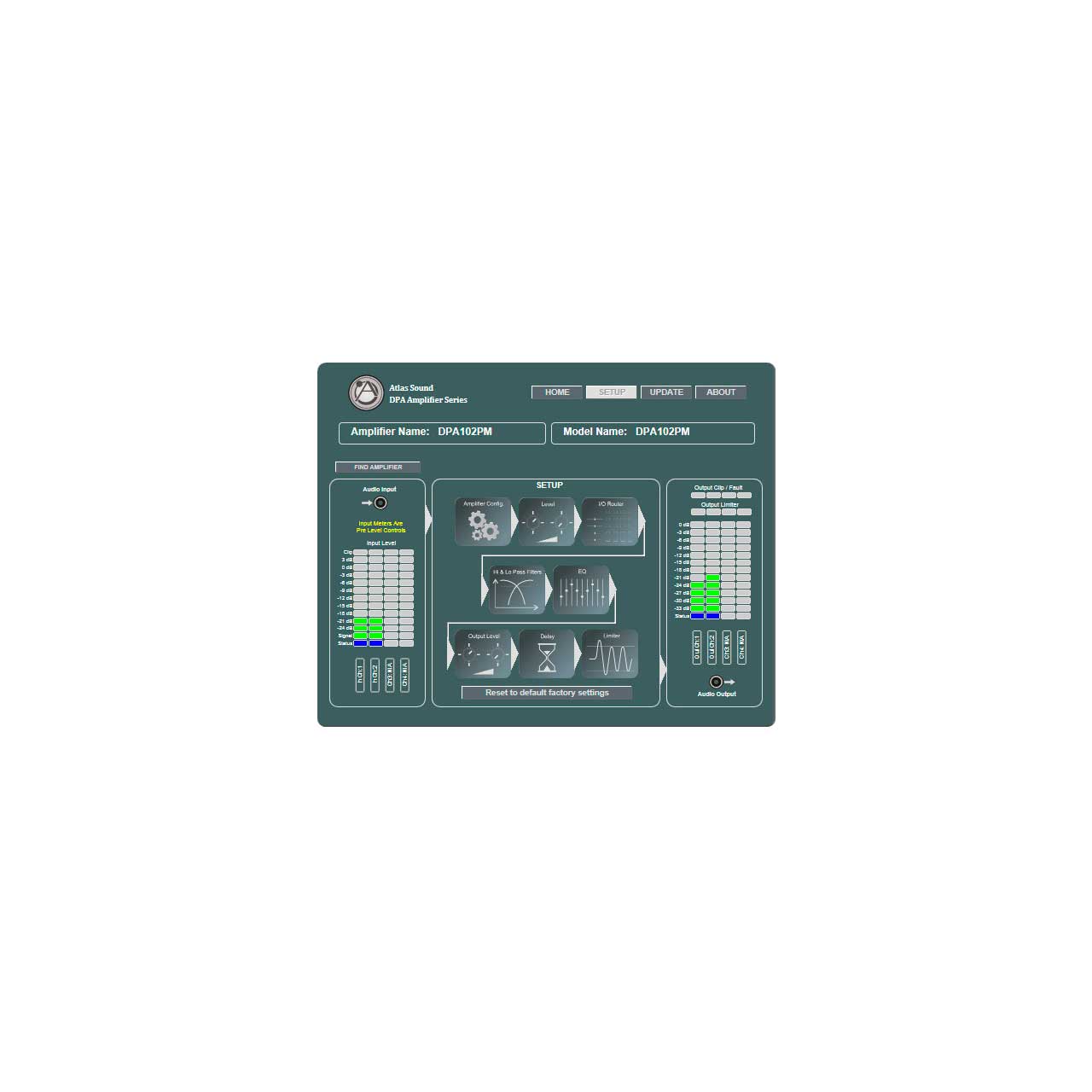

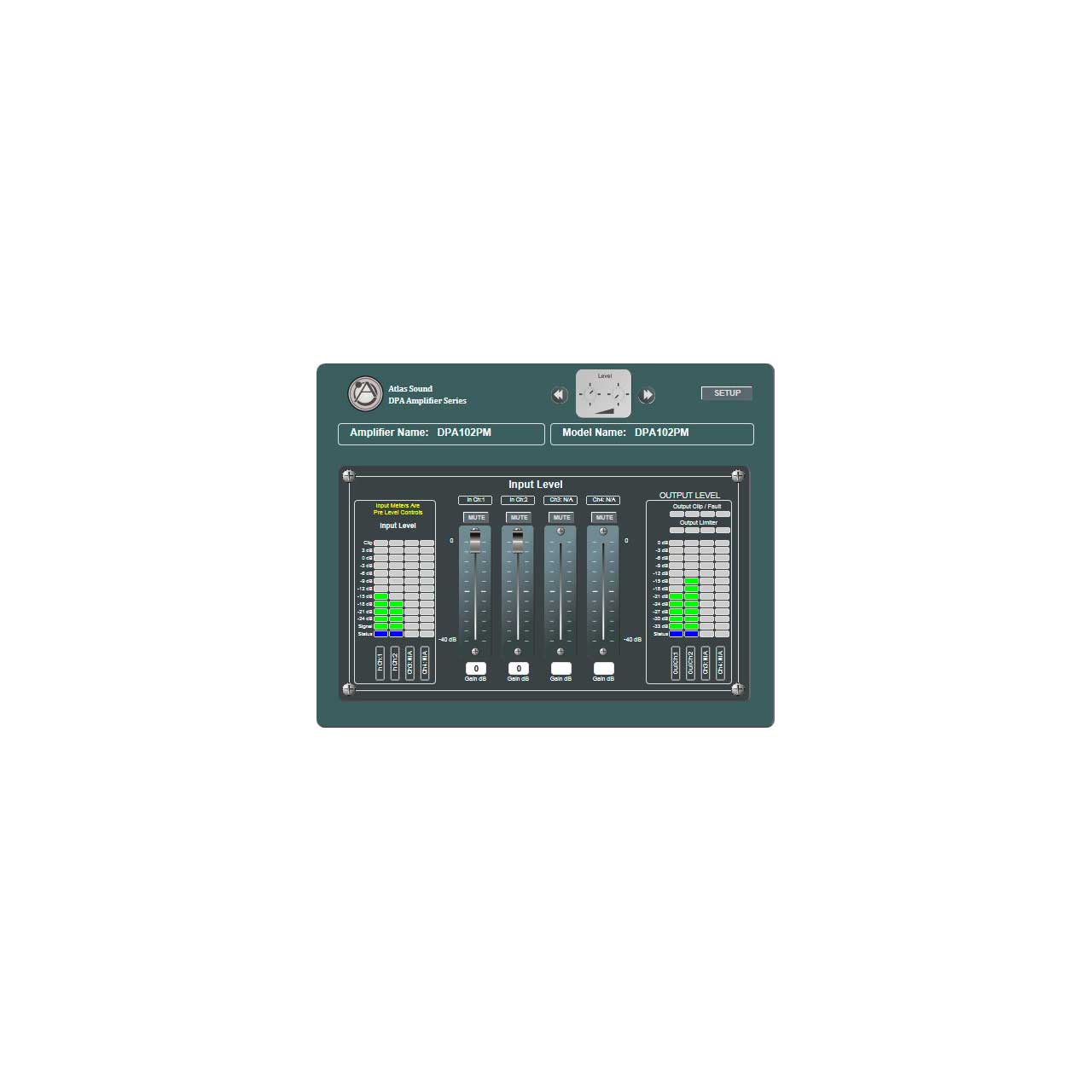

    • GUI Control Ethernet Base, On Board Web (No PC Software for Single Unit Monitoring or Configuration)
    • Audio Power Down (APD) On Trigger Threshold: 5mV
    • Off, No Signal Sense, 30min
    • Level Control (Assignable) Front Panel (Removable Knobs and Security Cover)
    • GUI Control (PC, IPhone, Android, Password Protected)
    • Remote Wired (10K Ohm Based, Separate Return per CH)
    • Protection Circuits Thermal, Short, Limiter
    • Signal to Noise Ratio -100dB Below Rated Output (A-weighted)

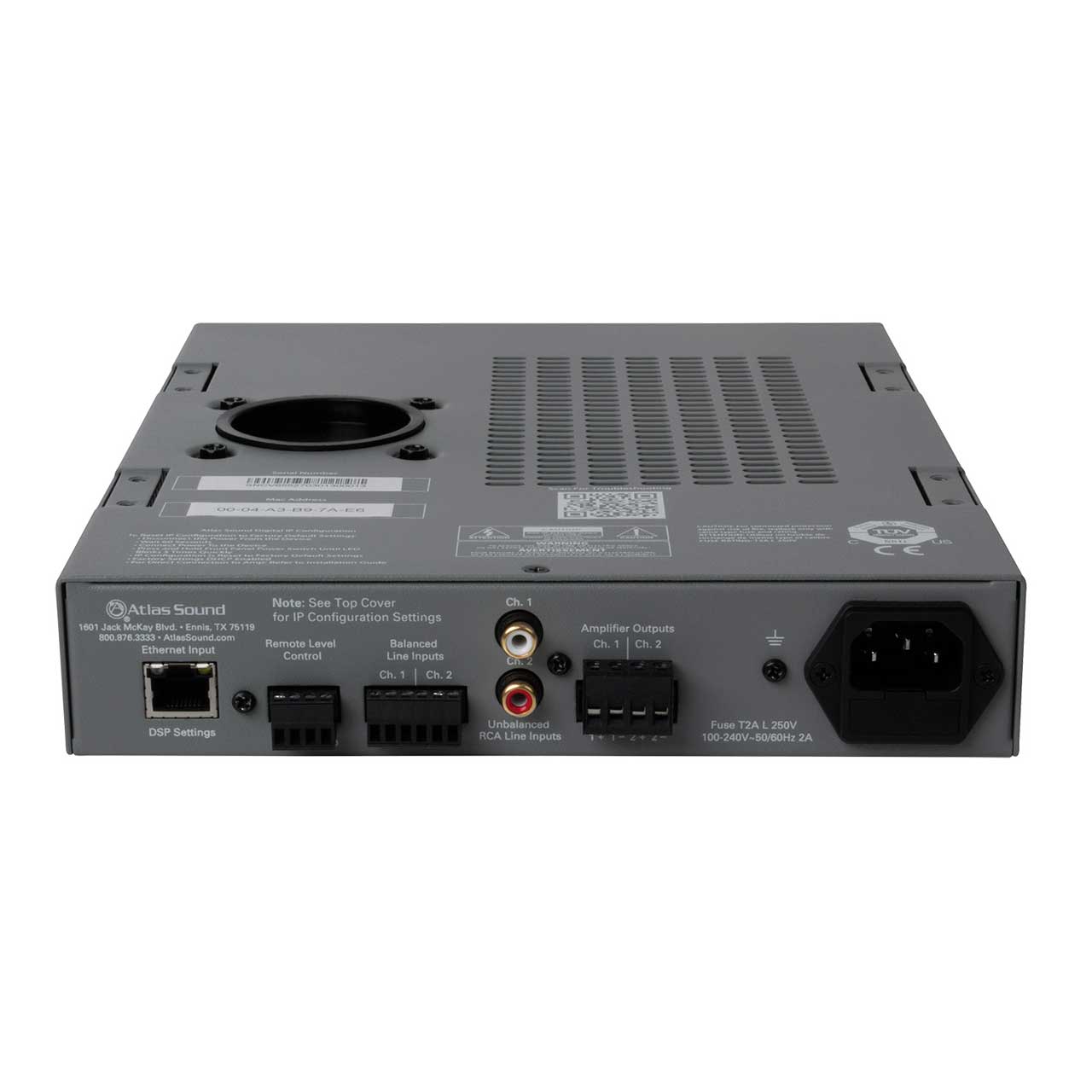

    • Input Sensitivity RCA Unbalanced 750mV Balanced 750mV Euro Block PHX Type 3.5mm
    • Input Impedance RCA Unbalanced: 10kŸ
    • Balanced: 20kŸ
    • Output Terminals Euro Block PHX Type 5.08mm
    • Power Requirement 100VAC . 240VAC, 50/60Hz
    • Power Consumption Standby Mode (Ethernet Active): 1 Watts, 22mA, 3.14 BTU
    • Idle Active: 12.5 Watts, 173mA, 41 BTU
    • Average Power: 4Ÿ (Audio Signal, 1.3 Power), 116 Watts, 395 BTU
