Atlona AT-HDVS-200-TX 3x1 HDBaseT Switcher for HDMI and VGA Inputs with Automatic Display Control

ITEM #: ATNO-HDVS-200-TX MFG #: AT-HDVS-200-TX

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Our Price:

$920.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    AT-HDVS-200-TX - Overview

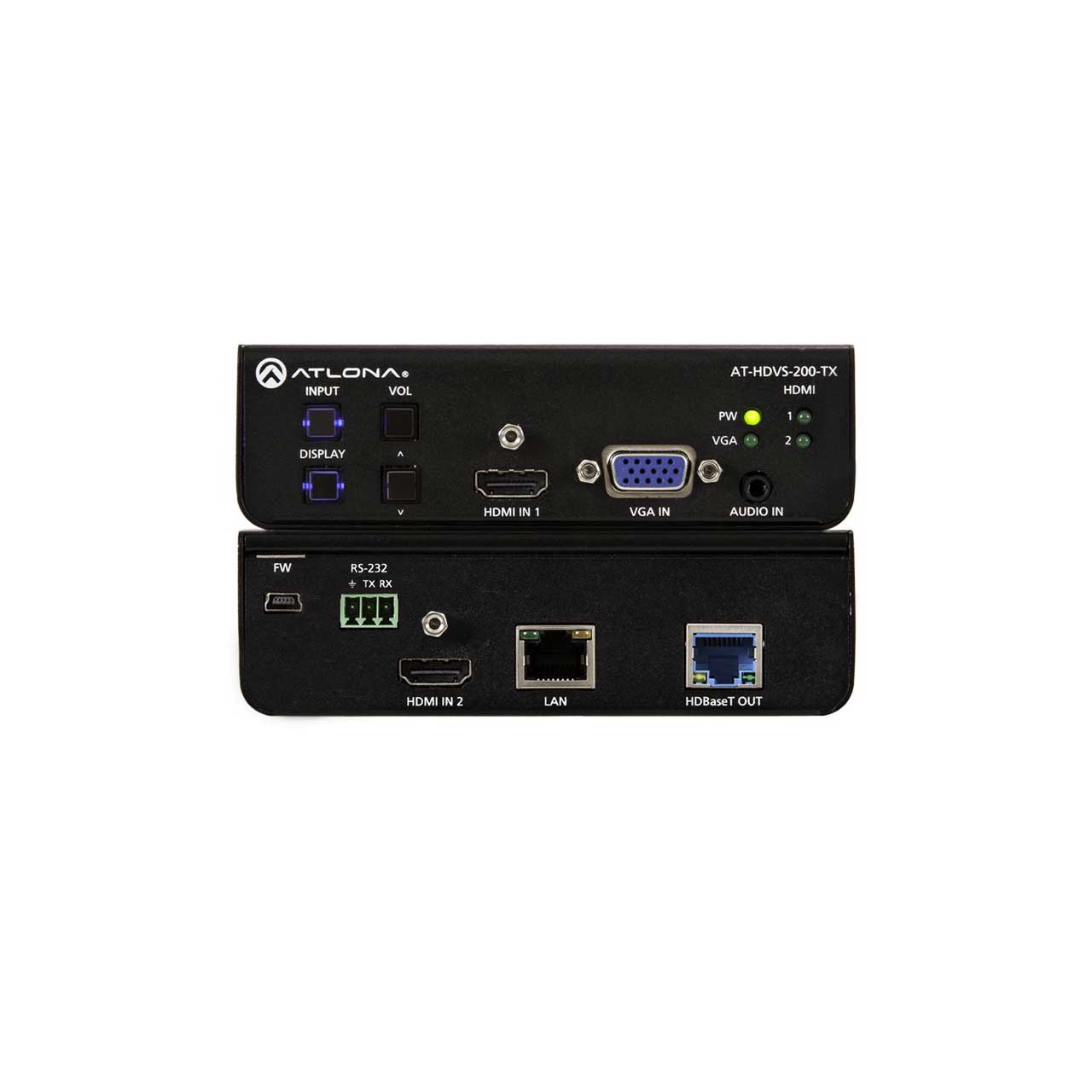

    Switcher for HDMI and VGA Inputs with HDBaseT Output

    The AT-HDVS-200-TX is a 3x1 switcher for HDMI and VGA inputs with HDBaseT output. It features two HDMI inputs, a VGA input, and an always on 3.5mm audio connector. The AT-HDVS-200-TX can be the central component of a small, automated AV system. Automatic display control turns on the display automatically whenever a source is connected. When the source is removed, the display is turned off. Volume is controlled by using the front panel buttons. Automatic input selection on the AT-HDVS-200-TX works by sensing the presence of any video signal. With automatic input selection, manual control systems can be eliminated.

    The AT-HDVS-200-TX combines the benefits of a switcher and the advantages of Ethernet-enabled HDBaseT signal transmission over a single cable. The switcher enables input selection from the front panel, RS-232, or TCP/IP commands. HDMI signals up to 4K/UHD @ 60Hz with embedded audio, VGA input signals up to 1920x1200, and control signals can be extended up to 328 feet (100 meters).

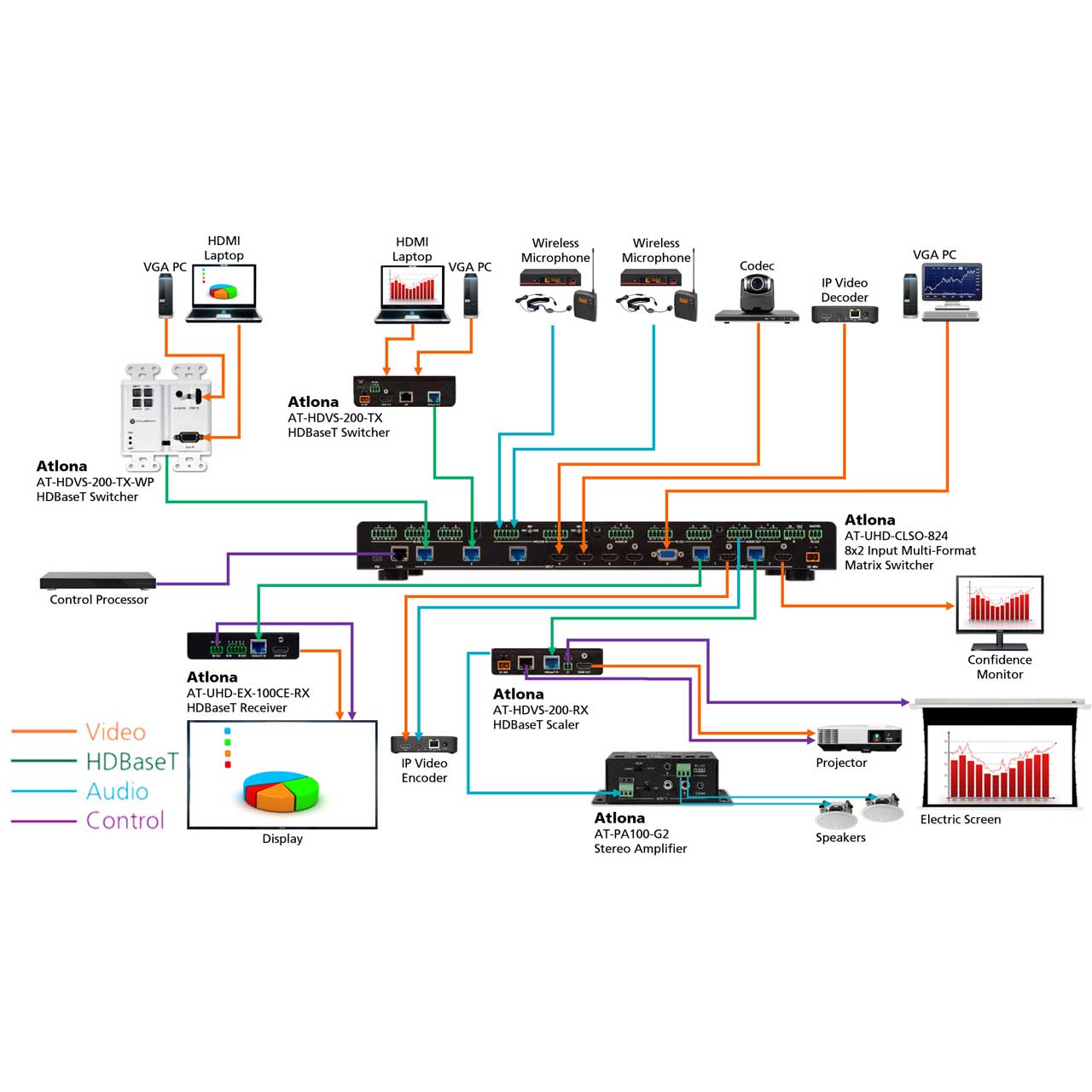

    When used with the HDVS-200-RX system performance is limited to 1080p. The AT-HDVS-200-TX receives power from the AT-HDVS-200-RX scaler via Power over Ethernet. Together they create a standalone AV switching and control system with scaling for classrooms and huddle rooms.

    Automatic Display Control

    Offering first-of-its-kind display capabilities, the AT-HDVS-200-TX allows display control using CEC, TCP/IP or RS-232 signals. This means that many more types of displays can be controlled, costs are reduced, and that wiring is simplified. In a commercial setting, when a switcher is integrated with a display, the AT-HDVS-200-TX forces the display to power on automatically when a laptop is connected. At the end of the presentation, when the presenter disconnects the laptop, the AT-HDVS-200-TX forces the display to power off. Ease of presenter interaction with the system and the savings incurred by auto-display shutdown provide a significant return on investment.

    • Features:

      • 3x1 HDBaseT switcher
      • Automatic display control using Consumer Electronic Control (CEC)*, IP, or RS-232
      • Automatic input selection using video detection technology
      • TCP/IP and RS-232 control of switcher
      • Ethernet-enabled, HDBaseT extension
      • Front panel input selection
      • Front panel display on/off control
      • Front panel volume control

    • Specifications:

      • Resolution
      • Video [email protected]/25/30/50*/60Hz*, [email protected]/25/30/50*/60Hz*, 2048x1080p,
      • [email protected]/24/25/29.97/30/50/59.94/60Hz, [email protected]/59.94/60Hz, [email protected]/59.94/60Hz, 576p, 576i, 480p, 480i
      • VESA 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768, 1024x768, 800x600, 640x480
      • Color Space YUV, RGB
      • Chroma Subsampling 4:4:4, 4:2:2, 4:2:0*
      • Color Depth 8-bit, 10-bit, 12-bit

      • Audio
      • Analog IN PCM 2Ch
      • HDMI IN & HDBaseT OUT PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio
      • Sample Rate 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
      • Bit Rate up to 24-bit

      • Distance
      • CAT5e/6 @ 4K up to 70 meters up to 230 feet
      • CAT5e/6 @ 1080p up to 100 meters up to 328 feet
      • CAT6a/7 @ 4K up to 100 meters up to 328 feet

      • Signal
      • Bandwidth 10.2 Gbps
      • CEC Yes
      • HDCP 1.4

      • Temperature
      • Operating 0°C to 50°C 32°F to 122°F
      • Storage -20°C to 60°C -4°F to 140°F
      • Humidity 20 to 90% non-condensing

      • Power
      • Consumption TBD

      • Dimension
      • H x W x D 38 x 127 x 102 (mm) 1.5 x 5 x 4.02 (inch)

      • Certification
      • Unit CE, FCC

    • Warranty:

      • 10 Years

    • GTIN:

      0846352004637
