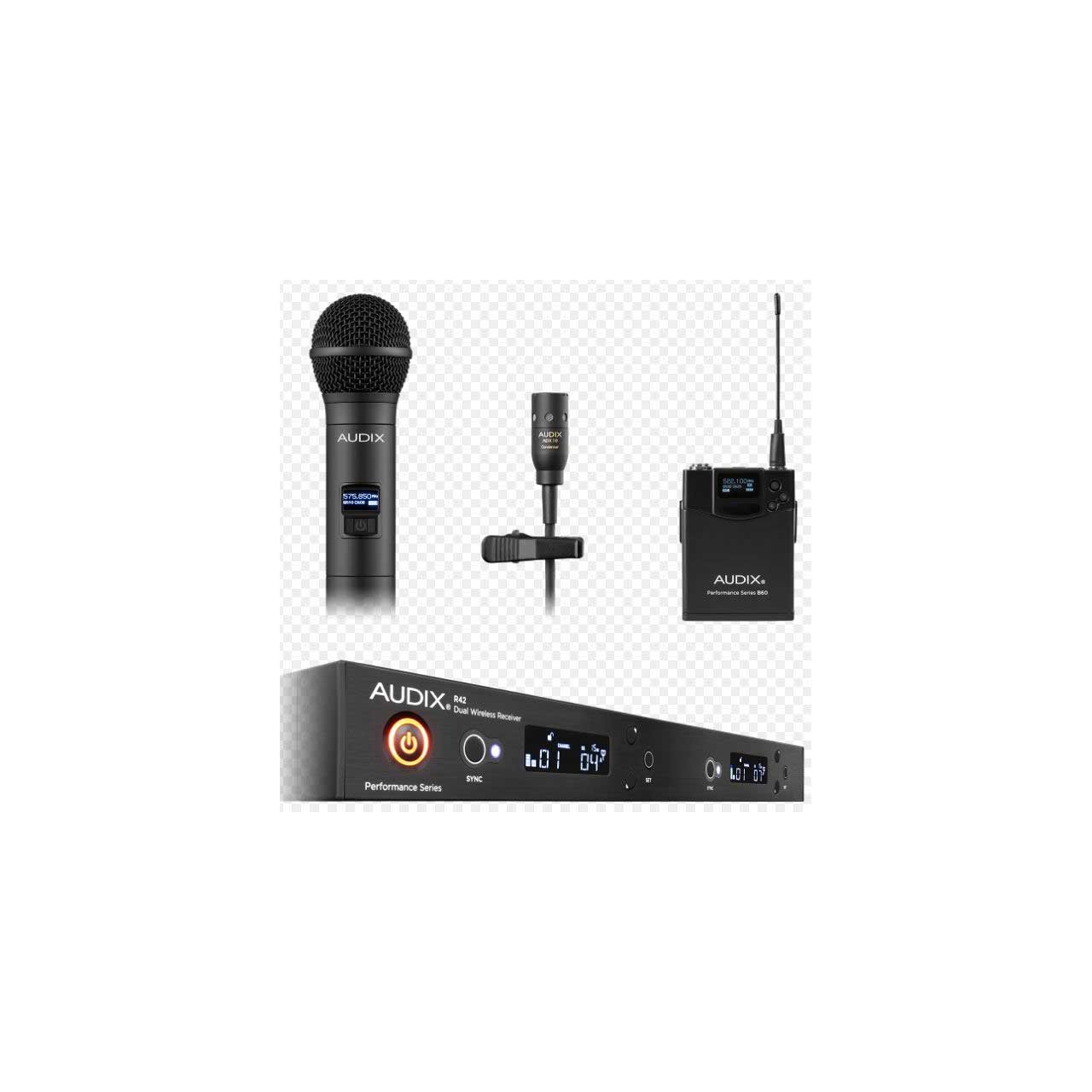

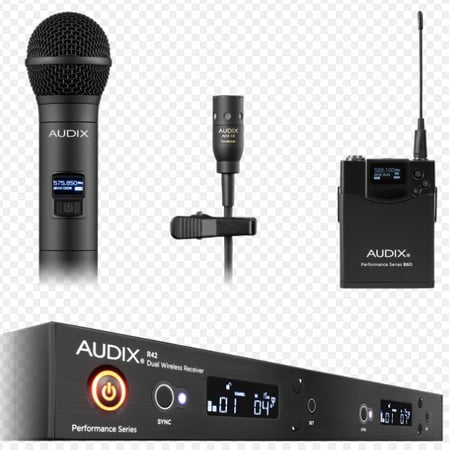

Audix AP42C210A Performance Series Wireless Mic Kit with R42 RX/OM2 Handheld/B60 Bodypack/ADX10 Lav - Freq A: 522-554MHz

AP42C210A - Overview

• Features:

  • R42 Two Channel Diversity Receiver
  • 32 MHz Wide spectrum tuning receiver
  • 106 pre-coordinated frequencies
  • One-touch auto scan searches for clear channel
  • One-touch sync links transmitter to the receiver via infrared beam


  • H60 OM2 Handheld Transmitter
  • 64 MHz Wide spectrum transmitter with OM2 dynamic capsule module
  • Durable metal housing
  • 14 Hour run time - AA batteries


  • B60 L10 Bodypack Transmitter

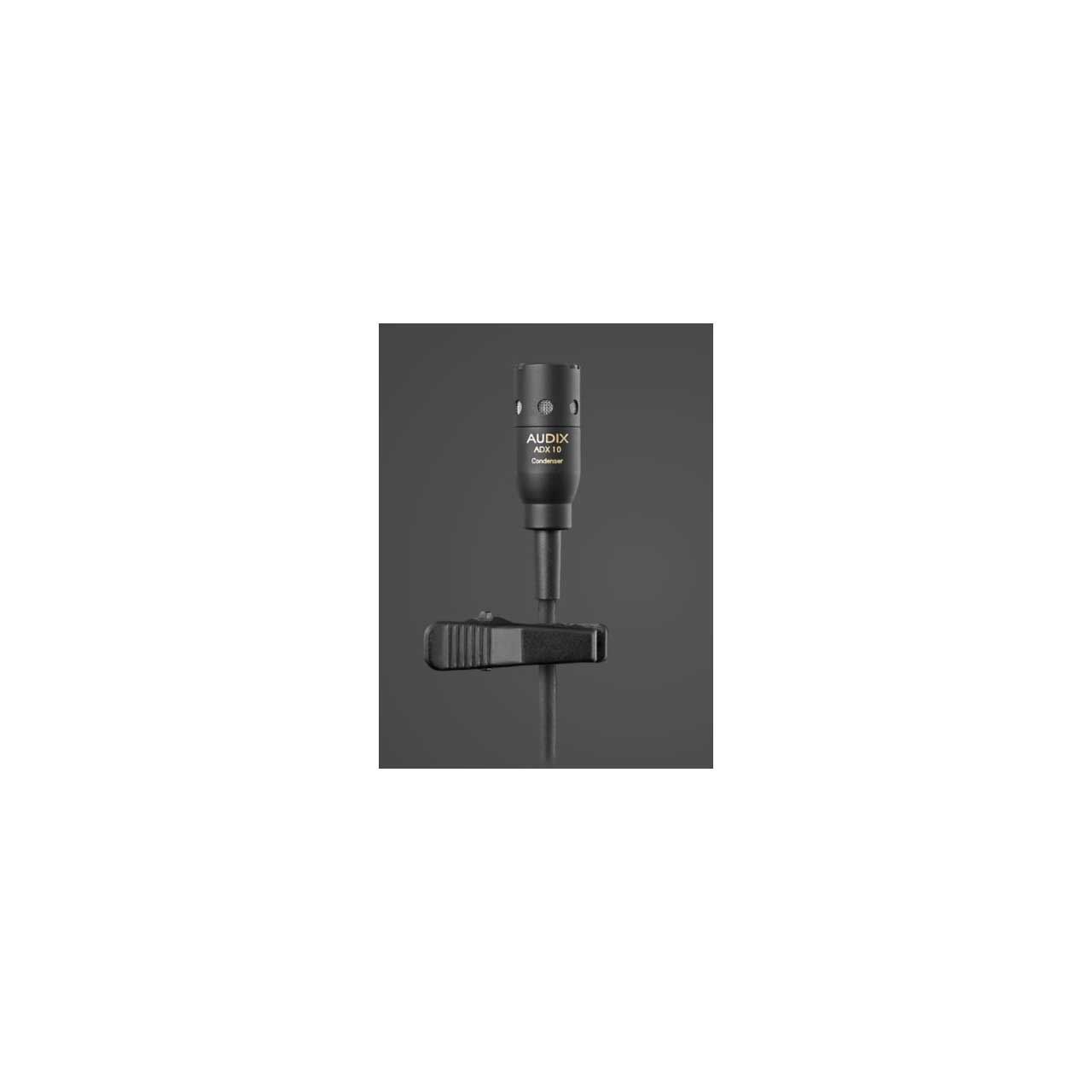

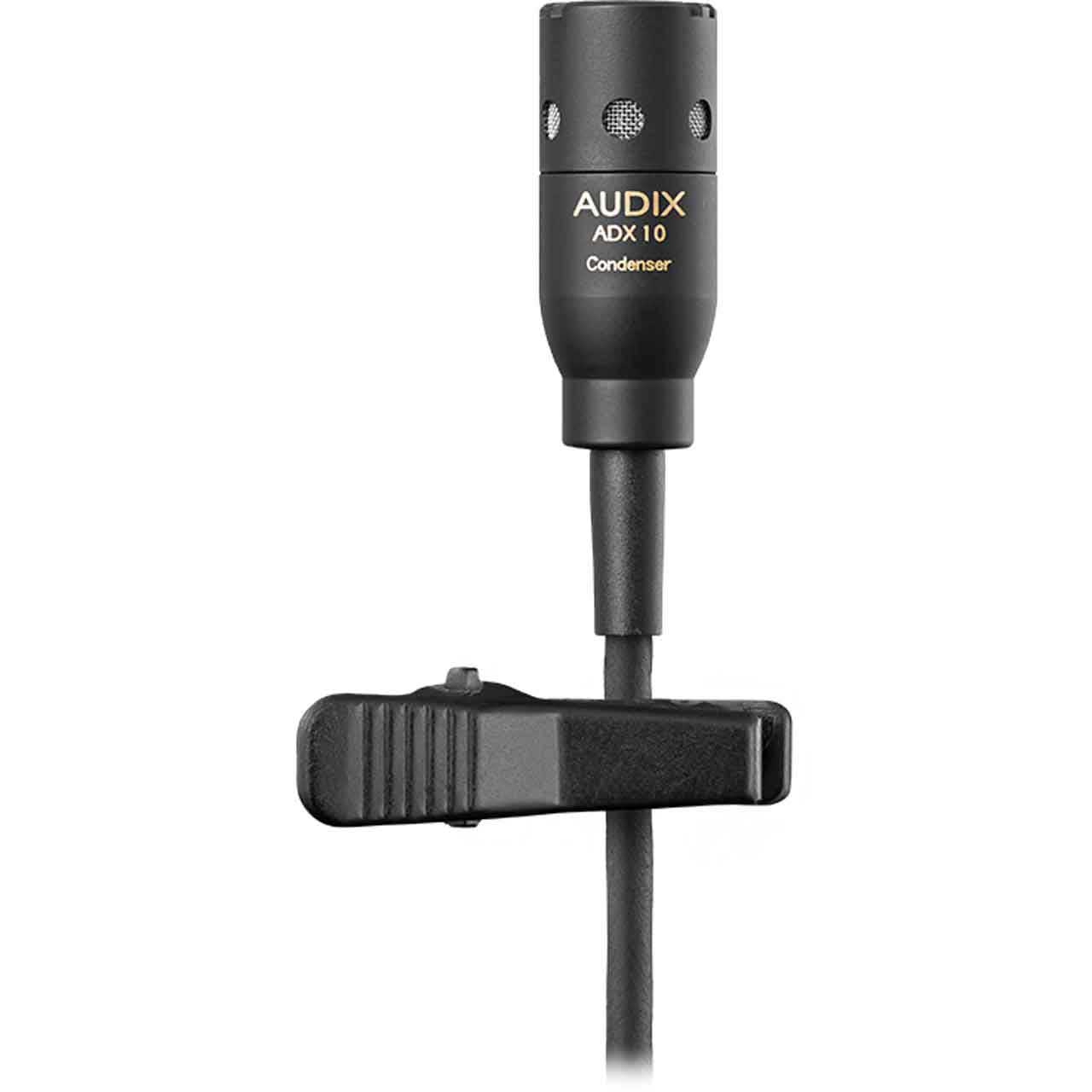

  • 64 MHz Wide spectrum transmitter with ADX10 lavalier microphone
  • Durable metal housing
  • 14 Hour run time - AA batteries


• Specifications:

  • R41/R42 Receiver
  • Frequency Range A: 522 MHz - 554 MHz / B: 554 MHz - 586 MHz
  • Bandwidth 32 MHz
  • Compatible Systems Up to 16 systems (R41) / 8 systems (R42) simultaneous use
  • Switchable Frequencies 106 Pre-coordinated frequencies
  • Manual Mode n/a
  • Frequency Response 45 Hz - 18 kHz
  • Compander System 2:1
  • Pilot Tone 32 kHz
  • Receiving System Single tuner, antenna diversity
  • Signal-to-Noise Ratio 105 dB at 30 kHz deviation (A-weighted)
  • Total Harmonic Distortion =0.7% (33 kHz deviation at 1 kHz)
  • Sensitivity 5 dBæV (S/N 60 dB at 25 kHz deviation, A-weighted)
  • Audio Output (Level=6) Balanced: -12 dbv @ 25 kHz deviation, 600 ohm load
  • 1/4": -18 dbv @ 25 kHz deviation, 10 ohm load
  • Output Connectors 1/4", XLR
  • Audio Level Adjustment -12 to +9 in 3 db steps
  • Range 300', (91 m)
  • Power Supply 100 - 240 V / 50 - 60 Hz, 12 V DC, 1A
  • Dimensions (W / D / H) 205 mm / 8.07 in x 206 mm / 8.11 in x 44 mm / 1.73 in (R41)
  • 406 mm / 15.98 in x 209 mm / 8.23 in x 44 mm / 1.73 in (R42)
  • Net Weight 1.92 lb / 0.87 kg (R41)
  • 4.75 lb / 2.1 kg (R42)

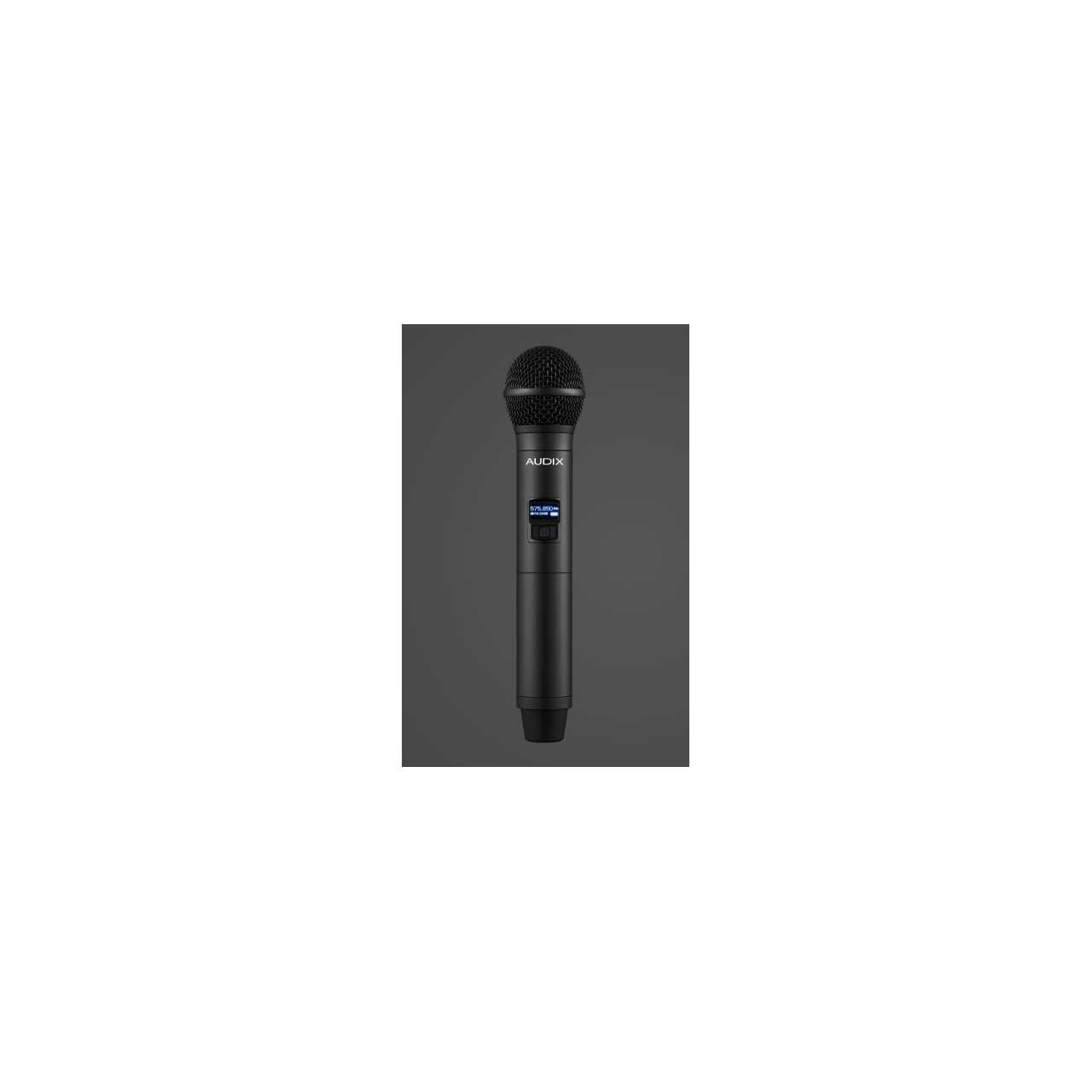

  • H60 Handheld Transmitter
  • RF Power Output 10 mW, 30 mW
  • Frequency Bandwidth 64 MHz
  • Gain Controls 0 dB, -6 dB, -12 dB
  • Input Connector n/a
  • Batteries Included 2 AA 1.5 V
  • Current Consumption 110 mA typical
  • Battery Life Approximately 14 hours (depending on battery type and usage)
  • Input Impedance n/a
  • Max Sound Pressure Level >140 dB (depending on capsule)
  • Dimensions 2.1in diameter body, 10.43" (L),
  • 53 mm diameter body, 265 mm (L)
  • Net Weight 11.0 oz / 312 g (without battery)

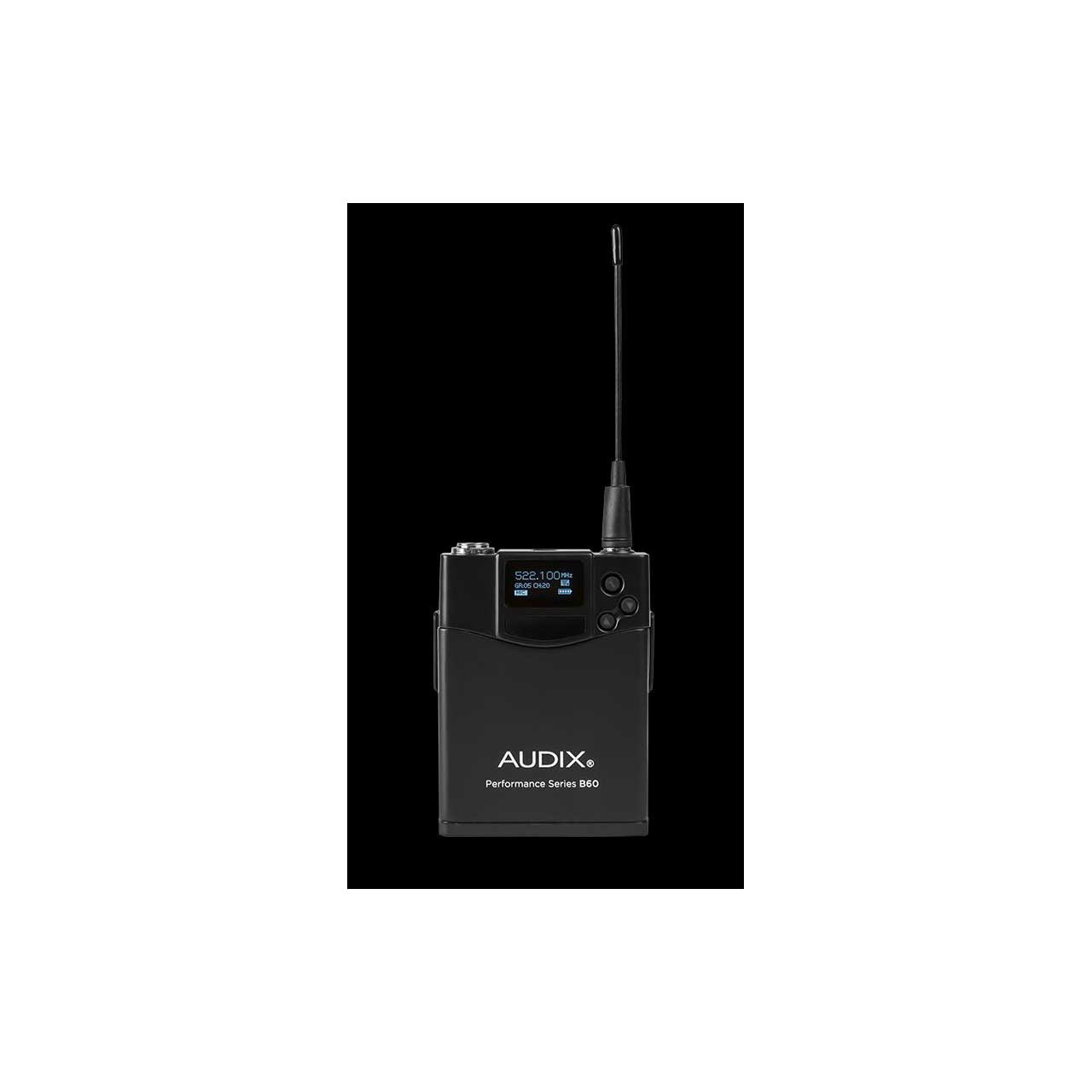

  • B60 Bodypack Transmitter
  • RF Power Output 10 mW, 30 mW
  • Frequency Bandwidth 64 MHz
  • Gain Controls 0 db, -6 dB, -12 dB, -24dB
  • Input Connector 3 pin mini-XLR
  • Batteries Included 2 AA 1.5 V
  • Current Consumption 110 mA typical
  • Battery Life Approximately 14 hours
  • (depending on battery type and usage)
  • Input Impedance Mic: 10k ohm, Line: 1M ohm
  • Max Sound Pressure Level Approx. 128 db - 140 dB (depending on microphone)
  • Dimensions (W / L / D) 67 mm / 2.6 in x 90 mm / 3.5 in x 17 mm / 0.67 in
  • Net Weight 3.0 oz / 85 g (without batteries)


• Item Includes:

  • 1x R42 32 MHz Two Channel Diversity Receiver
  • 1x H60 Handheld Transmitter with OM2 Capsule Module
  • 1x B60 Bodypack Transmitter with ADX10 Lavalier Microphone
  • 2x Antennas
  • 1x Audio Cable
  • 1x WS10 Windscreen
  • 1x Clip
  • 1x Pouch
  • 4x AA Batteries
  • 1x Power Supply
  • 1x User Guide
  • 1x Rackmount Hardware
  • 2x BNC Cables


• Warranty:

  • One-year limited warranty


• GTIN:

  0687471931004
