Audix NCBX10 Novacore Digital Body Pack Wireless System with ADX10 Lavalier Mic - 494MHz-542MHz

ITEM #: AUD-NCBX10 MFG #: NCBX10

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$899.00

Our Price:

$749.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


NCBX10 - Overview

Complete professional hands-free wireless audio system for clergy, presenters, performers, and broadcast talent!

The Audix NCBX10 is a complete single-channel Novacore digital wireless lavalier system for clergy, presenters, performers, and broadcast talent - everything needed for professional hands-free wireless audio in a single purchase. It pairs the NCR1 Single-Channel Digital Receiver with the NCBP Digital Bodypack Transmitter and AUDIX ADX10 Cardioid Lavalier Condenser Microphone, delivering discreet, natural-sounding vocal clarity on a professional AES-256 encrypted UHF digital wireless platform.

The ADX10 miniature cardioid lavalier delivers natural vocal clarity with strong off-axis rejection, making it well suited for podium applications, theatrical productions, and houses of worship where clean, unobtrusive placement and consistent feedback control are equally important. The NCBP transmitter and NCR1 receiver are pre-matched on the Novacore RF platform and pair via one-touch IR sync. Variable input gain from -12dB to +18dB at the transmitter and a dedicated 3.5mm remote mute input for external switch control round out the system's flexibility for installed-sound applications.

The system operates across a 48MHz UHF tuning range with less than 3 ms latency and 9+ hours of transmitter battery life on two AA alkaline or one NCLB rechargeable lithium-ion. USB-C charging is built into the NCBP transmitter body. The NCBP is also compatible with other AUDIX lavalier and headset microphones - including the L5, L5O, HT5, HT7B3P, and HT7BG3P - and any third-party TA3F-terminated mic, allowing the system to adapt as application needs evolve. The system is fully expandable within the Novacore ecosystem by adding channels, transmitters, or receivers as needs grow.

  • Features:

    • Complete Novacore digital lavalier wireless system
    • Includes NCR1 receiver, NCBP transmitter, and ADX10 lavalier mic
    • Professional 24-bit digital audio
    • Ultra-low latency under 3ms
    • 116dB dynamic range
    • Wideband UHF operation with 48MHz tuning range
    • AES-256 encrypted wireless transmission
    • Fast IR synchronization and pairing
    • Rugged all-metal receiver chassis
    • High-performance RF front end
    • Up to 16 hours of battery life
    • Rechargeable lithium-ion and AA battery support
    • Ideal for presentations, theater, worship, and live sound
    • Scalable Novacore wireless ecosystem

  • Specifications:

      System
    • Analog/Digital: Digital
    • Frequency Range: 494MHz - 542MHz

      Microphone
    • Type: Lavalier, Audix ADX10
    • Polar Pattern: Cardioid
    • Max SPL: 120dB
    • Size: 9.84" x 0.39"
    • Connector: TA3F
    • Color: Black
    • Frequency Response: 50Hz - 18kHz

      Transmitter
    • Form Factor: Bodypack
    • Battery Type: 2x AA Batteries or 1x 18500 Rechargeable (Sold Separately)
    • Battery Life: 16 hours
    • Connector: TA3

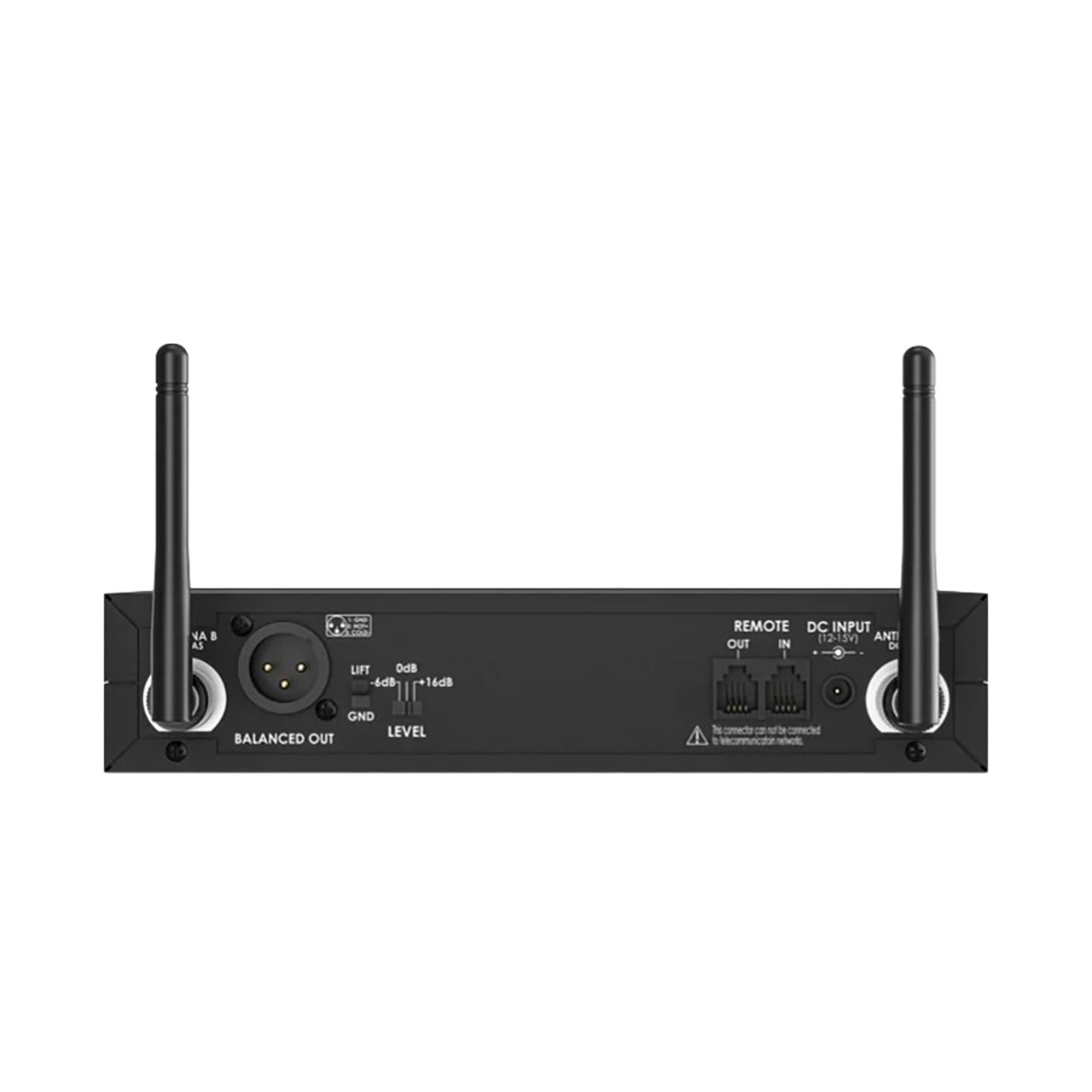

      Receiver
    • Type: Table Top
    • Front Panel Display: Yes
    • Displays: LCD
    • Outputs: 1x XLR
    • Data I/O: 1x RJ11

  • Item Includes:

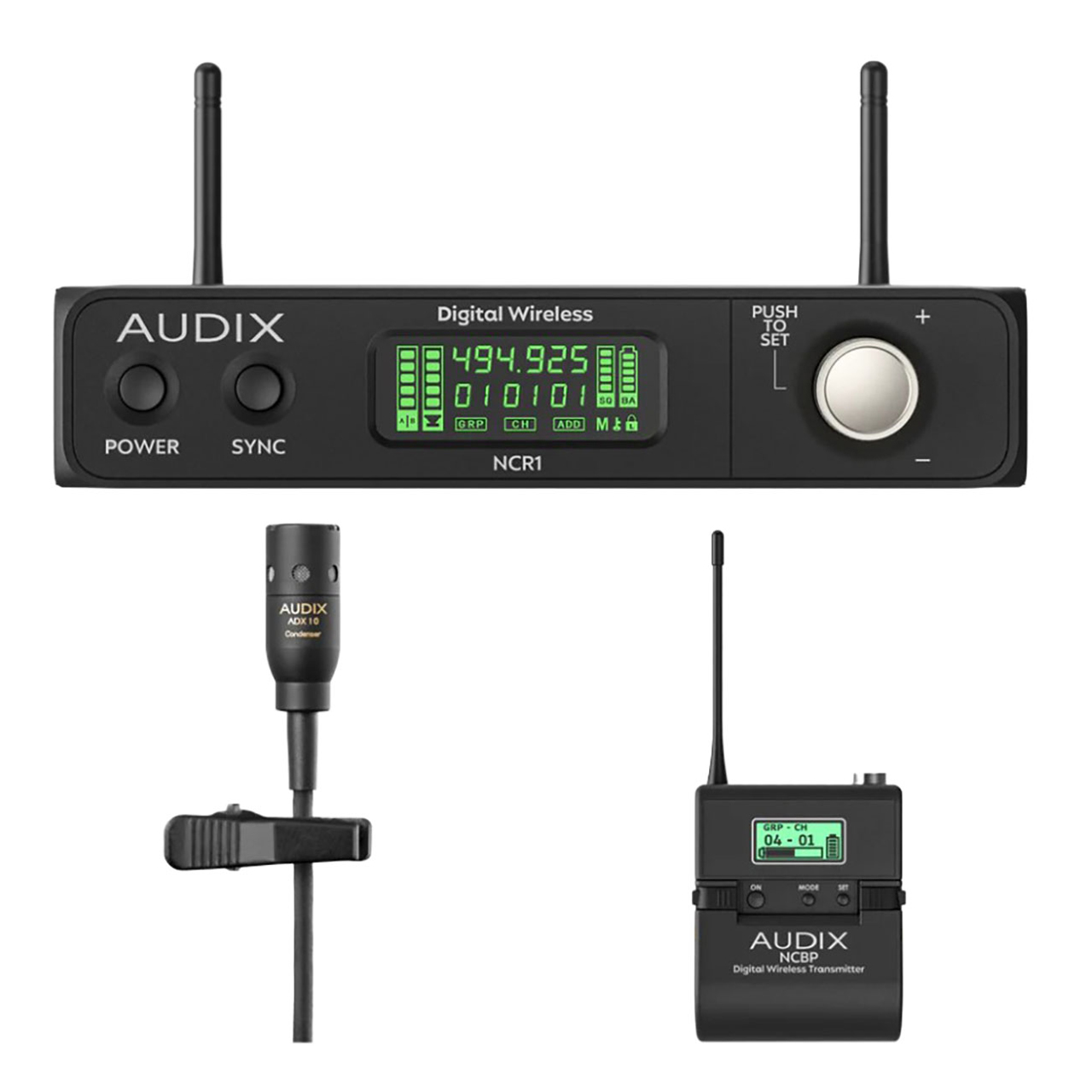

    • NCR1 - Novacore Single-Channel Digital Receiver

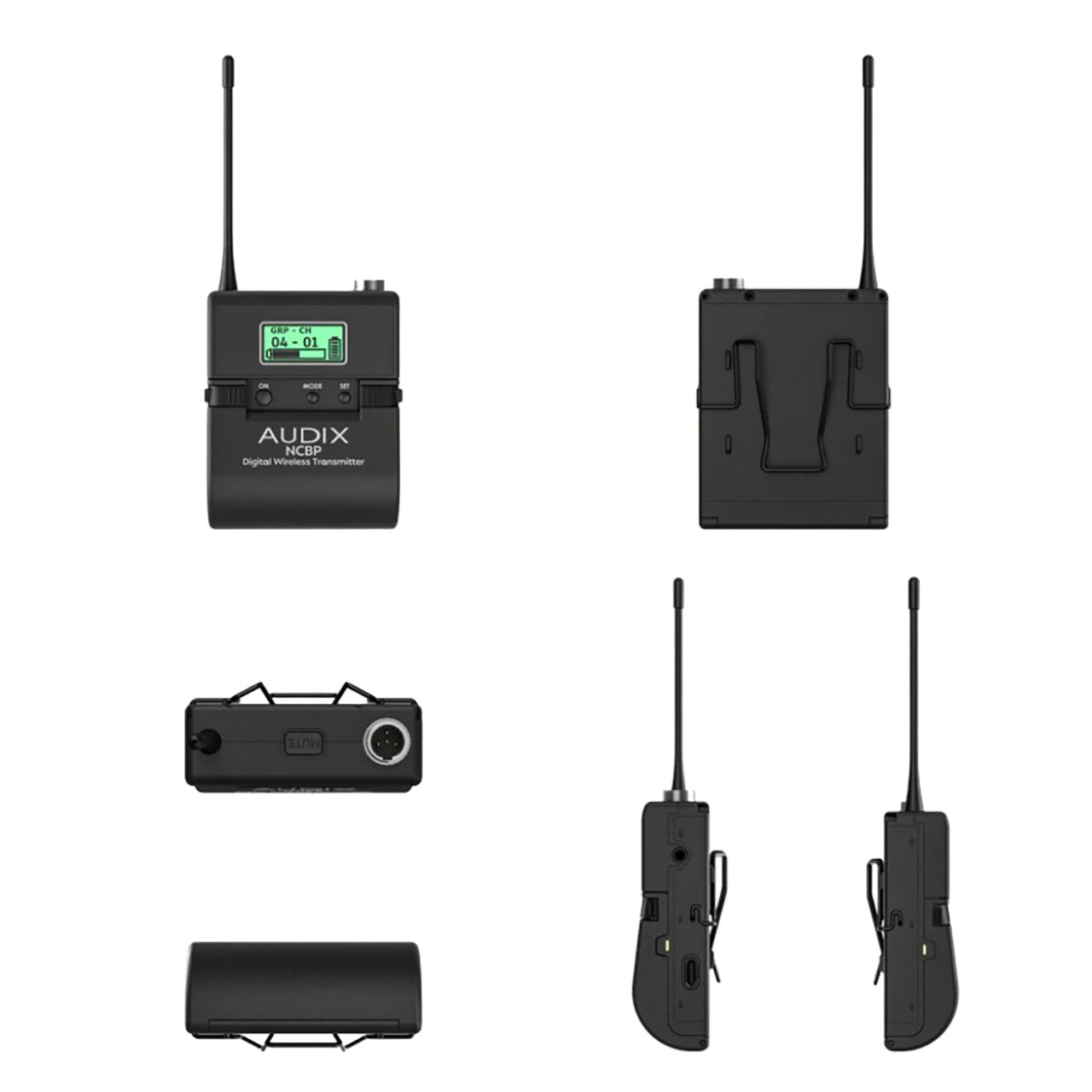

    • NCBP - Novacore UHF Digital Bodypack Transmitter

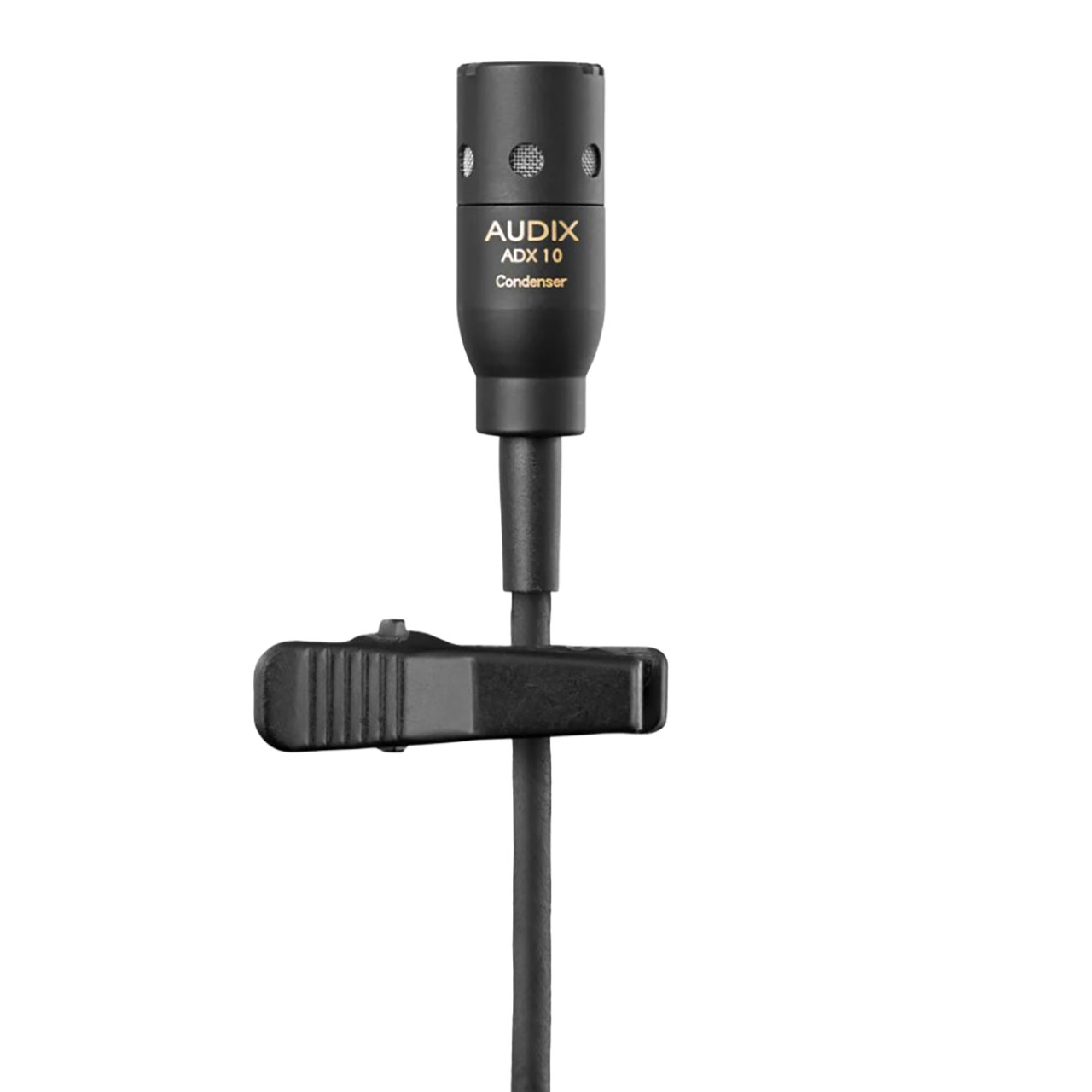

    • ADX10 - Cardioid Lavalier Condenser Microphone
    • 2x BNC Detachable Antennas

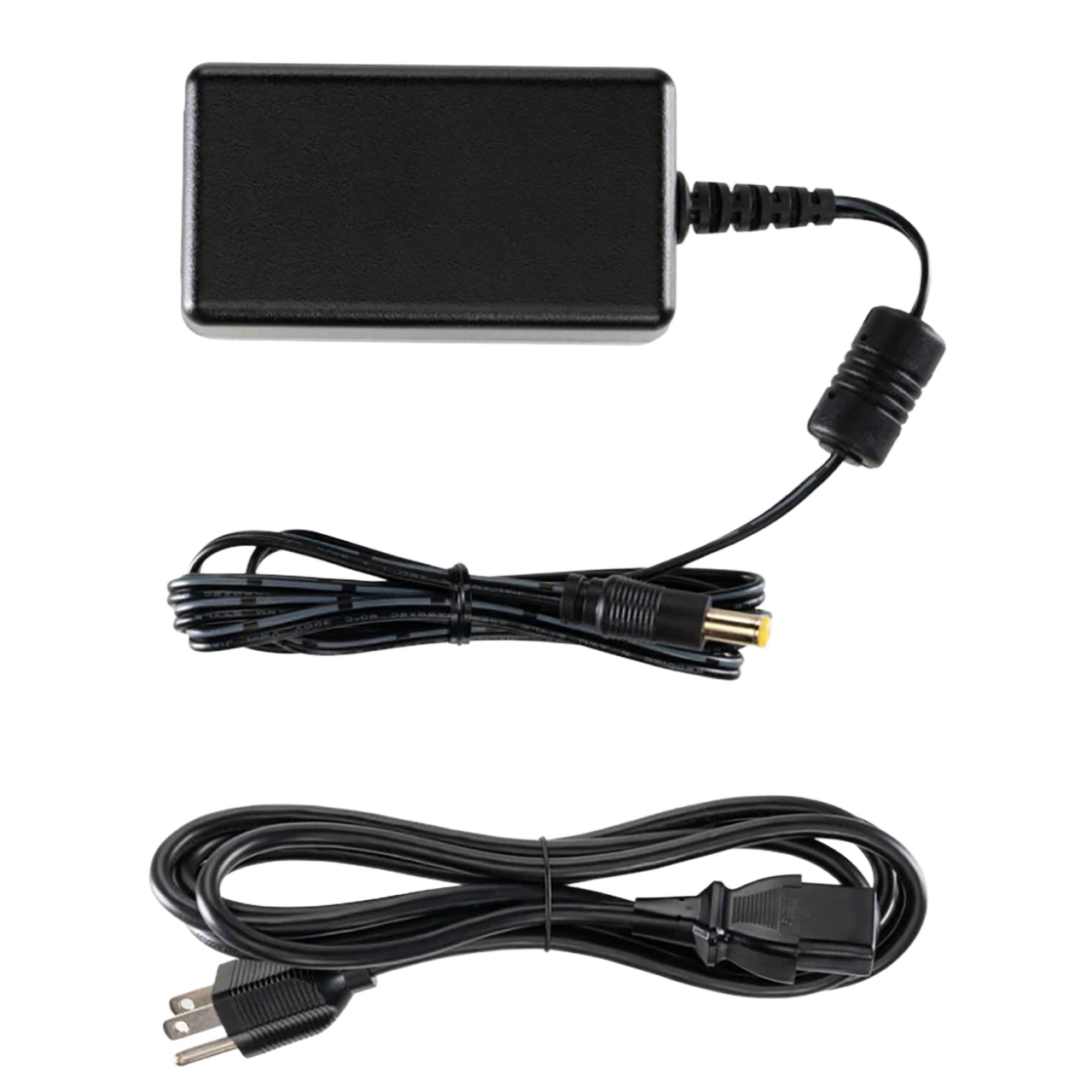

    • PS12V - 12 VDC External Power Supply (100-240 VAC / 50/60 Hz universal)
    • NCBC - Belt Clip
    • NCCC - 20" Charging Cable, USB-A to USB-C

  • GTIN:

    0687471631096
