NCR1 - Overview

The AUDIX Novacore NCR1 digital wireless receiver is meticulously engineered to satisfy the rigorous demands of complex RF deployments. Utilizing a sophisticated state-of-the-art digital architecture, Novacore delivers unparalleled audio quality characterized by crystal-clear sound reproduction and minimal latency. This advanced design philosophy not only ensures sonic fidelity but also contributes to exceptional spectral efficiency, allowing for a greater number of simultaneous operating channels within increasingly crowded radio frequency spectra.

The system's robust performance guarantees rock-solid wireless stability, making it a dependable choice across a diverse range of professional applications. Novacore is perfectly suited for intimate settings such as houses of worship, where audio clarity and reliability are paramount for spoken word and musical performances. Furthermore, its secure and interference-resistant transmission capabilities make it an ideal solution for critical corporate meetings, as well as high-stakes governmental and legislative events where every word must be captured without fail. On the grand scale, Novacore systems possess the power and flexibility necessary to handle the complex, high-channel-count requirements of large-scale professional tour sound productions, providing world-class performance night after night in challenging live environments. The combination of pristine digital audio, spectral efficiency, and unwavering reliability positions the AUDIX Novacore as a premier choice for audio professionals demanding the very best in digital wireless technology

Applications:
• Professional Live Sound
• Theater
• House of Worship
• Education
• Government/Secure Comms
• Sports/Fitness
• Broadcast Medai (ENG/EFP)
• Film/Video Production
• Multi-Room Installations

  • Features:

    • Supports simultaneous operation of over 30 independent systems, ensuring seamless and uninterrupted performance even in challenging RF environments.
    • Delivers uncolored, high-fidelity sound through a wide 118dB dynamic range with flat frequency response.
    • Provides AES-256 encryption to guarantee private and protected audio transmission.
    • Enables effortless configuration via easy onboard frequency scanning and quick, one-touch IR synchronization with NCHH (handheld) and NCBP (bodypack) transmitters.

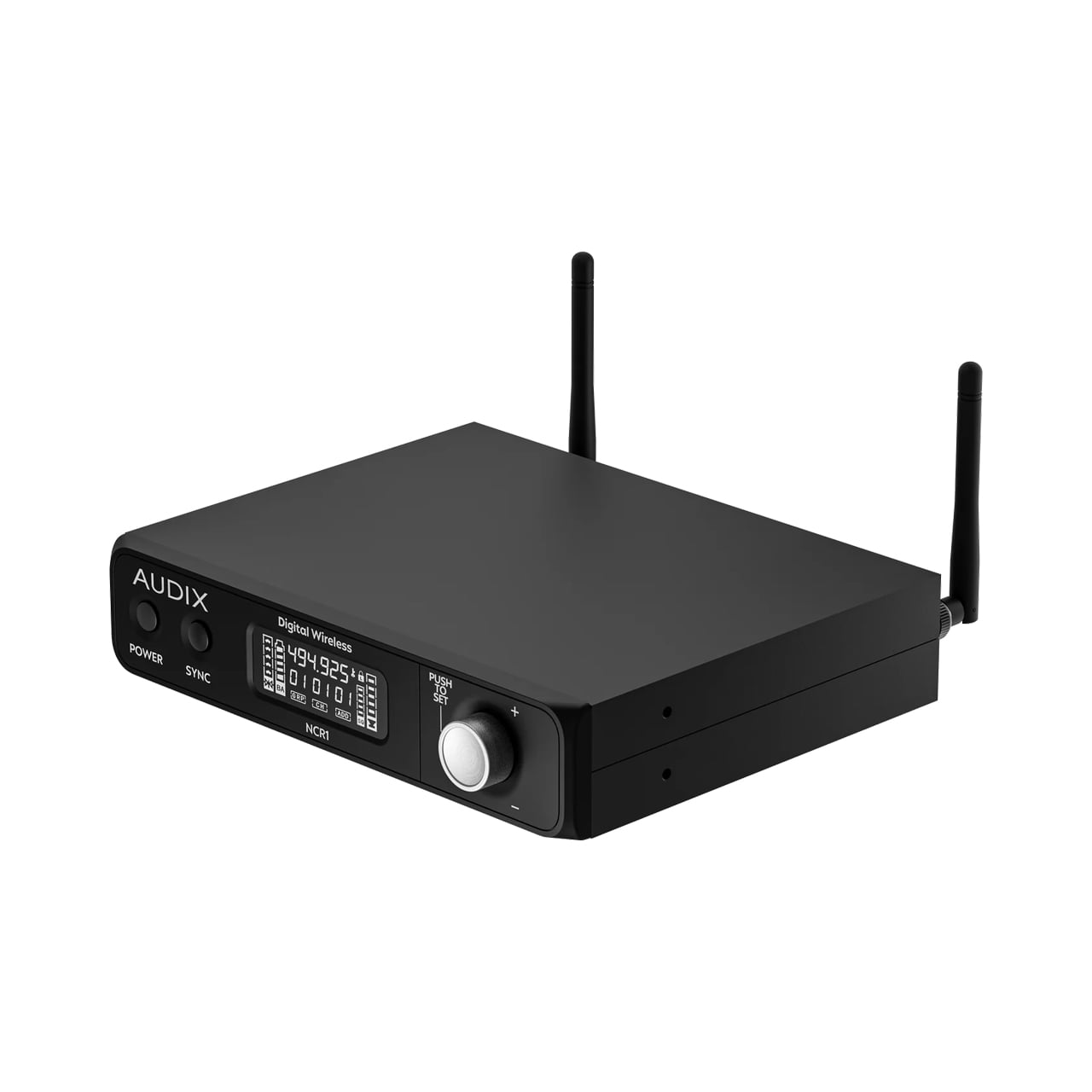

    • The clear front LCD panel provides metering for all critical functions, displaying group/channel information, RF and AF levels, diversity status, battery condition, squelch, transmitter lock, and software address.
    • AUDIX Frequency Coordination software provides comprehensive monitoring and management. Connectivity is simplified through an RJ11 daisy chain, eliminating the need for a separate network switch.
    • Compact, rugged metal half-rack chassis engineered for demanding professional audio environments and long-term reliability.
    • Single-channel digital UHF reception with 48 MHz tuning range (494MHz - 542MHz) and <3 ms latency
    • AES-256 encryption with one-touch IR sync pairing to any Novacore handheld or bodypack transmitter

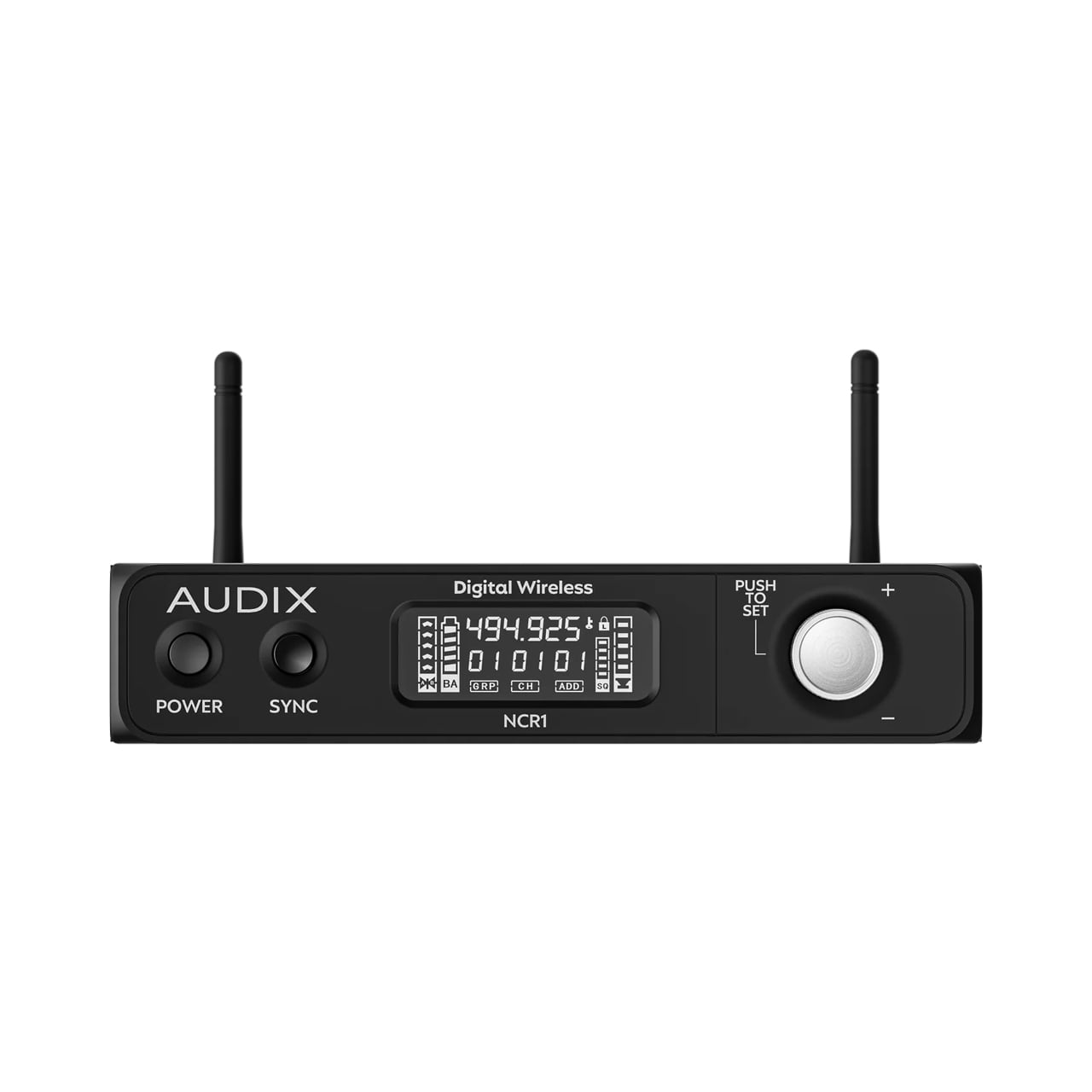

    • Front-panel LCD with RF/AF metering, group/channel, diversity status, battery, and settings menu
    • Daisy-chainable RJ11 ports for AUDIX Frequency Coordination software - no network switch required

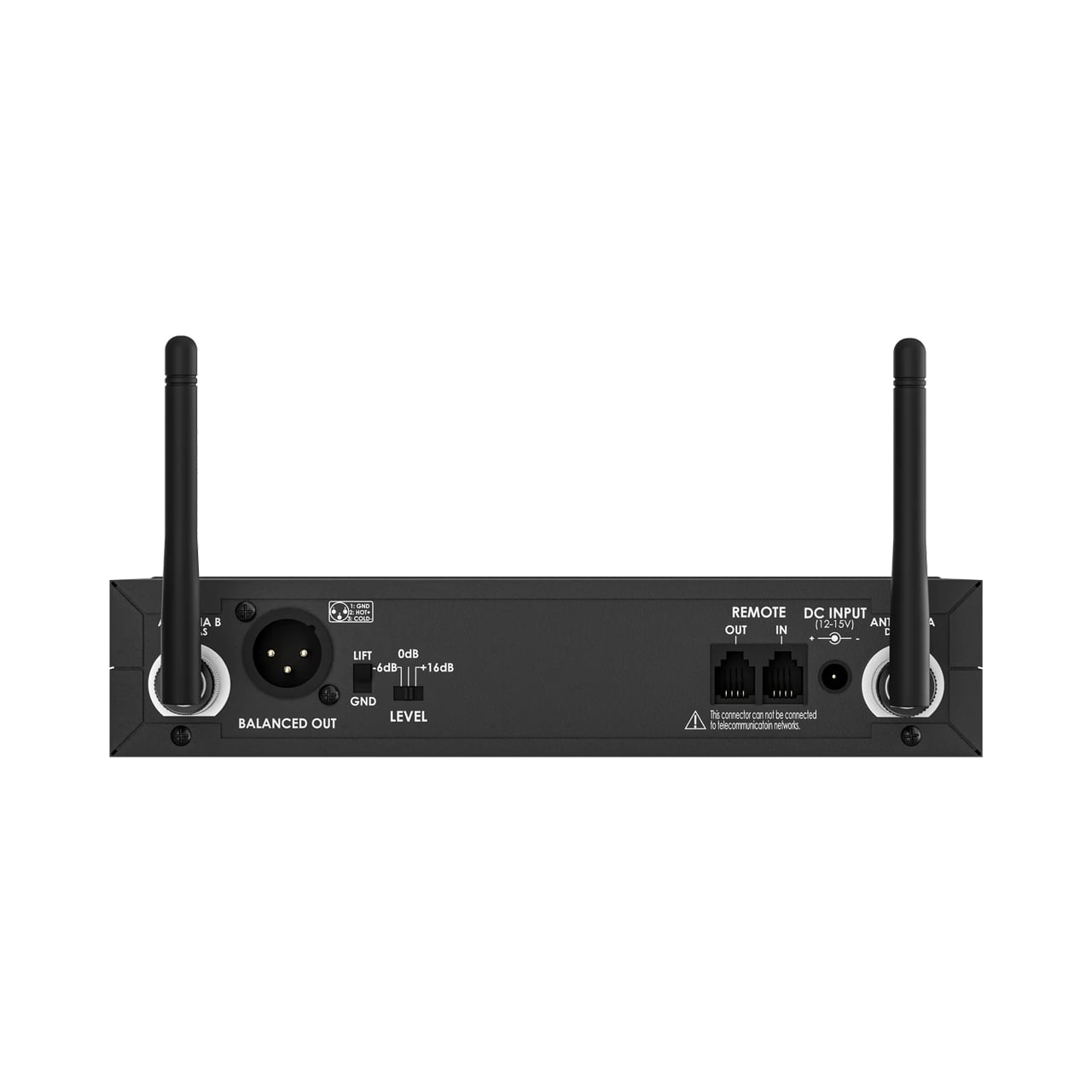

    • Balanced XLR output with switchable pad (-6dB/0dB/+16dB) and ground lift; universal 100V - 240VAC power supply

  • Specifications:

    • RF Frequency Range: UHF 494MHz - 542MHz (country dependent)
    • RF Bandwidth: 48MHz
    • Display: LCD
    • Control Interface: Power button, Sync button, Jog dial
    • Encryption: AES 256-bit
    • Frequency Response: 20Hz - 20kHz (< -2dB)
    • Latency: < 3 ms
    • Audio Processing: 44.1kHz/24-bit digital sampling
    • Dynamic Range: > 110dBA
    • Receiving Mode: Digital Diversity
    • RF Input:
      - Spurious Rejection: > 80dB
      - Antenna Type: 1/4-wave; adjustable
      - Connector Type: Detachable; 50Ω BNC Female connector provides bias for antenna systems
      - Sensitivity: 12dBµV @ S/N > -85dBm
    • Audio Output:
      - Level Switch: -6dB, 0dB, +16dB
      - Switch: Ground/Lift
      - Connector: XLR; Balanced (1 = ground, 2 = audio +, 3 = audio -)
      - Impedance: XLR Line Level: 600Ω
      - Output: +18dBV
    • Networking:
      - 2x RJ11 for PC software control
      - Recommended Connection Distance: < 328ft (100m)
    • Power Requirements: 12VDC @ 300mA (supplied by external power supply - tip positive)
    • Chassis: 1U Half-rack (9.5")
    • Materials / Finish: Steel/Black Finish
    • Weight: Approx. 2lbs (0.9kg)(without antennas)
    • Dimensions (WxHxD): 8.27" x 1.73" x 6.42" (210mm x 44mm x 163mm)

  • Item Includes:

    • 1x NCR1 - Novacore Single-Channel Digital Receiver
    • 2x BNC detachable antennas
    • 1x PS12V - 12 VDC external power supply (100-240 VAC / 50/60 Hz universal)
