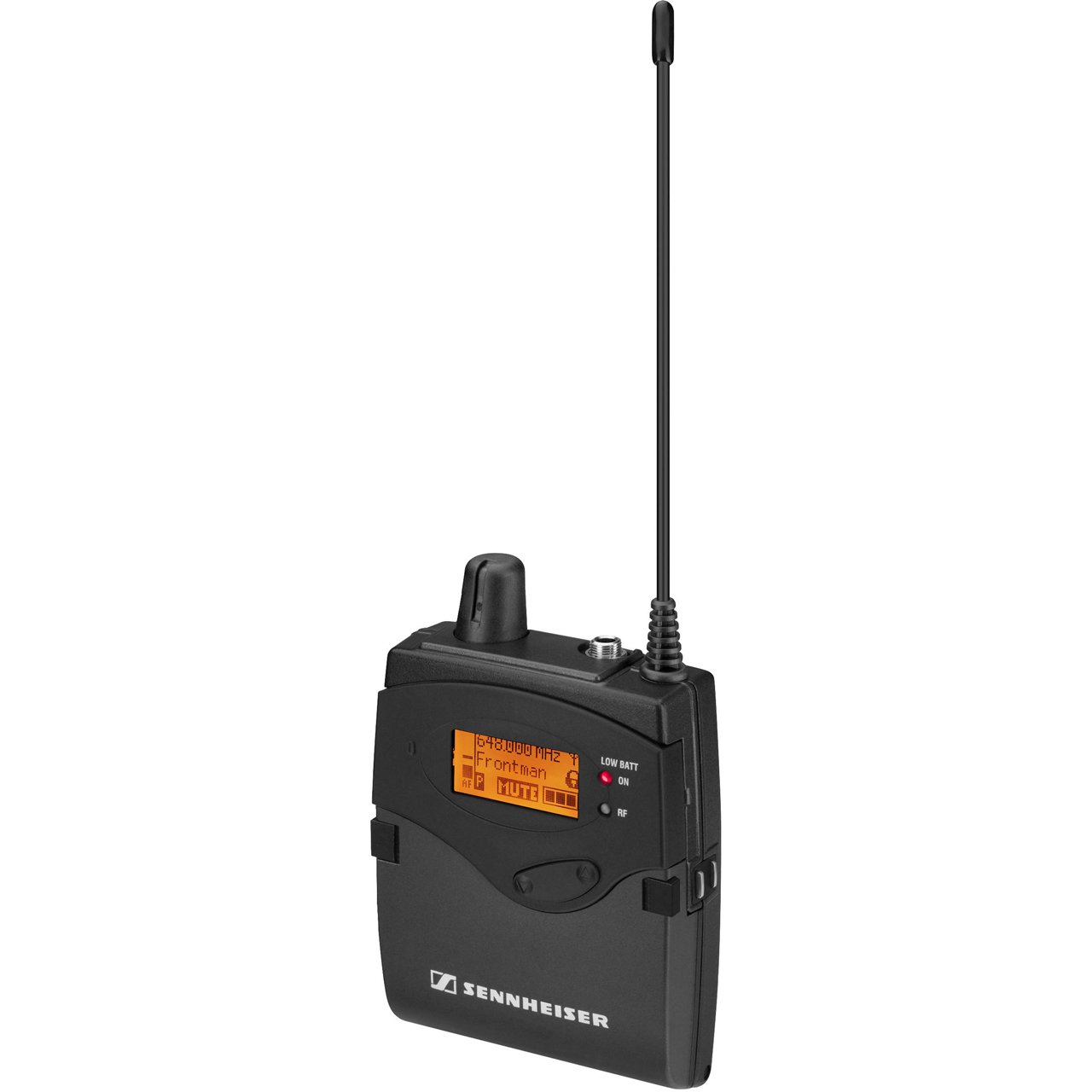

Sennheiser EK 2000 IEM-GW1 Stereo Wireless Bodypack Receiver for In-Ear Monitoring - GW1: 558MHz to 608MHz

ITEM #: SENN-EK2000IEMG1 MFG #: EK 2000 IEM-GW1

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$779.00

Our Price:

$649.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


EK 2000 IEM-GW1 - Overview

The Sennheiser EK 2000 IEM-GW1 is a wireless bodypack receiver for in-ear monitoring compatible with 2000 Series wireless transmitters. Combined with the included IE 4 earphones, it delivers reliable, professional-quality stereo audio for the rough-and-tumble world of everyday stage life.

The EK 2000 IEM-GW1 utilizes adaptive-diversity technology, along with the earphone cable as a second antenna to greatly reduce and eliminate drop-outs. The receiver also features proprietary HDX compander technology, which provides crystal-clear monitoring your live performance.

Setup is a cinch with the frequency-scan function that automatically finds clean frequencies at your location and wireless synchronization of receiver parameters from the transmitter. You also get a Hi Boost function, an adjustable limiter, stereo/focus mode, and selectable balance. The user-friendly menu interface with a backlit graphic display, which includes a 4-stage battery status indicator. An auto-lock feature prevents unwanted tampering of your settings.

The compact and rugged EK 2000 IEM-GW1 features an all-metal design that's comfortable for performers and presenters to wear over extended periods. It operates up to 6 hours on two AA batteries.

  • Features:

    • Sturdy, all-metal housing
    • 50 MHz bandwidth with 2000 frequencies
    • 20 fixed frequency banks with up to 32 compatible presets
    • 6 banks with up to 32 tunable channels
    • Adaptive-diversity technology for high reliability
    • Pilot tone squelch can be set in 2 dB steps for interference-free reception
    • Frequency scan feature searches for available frequencies
    • Wireless synchronization of receiver parameters from transmitter
    • User-friendly menu interface with a backlit graphic display
    • HDX compander for crystal-clear sound
    • Enhanced AF frequency response
    • 4-stage battery status display
    • Powered via two AA batteries (available separately)-up to 6 hours of operation
    • Can be powered by a single, rechargeable BA 2015 Accupack battery (available separately)
    • Charging contacts for recharging BA 2015
    • Auto-lock feature prevents settings from being changed accidentally
    • Hi Boost, adjustable limiter, stereo/focus mode, selectable balance

  • Specifications:

    • Dimensions: 3.2" x 2.5" x 0.95" (8.2cm x 6.4cm x 2.4cm)
    • Weight: 0.31lb (140g)
    • Frequency Band: GW1: 558MHz to 608MHz
    • Frequencies:
      - 2000 Frequencies
      - Tunable in 25kHz Steps
    • Bandwidth: GW1: 558MHz to 608MHz
    • Nominal/Peak Deviation: ±24kHz/±48kHz
    • Reception: Adaptive Diversity
    • Sensitivity: <4μV, Typ. <1.6μV for 52dBA (with HDX, Peak Deviation)
    • Adjacent Channel Rejection: Typ. ≥80dB
    • Intermodulation Attenuation: Typ. ≥78dB
    • Blocking: ≥80dB
    • Squelch:
      - Off, 5 to 25dBμV, Adjustable in Steps of 2 dB
      - Pilot-Tone Squelch Can Be Switched Off
    • Compander: Sennheiser HDX
    • S/N Ratio: Approximately 90dB (1mV, Peak Deviation)
    • THD: ≤0.9%
    • Output Power: 2x 200mW at 32Ohms (at 2.4 V, 5% THD, Nominal Deviation)
    • High Boost: +8dB at 10kHz
    • Limiter: -18 to -6dB, Adjustable in Steps of 3dB (Can Be Switched Off)
    • Power:
      - 2x AA batteries, 1.5V (Alkali Manganese) or BA 2015 Accupack
      - Approximately 4 to 6 Hours (Depending on Volume Level)
    • Nominal Voltage: 2.4V
    • Power Consumption:
      - At Nominal Voltage: Approximately 140mA
      - With Switched-Off Receiver: ≤25μA

  • Item Includes:

    • 1xEK 2000 IEM receiver
    • 1x IE 4 earphones
    • 1x Quick start guide
    • 1x Safety guide

  • Warranty:

    • 2-Year Limited Warranty
