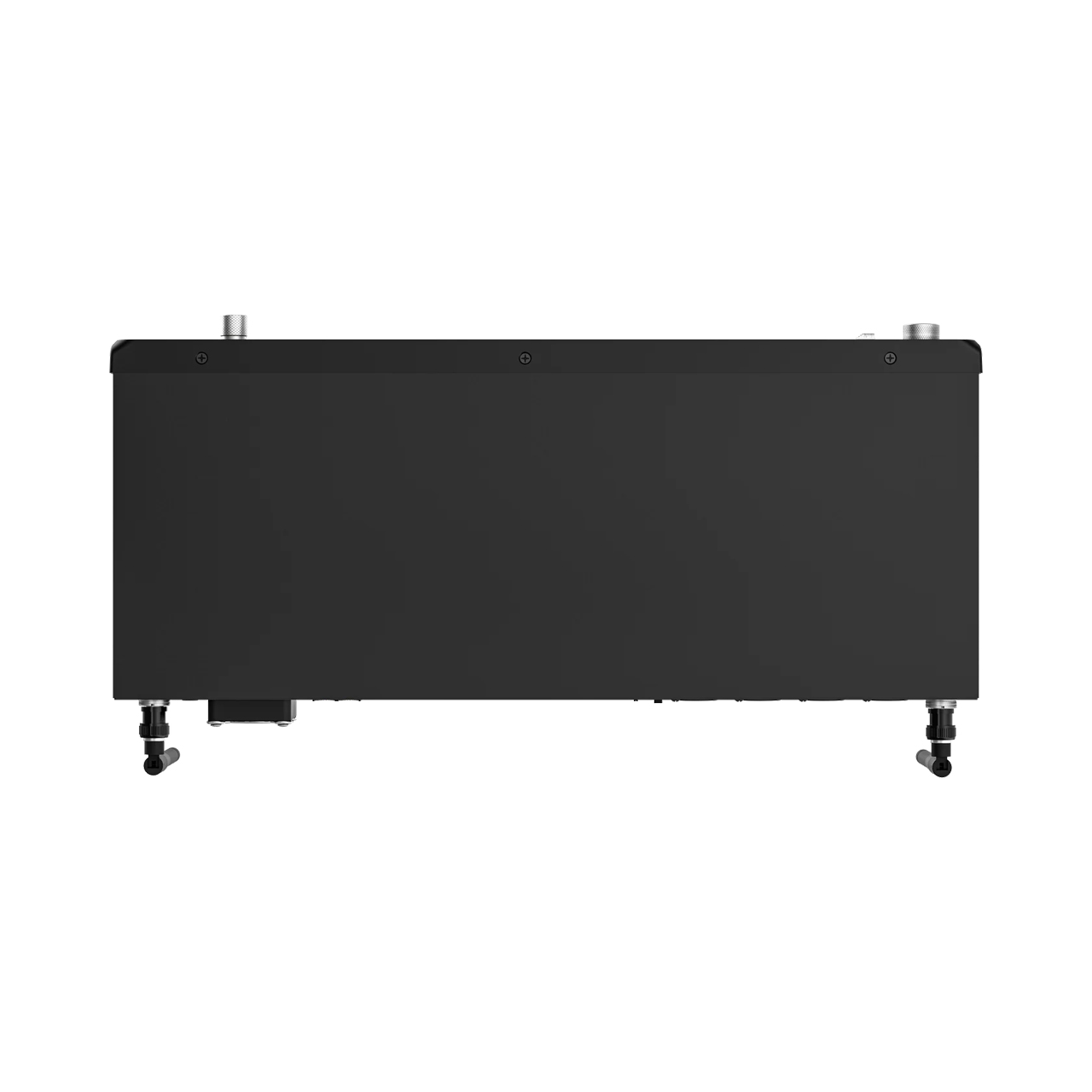

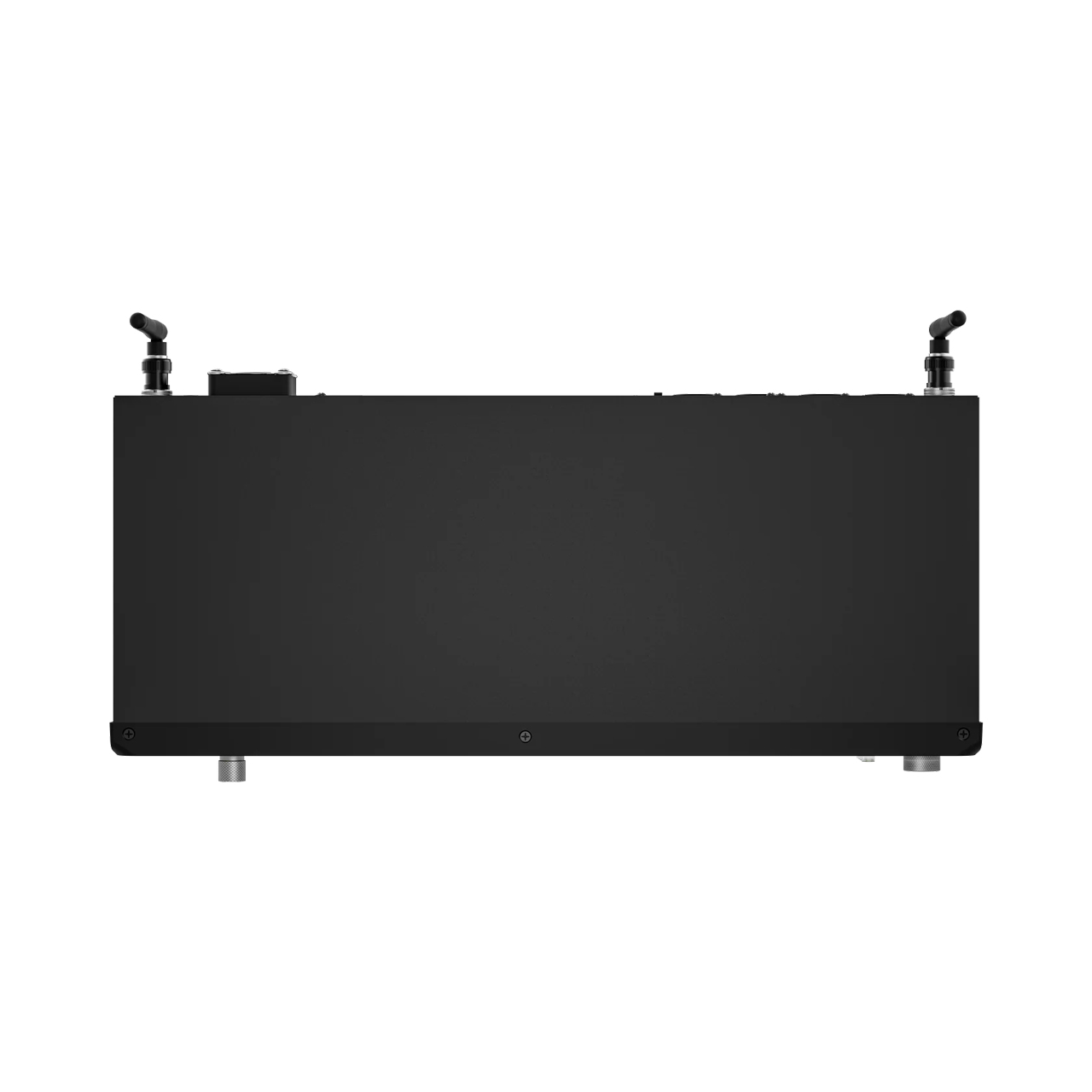

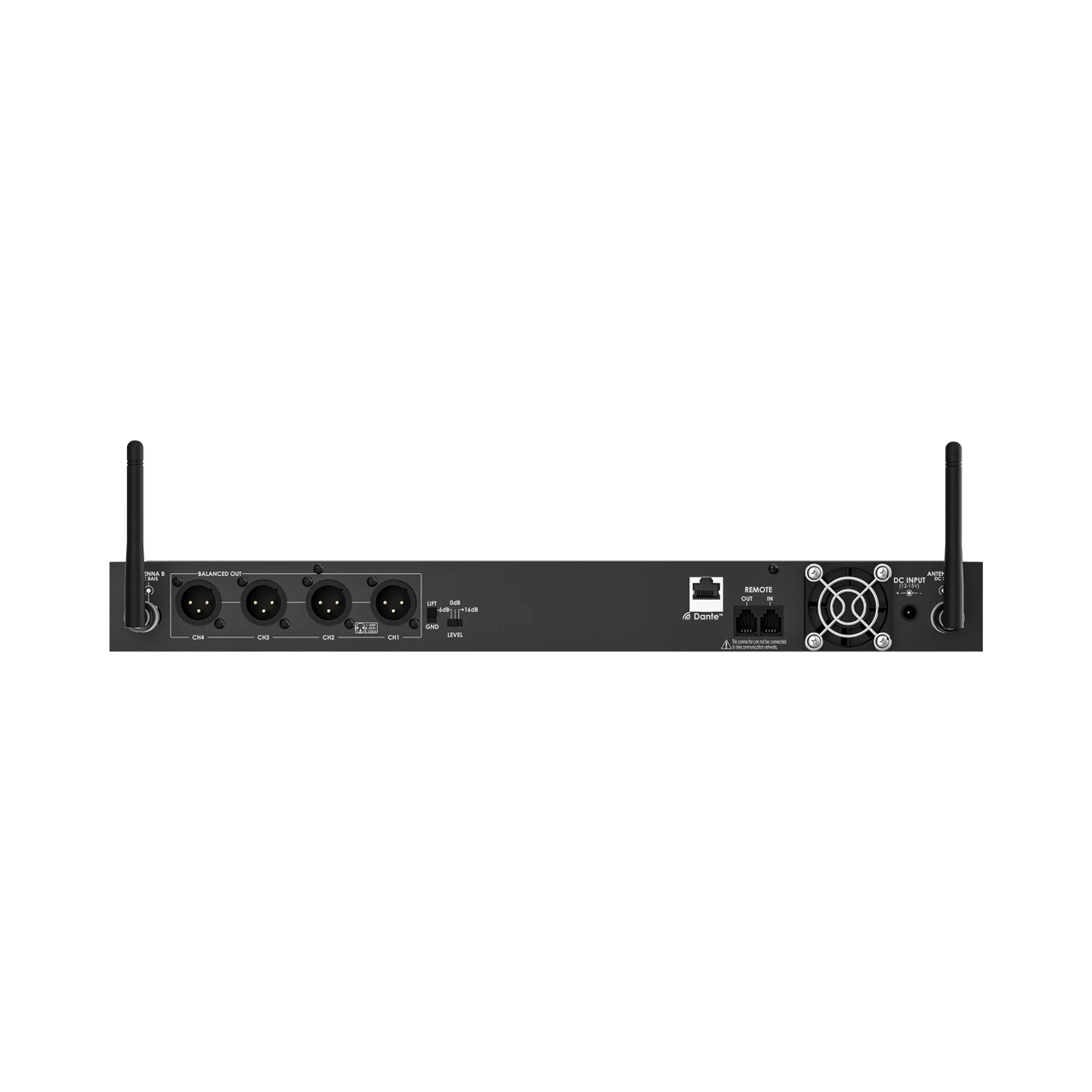

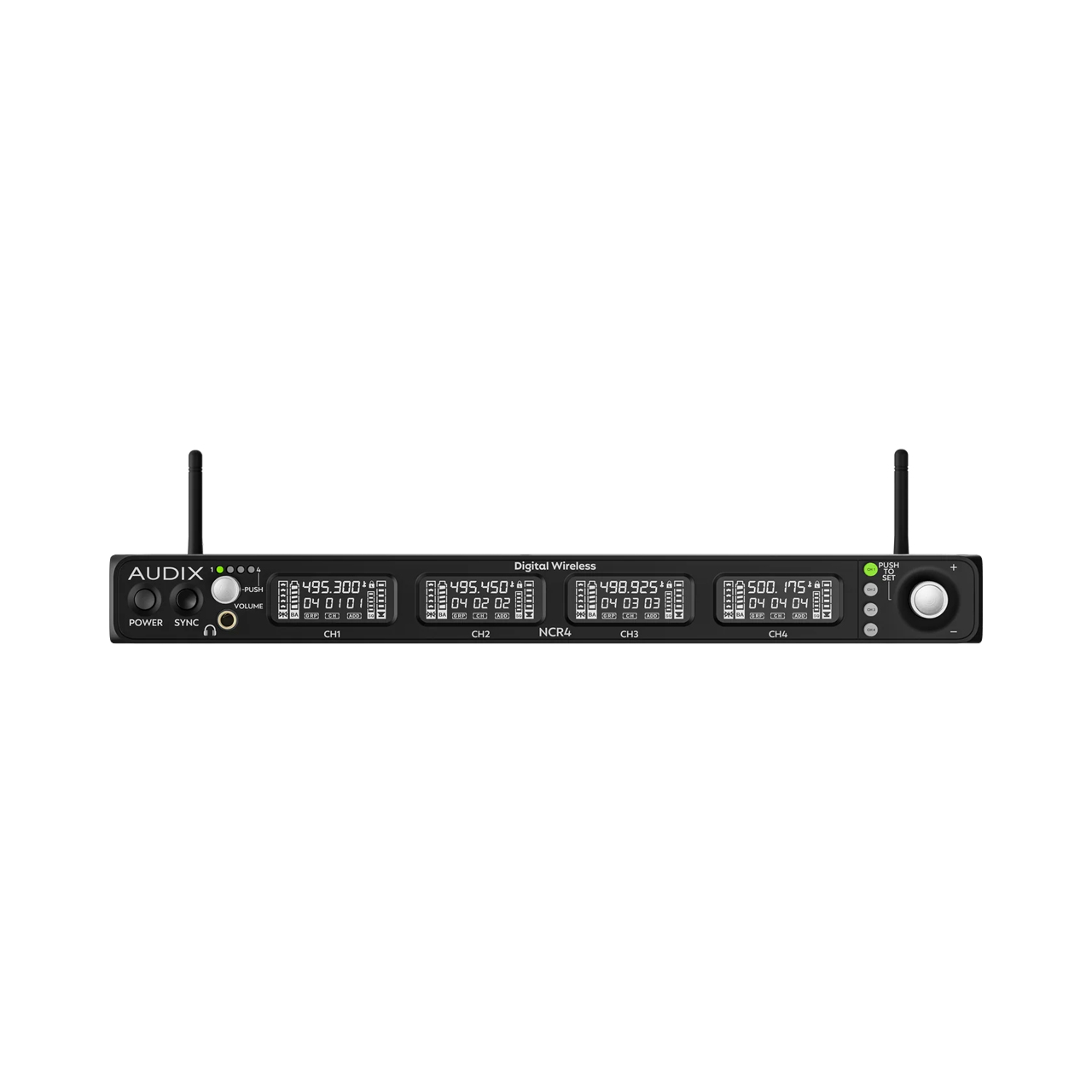

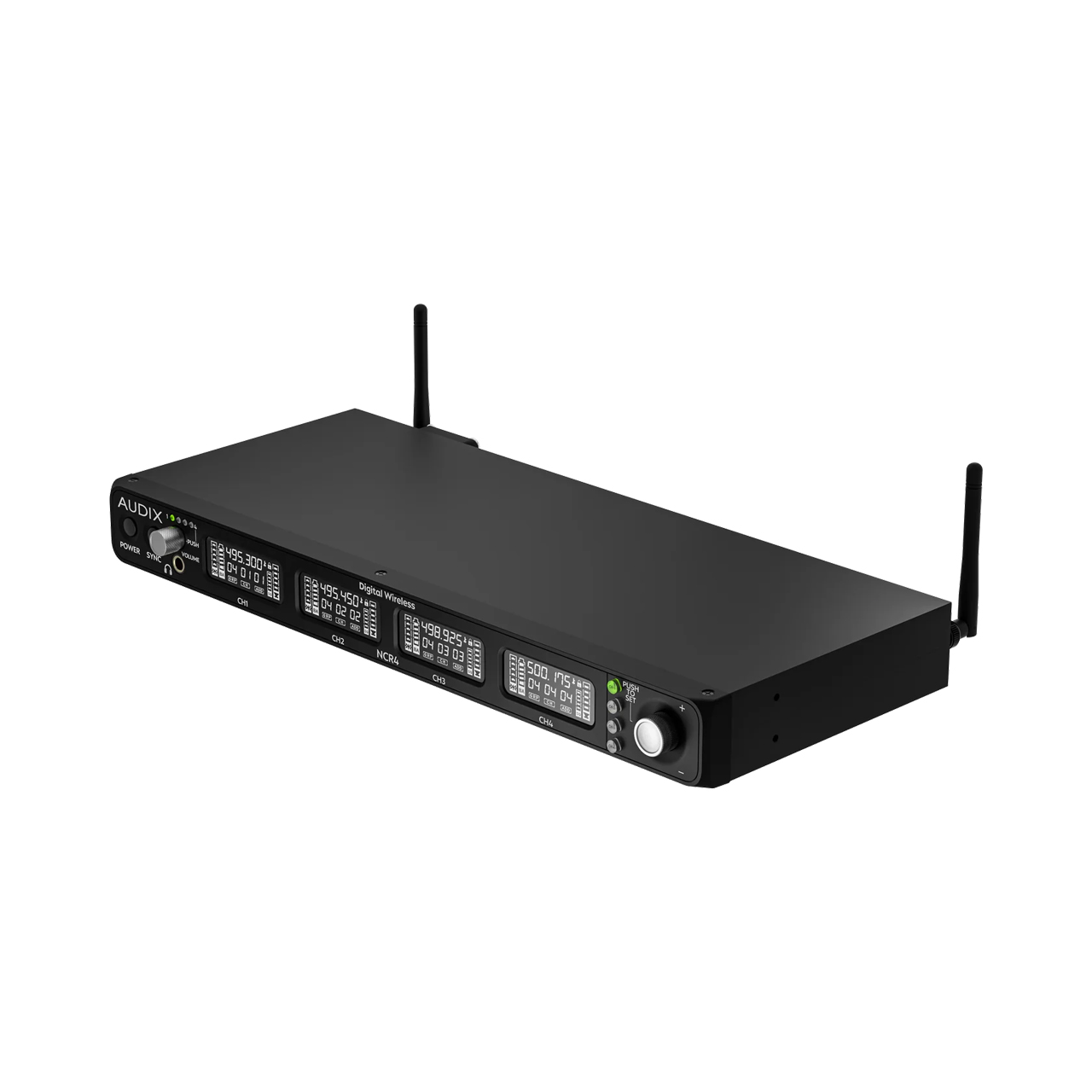

Audix NCR4 Novacore Quad-Channel Digital Receiver with AES-256 Encryption - 494MHz - 542MHz

ITEM #: AUD-NCR4 MFG #: NCR4

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,700.00

Our Price:

$2,250.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


NCR4 - Overview

Provides world-class performance in challenging live environments night after night!

The AUDIX Novacore NCR4 digital wireless receiver is meticulously engineered to satisfy the rigorous demands of complex RF deployments. Utilizing a sophisticated state-of-the-art digital architecture, Novacore delivers unparalleled audio quality characterized by crystal-clear sound reproduction and minimal latency. This advanced design philosophy not only ensures sonic fidelity but also contributes to exceptional spectral efficiency, allowing for a greater number of simultaneous operating channels within increasingly crowded radio frequency spectra.

The system's robust performance guarantees rock-solid wireless stability, making it a dependable choice across a diverse range of professional applications. Novacore is perfectly suited for intimate settings such as houses of worship, where audio clarity and reliability are paramount for spoken word and musical performances. Furthermore, its secure and interference-resistant transmission capabilities make it an ideal solution for critical corporate meetings, as well as high-stakes governmental and legislative events where every word must be captured without fail. On the grand scale, Novacore systems possess the power and flexibility necessary to handle the complex, high-channel-count requirements of large-scale professional tour sound productions, providing world-class performance night after night in challenging live environments. The combination of pristine digital audio, spectral efficiency, and unwavering reliability positions the AUDIX Novacore as a premier choice for audio professionals demanding the very best in digital wireless technology

AUDIX NCR4 receivers include both balanced analog and Dante outputs. By integrating Dante, a single Ethernet cable can route signals from multi-channel receivers, which simplifies connections with Dante-enabled mixers and peripherals. This configuration supports easy system expansion while ensuring compatibility with AES67-compliant devices.

Applications:
• Professional Live Sound
• Theater
• Corprate Events
• House of Worship
• Education
• Government/Secure Comms
• Sports/Fitness
• Broadcast Medai (ENG/EFP)
• Film/Video Production
• Multi-Room Installations

  • Features:

    • Supports simultaneous operation of up to 24 independent systems per band, ensuring seamless and uninterrupted performance even in challenging RF environments.
    • Delivers uncolored, high-fidelity sound through a wide 110 dB dynamic range with flat frequency response.
    • Provides AES-256 encryption to guarantee private and protected audio transmission.
    • Enables effortless configuration via easy onboard frequency scanning and quick, one-touch IR synchronization with NCHH (handheld) and NCBP (bodypack) transmitters.
    • The clear front LCD panels provide metering for all critical functions, displaying group/channel information, RF and AF levels, diversity status, battery condition, squelch, transmitter lock, and software address.
    • Dante/AES67 and Balanced XLR Audio outputs
    • Dedicated front panel headphone jack with a selector switch and volume control for direct monitoring of individual channels.
    • AUDIX Frequency Coordination software provides comprehensive monitoring and management. Connectivity is simplified through an RJ11 daisy chain, eliminating the need for a separate network switch.
    • Compact, rugged metal chassis engineered for demanding professional audio environments and long-term reliability
    • 20 simultaneous channels per band
    • 110 dB dynamic range
    • AES-256 encryption
    • Dante/AES67 and Balanced XLR Audio outputs

  • Specifications:

    • RF Frequency Range: UHF 494MHz - 542MHz (country dependent)
    • RF Bandwidth: 48MHz
    • Display: LCD
    • Control Interface: Power button, Sync button, Jog Dial, Channel Select Buttons, Headphone Monitoring Control
    • Encryption: AES 256-bit
    • Frequency Response: 20Hz - 20kHz (< -2dB)
    • Latency: < 3 ms
    • Audio Processing: 44.1kHz/24-bit digital sampling
    • Dynamic Range: > 110dBA
    • Receiving Mode: Digital Diversity
    • RF Input:
      - Spurious Rejection: > 80dB
      - Antenna Type: 1/4-wave; adjustable
      - Connector Type: Detachable; 50Ω BNC Female connector provides bias for antenna systems
      - Sensitivity: -85dBm
    • Audio Output:
      - Level Switch: -6dB, 0dB, +16dB
      - Switch: Ground/Lift
      - Connector: XLR; Balanced (1 = ground, 2 = audio +, 3 = audio -)
      - Impedance: XLR Line Level: 600Ω
      - Output: +18dBV
      - Dante/AES67 via RJ45
    • Networking:
      - 2x RJ11 for PC software control
      - Recommended Connection Distance: < 328ft (100m)
    • Power Requirements: 12VDC @ 300mA (supplied by external power supply - tip positive)
    • Chassis: 1U (19")
    • Materials / Finish: Steel/Black Finish
    • Weight: Approx. 5 lbs (2.3 kg)(without antennas)
    • Dimensions (WxHxD): 16.5" x 1.73" x 8.5" (419mm x 44mm x 216mm)

  • Item Includes:

    • 1x NCR4 - Novacore Quad-Channel Digital Receiver
    • 2x BNC detachable antennas
    • 1x PS12V - 12 VDC external power supply (100-240 VAC / 50/60 Hz universal)
