TM1 - Overview

Highly Accurate Test and Measurement Mic

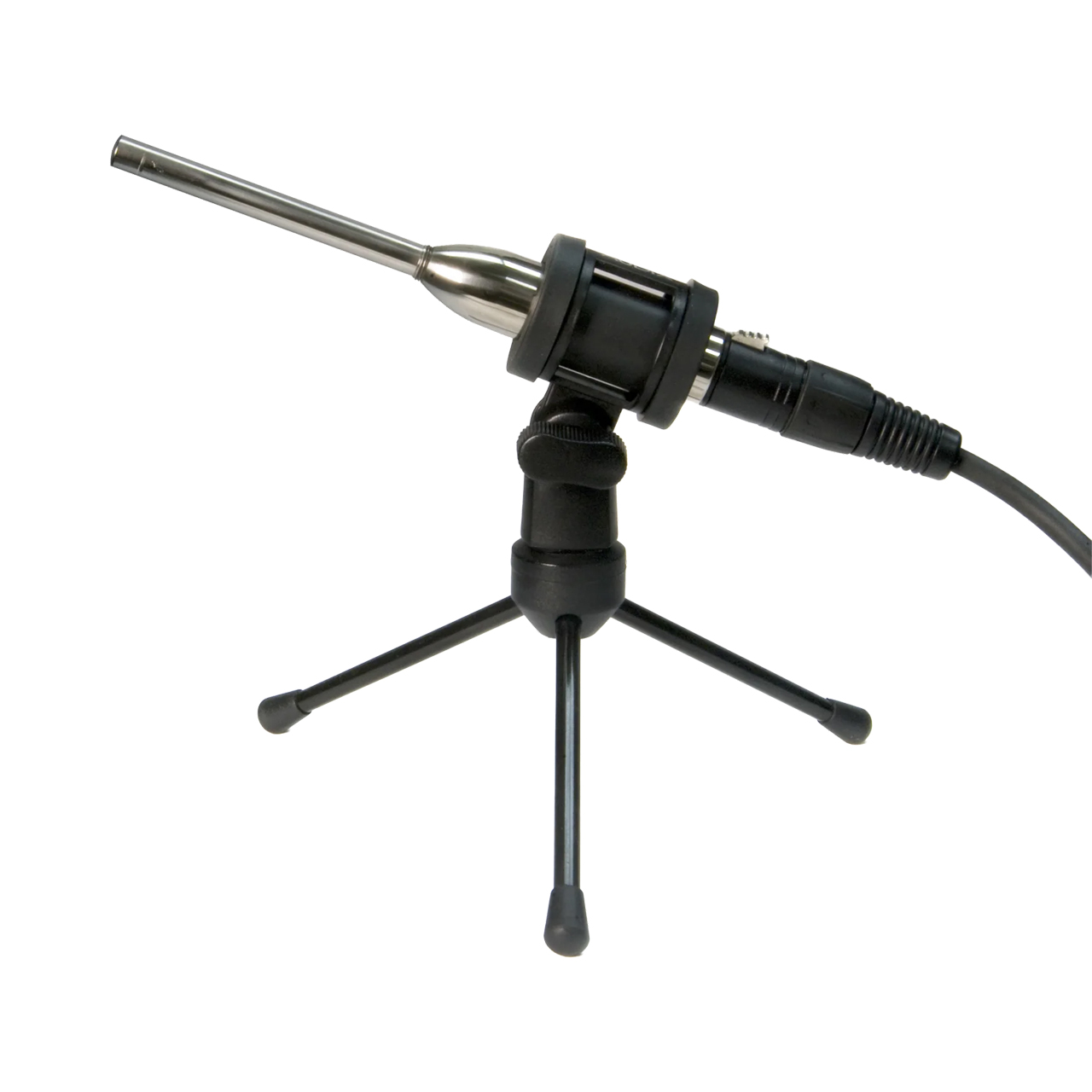

The Audix TM1 is a 6 mm pre-polarized condenser microphone used for test and measurement applications. The TM1 is known for its linearity, accurate response, consistency, ease of use, and affordability.

Equipped with a uniformly controlled omnidirectional polar pattern, the TM1 condenser microphone is designed to capture acoustic measurements for room analysis software programs, real-time analyzers, and other sound control devices. With a flat frequency range of 20 Hz - 20 kHz, the TM1 is an excellent tool for sound engineers, sound companies, and recording enthusiasts.

The TM1 omnidirectional test and measurement microphone is designed, machined, assembled, and tested by AUDIX in the USA.

Applications:
• Test and measurement
• Real time analyzers
• Room analysis software programs
• Ambient room miking

  • Features:

    • 6mm pre-polarized condenser capsule
    • Hi SPL response
    • Precision machined brass housings
    • Low noise electronics
    • Replaceable electronics and capsule

  • Specifications:

    • Transducer Type: Pre-polarized Condenser
    • Frequency Response: 20 Hz - 20 kHz +/-2 dB
    • Polar Pattern: Omni
    • Output Impedance: 200 ohms
    • Sensitivity: 6 mV / Pa @ 1k
    • Maximum SPL: 130 dB with distortion <1% 140 dB Max
    • Signal to Noise Ratio: 66 dB
    • Equivalent Noise Level: 28 dB (A weighted)
    • Dynamic Range: 112 dB
    • Connector: Male XLR
    • Power Requirements: 24 - 48 V Phantom
    • Power Consumption: 8.9 mA @ 48 Volts
    • Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
    • Materials / Finish: 4 piece precision machined, brass / Nickel Finish
    • Weight: 4.7 oz (132 g)
    • Length: 5.90" (150 mm)

  • Item Includes:

    • 1x DCLIP - Heavy duty tension fit mic clip
    • 1x P1 - Carrying pouch

  • GTIN:

    0687471061282
