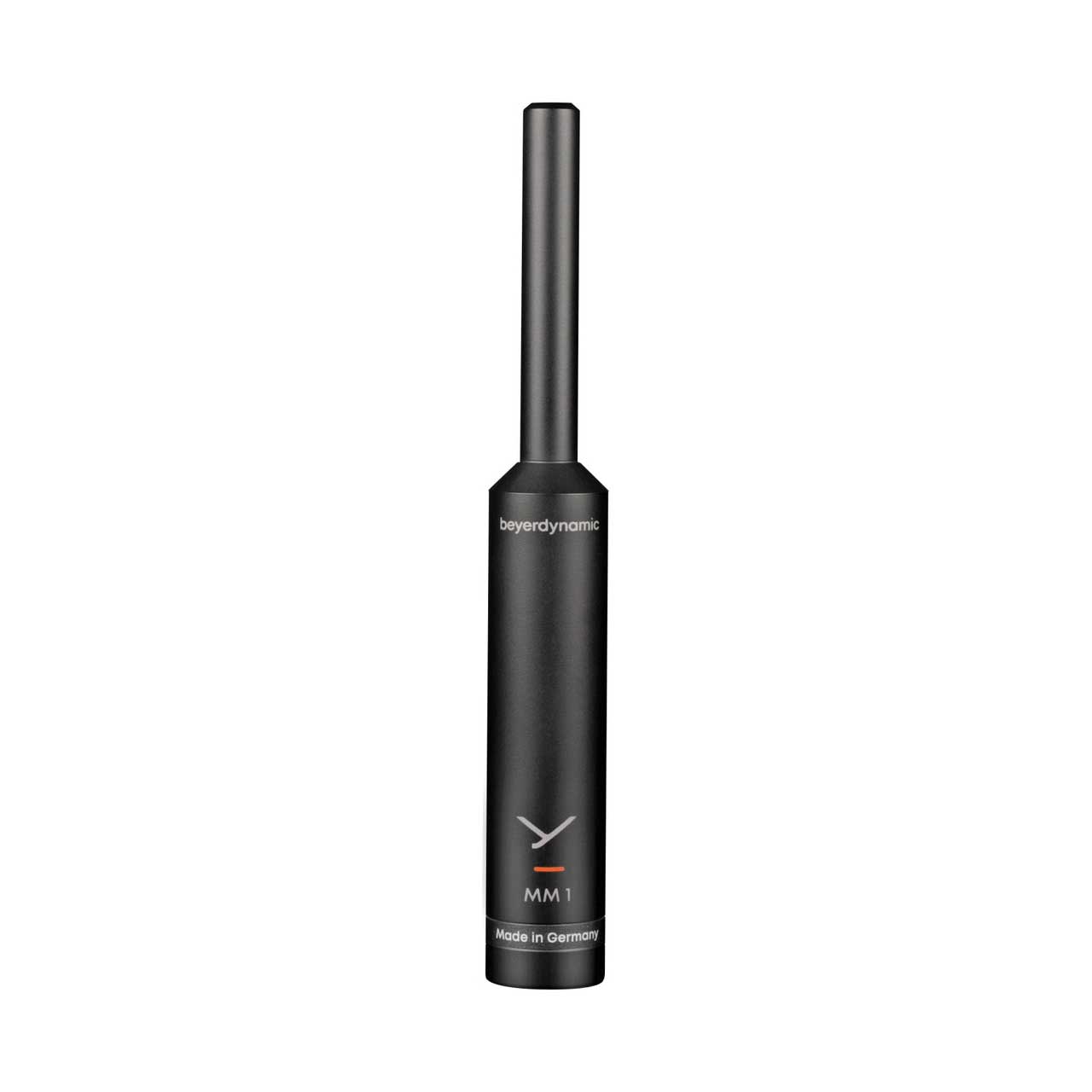

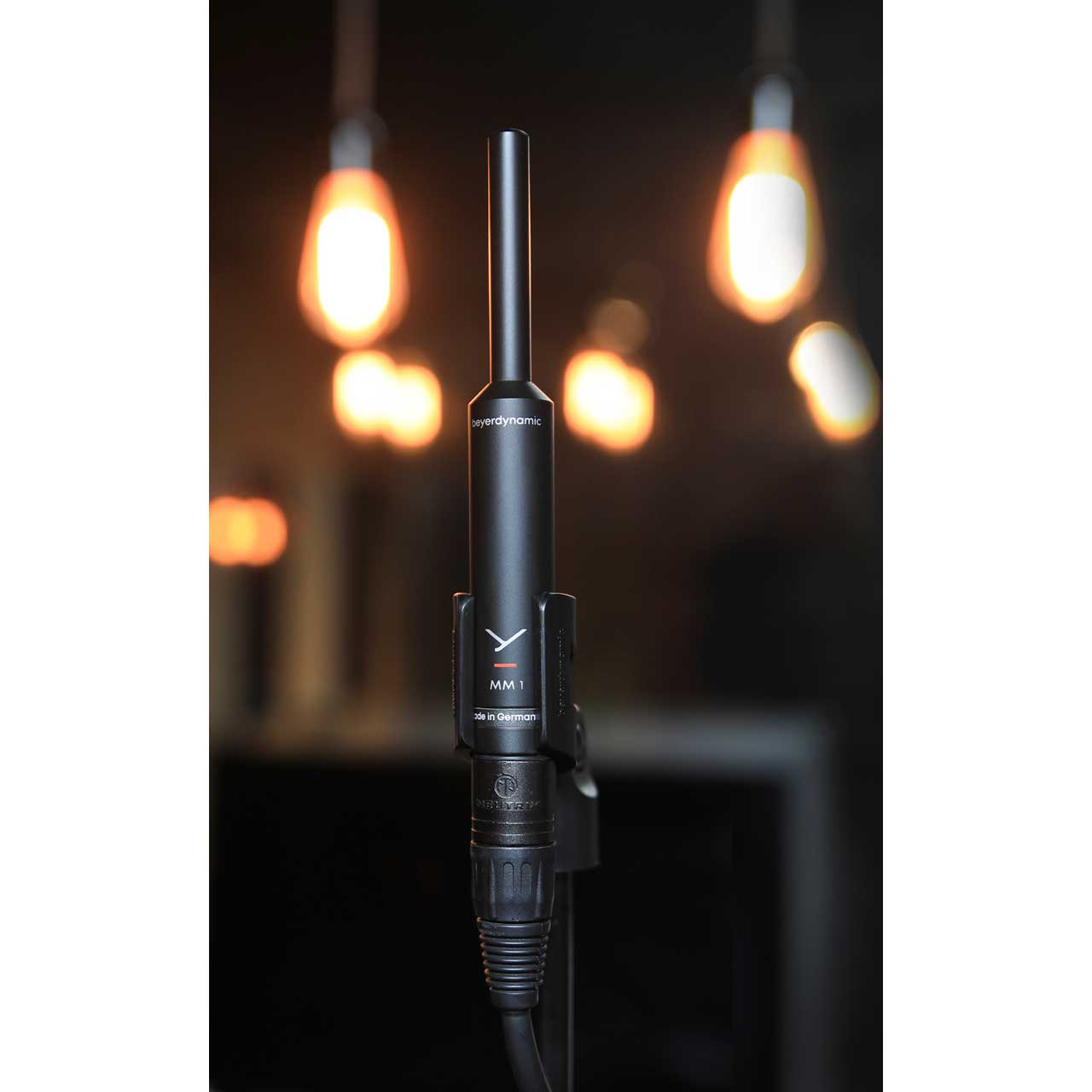

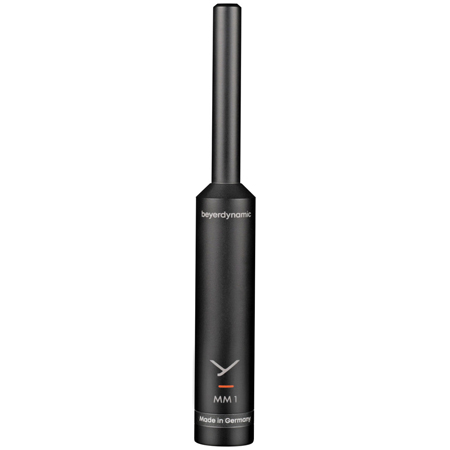

Beyerdynamic MM-1 V2 Condenser Measurement Microphone - Omnidirectional

730289 - Overview

• Features:

  • Ideal for measuring the acoustics of various surroundings
  • Linear frequency response at 90° (diffuse-field calibrated)
  • Individual calibration data available for 0° and 90° free-field measurement
  • Slimline housing for minimised effect on the acoustic surroundings
  • Handmade in Germany


• Specifications:

  • Transducer type: Condenser (back electret)
  • Operating Principle: Pressure
  • Frequency Response: 0 - 20,000 Hz, (50 - 16,000 Hz ± 1.5 dB), diffuse field calibrated
  • Polar pattern: Omnidirectional
  • Sensitivity: (0 dB = 1 V/Pa): 15 mV/Pa (= -36.5 dBV) ± 1 dB
  • Nominal impedance: 160 ω
  • Nominal load impedance: > 2.2 kω
  • Max. SPL at f = 1 kHz, k = 1%, R L = 2.2 kω: 122 dBSPL
  • Signal-to-noise ratio rel. to 1 Pa: > 57 dB
  • A-weighted equivalent SPL: approx. 26 dB(A)
  • Power Supply: 12 - 48 V Phantom Supply
  • Current consumption: approx. 1.9 mA
  • Output: Electronically Balanced
  • Connection: 3-pin XLR, male


• Item Includes:

  • 1x Beyerdynamic MM-1 Condenser Measurement Microphone


• Warranty:

  • 2-Year Limited Warranty


• GTIN:

  4010118730283
