Aurora HTW-2-W 3 Input HDBaseT 2.0 Wall Plate Transmitter - VGA & 2 HDMI - White

ITEM #: AURA-HTW-2-W MFG #: HTW-2-W

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AURA-HTW-2-W

HTW-2-W - Overview

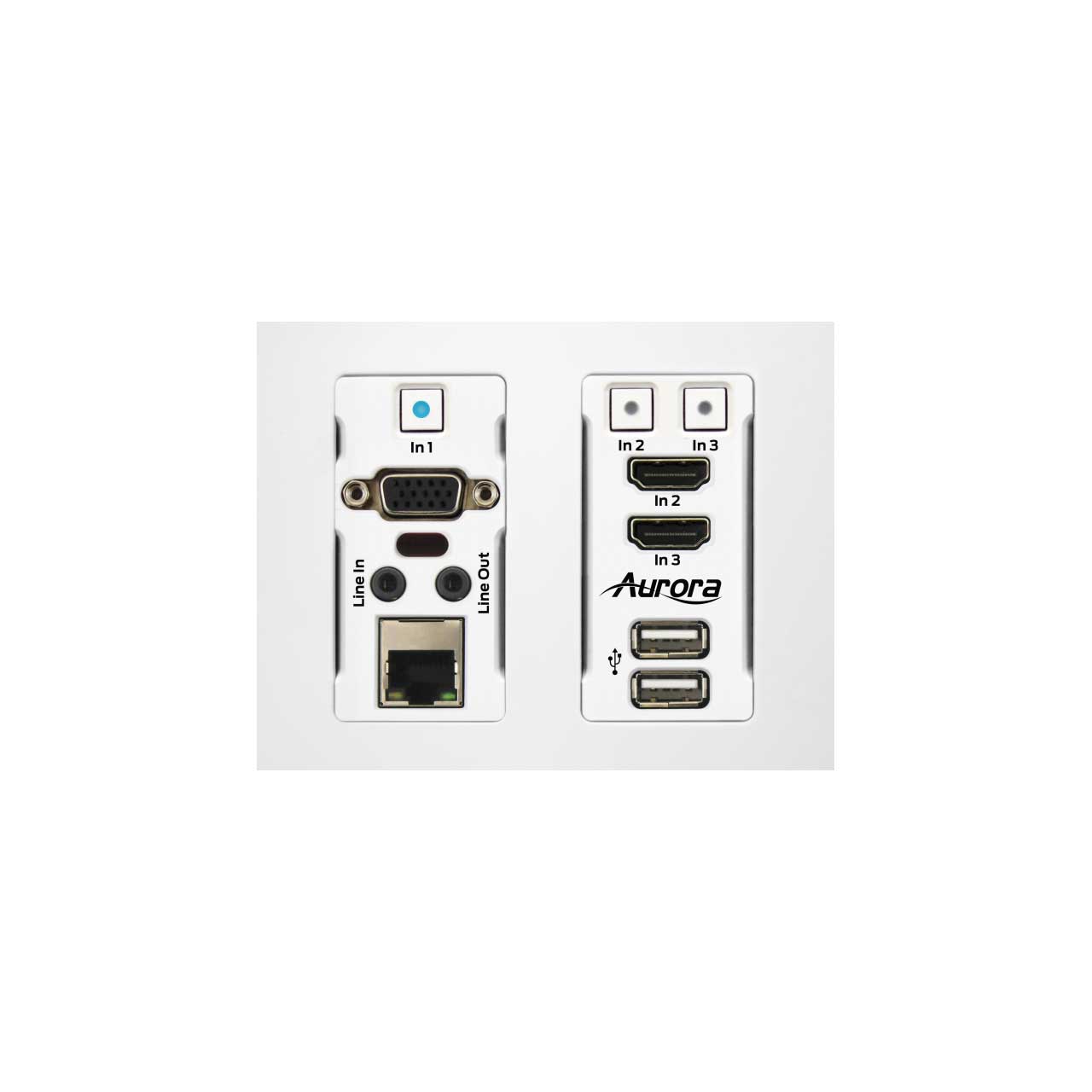

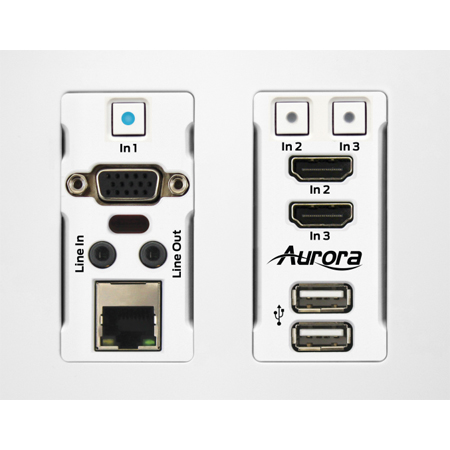

The HTW-2-W HDBaseT 2.0 transmitter wall plate is part of Aurora's HT Series capable extending 4K60 4:4:4 & HDR (18Gbps) 100m (330') with unshielded cable. This 2 gang low depth Decora™ wall plate is not only stylish but extremely functional with 3 inputs (1 VGA & 2 HDMI). Directional USB to allow a user to choose which side the host (PC) vs the device (peripheral) will be located. Built in IP port expansion allows any 3rd party control system to send commands directly to the unit for source switching, RS-232, and IR control. Aurora is the only product to allow a single PoE port power both the TX and RX at the same time with no wall supplies required for a very clean installation. For easier integration into an audio system, the HT Series is the only HDBaseT product to have optional Dante/AES67 up to 8 channels for surround sound. The Aurora HT Series re-invents the capabilities of HDBaseT beyond the typical point to point making it the ultimate HDBaseT integrator solution.

  • Features:

    • 4K60 4:4:4 HDR 18Gbps
    • 100m (330ft) with Unshielded Cable
    • HDMI® 2.0/HDCP 2.2
    • Audio DSP & Dante™/AES67 Options 2 or 8 Channel
    • ARC (audio return channel)
    • Operate & Power both TX & RX from a PoE Switch
    • Auto Switching
    • Two HDMI® Inputs & One VGA Input
    • 10/100 LAN Ports
    • USB 2.0 Device/Host with Selectable Direction
    • IP, RS-232 & IR Control

  • Specifications:

    • Video Distance (HDBaseT):
      328ft 100m - 1080p 60Hz 24 & 36bit CAT 5e/6/6a/7
      328ft 100m - 1080p 60Hz 48bit CAT 6a/7
      328ft 100m - 4k2k 60Hz 4:4:4 CAT 6a/7
      CAT5e/6 will achieve 328ft 100m for pixel clock <=225MHz
      CAT5e/6 will achieve 230ft 70m for pixel clock >225MHz
      CAT6a/7 will achieve 328ft 100m for pixel clock >225MHz
    • Max Resolution:
      1080p 60Hz
      1920 x 1200 @ 60Hz
      4k x 2k @ 60Hz 4:4:4
    • Color Depth: 24bit 5e/6/6a/7, 36bit 5e/6, 48bit 5e/6/6a/7
    • RS-232: 300 - 115kbps
    • IR Window: 30kHz-60Khz
    • LAN: 10/100
    • HDMI: 3D, HDCP 2.2 Compliant
    • Front Selections: 3 Backlit Buttons (Red, Green, Blue)
    • LAN Connectors: Front RJ-45 with 2 LED indicators (Only yellow LED is active)
    • HDBaseT Connector: Rear RJ-45 WE/SS 8P8C
    • RS-232 Connector: 4 pin 3.81mm Euro Rear
    • HDMI Connector: Two Type A 19 pin
    • VGA Connector: 15 Pin High Density
    • Audio Connectors: 3.5mm Line In/Line Out
    • Power Connector: 2 pin 3.81mm Euro
    • Option Slot:
      Dante/AES67 Option: IPE-DTE-1 (2 Ch), IPE-DTE-2 (8 Ch)
      ReAX Option: IPE-ReAX-1
    • Housing: Aluminum front with aluminum rear enclosure
    • Dimensions (LxWxD): 3.728 x 2.83 (4.331 with tabs) x 1.404"
    • Weight: 1.13g (2.5lbs)
    • Mounting: Wall-mounting Decora® 2 Gang
    • Power supply: 48V DC
    • Power consumption:
      8 Watts without USB
      12.9 Watts with USB
    • Operation temperature: 0° to 40°C (32° to 104°F)
    • Storage temperature: -20° to 60°C (-4° to 140°F)
    • Relative humidity: 20 to 90% RH (no condensation)

  • Item Includes:

    • 1x HTW-2
    • 1x Paintable White Wall Plate
    • 1x User Manual
