Aurora TTS-10 10.1 Inch All-In-One Infrared TAURI Thermal Imaging & Temperature Sensing Camera and Monitor PPE

ITEM #: AURA-TTS-10 MFG #: TTS-10

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$3,398.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


TTS-10 - Overview

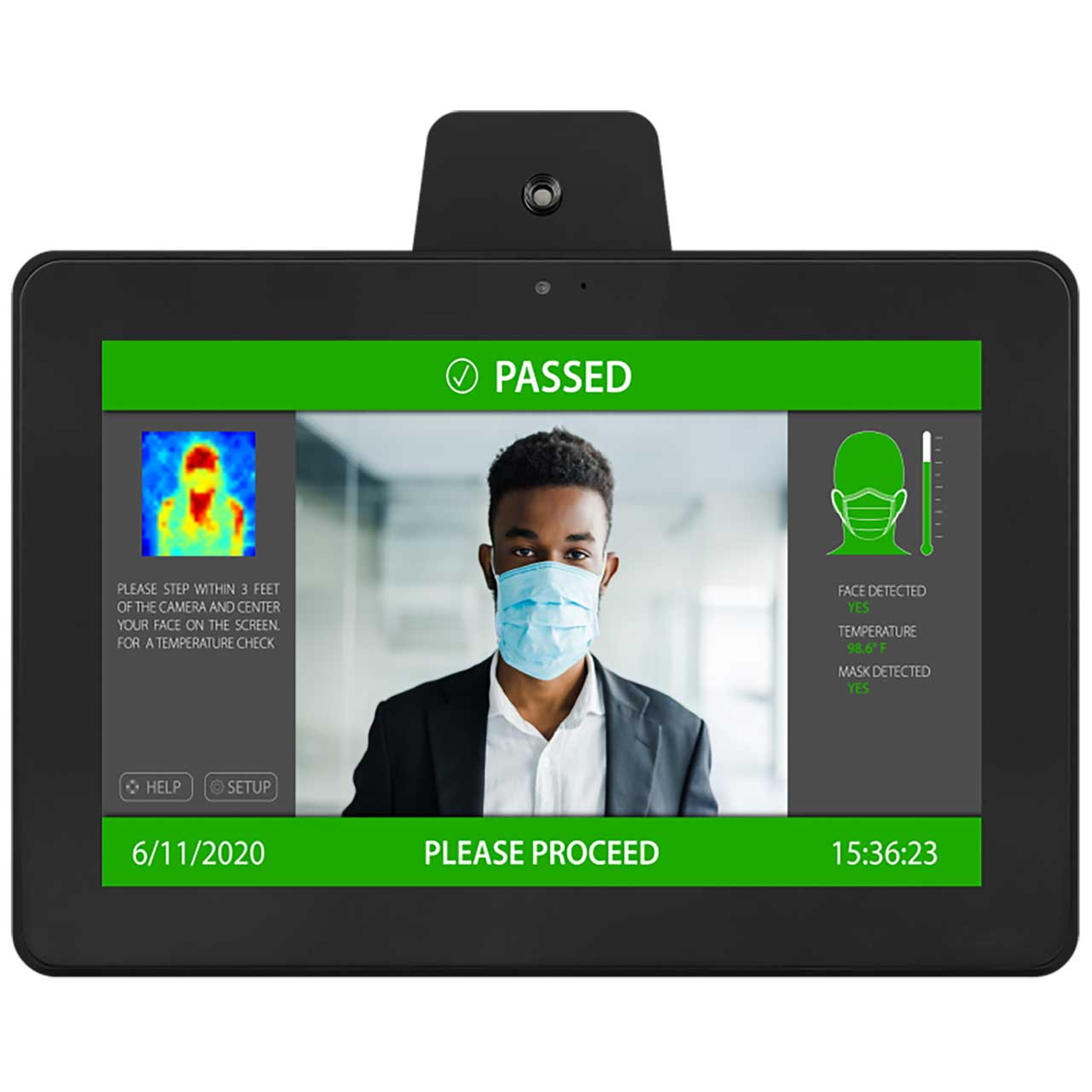

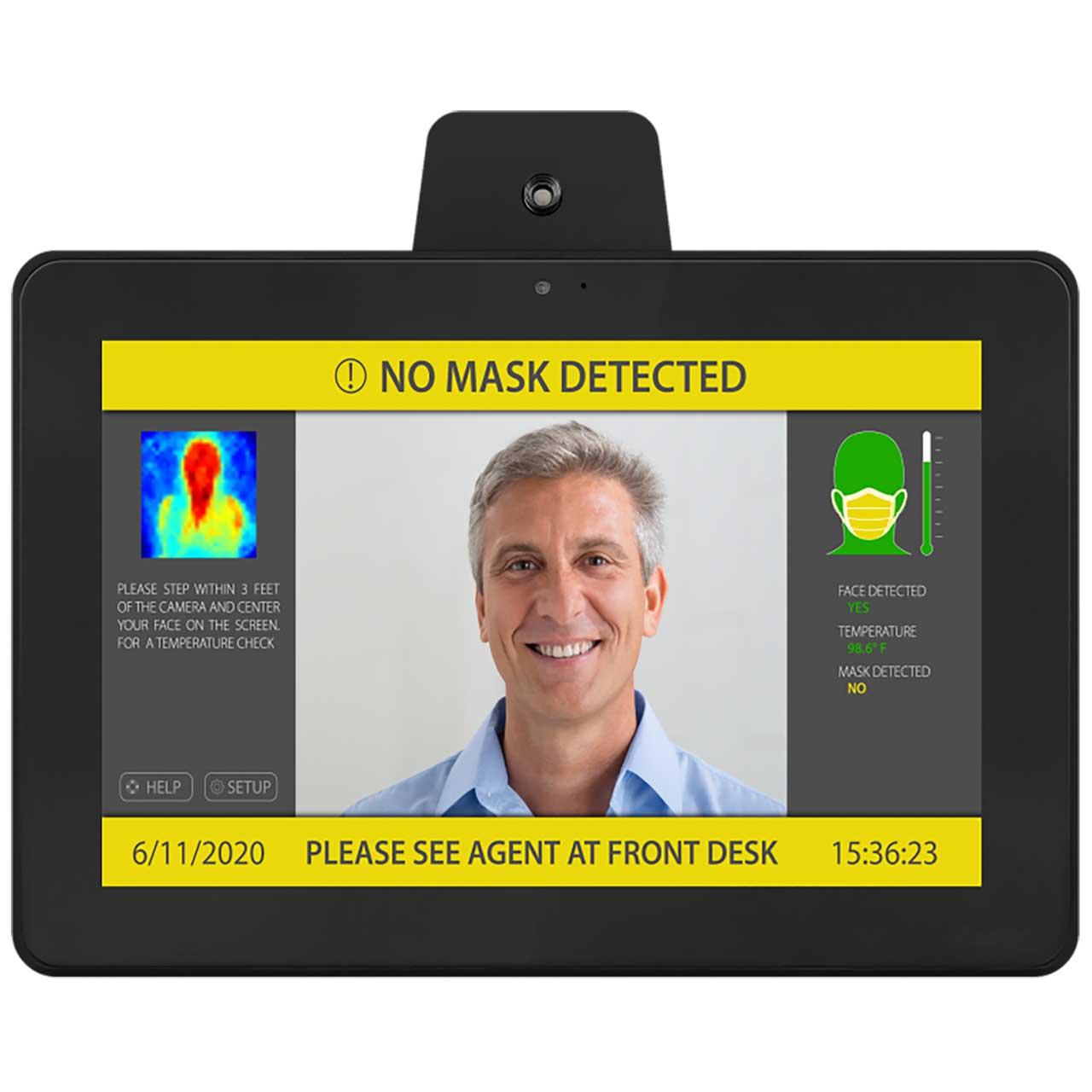

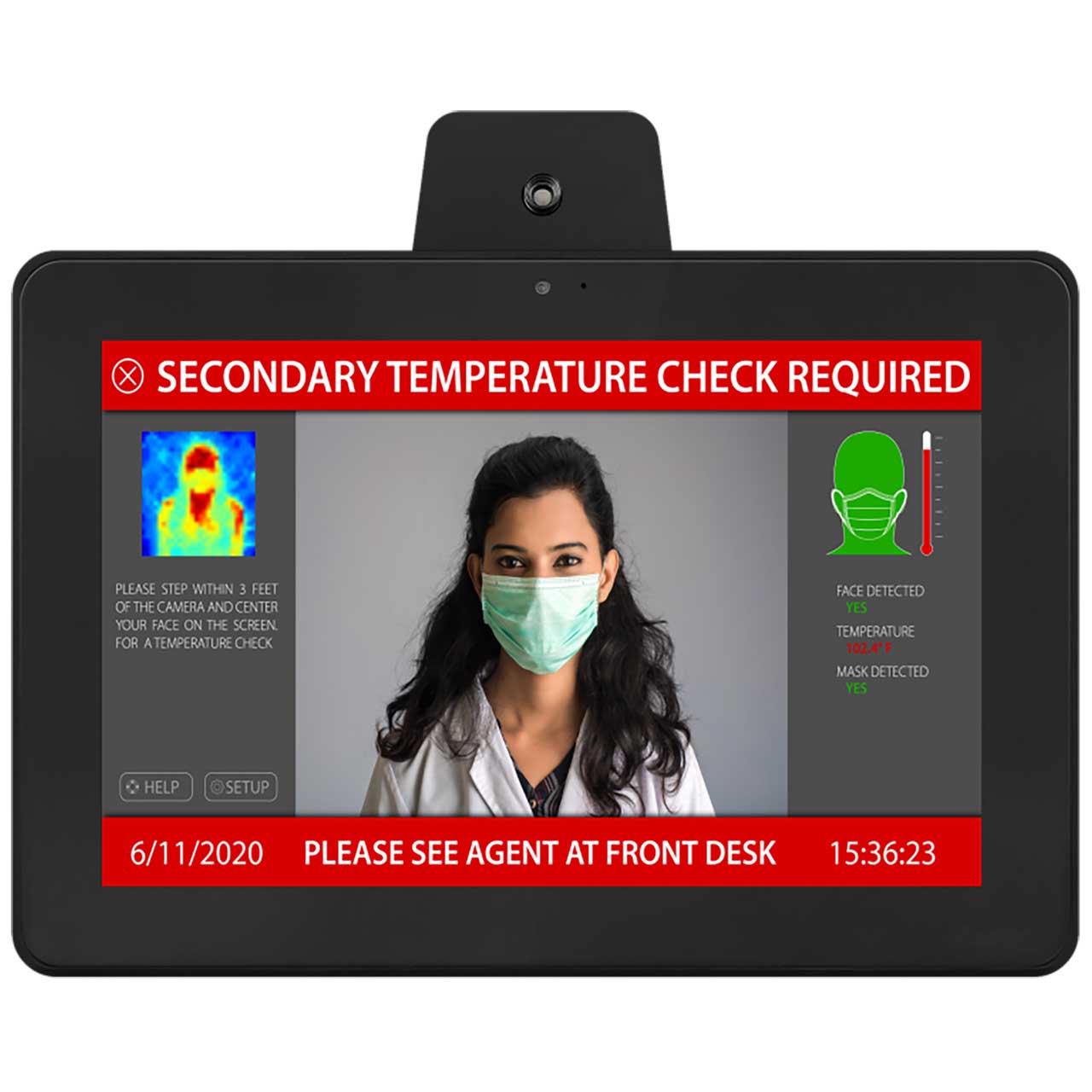

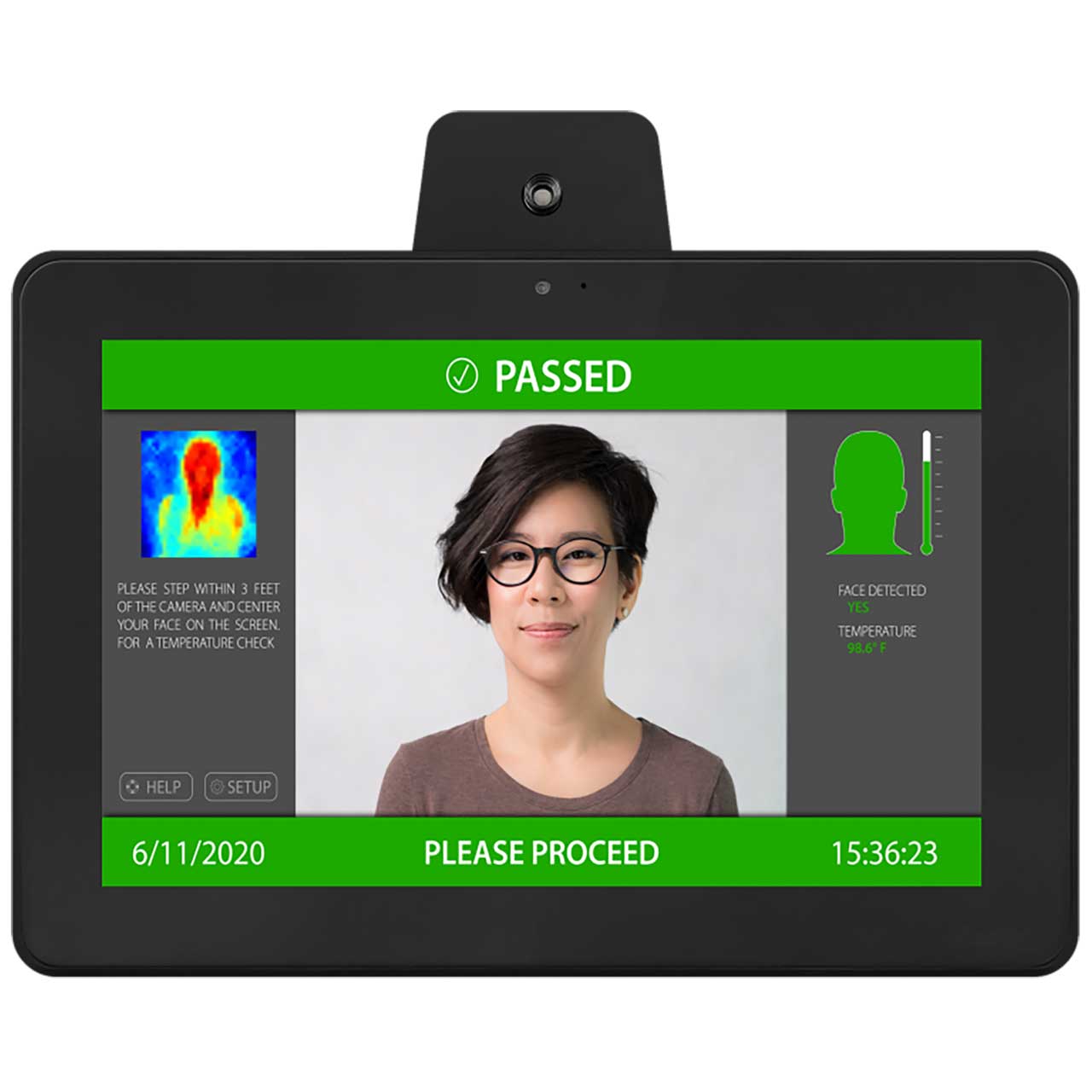

The Aurora TTS-10 is a 10 Inch Android based all-in-one infrared temperature sensing tablet. To ensure that people entering a location are not running a high temperature, the TTS-10 will provide alerts when a person is running a high temperature within 1 second from 3.3ft (1 meter) away.

The system uses an advanced algorithm for detecting and calculating heat signatures. Based on technology developed in Germany, the highly accurate sensor measures with a tolerance of +/- 0.3 degrees Celsius (+/- 0.5 degrees Fahrenheit).

Why a temperature sensor?
Provides the first layer of screening protection
More hygienic with non-touch infrared technology
Multiple devices can be monitored by a single user

Future firmware upgrade options
Photo & thermal result email alerts
Facial detection
Customized flagging
ReAX control engine for automation & integration with third-party devices and access systems
Digital signage capabilities

  • Features:

    • Scan distance: 0.5 to 1 meter (approx. 1' 8" to 3' 3")
    • Accuracy: +/- 0.3°C (+/- 0.5°F)
    • Scan speed: 1 second
    • Camera reversible 180°
    • 10", 15.6", and 21.5" models
    • Quad-core 1.8Ghz processor
    • WiFi and PoE Ethernet (TTS-10 only)

  • Specifications:

    • Panel Information
    • Resolution: 1280 x 800
    • Brightness: 350 cd/m²
    • Contrast ratio: 800:1
    • Aspect Ratio: 16:10
    • Active Display Area: 134.8 x 216.2mm
    • Viewing angle: H:170° / V:170°
    • Touch Tech.: 5 point cap touch (6H semi-tempered glass)

      Hardware & OS
    • CPU: RK3288 Cortex A17, Ouad core 1.8GHz
    • RAM: 2GB DDR3
    • ROM: 8GB eMMC Flash
    • OS: Android 7.1

      Video/Image
    • Video format: H.265, VP8, RV, WMV, AVS, H.263. MPEG4, HTMLS, Flash 10
    • Auxiliary video: HDMI output for remote monitoring of results
    • Audio format: MP3/ WMA / AAC etc.
    • Image format: JPEG, BMP, PNG

      Audio
    • Speaker: 1W x 2

      Communication
    • Bluetooth: EDR 4.0
    • WiFi: 802.11 b/g/n 2.4GHz and 5GHz
    • Ethernet: 10/100 LAN

      General Information
    • Color: Black

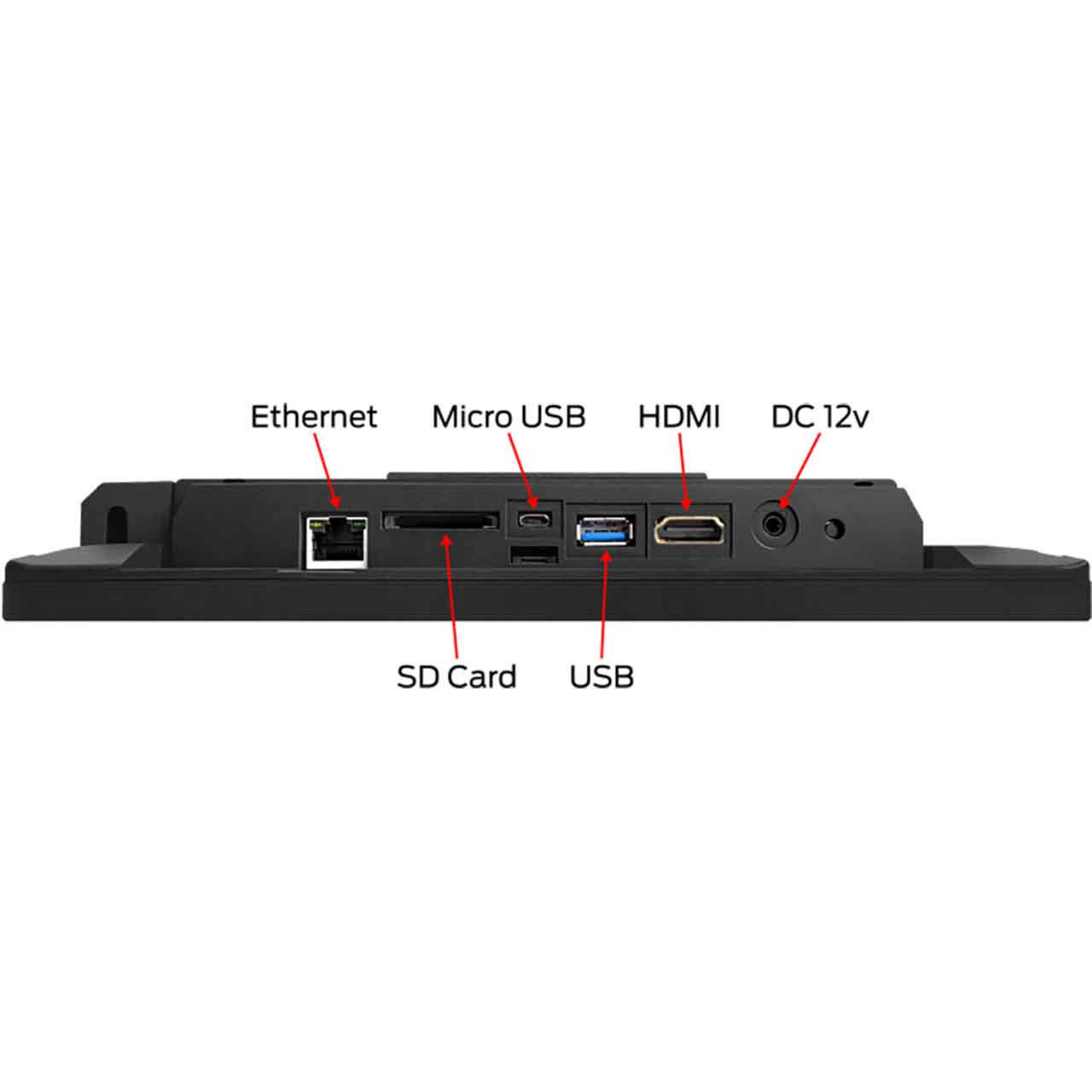

    • I/O: HDMI Output, RJ45 x 1, USB x 1; SD slot x I; Micro-USB x 1; 3.5mm audio x 1; Recover x 1; expandable 2 USB
    • AV Capablllty: Front Facing Camera 2 MP fixed focus
    • Included in Box: Tablet, Power Adapter, Power cable
    • Sensors: G-sensor
    • Consumption: 11W
    • Power Input: PoE & 12V 2A Wall Supply
    • Operating Environment: Operating: 32°F to 100'F (0°C to 40°C); Storage: -4° F to 122°F (-20'C to 50°C) Operating: 20%-80%; Storageú 10%-95%
    • Certification: CE, FCC, ROHS
    • Language: Multi language
    • VESA: VESA 75
    • Warranty: 2 Years

      Infrared temperature Sensor
    • Power Input: 3.3- 3.6V, 50mA, USB connect
    • Size: 65.2mm x 38.5mm x 22mm
    • Temperature check distance: 0.3m-1m
    • Temperature check range: 30°C to 45°C
    • Temperature check error: ±0.3°[email protected] Hz

      Dimensions
    • Size(WxDxH): 267 x 34 x 165 mm
    • Product Weight: 700g
    • Box Size: 385 x 65 x 222mm
