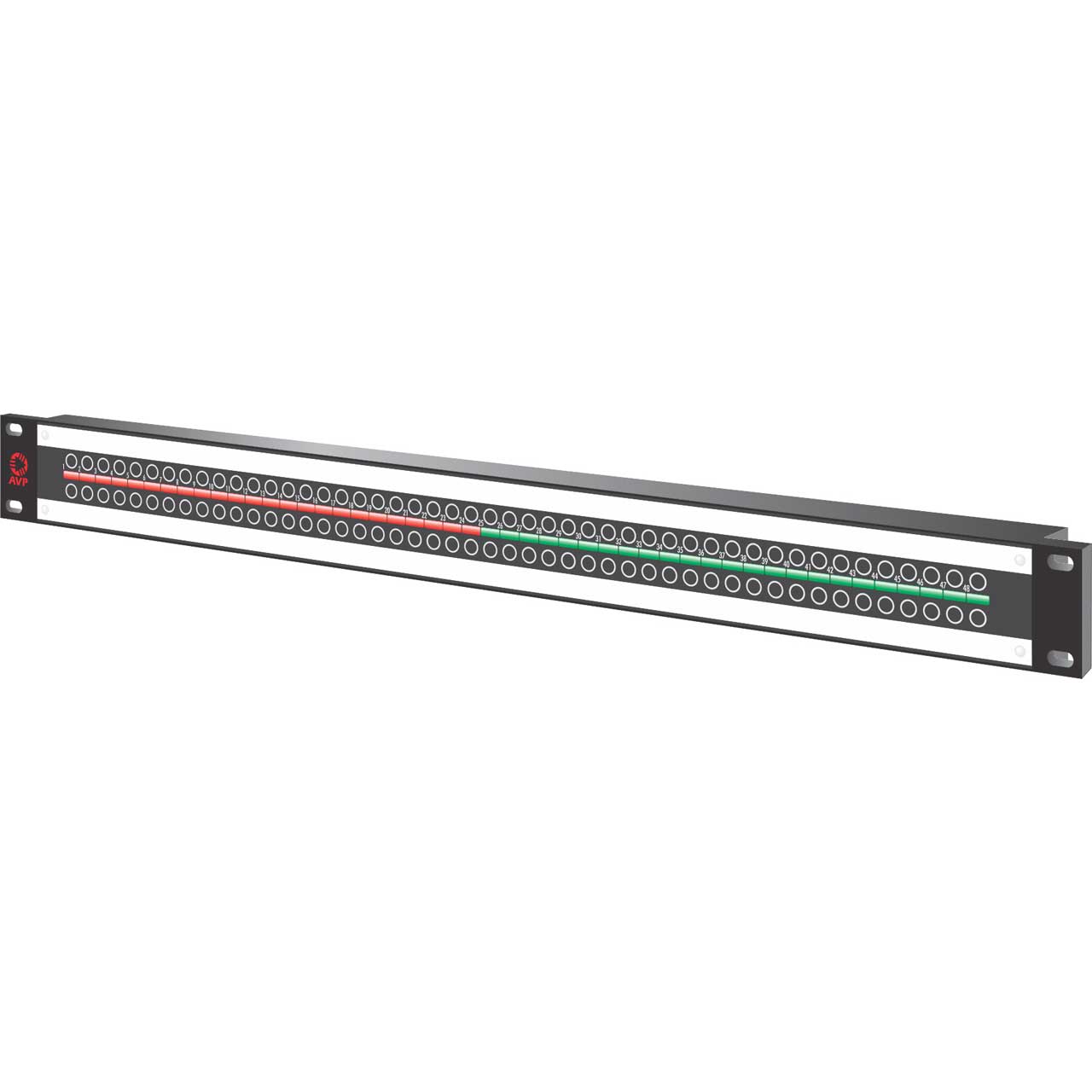

AVP AV-K248E1-KMN75-B10 2x48 1RU Micro Video Jackfield Patch Panel - 3.0GHz - 3GB/s Normaled Terminating

Name: AVP AV-K248E1-KMN75-B10 2x48 1RU Micro Video Jackfield Patch Panel - 3.0GHz - 3GB/s Normaled Terminating
Brand: AVP
SKU: AVK248E1KMN75B10
Price: 2736.00 USD
Availability: PreSale

ITEM #: AVK248E1KMN75B10 MFG #: AV-K248E1-KMN75-B10

AVP

List Price:

$3,191.00

Our Price:

$2,736.00

Add to Wish List Leasing Options

Availability: Typically Ships in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Required Accessories

Recommended Accessories

AV-K248E1-KMN75-B10 - Overview

The AVP AV-K248E1-KMN75 Mosaic Video Jackfield (Microsize) from Super HD+ Series is a front-mount 3.0 GHz - 3 Gb/s micro dual video jack that meets SMPTE 424M-2006 specifications. It features an industry standard DIN 1.0/2.3 rear termination and allows 48 channels / 96 patch-points in a 1 RU, 19" (48.26cm) rack.

Features:
- 2 x 48 panels 1 RU
- Normaled terminating front-mount dual jack
- Life Cycle rating of 20,000
Specifications:
- Electrical
- Bandwidth: Rated Bandwidth: 3.0 GHz - 3Gb/s: meets HDTV SMPTE 424M-2006 specification
- Impedance: 75 Ω
- Resistance:
  Contact Resistance: Less than 50 milliohms
  Termination Resistance: 75 Ω ± 1%

  Environmental
- Temperature: -40 to 149°F (-40 to 65°C) (operating & storage)
- Shock: Thermal Shock: Per MIL-STD-202, Method 107
- Humidity: Moisture and Humidity: Per MIL-STD-202, Method 106
- Certification: RoHS Compliant

  Mechanical
- Shock: Mechanical Shock: Per MIL-STD-202, Method 213, Test condition I
- Vibration: Per MIL-STD-202, Method 201
- Life Cycles: 20,000 minimum

  Material
- Housing: Zinc alloy, nickel plated
- Contacts: Center, Switching, and Grounding Contacts: Copper alloy, gold plated
- Actuator Latch/Auto Park: Thermoplastic, UL 94V-0 rated
- Insulator: Teflon
- Rack Units: Size: 1.75" (4.45 cm)
