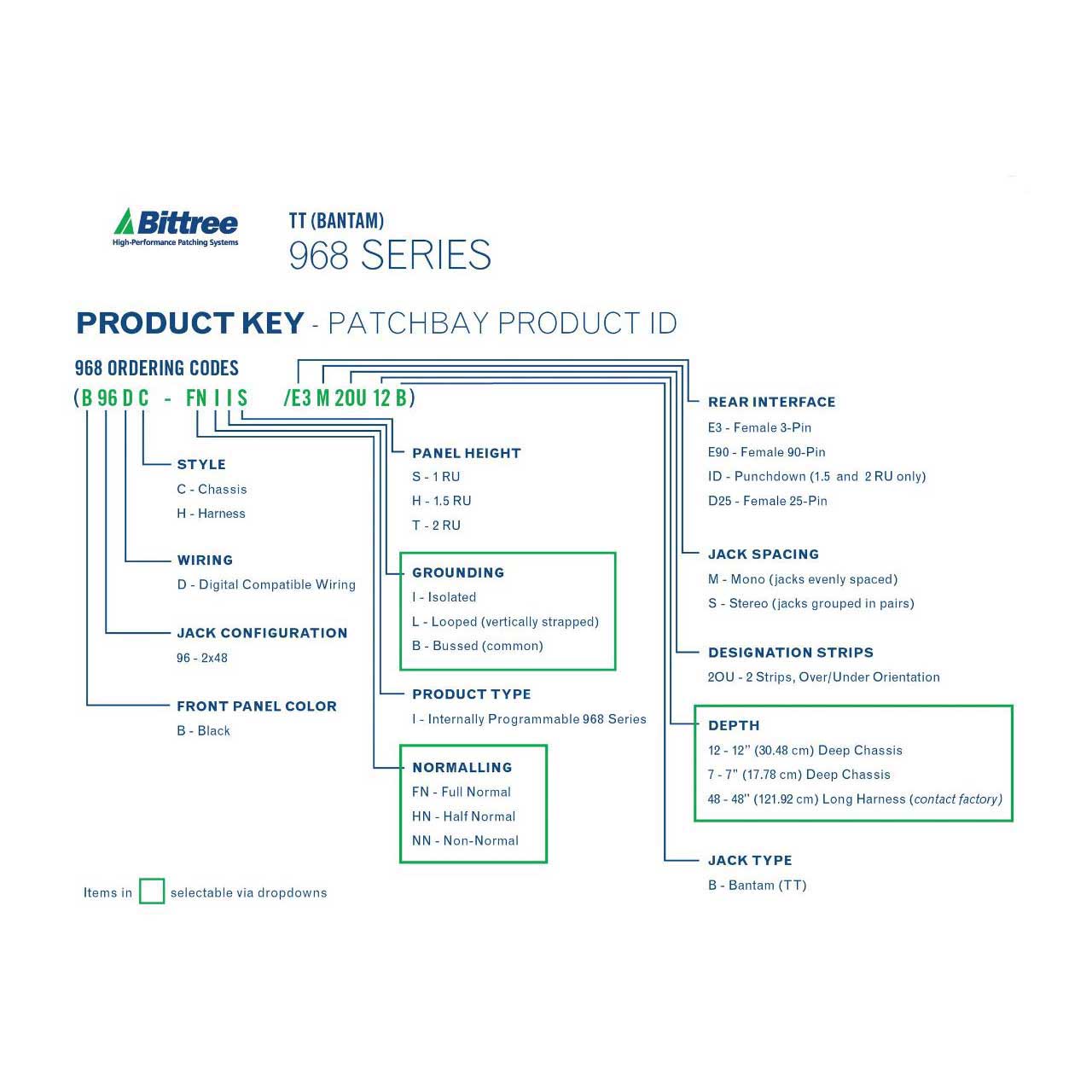

Bittree 968 - 2X48 1.5RU TT PATCHBAY, INTERNALLY SELECTABLE TRS AUDIO, E3 Rear Interface, Non-Normal, Bussed Grounds, 12" Chassis depth

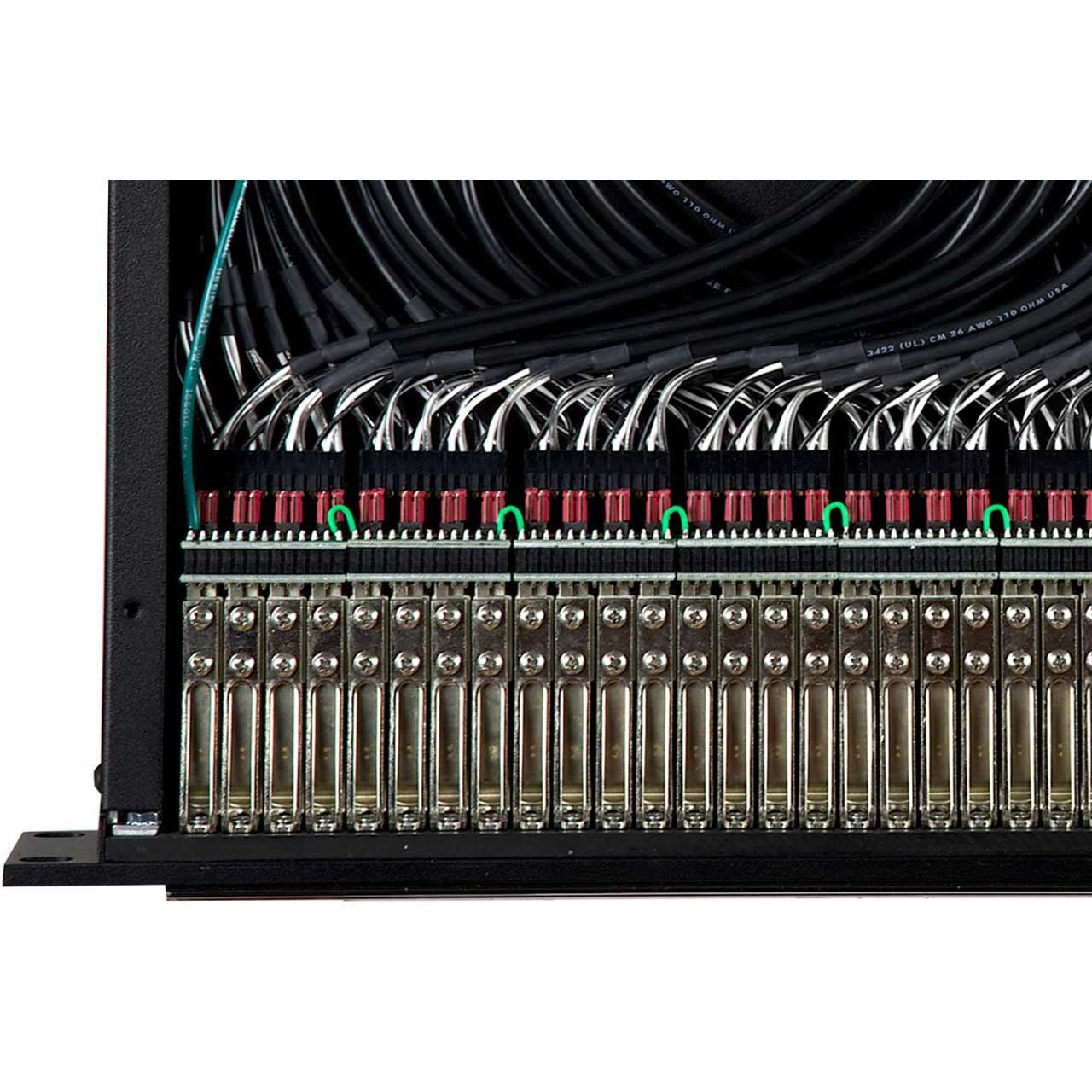

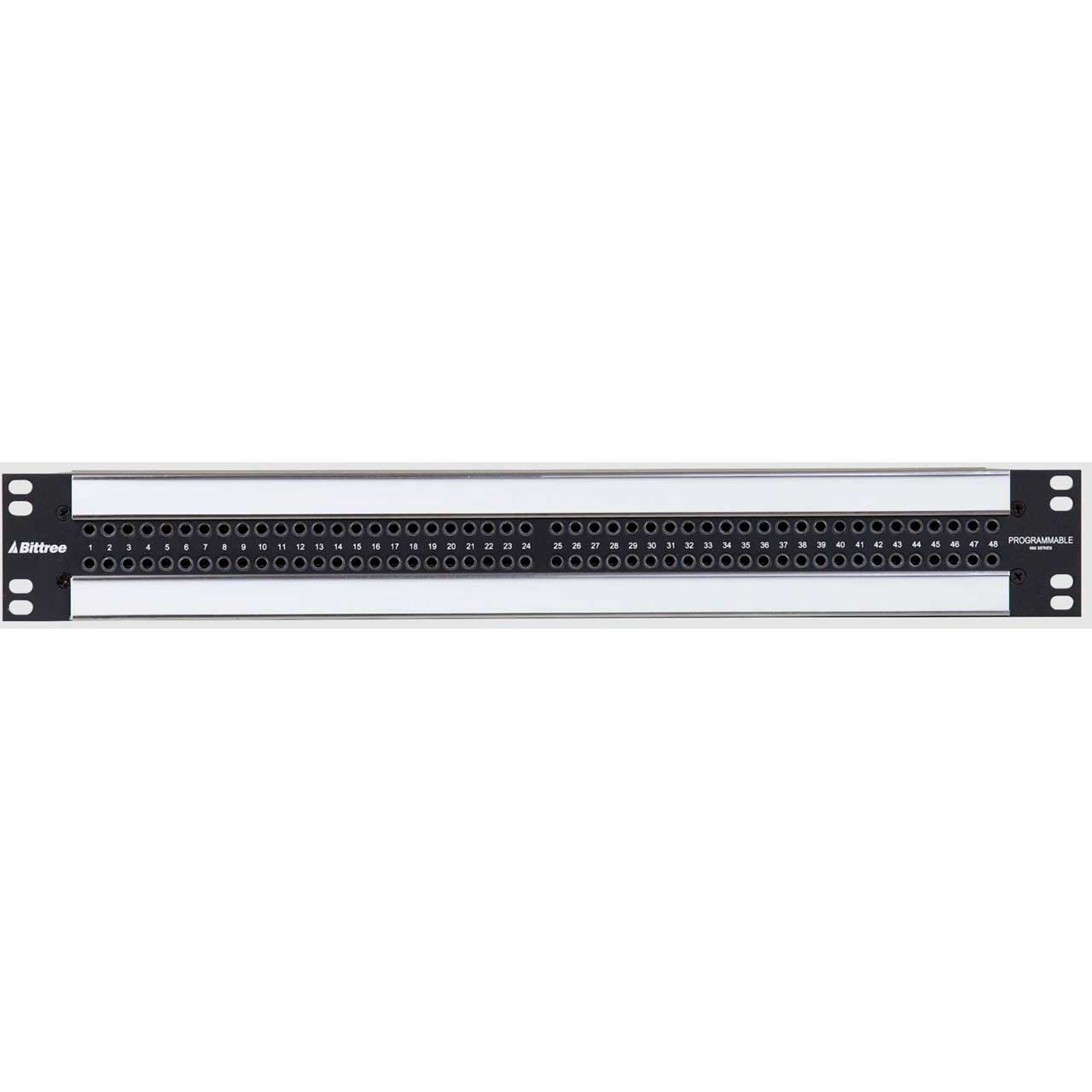

Bittree Internally Selectable TT (Bantam) 968 Series Audio Patchbay in 1.5RU. High-density 2x48 jack configuration with mono (even) jack spacing. Selectable normalling and grounding: - Circuits can be easily changed via shunts under both top and bottom dust covers. Digital AES wire used for internal wiring. 1-48 left-to-right numbering on front panel for easy circuit identification. 2 x DS800-10-ASSY designation strip assemblies, "Over/Under" orientation. Mating hardware included with E3, E90, and ID (Punchdown) rear interfaces. 6" (15.24 cm) deep rear lacing bar included with E3 and ID (Punchdown) rear interfaces:
- Alternative 3" (7.62 cm) deep lacing bar available.
