Bittree B96DC-NNIIS/E3 M2OU7B 2x48 1RU E3 NoN-Norm Iso Ground TT Patchbay 7-Inch

ITEM #: B96DCNNIISE3M2OU MFG #: B96DC-NNIIS/E3 M2OU7B REVA

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Bittree
Free Shipping with $49 Minimum Order

Our Price:

$1,828.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

B96DC-NNIIS/E3 M2OU7B REVA - Overview

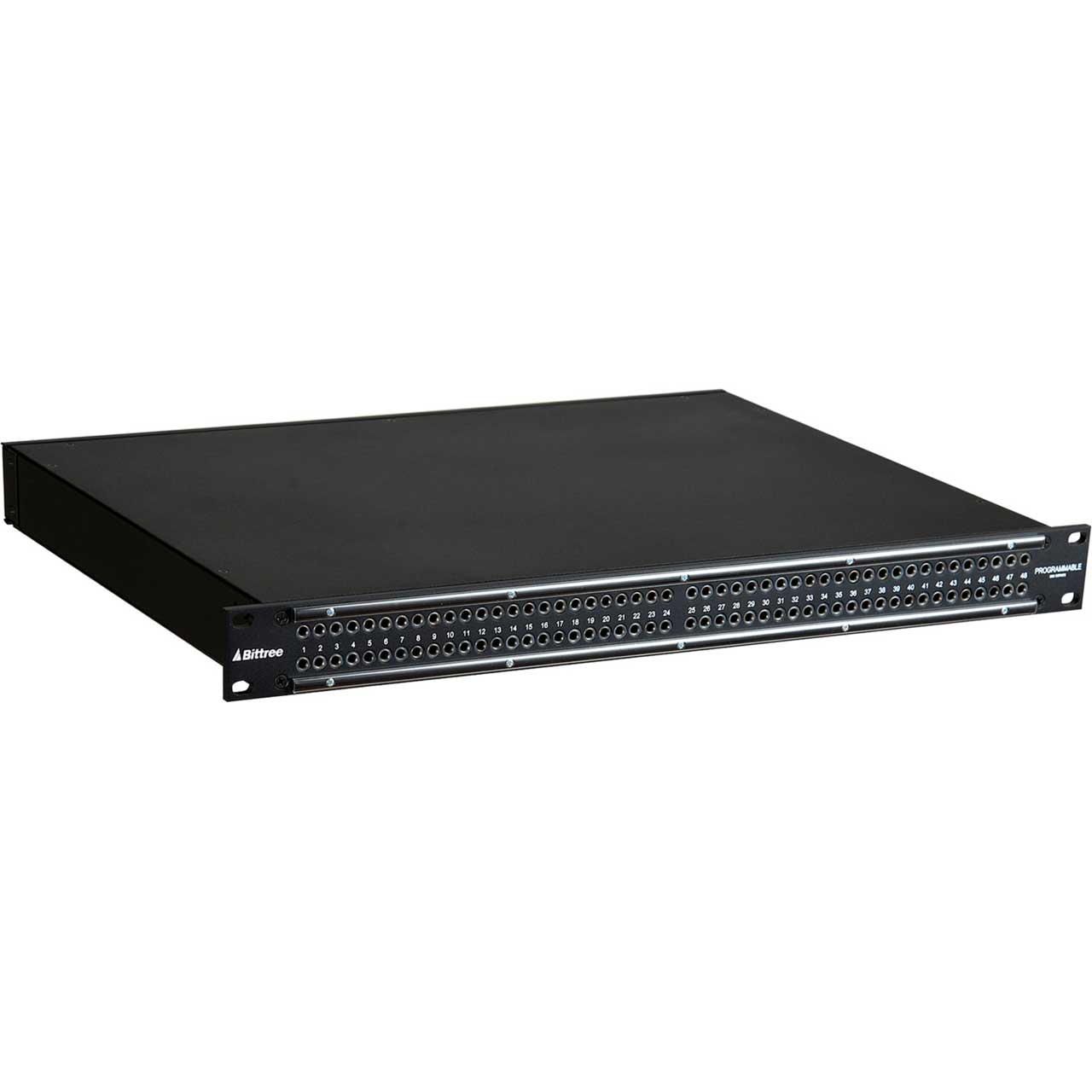

The Bittree B96DC-NNIIS/E3 M2OU7B Patchbay is a non-normalled Audio TT (Bantam) Internally Programmable Patchbay, 968 Series, 2x48, 1 RU, E3 Rear Interface, Mono (even) Jack Spacing with isolated grounding and a 7 inch chassis depth.

  • Features:

    • Bittree Internally Programmable TT (Bantam) 968 Series Audio Patchbay in 1 RU
    • High-density 2x48 jack configuration with mono (even) jack spacing
    • Ships preconfigured with your preferred Normalling and Grounding configuration
    • Circuits can be easily reprogrammed via shunts under both dust covers

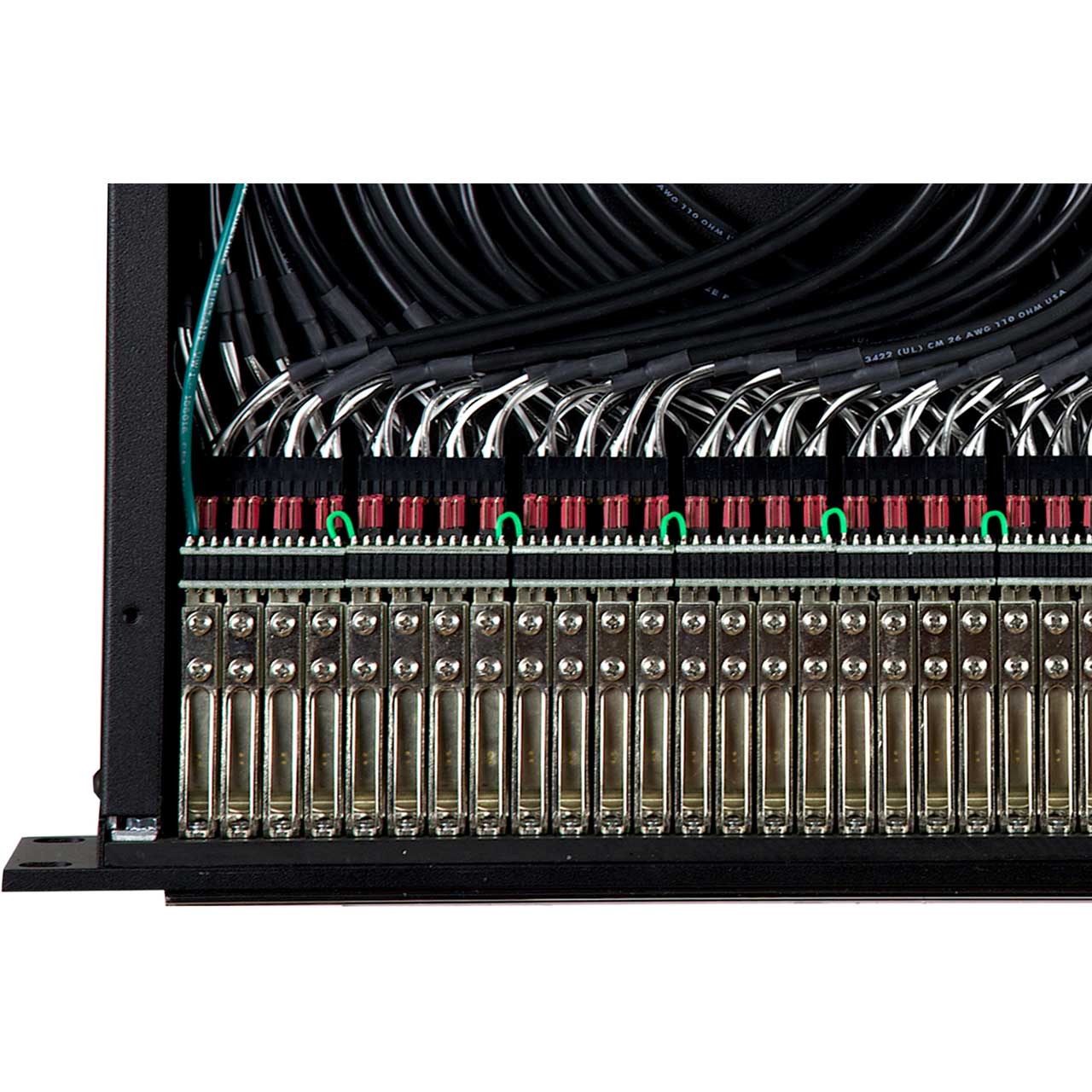

    • Digital AES wire used for internal wiring
    • 1-48 left-to-right numbering on front panel for easy circuit identification
    • 2 x DS250-10 designation strips, "Over/Under" orientation

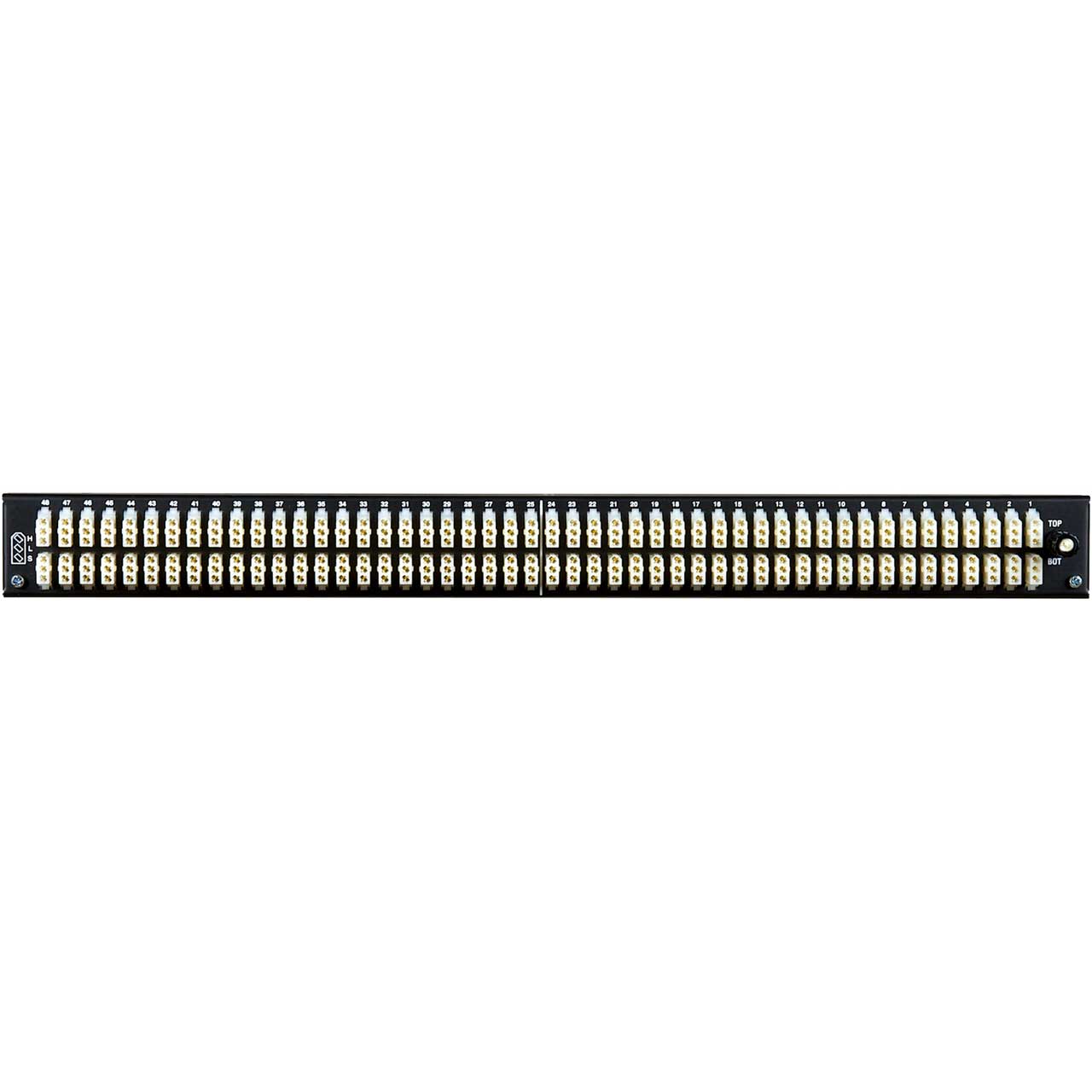

    • E3 rear interface with mating hardware included: 96 x E3M connector housings (3-pin male), 288 x EPIN crimp contacts (gold-plated)
    • 6" (15.24 cm) deep rear lacing bar included, Alternative 3" (7.62 cm) deep lacing bar available


  • Specifications:

    • Panel Height: 1 RU (1.720")
    • Designation: DS250-10-ASSY
    • Finish: Black Powder Coat
    • Panel Material: 3/16" Aluminum
    • Jack Screws: 4-40X1/4PHPN#2
