Barix Exstreamer P5 PoE Powered IP Speaker
  • Barix Exstreamer P5 PoE Powered IP Speaker
  • Barix Exstreamer P5 PoE Powered IP Speaker
  • Barix Exstreamer P5 PoE Powered IP Speaker

Questions? Ask a Markertek Expert:
800-522-2025 Email

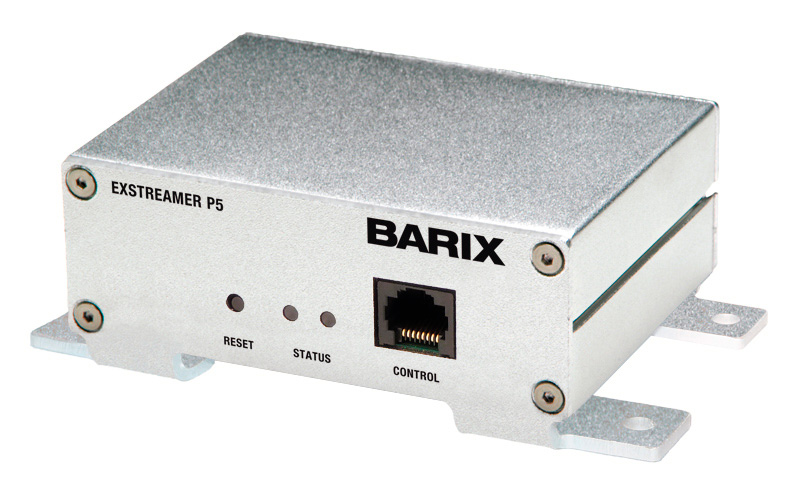

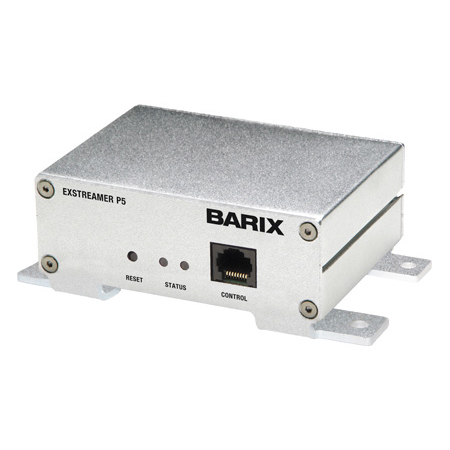

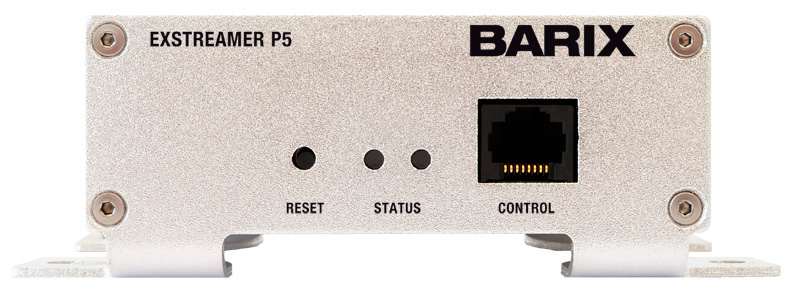

Barix Exstreamer P5 PoE Powered IP Speaker

Manufacturer: Barix Technology Inc.

Item #: BARIX-EXST-P5   •   MFG #: 2010.9104




Share!





The IP Speaker without the Speaker ! The PoE powered Exstreamer P5 turns any 8 Ohm Speaker into an IP Speaker with 5W output power. An RS-485 and IR port can be used for local control.


  • Features

    • AACplus, MP3, Ogg Vorbis, G.711, PCM Decoding
    • IP Streaming via TCP, UDP, RTP, Multicast
    • Amplified Output 5W (8 Ohm)
    • RS-485 Serial Port
    • Powered over Ethernet (PoE)

  • Specifications

    • Electrical
    • Power supply via 802.3af (PoE) Ethernet, 15 Watt max.
    • 10V supply output to in-room control
      Ethernet
    • 10/100Mbps auto, 802.3af
    • RJ-45 connector with integrated Link/Activity LED
    • Protocols: TCP/IP, UDP, RTP, SIP, DHCP, Multicast
    • capable
    • ES-100/spkr (Ethersound, output, no daisy-chain)
    • support
      Analog Output
    • Amplified output, short circuit and overload protected
    • Output power: 5WRMS (8 Ohm), 2,5WRMS (16 Ohm)
    • Frequency response (-3dB): 20Hz ..12kHz (8 Ohm),
    • 25Hz ..20kHz (16 Ohm) *
    • SNR (-3dBFS): -90 dB (8 Ohm), -75 dB (16 Ohm)
    • THD <0.7% (8 Ohm), <0.3% (16 Ohm)
      Audio formats
    • MP3 CBR/VBR, up to 320kbps, 8..48kHz sample freq.
    • AAC, A AC plus, A AC-HE (AAC plus V2)
    • WMA (up to version 9), Ogg Vorbis
    • PCM 16bit @8, 16, 22.05, 24, 32, 44.1, 48 kHz
    • G.711, uLaw, aLaw (sample rates same as PCM)
      Control Interface (RJ-45)
    • Direct support for Barix VSC ( Volume Source Control)
    • RS-485, 300..230`400 Baud asynchronous
    • IR input on separate line
    • 10V supply output for in-room control
      IR Interface
    • IR via serial port interface connection
    • Supports Barix IR receiver (with adapter) and VSC
      Mechanical
    • Aluminum case, 300g, with mounting wings for direct
    • wall mounting
      Dimensions (W x H x D)
    • Mechanical
    • 108x38x78.7mm (4.25x1.5x3.1 inch) plus mounting
    • wings
      Supported Audio formats
    • PCM, G.711, G.722, MP3 encode/decode
    • AAC+ decode
    • PCM 16 bit and 8 bit (uLaw, aLaw) @ 8..48 kHz
    • Discrete I/O (Contact Closure Input)
    • 1 discrete / dry contact input
      MTBF
    • Min. 440 000h
    • Calculated acc. to MIL217F at 25°C
    • *depends on used codec, best results @48kHz PCM

  • Item Includes

    • Exstreamer P5, Screw block terminal connector(2 pin) for speaker, quick install guide
