    TLR6200-8 - Overview

    8 Mono/4 Stereo Multi Channel IP Audio Codec - Analog/AES3/AES67 & SMTPE ST 2110-30

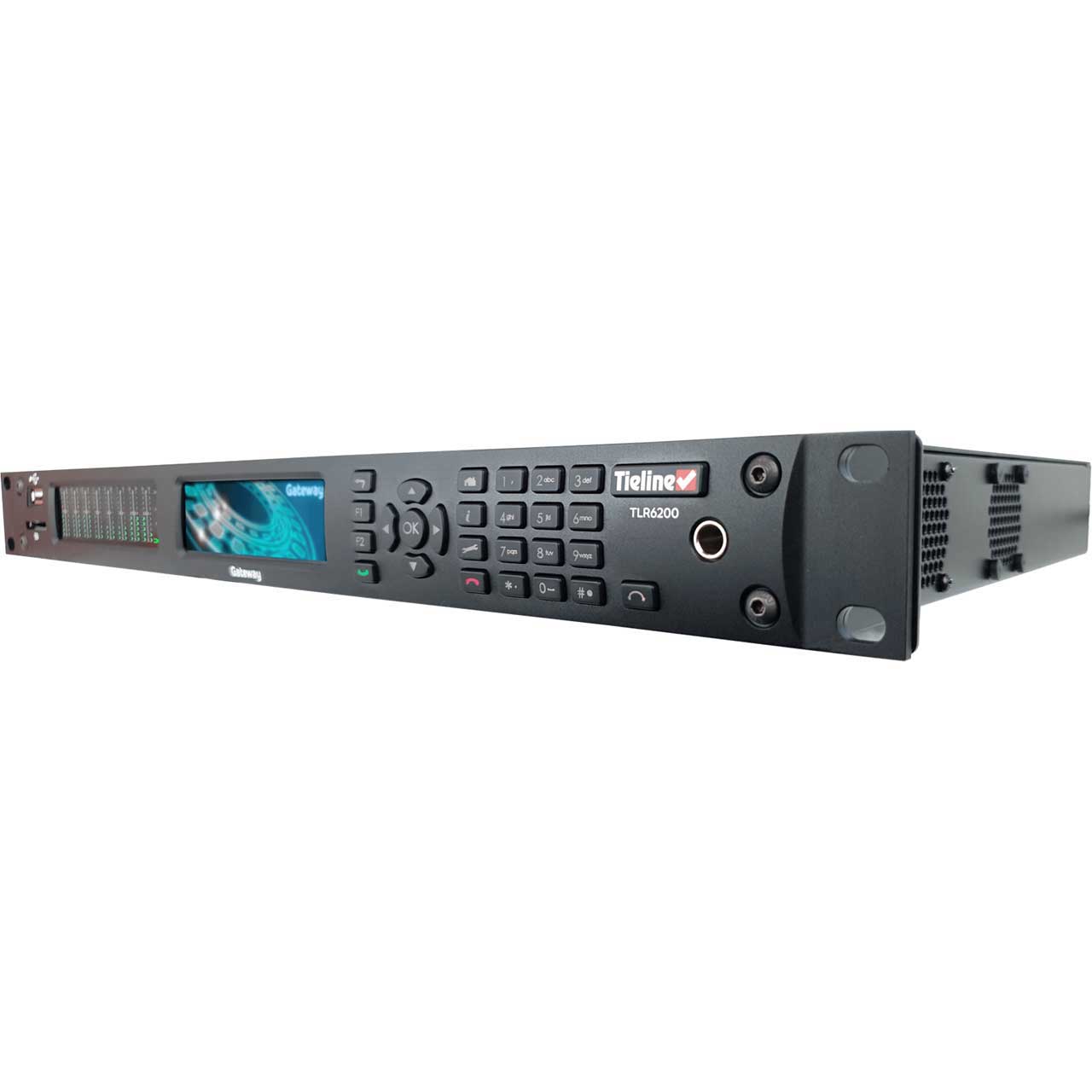

    Tieline TLR6200-8 Gateway is the most powerful DSP-based 1RU IP codec enabling transport of multiple channels of mono or stereo audio across the public internet and any QoS-enabled IP network, including T1 and T3 connections and private WANs with MPLS. The Gateway streams up to 16 IP audio channels with support for AES67, ST 2110-30, AES3 and analog I/O as standard.

    The Most Powerful DSP-Based 1RU IP Codec
    The Tieline Gateway introduces a new era in high-density multichannel IP codec streaming. The Gateway supports up to 16 mono channels or 8 stereo streams of bidirectional IP audio in 1RU to increase efficiency and reduce rack space requirements. It interfaces easily with legacy analog and AES/EBU digital sources, as well as newer broadcast plants with AES67 and ST 2110-30 IP audio infrastructure. An optional WheatNet-IP card is also available.

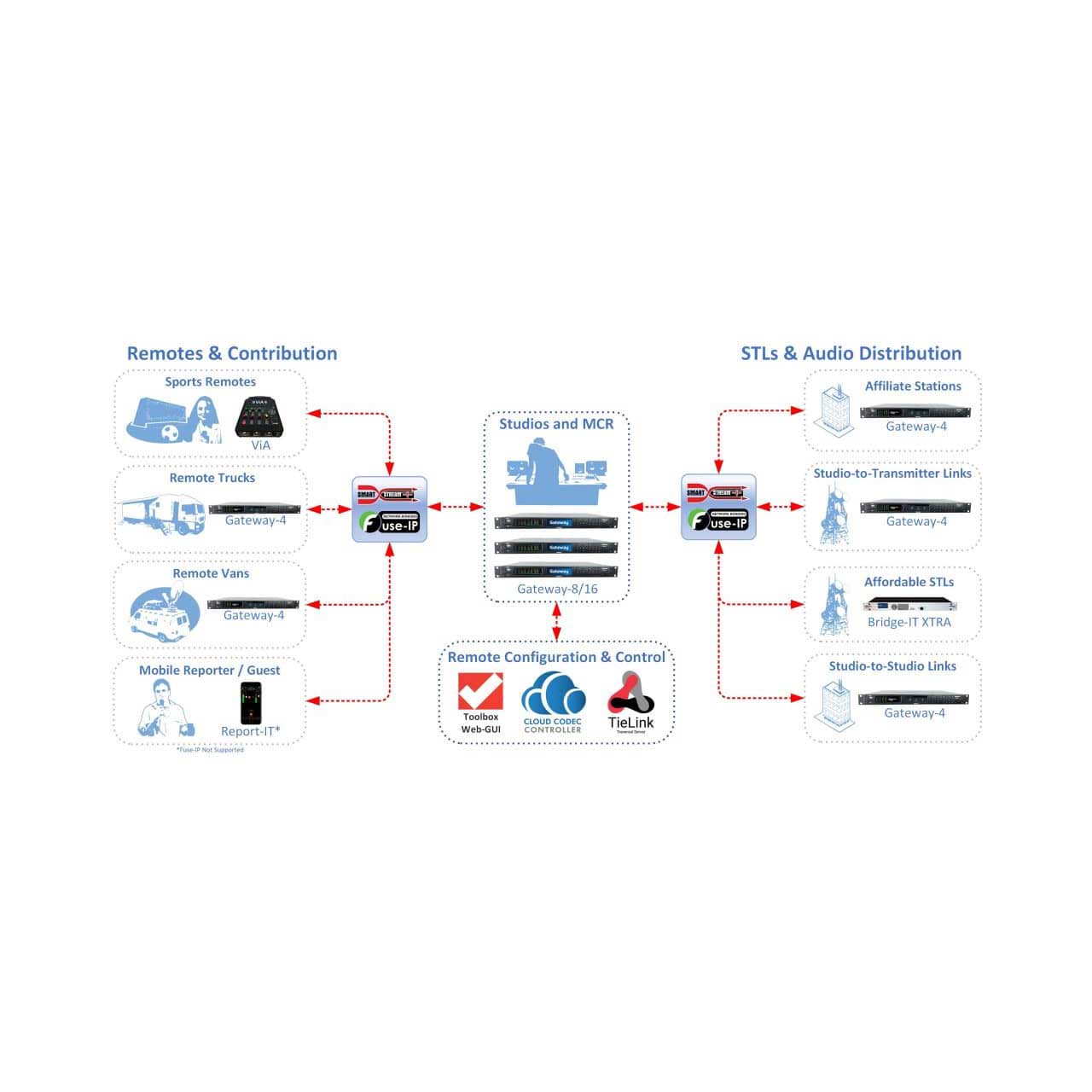

    The Gateway is perfect for large-scale audio distribution to single or multiple locations, as well as managing multiple incoming remotes at the studio using SmartStream PLUS redundant IP streaming and Fuse-IP data aggregation technologies over internet connections. It is interoperable with all Tieline IP codecs and compatible over SIP with all EBU N/ACIP Tech 3326, 3347 and 3368 compliant codecs and devices.

    Perfect for STL, SSL and audio distribution applications, with support for multicasting and multiple unicasting technologies. It is also perfect for managing multiple incoming remotes at the studio and can simultaneously connect to up to 16 hardware codecs or Report-IT Enterprise smartphone app users.

    -Studio-To-Transmitter Links (STL)
    -Studio-To-Studio Links (SSL)
    -Audio Distribution
    -Managing multiple incoming remotes at the studio

    Multiple Backup Options
    The Gateway has multiple levels of power, audio and network redundancy. The codec features dual Gigabit Ethernet ports, dual internal power supplies, automated audio silence detection and IP network backup solutions to ensure you’re always on the air.

    • Features:

      • High channel density with 16 bidirectional mono or 8 bidirectional stereo IP streams
      • 16 assignable GPIOs, plus SLIOs (Tieline and WheatNet-IP)
      • Ideal for contribution/remotes and audio distribution applications
      • Stream IP audio over WANs using dual Ethernet ports
      • Fully AES67 and ST 2110-30 compliant for AoIP streaming
      • WheatNet-IP interface option available
      • Supports multicasting and multi-unicasting, multi-multicasting & multiple multi-unicasts
      • Internal Solid-State Drive for record and playback [2].
      • Dual DSP based platform with dual internal power supplies, dual Ethernet ports, dual [1] AoIP ports, and dual USB ports for firmware upgrades, memory or Wi-Fi modems.
    • Specifications:

      • Input and Outputs

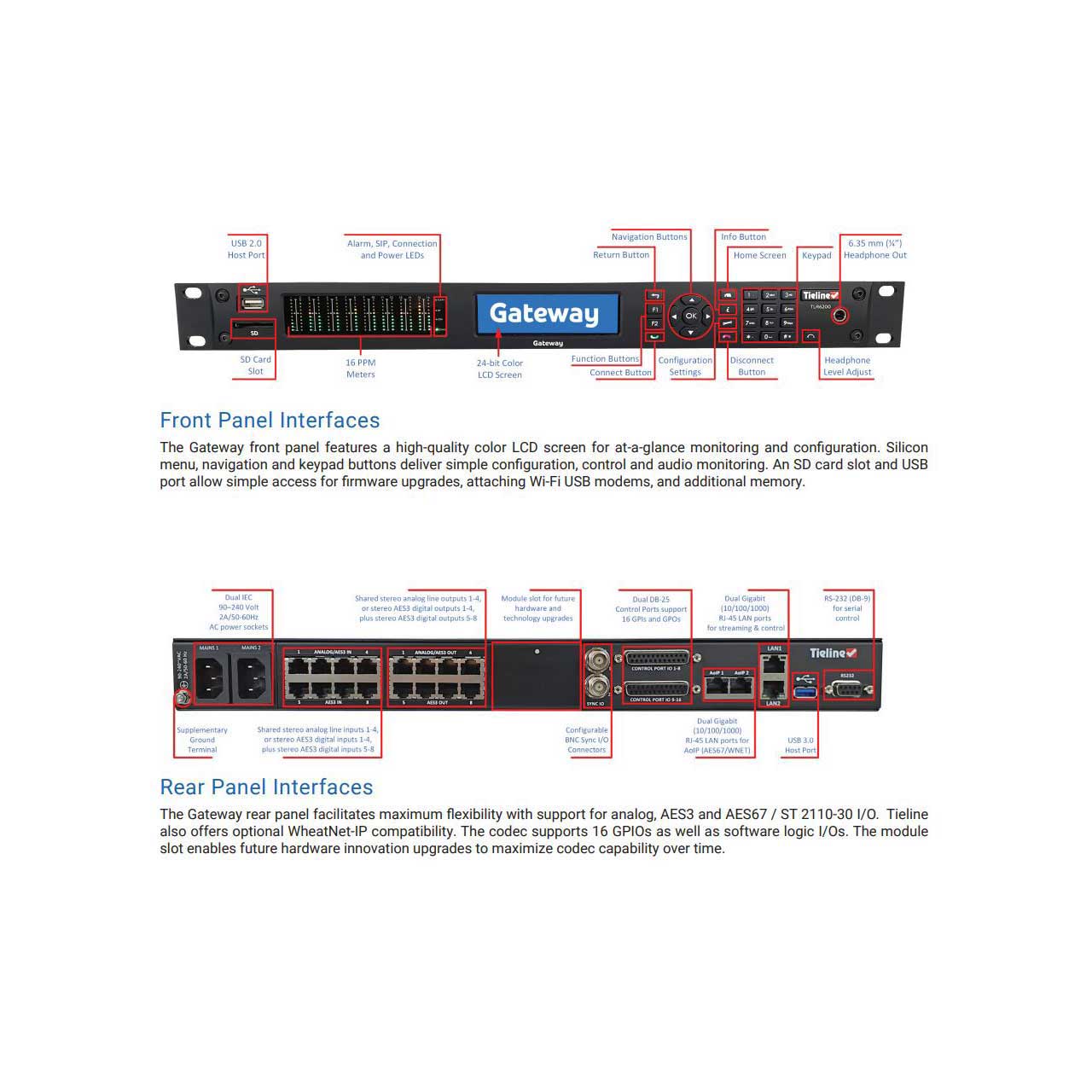

      • RJ45 Analog Inputs 1-4/AES3 Inputs 1-4: Shared analog stereo line inputs 1-4, or stereo AES3 digital inputs 1-4
      • RJ45 Analog Outputs 1-4/AES3 Outputs 1-4: Shared analog stereo line outputs 1-4, or stereo AES3 digital outputs 1-4
      • RJ45 AES3 Inputs 5-8: Stereo AES3 digital inputs 5-8
      • RJ45 AES3 Outputs 5-8: Stereo AES3 digital outputs 5-8
      • Gigabit LAN Ports: 2 x Gbit Ethernet ports for IP streaming over WANs (16 bidirectional mono or 8 bidirectional stereo)
      • Gigabit AoIP Streaming Ports: 2 x Gbit Ethernet ports for AES67 or Optional WheatNet-IP streaming over LAN1 (16 bidirectional mono or 8 bidirectional stereo); port 2 not operational in first release
      • USB 2.0 Host Port: Front panel host port (supports firmware upgrades, Wi-Fi USB modems and memory sticks)
      • USB 3.0 Host Port: Rear panel host port supports record and playback[2]
      • Front Panel Headphone Output: 1 x 6.35mm (1/4") headphone Jack
      • Front Panel SD Card Slot: Full size push-pull SD card slot for firmware upgrades
      • Internal SSD Storage: 128GB Internal Storage for recording streams
      • BNC Sync Input/Output: 2 configurable input/output BNC sync connectors
      • Control Port In/Out: Dual DB-25 Control Ports support 16 CMOS control inputs and 16 opto-isolated solid-state relay outputs
      • Analog Input Impedance: > 10k ohm
      • Analog Output Impedance: < 40 ohm balanced
      • Clipping Level: Nominal output level +4dBu with maximum output + 24 dBu
      • A/D & D/A Converters: 24 bit
      • AES3 (AES/EBU): 24 bit inputs with support for sample rates from 32kHz to 192 kHz[2]; 24 bit outputs
      • Frequency Response: 20Hz to 22kHz
      • Total Harmonic Distortion: <0.002% at +22dBu unweighted
      • Signal to Noise Ratio: >100dB at +24dBu, unweighted, 20Hz - 20kHz
      • Crosstalk: < -95dB between adjacent channels

        Data and Control
      • Configuration and connectivity: HTML5 Toolbox Web-GUI, Cloud Codec Controller (CCC), TieLink Traversal Server
      • Web Audio Monitoring: Selectable web audio monitoring of IP audio streams
      • Serial (DB-9): RS232 up to 115kbps with or without CTS/RTS flow control can be used as a proprietary data channel
      • Software Logic I/Os (SLIO): 7 Tieline and WheatNet virtual inputs (1-7); 64 Tieline virtual logic outputs; and, 64 virtual WheatNet logic outputs

        Encoding and IP Streaming
      • Encoding Formats: Tieline Music, Tieline MusicPLUS, Opus, G.711, G.722, MPEG Layer 2, MPEG Layer-3 LC-AAC, HE-AAC, HE-AACv.2, AAC-LD, AAC-ELD, 16/24 bit aptX Enhanced algorithm[2] MPEG audio technologies licensed by Fraunhfer IIS
      • Uncompressed IP: Linear PCM16/24 bit 32kHz, 44.1kHz, 48kHz, 96kHz sampling
      • IP Sample Frequencies: 8kHz, 16kHz, 32kHz, 44.1kHz, 48kHz, 96kHz
      • Asymetric encoding: Supports asymetric multi-format encoding
      • Protocols: RTP, DHCP, SNMP, DNS, HTTP, IGMP, IPv4/IPv6, RTCP, STUN, SSL Security Certificate
      • Multi-unicasting: Support for Multi-unicast and Multiple multi-unicast
      • Multicasting: Support for Multicast and Multi-multicast.
      • Fuse-IP: Bond IP interfaces to aggregate data

      • Dimensions: 19" x 1 3/4" x 11 13/16"
      • Weight: 8 lb
      • Power: Dual AC 90-240V IEC power inlets; 2A 50-60 Hz
      • Operating Temp: 32°F to 113°F
      • Humidity: 20% ≤RH ≤70% (0 to 35°C/32°F to 95°F), non-condensing
    • Item Includes:

      • 1x Tieline TLR6200-8 Gateway 1RU 8 Mono/4 Stereo Multi Channel IP Audio Codec - Analog/AES3/AES67 & SMTPE ST 2110-30
