Black Box EVNSL0508MS-0030 Cat5e 350MHz Solid Backbone Ethernet Patch Cable - 30 Foot - Black

ITEM #: BBX-0508MS-0030 MFG #: EVNSL0508MS-0030

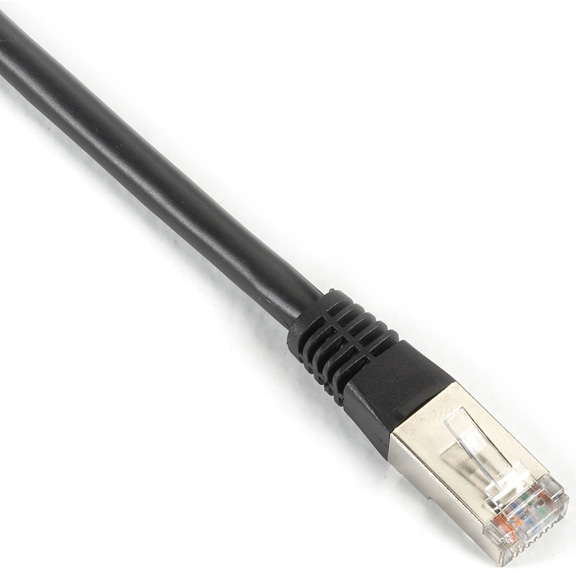

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the BBX-0508MS-0030

EVNSL0508MS-0030 - Overview

The EVNSL0508MS-0030 is a GigaBase CAT5e 350-MHz solid backbone ethernet patch cable. The cable's construction features 24-AWG solid conductors, straight-pinned, 4-pair, T568B, molded hoods. This cable also features Mylar® tape Shielding, tinned copper drain wire, and aluminum/Mylar tape. This cable is in a black finished jacket, but is also available in other colors.

  • Features:

    • 350-MHz backbone cable for CAT5e runs
    • Solid, dependable CAT5e backbone cable for new and existing networks
    • Meets or exceeds CAT5e specifications
    • Ideal for use in data, audio, and video applications and for horizontal network connections
    • Guaranteed for life
    • Cable construction: 24-AWG solid conductor, straight-pinned, 4-pair, T568B, molded hoods
    • Shielding: Mylar® tape; tinned copper drain wire; aluminum/Mylar tape
    • HDPE insulation: 0.009" (0.225 mm)
    • Available in other colors

  • Specifications:

    • ACR: 13.3 dB/100 m at 100 MHz
    • ACRF: 23.8 db/100 m at 100 MHz
    • Attenuation: 22.0 dB/100 m at 100 MHz
    • Cable Outside Diameter (Nominal): 0.2" (6.1 mm)
    • Capacitance Unbalance (Pair to Ground): 330 pF/100 m maximum
    • Conductor: 24 AWG, solid, bare copper
    • Delay Skew (Maximum): 45 ns/100 m (328 ft.)
    • Impedance: 1000 ± 15%
    • Insulation: HDPE: 0.009" (0.225 mm)
    • Jacket: PVC; CM; RoHS compliant
    • NEXT: 35.3 dB/100 m at 100 MHz
    • Propagation Delay: 538 ns/100 m at 100 MHz
    • PS-ACR: 10.3 dB/100 m at 100 MHz
    • PS-ACRF: 20.8 dB/100 m at 100 MHz
    • PS-NEXT: 32.3 dB/100 m at 100 MHz
    • Return Loss: 20.1 dB/100 m at 100 MHz
    • Standards: UL® 444; ISO/IEC 11801; TIA/EIA-568-B.2-1 CAT5e; 2002/95/EC (RoHS)
    • Temperature/Voltage Rating: 167° F (75° C) at 300 V

  • GTIN:

    0822088026631
