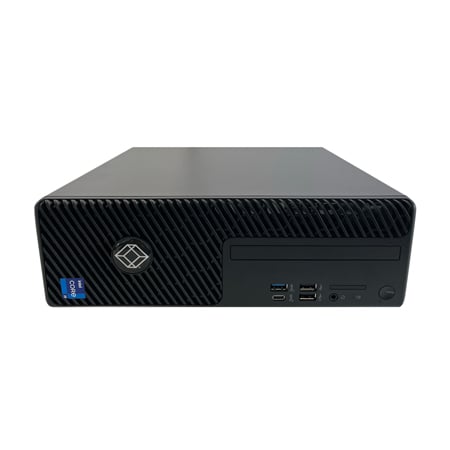

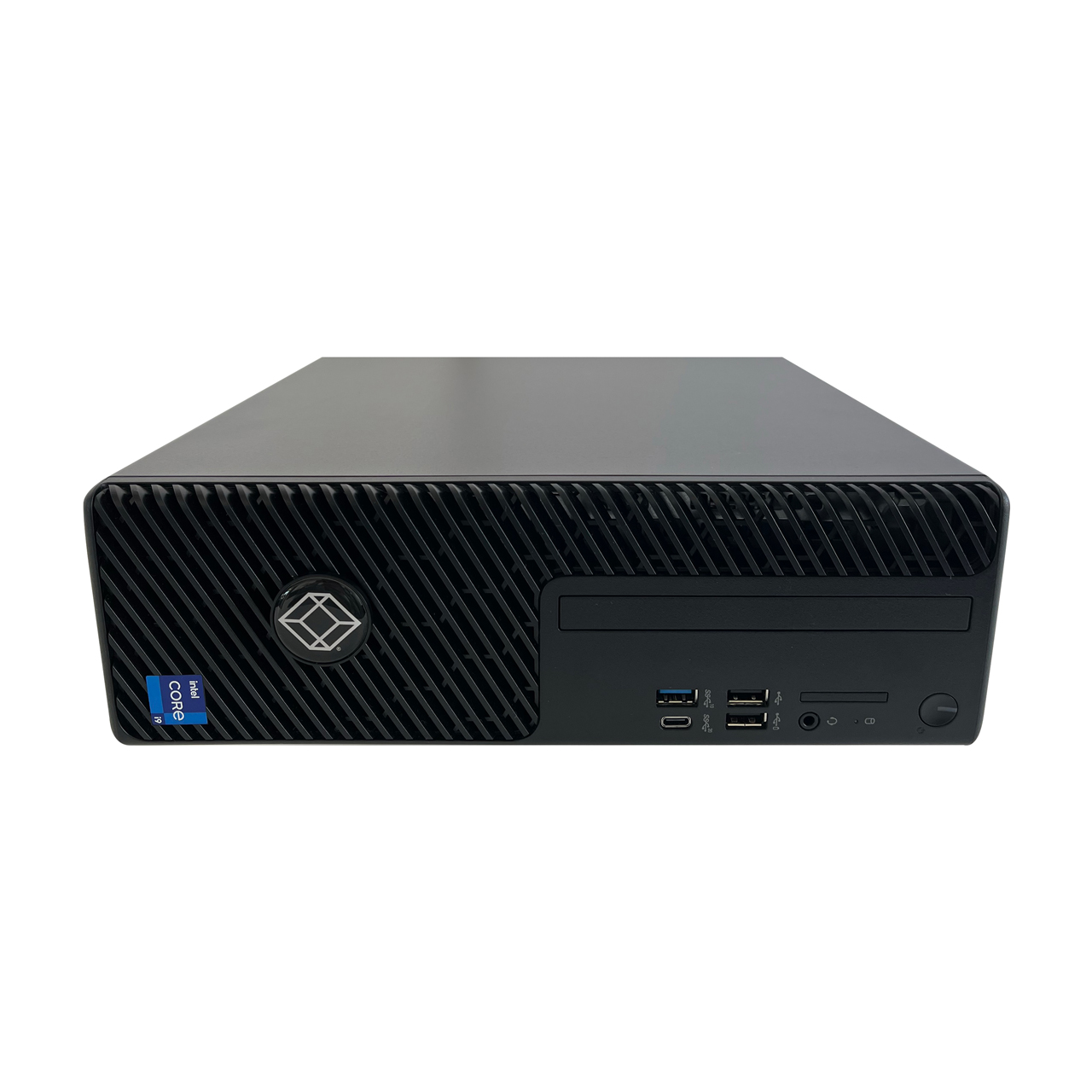

Black Box Emerald DESKVUE PE IP 4K60Hz Multi-Source KVM Receiver/Quad-Monitor - DisplayPort and Audio - 328 Foot - TAA

ITEM #: BBX-EMD5004PE-R MFG #: EMD5004PE-R

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$7,495.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


EMD5004PE-R - Overview

Gives Users Flexible, Real-Time Simultaneous Access to up to 16 Systems across Four 4K Screens (two of which can be 5K).

The award-winning Black Box® Emerald® family introduces the TAA-compliant Emerald DESKVUE PE, which allows users to create a personalized workspace. DESKVUE PE enables seamless multi-view access and control of up to 16 physical, virtual, and cloud-based sources or applications simultaneously across multiple displays.

Ideal for control room environments, the Black Box receiver ensures instant, error-free switching between systems with a simple mouse click and enables free positioning of system windows across four 4K screens, including two ultrawide 5K curved monitors, while providing unique source information for each connected system. Simplifying the management of multiple computers, DESKVUE PE allows you to control and view them all from one to four monitors, saving time and reducing the hassle of switching between devices.

Unlike solutions created out of complex and costly equipment integrations, DESKVUE is a powerful box that does it all, simply and securely over IP. Users tailor their workspace by connecting a single keyboard, mouse, USB 3/2 devices, audio, and up to four 4K monitors. Optionally, two of the four monitors can be 5K. DESKVUE connects to physical systems via Emerald transmitters and virtual machines using RDP, PCoIP, PCoIP Ultra.

Emerald DESKVUE PE (EMD5004PE-R) delivers 4K 60Hz resolution high-precision performance. It's designed for operators who actively work on multiple concurrent sources across all four 4K screens (two screens can be 5K).

The scalable and flexible DESKVUE PE offers enhanced operator awareness, streamlined workflows, remote access, and centralized management.

Emerald®AV WALL, now integrated into DESKVUE, revolutionizes collaborative workflows by seamlessly displaying any Emerald system source on a video wall. This software-based solution eliminates the complexity of managing separate KVM and video wall systems, providing a unified experience where any user can control and share content across a video wall.

Please Note! The Displayport connectors are not active on this unit. The "Mini-Displayport" connections are to be used. (Mini DP to DP Adapters are included)

  • Features:

    • Supports 4096x2160 at 60Hz on four monitors (two monitors can support 5120x1440)
    • Works with Emerald® IP KVM and Boxilla® KVM Manager for device configuration, monitoring, and authentication
    • Connect a single keyboard, mouse, audio, and up to four 4K monitors (two can be 5K)
    • Eliminates the need for multiple systems or equipment integration
    • Supports a video wall with Emerald®AV WALL feature set
    • TAA compliant
    • Up to 16 connections over 4 video heads when Deskvue is Managed by Boxilla, or 32 connections when not managed
    • Up to 4 UHD screens
    • Option for 'Dual-Head' 4K deployments outside post-production
    • Highly scalable through IP networking / low bandwidth
    • Remote access to KVM systems to allow operation across IP networks through software application
    • Compatible with Boxilla Managers (for management)
    • Enhanced Leostream broker support for PCOIP connections
    • Connects to Emerald transmitters
    • Connects to virtual machines (RDP and PCOIP)
    • Can also be used as a 2x2 video wall product

  • Specifications:

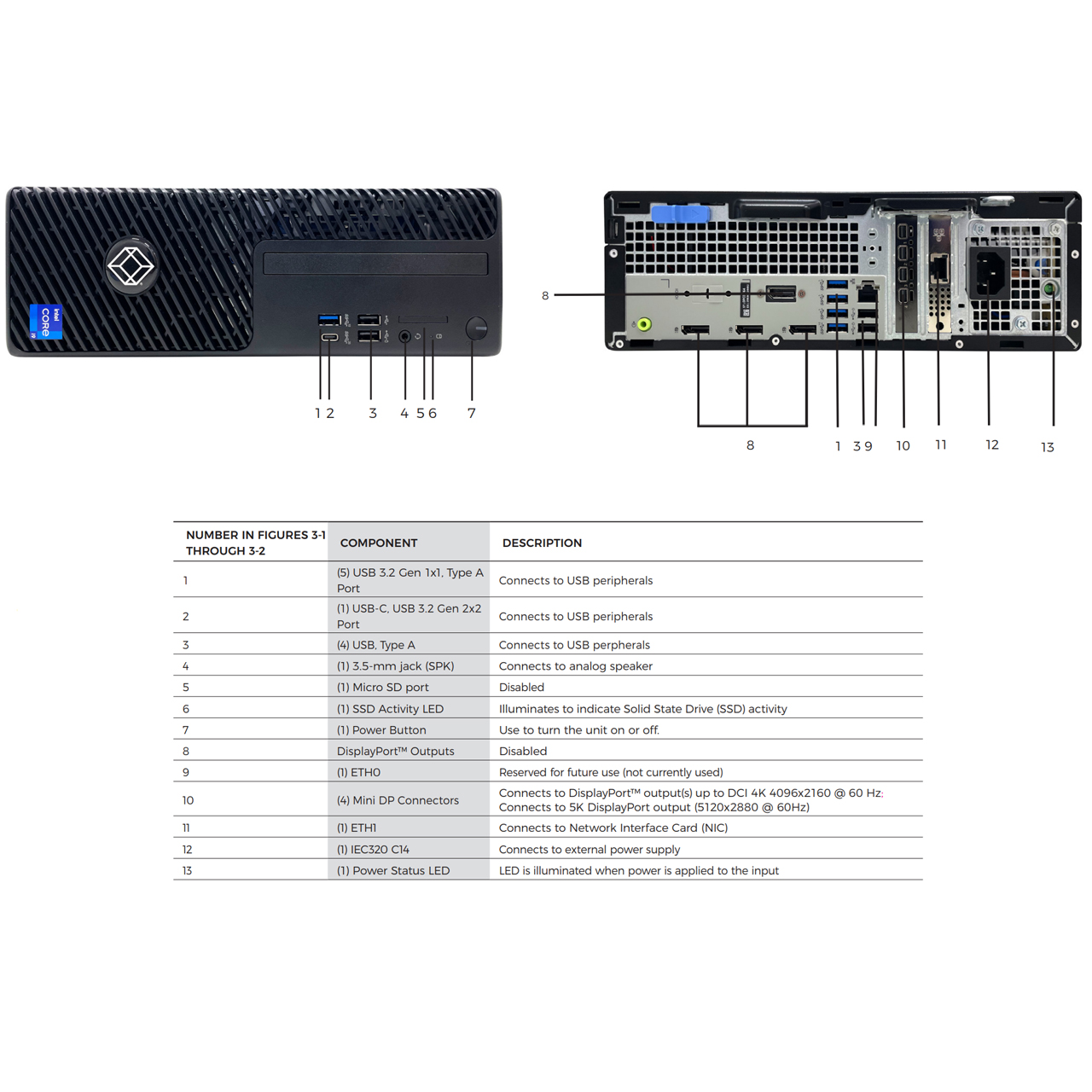

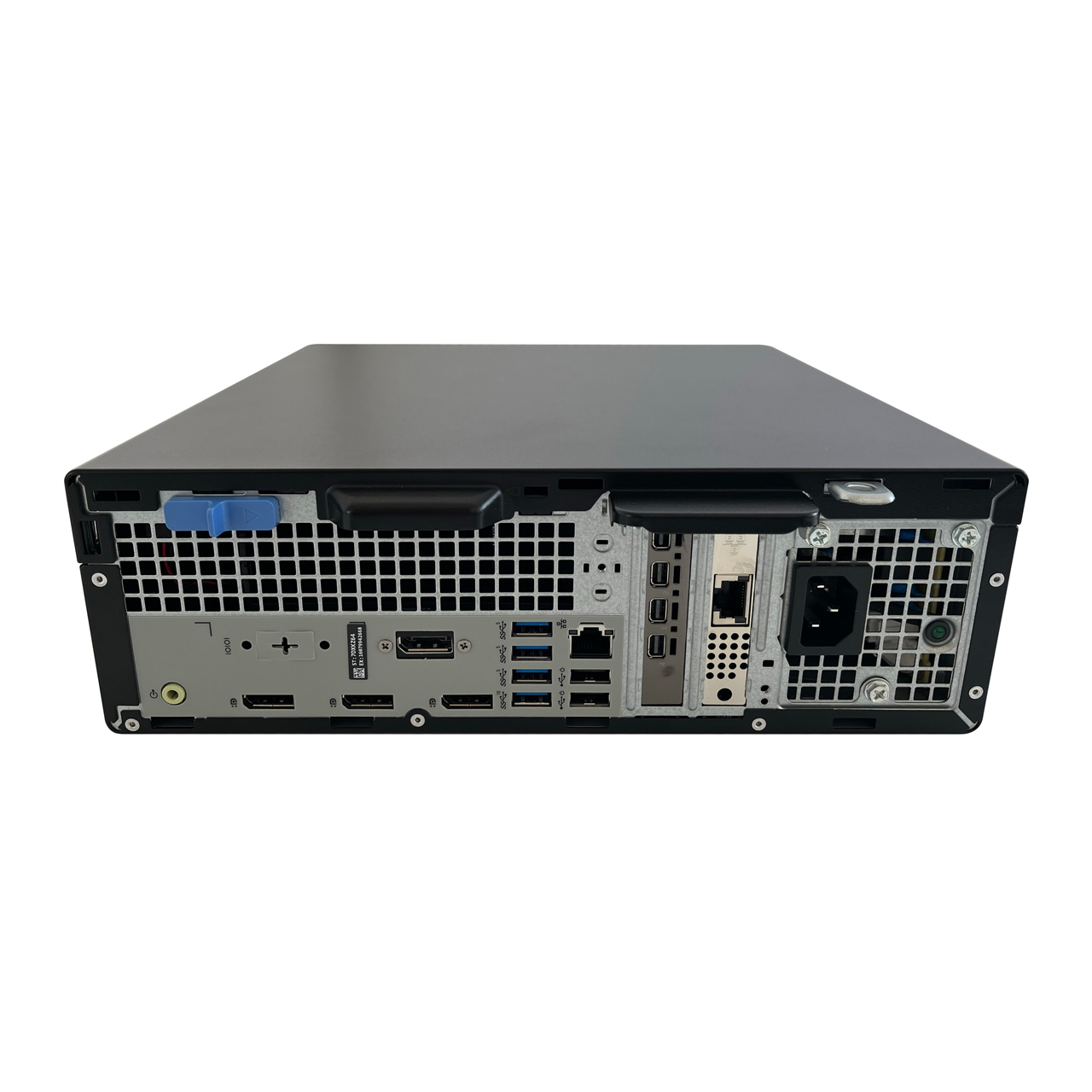

    • Connections:
      - 4x Mini DP connectors (mini DP to DP adapters included)
      - 4x Female DP connectors (not active)
      - 1x 3.5 mm Audio
      - 9x USB Type A Female
      - 1x Micro SD port (disabled)
      - 1x 1G RJ-45 Network Connection
      - 1x 2.5G RJ-45 Network Connection
      - 1x USB-C port
      - 1x IEC320 C14 for power
    • Compatibility: Boxilla Managers, Emerald Transmitters, and Virtual Machines (RDP, PCoIP)
    • Maximum Distance from Network: 328ft (100m), all IP rules apply
    • User Interface: Emerald On Screen Display (OSD)
    • Power: Internal power supply
    • Input Voltage/Volts: 100V - 240V AC, 50/60Hz
    • Power Consumption/Watts: 300 Watts maximum
    • BTU: 1,023 BTU/h maximum
    • Power Supply Cord Length: 4.5ft (1.37m)
    • Temperature Range:
      - Operating: 32°F - 104°F (0°C - 40°C)
      - Storage: -22°F - 176°F (-30°C - 80°C)
    • Relative Humidity (Maximum): Operating 10% - 90% (non-condensing)
    • Maximum Altitude/Feet: < 6,561ft (2,000m)
    • Dimensions (HxWxD): 11.42" x 3.65" x 11.53" (290.00mm x 92.60mm x 292.80mm)
    • Weight: 8.52lbs (3.87kg)

  • Item Includes:

    • 1x DESKVUE PE IP Multi-Source Receiver - Quad-Monitor, DisplayPort
    • 4x Mini-DP Connectors (Mini-DP to DP Adapters Included)
    • 1x Country Specific Power Cord

  • Warranty:

    • 2 Year Double Diamond
