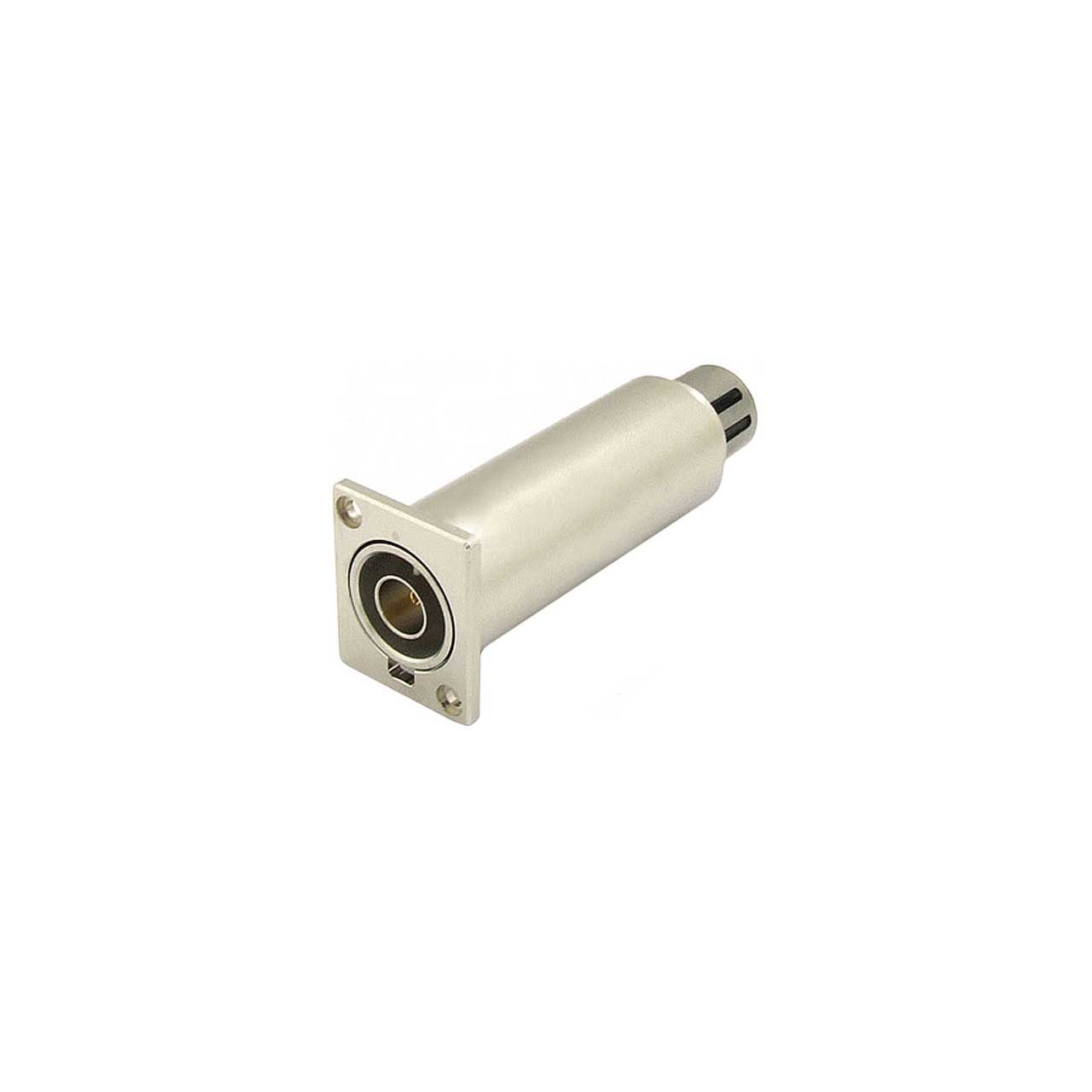

Canare BCJ-TRC-XP3M Digital Audio Impedance Transformer Panel Mount BNC- XLR(M)

BCJ-TRB-XP3M - Overview

• Features:

  • SMPTE 276M and AES3 Transmission Standard Coaxial transmission of 2 Channel Digital Audio Allows longer cable runs than 110 ohm twisted pair AES/EBU Signal distribution using Canare 75 ohm Video Patchbays APPLICATIONS: Post Production Suites Recording Studios AES/EBU Digital Audio Routing GENERAL SPECIFICATIONS Bandwidth: 0.1 - 6MHz Maximum Voltage: 5Vp-p VSWR: <1.1 Insertion Loss: <0.3dB 110 ohm Port (Balanced): XLR3 Female 1-Shell, 2-Hot, 3-Cold 75 ohm Port (Unbalanced): Canare 75 ohm BNC Receptacle
