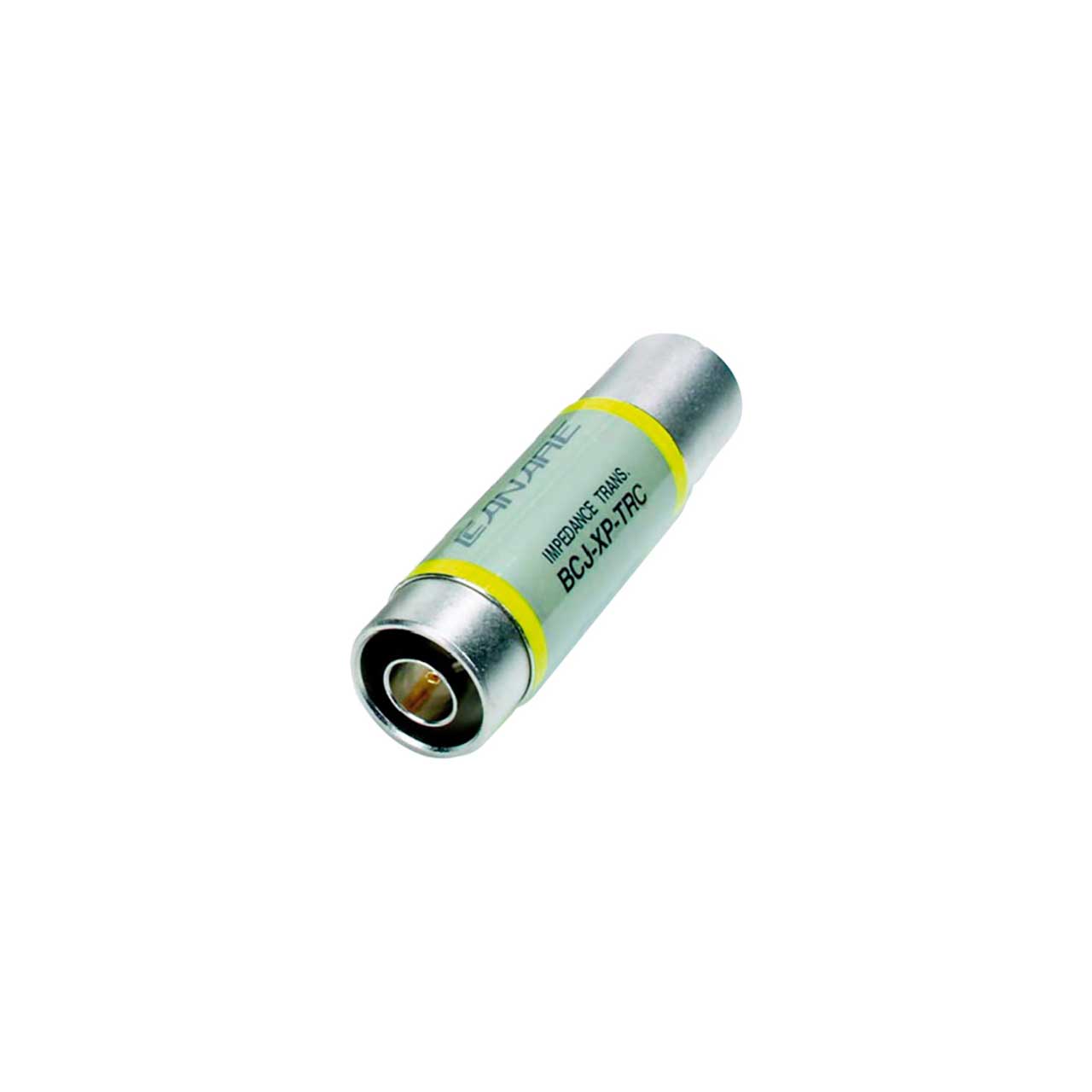

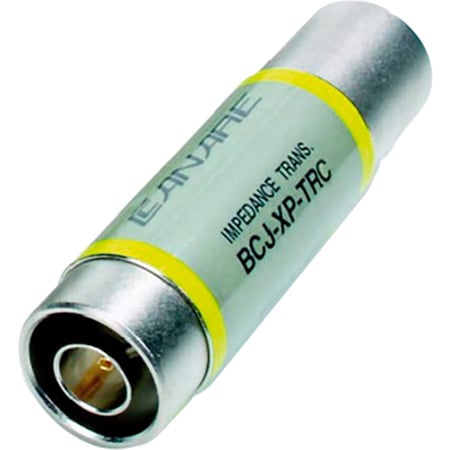

Canare BCJ-XP-TRC BNC-F In to XLR-M Out Impedence Transformer Plug


Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    BCJ-XP-TR - Overview

    110 - 75 ohm Impedance Transformer
    XLR3: Male
    BNC: Female
    Pack Qty: 1 pc

    Canare Impedance Transformers are designed to convert 2-channel digital audio signals between balanced 110 ohms XLR and unbalanced 75 ohms BNC. This cost effective adapter allows you to switch from a limited length microphone cable to a much longer, IMPEDANCE MATCHED 75 ohms coax cable. Now, conveniently route D1, D2, R-DAT and DAW signals via 75 ohms Canare Video Patchbays, BNC plugs and super flexible Coaxial Cable.

    Post Production Suites
    Recording Studios
    AES/EBU Digital Audio Routing

    • Features:

      • SMPTE 276M and AES3 Transmission Standard
      • Coaxial transmission of 2 Channel Digital Audio
      • Allows longer cable runs than 110 ohm twisted pair
      • AES/EBU Signal distribution using Canare 75 ohm Video Patchbays
