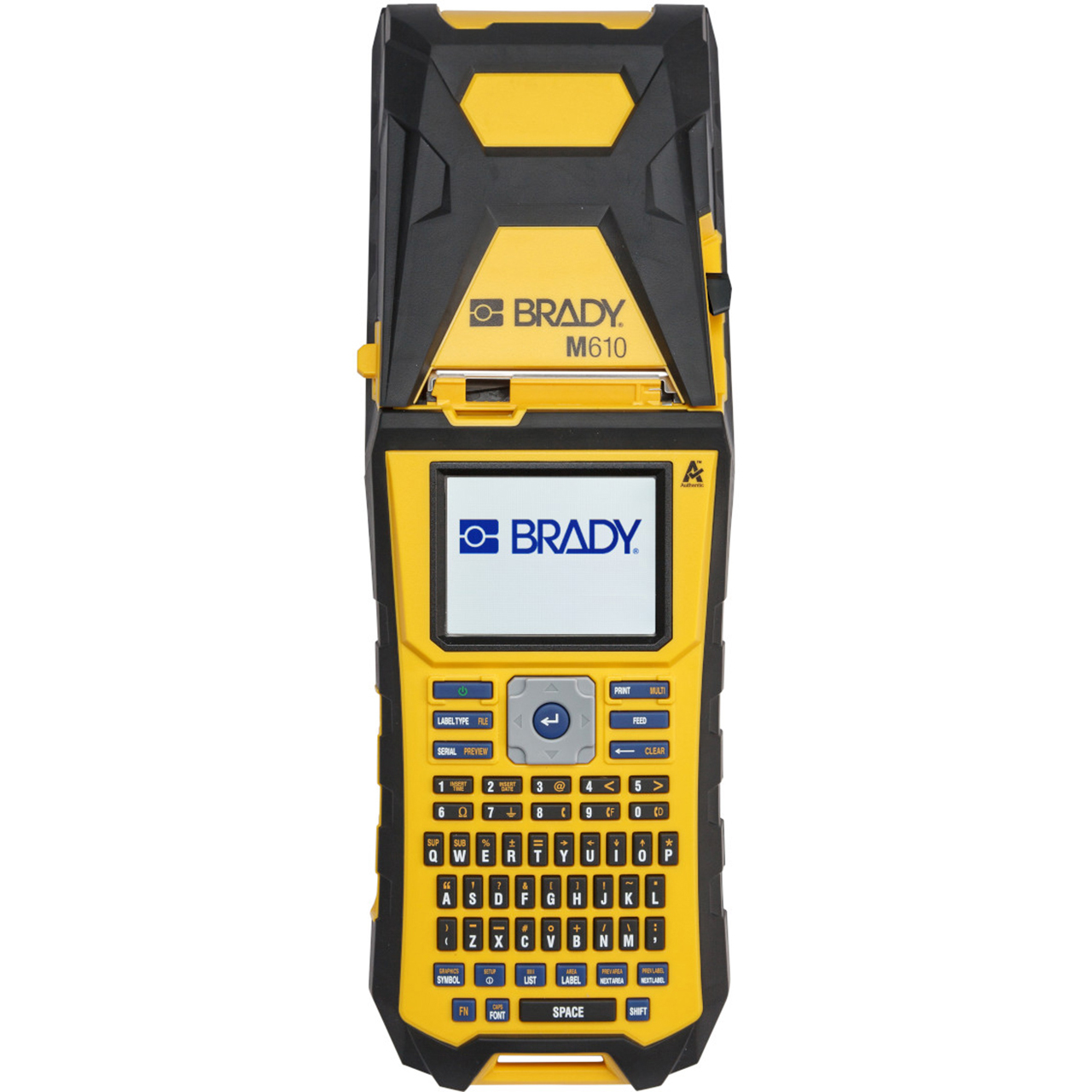

Brady M610 Handheld Label Maker with Thermal Transfer - Li-Ion Battery

ITEM #: BDY-M610 MFG #: M610

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$780.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Item restricted to Contiguous United States ground shipment only.


M610 - Overview

Get advanced performance in the field with a labeler that's durable to the core, the Brady M610 Label Printer. It handles your toughest industrial applications - wire, cable, component ID - fast and efficiently. Rugged for the field. Dependable in the shop. With the M610, you can manage label data more ways. Save and store labels on board. Print with ease on demand. For a trusted and reliable partner in the field, choose the M610.

More Data Entry Options
Get more ways to save and store labels on board - import data files from a USB thumb drive, import and save files, lists and graphics, or design and print labels using a keypad or desktop software

Better Printing
Print better and faster with 2" per second print speed to print text, barcodes, shapes and images. Get enhanced Gen3 Li-ION battery for non-stop printing

Greater Label Selection
Select the best label for every job - choose from over 50 material types and 900+ label parts, including continuous tapes and pre-sized labels. Available in stock cartridges, bulk boxes and custom labels created to your specs

Please Note: This product contains Lithium Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • Design and print labels using a keypad or desktop software
    • Work longer with an enhanced Gen3 Li-ION battery - print 4,500 labels on a full charge
    • Easily import and export label files, lists and graphics to the printer through USB 2.0 port (Type A and B) or USB flash drive
    • Print labels at 2" per second print speed
    • Get added durability with a printer that is resistant to military-grade shocks (MIL-STD-810G) and 6-foot drops
    • Operate your printer in 0°F - 115°F temperatures
    • 800+ label options and 50+ material options
    • Crisp printing with 300-dpi printhead
    • Intuitive QWERTY Keypad

  • Specifications:

      General
    • Battery mAh Rating: 2700mAh
    • Battery Weight: 0.40lbs
    • Built-In Label Wizards: 66 Block, Breaker Box, DesiStrip, Flags, General, Patch Panel, Terminal Block, Wire Wrap
    • Connectivity Options: Standalone Use, USB 2.0
    • Cutter Type: Manual cut
    • Device Drop Test & Durability: Resistant to 6-foot drops, Resistant to military-grade shocks (MIL-STD-810G)
    • Display Type: Color LCD Screen, LCD backlit graphics display
    • Keyboard Type: QWERTY
    • Memory: 512MB RAM, 256MB Flash
    • Number of Symbols: 480
    • On Screen Indicators: Battery Life, Ribbon and label part number recognition, Ribbon Remaining, Supply Remaining
    • Power Supply Voltage: 110V - 240 V
    • Auto Shut-Off/Power Conserve: User Configurable
    • Recharge Time: 4 hours
    • Special Characters Quantity: 123
    • User Interface Type: Full QWERTY Keyboard, PC
    • Battery Type: Rechargeable Lithium-ion Battery
    • Compatible Media: BM-, BMC-, M6-, M6C-
    • Label Material Types: FreezerBondz Polyester, Heat-shrink Polyolefin, High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve, Metallized Polyester, Metallized Polyester with Polyester Overlaminate, Nylon Cloth, Paper, Polyester, Polyethylene, Polyethylene Foam Laminate Polyester, Polyimide, Polyolefin, Polypropylene, Polyvinylfluoride, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondzT Polyester, Static Dissipative Polyester, Tamper-evident Metallized Polyester, Tamper-evident Polyester, Tamper-resistant Metallized Vinyl, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth
    • Materials Supported: Bulk, Continuous, Custom, Die-cut
    • Dimensions (HxWxD): 12.93" x 4.22" x 4.19"
    • Display Size: 2.8"
    • Weight: 3.10lbs

      Printing
    • Barcode Symbologies - 2D: Data Matrix, QR code
    • Barcode Symbologies - Linear: Code 128, Code 39, EAN-13, EAN-8, Interleaved 2 of 5, More through Brady WorkStation, UPC-A, UPC-E
    • Calibration Required: Automated through Smart Cell
    • Color Printing Capability: Single Color
    • Font Sizes: 4 - 170 pt
    • Font Styles: Brady Alpine, Brady Fixed Width
    • Label Retention Feature: Yes
    • Maximum Labels per Day: 750
    • Maximum Label/Tape Width: 2"
    • Minimum Label Length: 0.236"
    • Maximum Print Speed: 2"/s
    • Maximum Printed Label Length: 40"
    • Print Resolution: 300 dpi
    • Print Technology: Thermal Transfer

  • Item Includes:

    • 1x AC Adapter/Battery Charger (M41-51-61-AC)
    • 1x Black Ribbon (M61-R4310)
    • 1x Brady Workstation Design & Print Essentials Insert
    • 1x Carrying Strap (BMP-STRAP-1)
    • 1x Li-ION Rechargeable Battery (M-LION-BATTERY)
    • 1x M610 Label Printer (M610)
    • 1x Printed Quick Start Guide
    • 1x Product USB
    • 1x Self Laminating Cable Wraps (M6-11-427)
    • 1x USB Cord

  • Warranty:

    • 2 Year Warranty
