XR18 - Overview

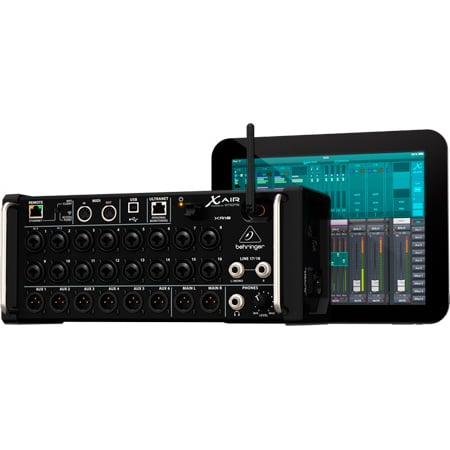

X Air 18-Channel 12-Bus Rackmount Digital Mixer for iPad or Android Tablets!

The Behringer X32 completely changed the game by rethinking what is possible from a digital mixer - and over 100,000 users are enjoying the results. Now, that same technology has been incorporated into a small, but incredibly powerful, rack-mountable mixer that will forever change both the way you record - and the way you play live music. The revolutionary XR18 is a powerhouse 18 input/12 bus portable mixer housed in an extremely sturdy stage box design for use with iPad and Android tablets (tablets sold separately). It is ideally suited for both live and studio applications, thanks to its 16 award-winning Midas-designed mic preamps, convenient integrated WiFi module for wireless control - and a lightning-fast, bidirectional USB Audio Interface.

Midas - The Legend in Sound Quality
Ever since its formation in the 1970s, Midas has had a long history of innovation and leadership in the world of audio mixing consoles. Employed by the most famous touring acts and installations worldwide, legendary Midas consoles such as the XL4 and Heritage H3000 quickly became industry standards. Midas has earned their impeccable reputation due to their no-compromise approach for audio and build quality and in particular for their award-winning Mic Preamps which are considered by industry experts as the industry's best sounding designs. Building on this legacy, the XL8 and PRO Series of Live Mixing Systems continue this great heritage of award-winning audio quality. Behringer is proud to incorporate Midas designed mic preamps for the ultimate in high-quality audio reproduction in both live and studio environments.

Built-In Tri-Mode Wifi Router
Designed for the ultimate in mobility, the XR18 comes with an integrated Wifi module for direct control of your mixer's functions - without the need to setup and configure an external router. The XR18 gives you the freedom to focus on your mix, while allowing you to move about the venue to experience what every part of the audience is hearing. Plus you can adjust live monitor wedges from the artist's perspective - or better yet, let them mix their own IEMs and floor monitors via their own tablets Access Point is the easiest way to connect up to 4 clients directly and concurrently (i.e., iPad, Android smartphone/tablet or laptop). This mode should have your remote control up and running in less than a minute. Wifi Client allows you to add your mixer to the existing wireless network where the controlling apps and devices are connected.

  • Features:

    • iPad/Android tablet controlled 18-input digital mixer for studio and live application
    • 16 award-winning Midas-designed, fully programmable mic preamps for audiophile sound quality
    • Built-In Tri-Mode WiFi router for direct operation-no need for external routers
    • 18x18 channel, bidirectional USB interface for direct recording on iPad etc.
    • Revolutionary Dugan-style Auto-Mixing automatically manages microphone gain sharing
    • Award-winning X32 effects rack featuring 4 stereo FX slots including high-end simulations such as Lexicon 480L and PCM70, EMT250 and Quantec QRS etc.
    • 100-band Real Time Analyzer (RTA) for all channel and bus EQ's
    • ULTRANET connectivity for Behringer's P-16 Personal Monitoring System
    • 6 aux and main LR buses with inserts, full dynamics processing and 6-band parametric or 31-band graphic EQ
    • 6 XLR aux outputs and 2 XLR main outputs plus phones connector
    • 40-Bit floating-point DSP features "unlimited" dynamic range with no internal overload and near-zero overall latency
    • Free iOS, Android and PC/Mac/Linux apps available for remote operation via Ethernet, LAN or WiFi
    • MIDI In/Out allows controlling the mixer via MIDI equipment (incl. Mackie Control protocol) or for use as a USB MIDI interface (future firmware)
    • Internal switch-mode power supply for noise-free audio and low power consumption

  • Specifications:

      Processing
    • Number of Processing Channels: 18 input channels, 4 FX return channels, 6 aux buses, main LR
    • Internal Effects Engines: 4 True Stereo
    • Signal Processing: 40-bit floating point
    • A/D-D/A Conversion (Cirrus Logic A/D CS5368, D/A CS4385): 24-bit @ 44.1/48kHz, 114dB dynamic range
    • Analog I/O Latency: 0.8ms

      Connectors
    • Programmable Mic Preamps, Designed by Midas: 16x XLR/TRS combo jacks, balanced
    • Line/Aux Inputs, Stereo: 2x TRS, balanced
    • Main Outputs: 2x XLR, balanced
    • Aux Outputs: 6x XLR, balanced
    • Phones Outputs: 1x TRS
    • ULTRANET: 1x RJ45
    • MIDI Inputs/Outputs: 1x/1x DIN
    • Ethernet: 2x RJ45
    • Audio/MIDI Interface: 2x USB Type B

      Mic Input Characteristics
    • THD + Noise, 20dB Gain, 0dBu Out: < 0.005%, A-weighted
    • Phantom Power, Switchable per Input: 48V
    • Equivalent Input Noise Level, XLR (Input shorted): -128dBu, A-weighted
    • CMRR, XLR @ 20dB Gain (Typical): > 60dB
    • CMRR, XLR @ 40dB Gain: > 65dB

      Input/Output Characteristics
    • Frequency Range, @ 48kHz Sample Rate, 0dB to -1dB: 10Hz - 22kHz
    • Dynamic Range, Analog In to Analog Out (typical): 106dB
    • A/D Dynamic Range, Preamp to Converter (typical): 109dB
    • D/A Dynamic Range, Converter and Output: 108dB
    • Cross Talk Rejection @ 1kHz, Adjacent Channels: 90dB
    • Mic 1-16 Input Impedance XLR Jack, Unbal./Bal.: 5kΩ/10kΩ
    • Non Clip Maximum Input Level, XLR: +23dBu
    • Hi-Z 1-2 Input Impedance TRS Jack, Unbal./Bal.: 1MΩ/2MΩ
    • Line 3-16 Input Impedance TRS Jack, Unbal./Bal.: 5kΩ/10kΩ
    • Line 17-18 Input Impedance, RCA/TRS: 10kΩ
    • Non Clip Maximum Input Level, RCA/TRS: +16dBu
    • Output Impedance, XLR, Unbal./Bal.: 50Ω/50Ω
    • Output Level, XLR, Nom./Max.: +4dBu/+16dBu
    • Output Impedance, TRS, Unbal./Bal.: 50Ω/50Ω
    • Output Level, TRS, Nom./Max.: +4dBu/+16dBu
    • Phones Output Impedance/Level: 40Ω/+35dBm (stereo)
    • Residual Noise Level, XLR and TRS: -92dBu, A-weighted

      USB Audio/MIDI Interface
    • Type: USB 2.0, Type B
    • Supported Operating System: Windows 7 or higher, Mac OS X 10.6.8 or higher, iOS 7 or higher (iPad), Linux
    • Supported Sample Rates: 44.1/48kHz
    • I/O Audio Channels: 18x18
    • I/O MIDI Channels: 16x16 (1 port)

      WLAN Module
    • Antenna: External, SMA connector, 50Ω
    • Access Point, Number of Clients: Max. 4
    • IEEE 802.11 b/g Standard: 2.4GHz
    • Frequency Range: 2,412MHz - 2,462MHz
    • WLAN Channels (WiFi Client, Access Point): 1-11
    • Max Output Power: 19dBm (802.11 b)/18dBm (802.11 g)

      General
    • Power Consumption: 30W
    • Standard Operating Temperature Range: 41°F - 104°F (5°C - 40° C)
    • Dimensions: 13.1" x 5.9" x 5.5" (333mm x 149mm x 140mm)
    • Weight: 7.1lbs (3.2kg)

  • Item Includes:

    • 1x Behringer X Air XR18 18-Channel 12-Bus Rackmount Digital Mixer

  • Warranty:

    • 3 Year Warranty

  • GTIN:

    0748252151049
