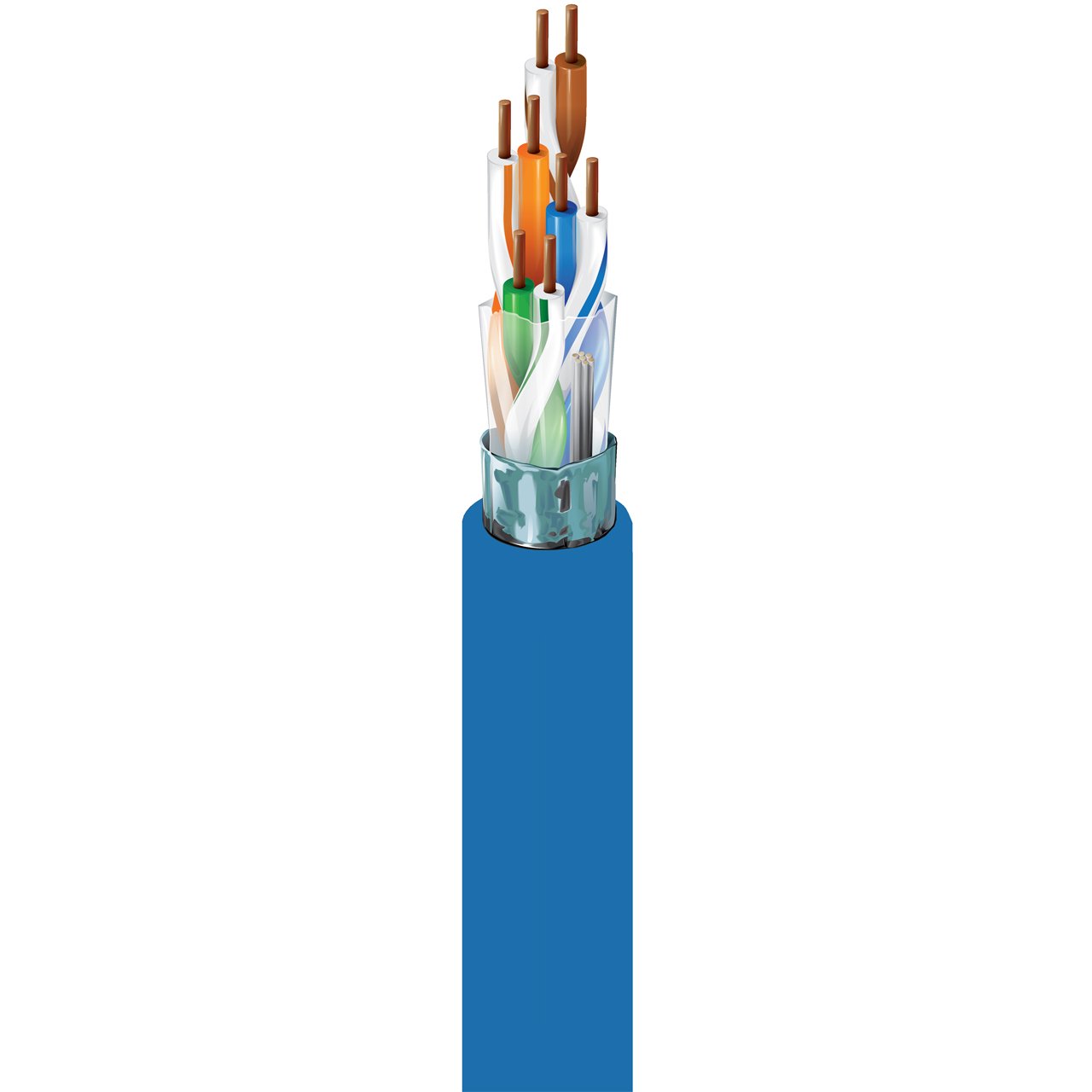

Belden 1212F 4-Pair 24 AWG CAT5e-plus 350MHz Horizontal Cable - Blue - 500 Foot Reel in Box

1212F 006A500 - Overview

• Features:

  • Superior Electrical Performance: Exceeds Category 5e performance
  • Performance Headroom: As part of the REVConnect 1200 System, delivers data rates up to 1.2Gb/s for a system with usable bandwidth of 160MHz
  • Stable Electricals: 1200 Cable's design features matched conductors on all four pairs providing for extremely stable electrical performance
  • No Need for an Overall Jacket: 1200 Banana Peel® Enhanced Category 5e Cable bundles six cables to a center spline in a unique design


• Specifications:

  • Color: Blue
  • Length: 500ft
  • AWG: 24
  • Stranding: Solid
  • Material: Bare Copper
  • Pairs: 4
  • Max. Conductor DCR: 93.8Ω/km
  • Max. DCR Unbalance: 3%
  • Max. Capacitance Unbalance: 330pF/100m
  • Nom. Mutual Capacitance: 15pF/ft
  • Frequency Delay[MHz]: 100MHz
  • Max. Delay: 537.6 ns/100m
  • Max. Delay Skew: 45 ns/100m
  • Nom. Velocity of Propagation (VP): 70%
  • UL Voltage Rating: 300V (CMR)
  • UL Rating Temp: 167°F (75°C)
  • Operating Temp: -4°F - 167°F (-20°C - 75°C)
  • Installation Temp: 32°F - 122°F (0°C - 50°C)
  • Storage Temp: -4°F - 167°F (-20°C - 75°C)
  • Max. Pull Tension: 25lbs
  • Bulk Cable Weight: 30lbs/1000ft
  • Suitability: Riser, Indoor
  • Sustainability: Product Lens, Environmental Product Declaration (EPD) Available
  • Flammability/Fire Resistance: UL 1666 Riser, FT4, FT4, IEC 60332-1-2
  • NEC/UL Compliance: 800, CMR
  • CEC/C(UL) Compliance: CMR
  • ICEA Compliance: S-90-661-2012
  • IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3
  • NEMA Compliance: NEMA WC-63.1
  • Data Category: Category 5e
  • TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
