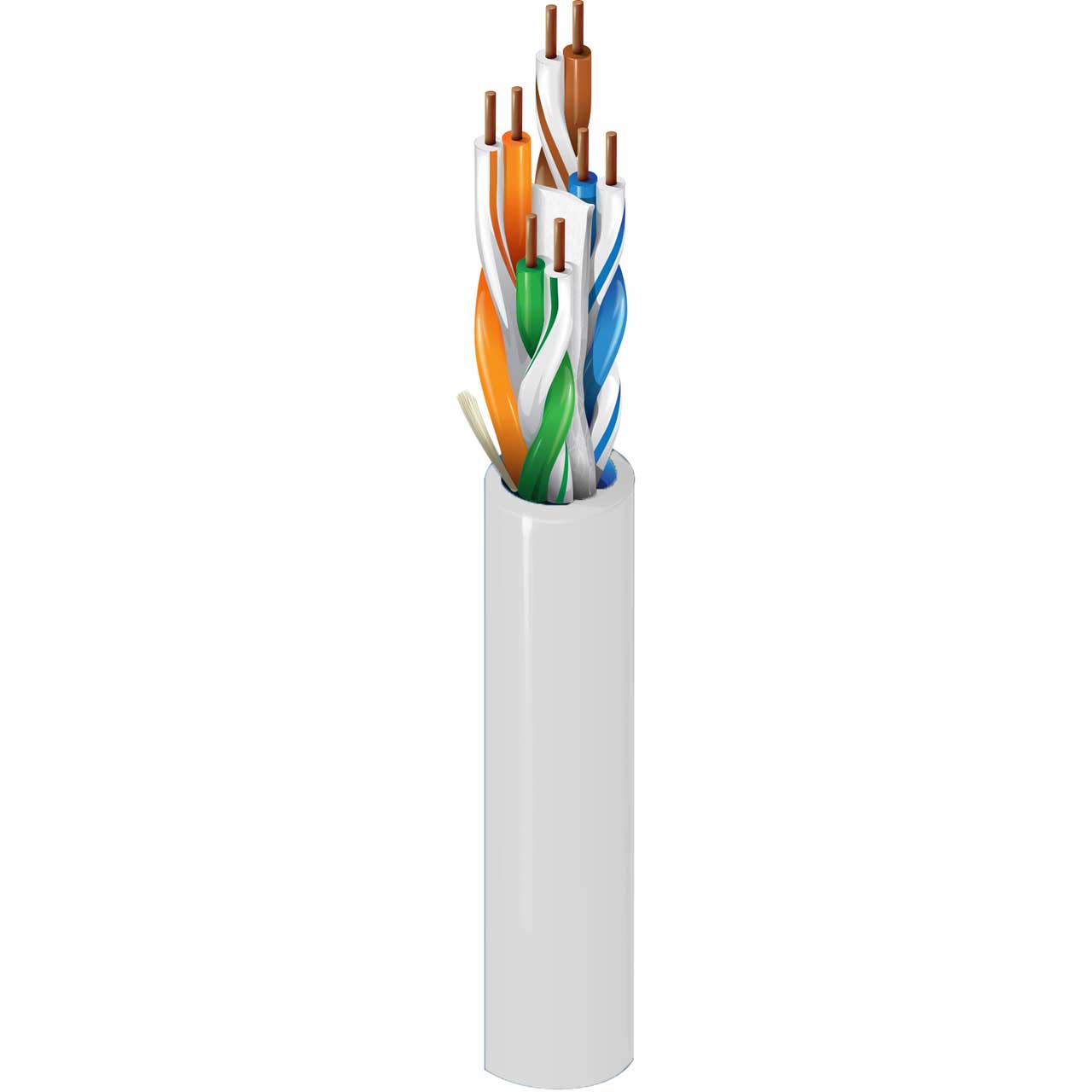

Belden 2412 CMR Enhanced Premise 350MHz CAT6+ 4 Pair U/UTP Cable Solid Copper 23 AWG - White - 1000 Ft

ITEM #: BL-2412-1000WE MFG #: 2412 0091000

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$344.60

Our Price:

$225.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    2412 0091000 - Overview

    Nonbonded-Pair Cable

    Belden 2412 is a Category 6+, U/UTP Enhanced Premise Horizontal Cable (350MHz). It's 4 Pair, 23 AWG with Solid Bare Copper Conductors in a Riser-CMR rated PVC Jacket.

    Belden 2400 Series Cables consist of 4-pair UTP cables that exceed Category 6 requirements as per ANSI/TIA-568-C.2. When used as the horizontal cable in the REVConnect 2400 System, the channel provides at least 250 MHz of bandwidth.

    Applications
    Premise Horizontal Cable
    Ethernet 1000BASE-T
    Ethernet 100BASE-TX
    Ethernet 10BASE-T
    PoE++/PoE+/PoE

    • Features:

      • Improve Crosstalk Performance: Central spline separates pairs and maintains stable pair position
      • Optimized Cable Balance: Improved balance of transmission performance for simultaneous parallel transmission protocols
      • Performance Reliability: Guarantees across all parameters, including insertion loss and crosstalk, for excellent uptime, headroom and network speeds
      • Withstand Installation Rigors: Bonded-Pair Cables handle higher pulling tensions and tighter bend radius

    • Specifications:

      • Environmental Space: Riser
      • Conductor Count: 8
      • Total Number of Pairs: 4
      • Conductor Size: 23 AWG
      • Material: Bare Copper
      • Ripcord: Yes
      • Insulation Material: PO-Polyolefin
      • Outer Jacket Material PVC - Polyvinyl Chloride
      • Outer Jacket Nom. Diameter: 0.224 in (5.69 mm)
      • Overall Cable Diameter (Nominal): 0.224 in (5.69 mm)
      • Installation Temp Range: 0°C To +50°C
      • UL Temp Rating: 75°C
      • Storage Temp Range: -20°C To +75°C
      • Operating Temp Range: -20°C To +75°C
      • Bulk Cable Weight: 22 lbs/1000ft
      • Max Recommended Pulling Tension: 25 lbs
      • Min Bend Radius/Minor Axis: 1.0 in
      • Min Bend Radius/Installation: 2.25 in
      • NEC Articles: 800
      • NEC/(UL) Specification: CMR
      • CEC/C(UL) Specification: CMR
      • ISO/IEC Compliance: 11801 ed 2.2 (2011) Class E
      • CPR Euroclass: Eca
      • Data Category: Category 6
      • ANSI Compliance: S-116-732-2013 Category 6, ANSI/NEMA WC-66 Category 6
      • Telecommunications Standards: ANSI/TIA-568-C.2 Category 6
      • IEEE Specification: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
      • Third Party Performance Verification: Category 6

    • Item Includes:

      • 2412 - White - 1000 Ft Reel

    • Warranty:

      • Limited 10 Year Warranty

    • GTIN:

      0612825061106
