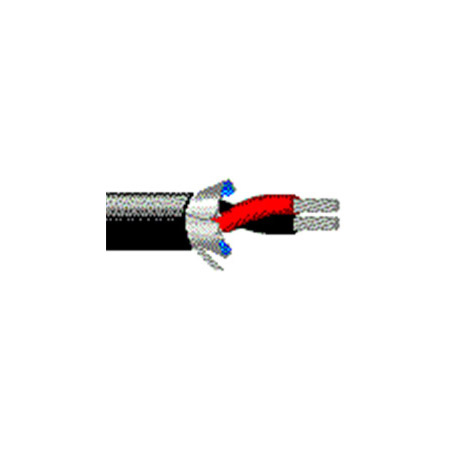

Belden 5340F1 18 AWG Stranded (7x26) Tinned Copper Conductors - Black - 1000 Foot

ITEM #: BL-5340F1-1000 MFG #: 5340F1 0101000

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Belden
Free Shipping with $49 Minimum Order

List Price:

$470.40

Our Price:

$381.49

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

5340F1 0101000 - Overview

Belden 5340F1 Security & Alarm Cable, Rated-CMG-FPL-PLTC-ER, 1-18 AWG stranded tinned copper pair with PVC insulation, Beldfoil shield, Waterblocking tape, PVC jacket. Suitable for Low Voltage, Water-Blocked for Use in Underground Ducts, PLTC, FPL, Intercom, Sound, and Audio applications.Security & Alarm Cable, Rated-CMG-FPL-PLTC-ER, 1-18 AWG stranded tinned copper pair with PVC insulation, Beldfoilr shield, Waterblocking tape, PVC jacket

  • Specifications:

    • AWG: 18
    • Pairs: 1
    • Stranding: 7x26
    • Material: TC - Tinned Copper
    • Total Number of Conductors: 2
    • Overall Nominal Diameter: 5.893 mm
    • Operating Temperature Range: -30°C To +105°C
    • UL Temperature Rating: 105°C
    • Bulk Cable Weight: 40.181 Kg/Km
    • Max. Recommended Pulling Tension: 253.547 N
    • Min. Bend Radius/Minor Axis: 63.500 mm
    • Capacitance (pF/m): 213.265
    • DCR @ 20°C (Ohm/km): 19.3579
    • DCR @ 20°C (Ohm/km): 55.449
    • Voltage: 300 V RMS


  • GTIN:

    0612825161134
