Belden 7733A Plenum RG-8/U Low Loss 50 Ohm Cable - Black - Per Foot

ITEM #: BL-7733A-FT-BK MFG #: 7733A 010500 PER FOOT

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order


Availability: Sold Out
iAvailability Description Popup


7733A 010500 PER FOOT - Overview

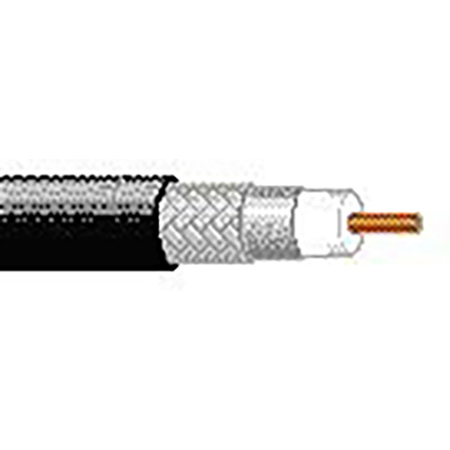

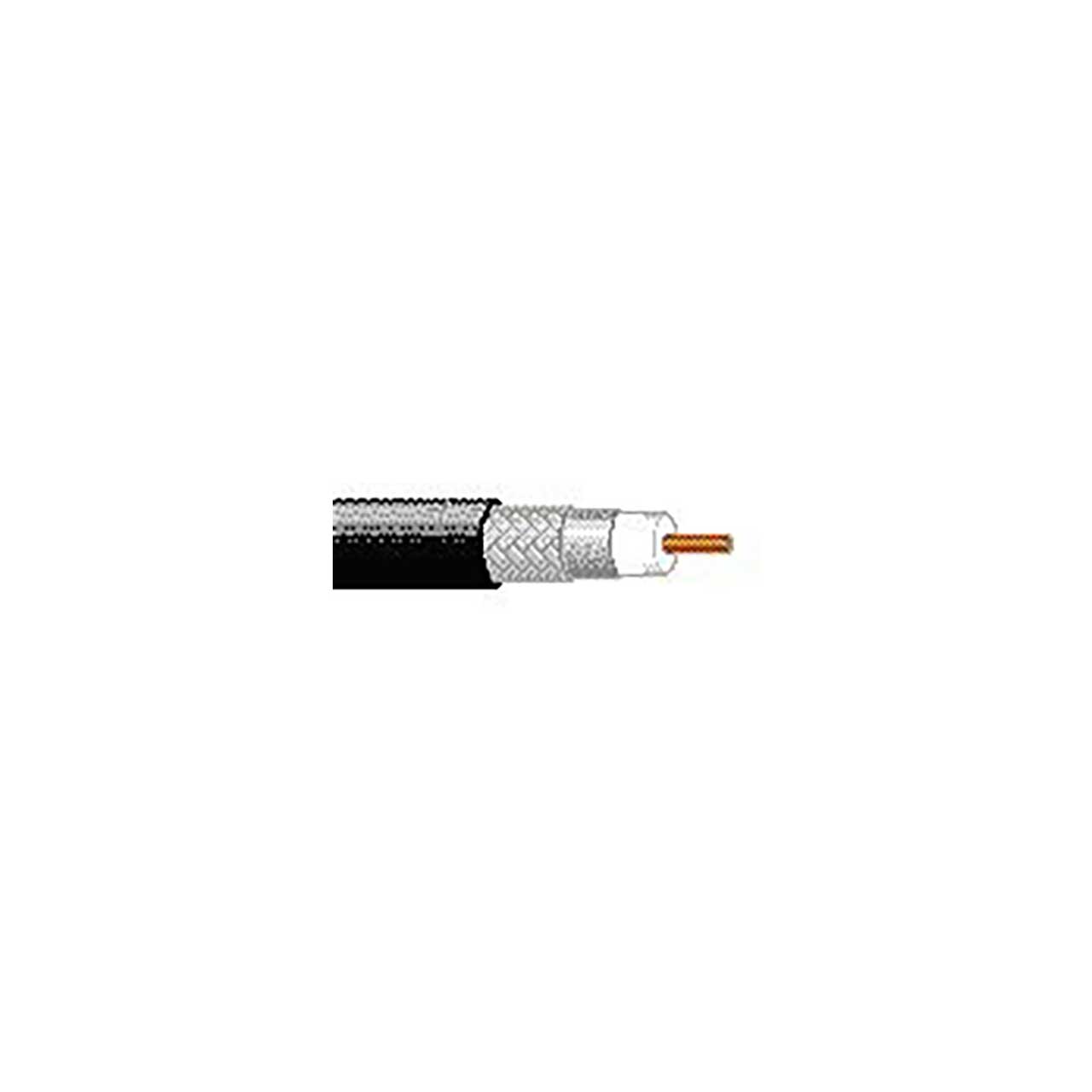

Belden 7733A 50 Ohm Wireless Transmission Coax, RG-8, 10 AWG Solid Bare Copper Conductor , FEP Insulation, Foil + 90% Tinned Copper Braid Shield, PVDF Jacket, CMP, Low Loss. Suitable for Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification).

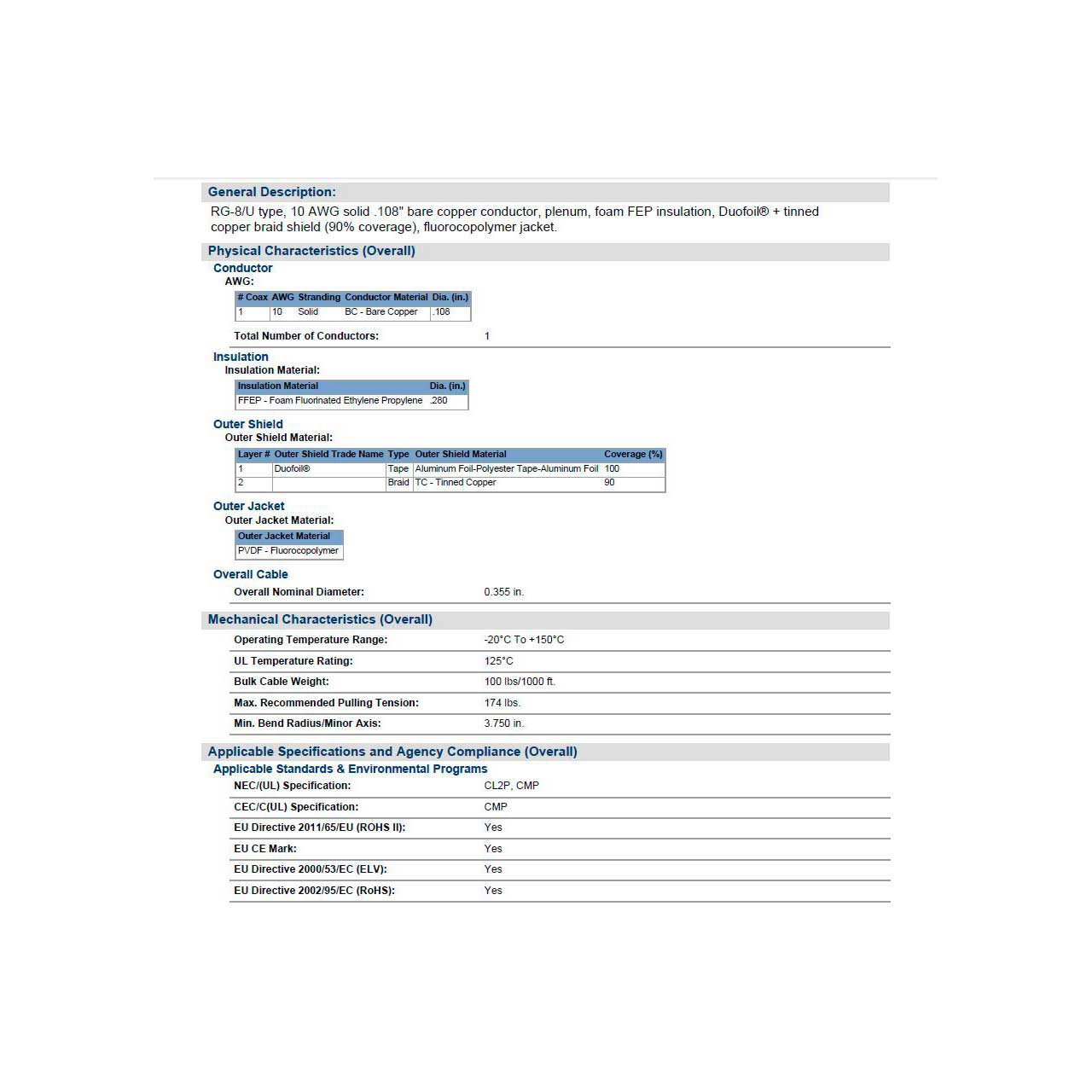

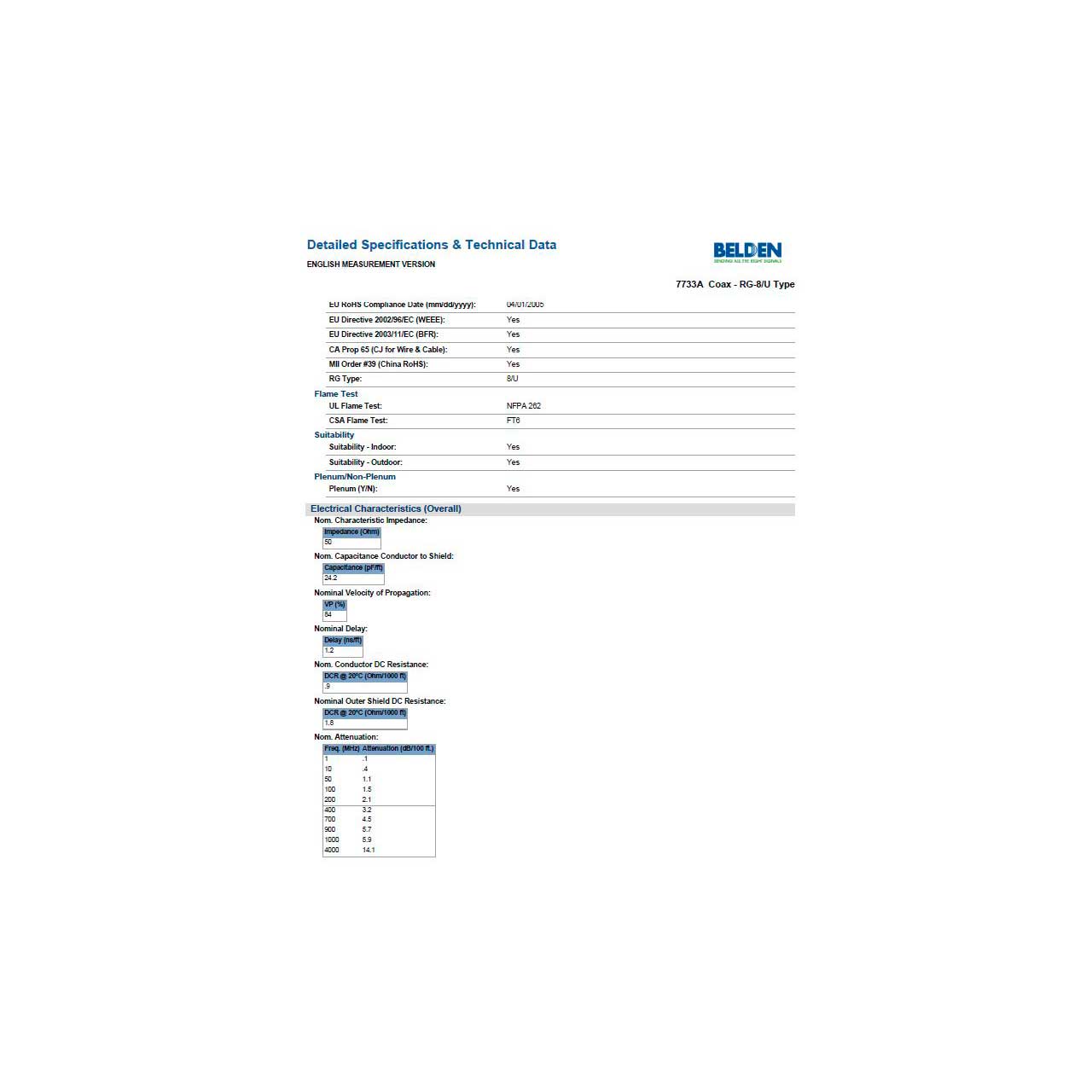

  • Specifications:

    • RG Type: 8
    • AWG: 10
    • Stranding: Solid
    • Nom Diameter: 0.108 in
    • Material: BC - Bare Copper
    • UL Rating: 150°C
    • Operating Temperature: -20°C to +150°C
    • Bulk Cable Weight: 100 lbs/1000ft
    • Max. Pull Tension: 185 lbs
    • Bend Radius Installation Min.: 3.6 in
    • Environmental Suitability: Indoor - Plenum, Indoor, Outdoor, UV Resistance
    • Sustainability: CA Prop 65
    • Resistance: NFPA 262
    • NEC / UL Compliance: CL2P, CMP
    • CEC / C(UL) Compliance: CMP
