Belden 7953A CMX/MSHA DataTuff Category 6 Outdoor Cable 4 Bonded Pair 600V AWM 23 AWG Solid Copper - Per Foot - Black

ITEM #: BL-7953A-BK MFG #: 7953A 0101000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3.26

Our Price:

$3.21

Add to Wish ListLeasing Options
Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup
  • Extended Lead Time; estimated delivery in May.
Report Lower PriceLarge Quantity Quote

7953A 0101000 - Overview

Industrial Ethernet Outdoor 600V AWM 21047 Category 6 Cable

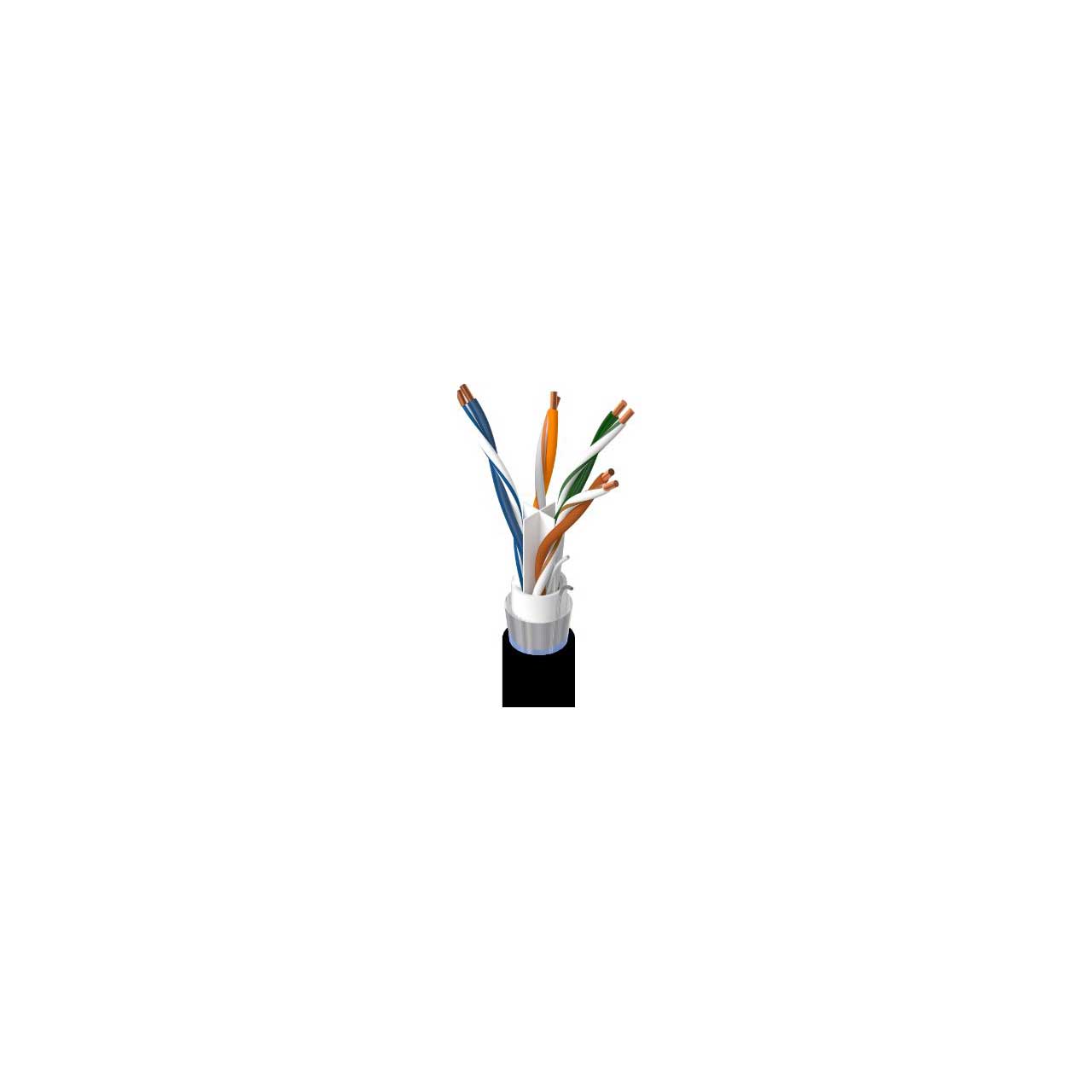

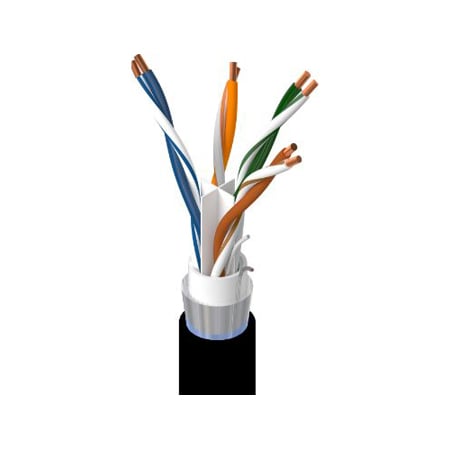

Belden 7953A in black is a 23 AWG Industrial Ethernet Cat 6 cable featuring 4 Bonded-Pairs, 23AWG (Solid) Bare Copper conductors with PO - Polyolefin Insulation, Overall Beldfoil™ Shield, PVC Inner Jacket and a PVC Outer Jacket. Designed for Harsh Enviornments it's 600V AWM 21047 cable rated for Sunlight and Oil Resistance,and is MSHA (Mine Safety and Health Administration) as well as CMX-Outdoor approved.

Applications:
Outdoor Locations
Installation in cabinets with high volt devices, such as a motor control center
Heavy Equipment
Mining/MSHA Approved
Noisy and Harsh Environments
IIoT or Industrial Internet of Things applications
Factory or process automation
IP cameras and devices
Data Communication

  • Features:

    • 600 AWM rating ensures performance near high-voltage devices
    • Compatible with Belden Industrial REVConnect and standard RJ45 connectors
    • Ruggedized, Outdoor industrial-grade solution
    • Withstands hazards like Sunlight/UV, Oil/Gas and EMI noise interference
    • Bandwidth up to 10Gb/s over 100 meters and 500 MHz frequency range
    • Supports up to 100W of type 3 and type 4 PoE
    • Bonded twisted pair construction for durability, noise immunity and installable performance
    • 10-year guarantee of performance consistency and reliability with Belden's limited warranty
    • Versatile applications with UL 1666 - Riser Flammability


  • Specifications:

    • AWG: 23
    • Conductor Stranding: Solid
    • Conductor Material: Bare Copper
    • Number of Pairs: 4
    • Conductor Count: 8
    • Insulation Material: PO - Polyolefin
    • Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
    • Bonded-Pair: Yes
    • Inner Jacket Material: PVC - Polyvinyl Chloride
    • Inner Jacket Nom. Diameter: 0.254 in (6.45 mm)
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Shield Type: Tape
    • Coverage: 100%
    • Drainwire Type: 24 AWG (7x32) TC
    • Overall Cable Diameter (Nominal): 0.335 in (8.51 mm)
    • UL Voltage Rating: 300 V (CMR, CMX-Outdoor), 600 V (AWM 21047)
    • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Aerial
    • Installation Temp Range: -25°C To +75°C
    • UL Temp Rating: 75°C
    • Storage Temp Range: -40°C To +80°C
    • Operating Temp Range: -40°C To +75°C
    • Bulk Cable Weight: 44 lbs/1000ft
    • NEMA Compliance: ANSI/NEMA WC-66
    • NEC/(UL) Specification: CMR, CMX-Outdoor
    • CEC/C(UL) Specification: CMX-Outdoor;CMG
    • UL AWM Style: UL Style 21047
    • ISO/IEC Compliance: ISO/IEC 11801 ed 2.1 (2008) Class E
    • CPR Euroclass: Eca

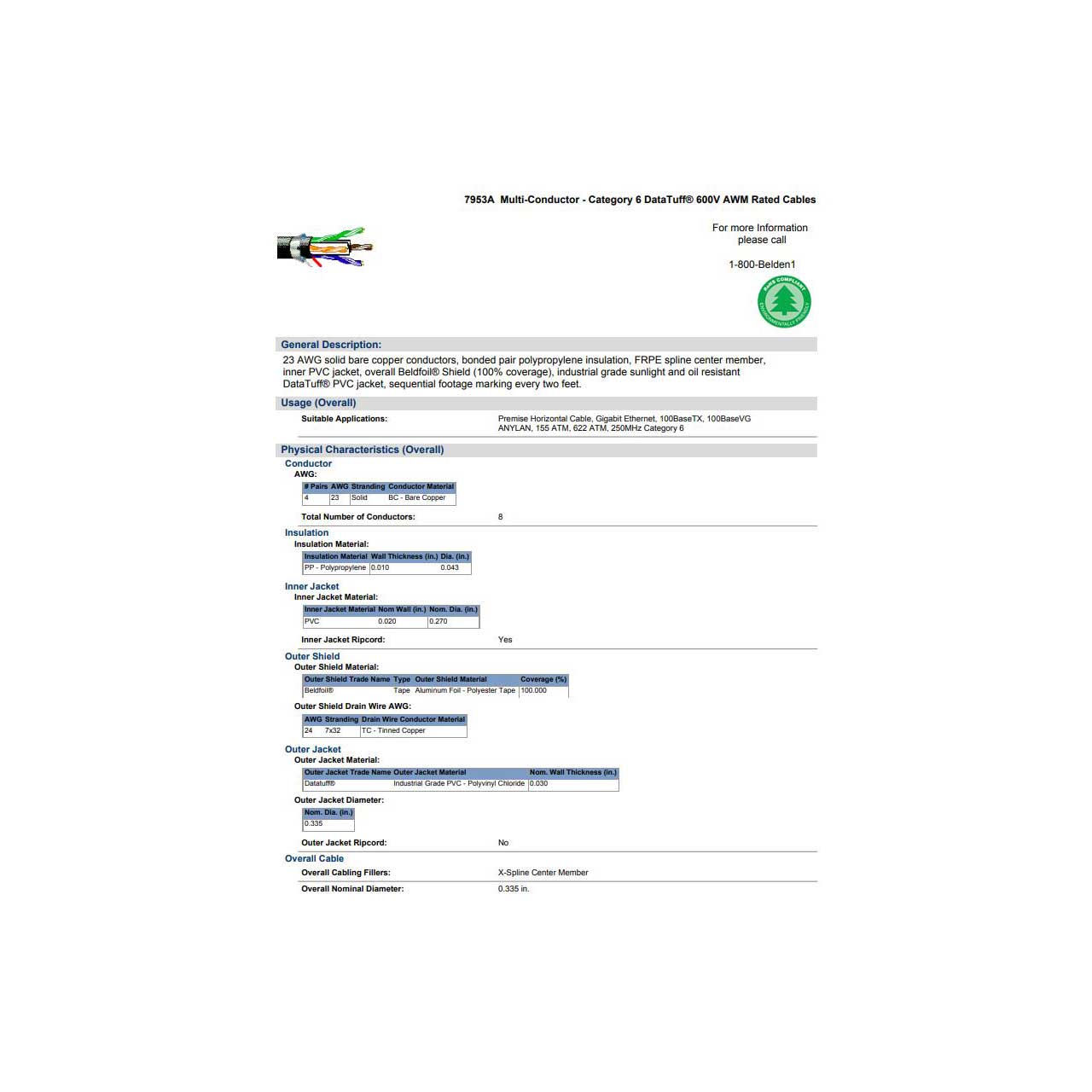

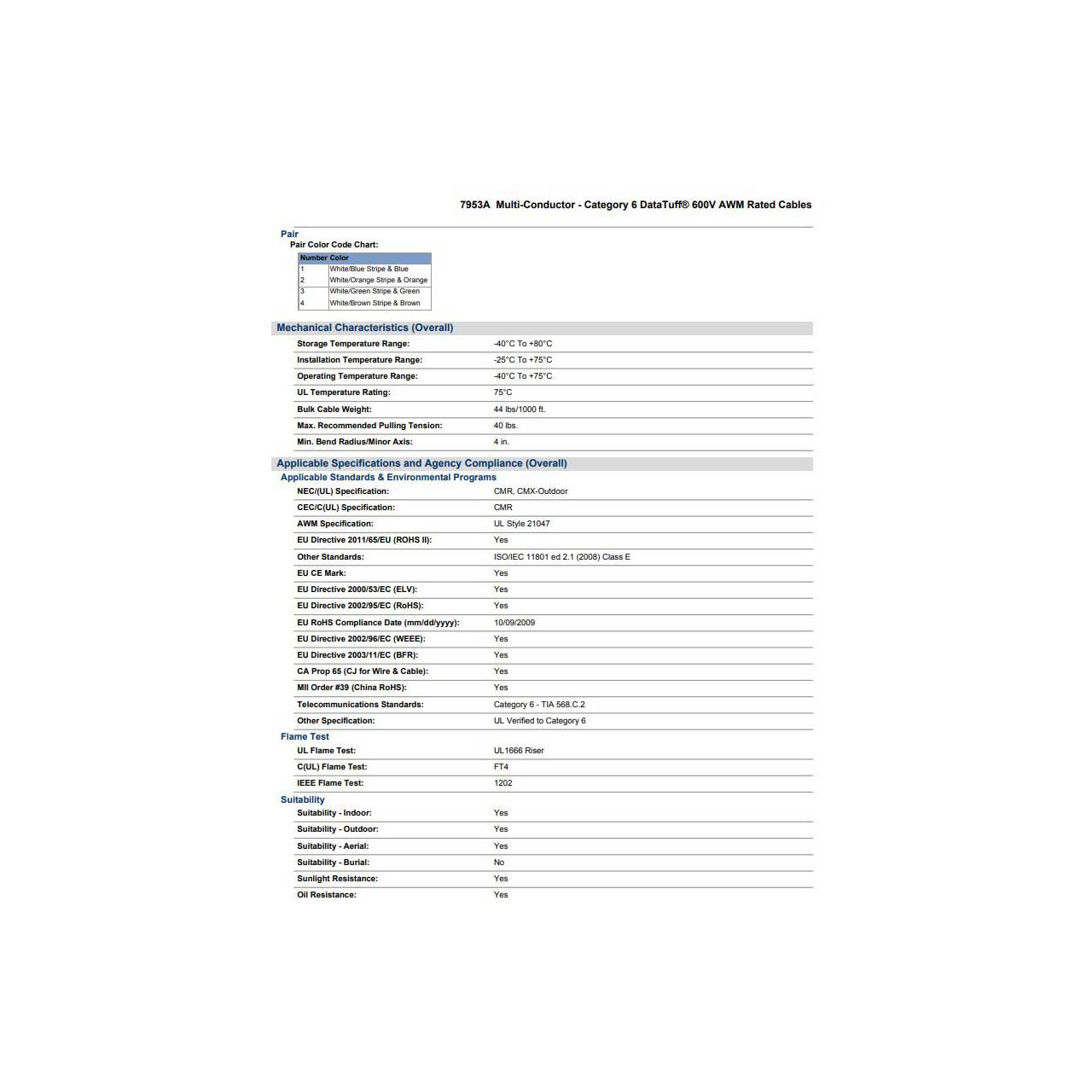

    • Please see attached Spec Sheet for complete specifications


  • Item Includes:

    • 7953A CAT6 Cable in Black - Sold Per Foot


  • Warranty:

    • Limited 10 Year Warranty


  • GTIN:

    0612825191964
