Blustream CAT100AU Digital Audio over CAT5e/6 Extender

CAT100AU - Overview

• Features:

  • Extend optical and coaxial digital audio signals up to distances of 300m* over a single CAT cable
  • Both optical and coaxial digital can be distributed at the same time
  • Built in DAC (Digital to Analog audio Converter) converts either optical or coaxial digital (selectable) to analog stereo left / right audio output (source selected on receiver unit)
  • Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz and 192kHz up to 24-bit resolution
  • Ultra low jitter and high fidelity design
  • *CAT100AU supports distances of up to: 192kHz - 100m, 96kHz - 150m, < 48kHz - 300m


• Specifications:

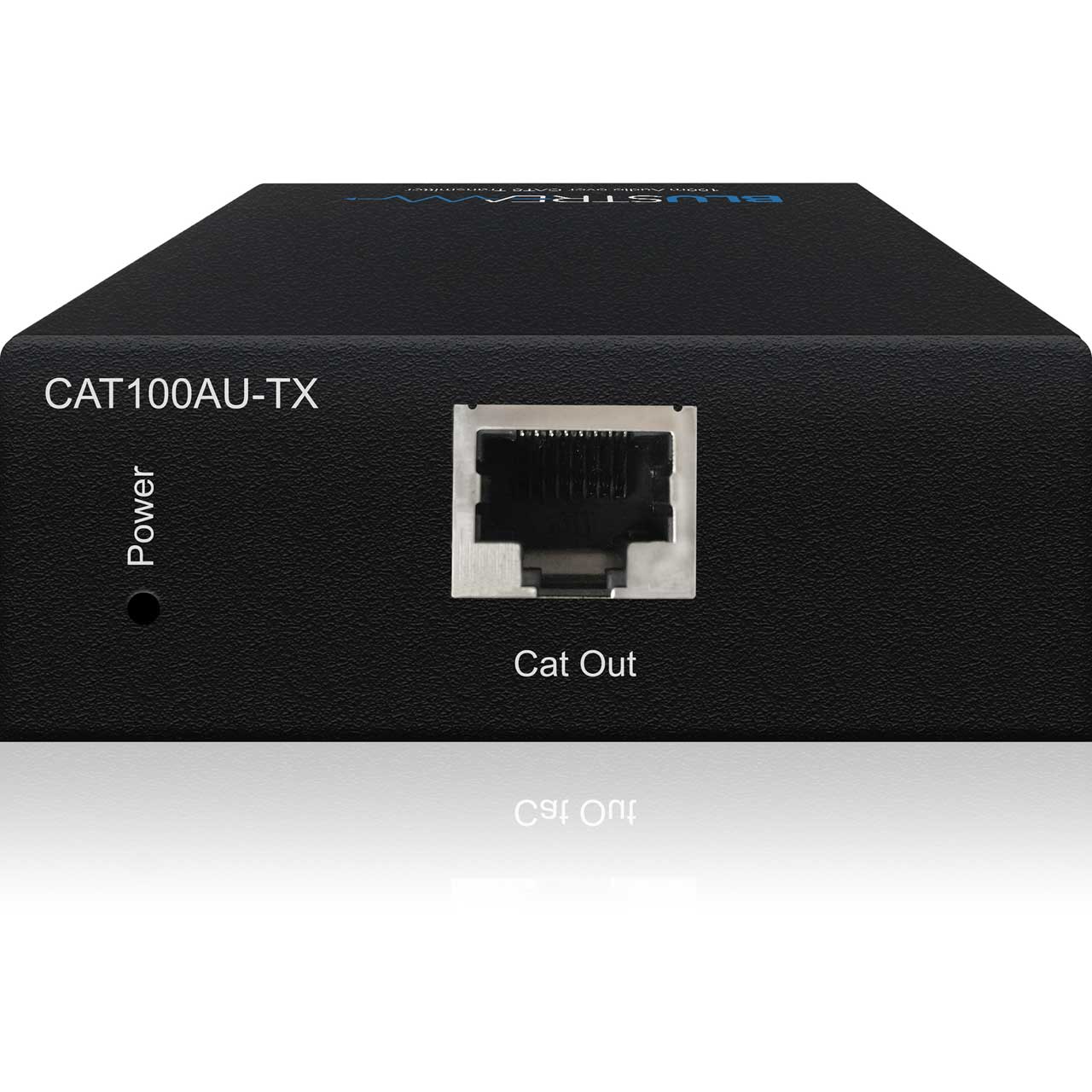

  • CAT100AU-TX - Transmitter

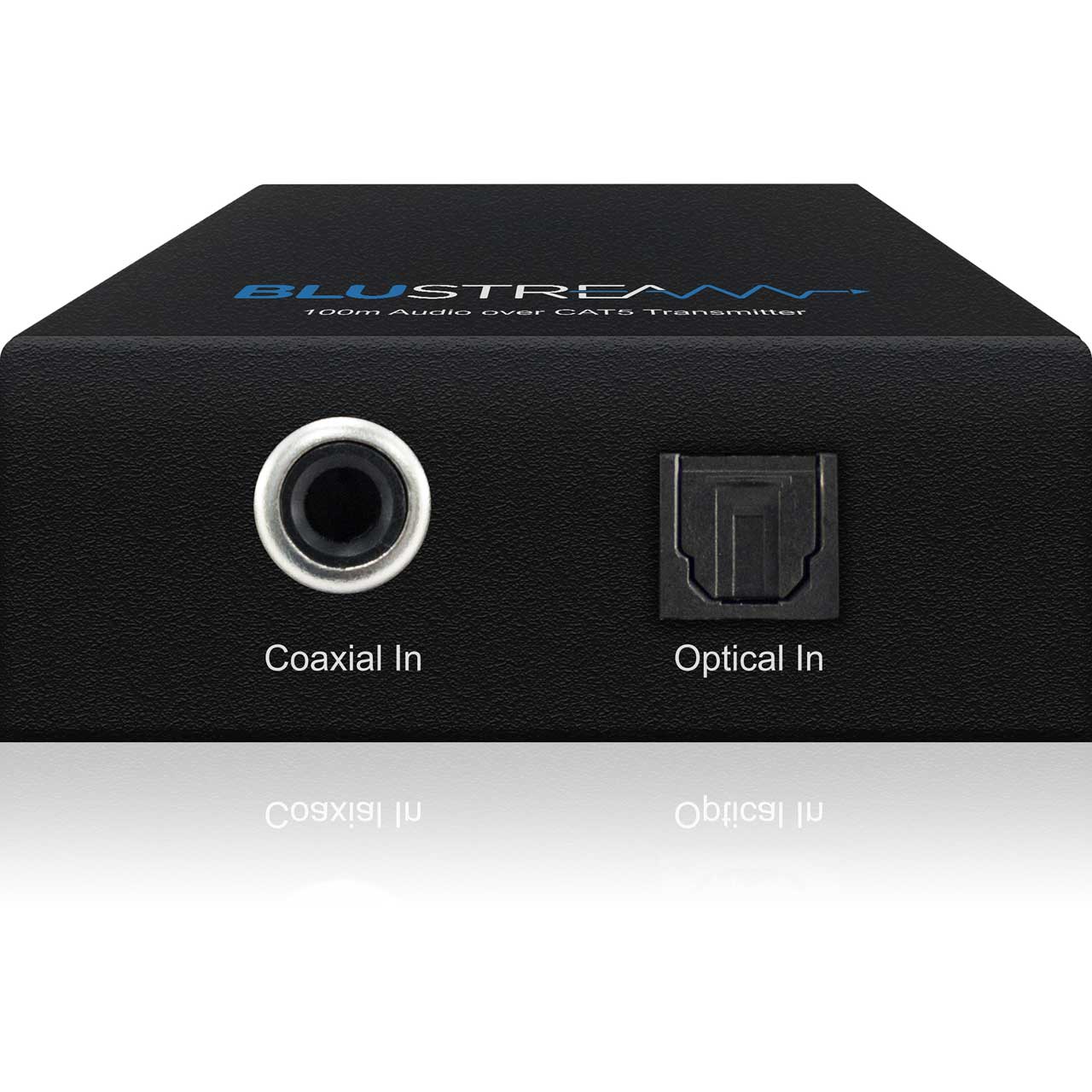

    Audio Input Connectors: 1 x Optical (S/PDIF) & 1 x RCA (S/PDIF)
    Connectors: 1 x RJ45

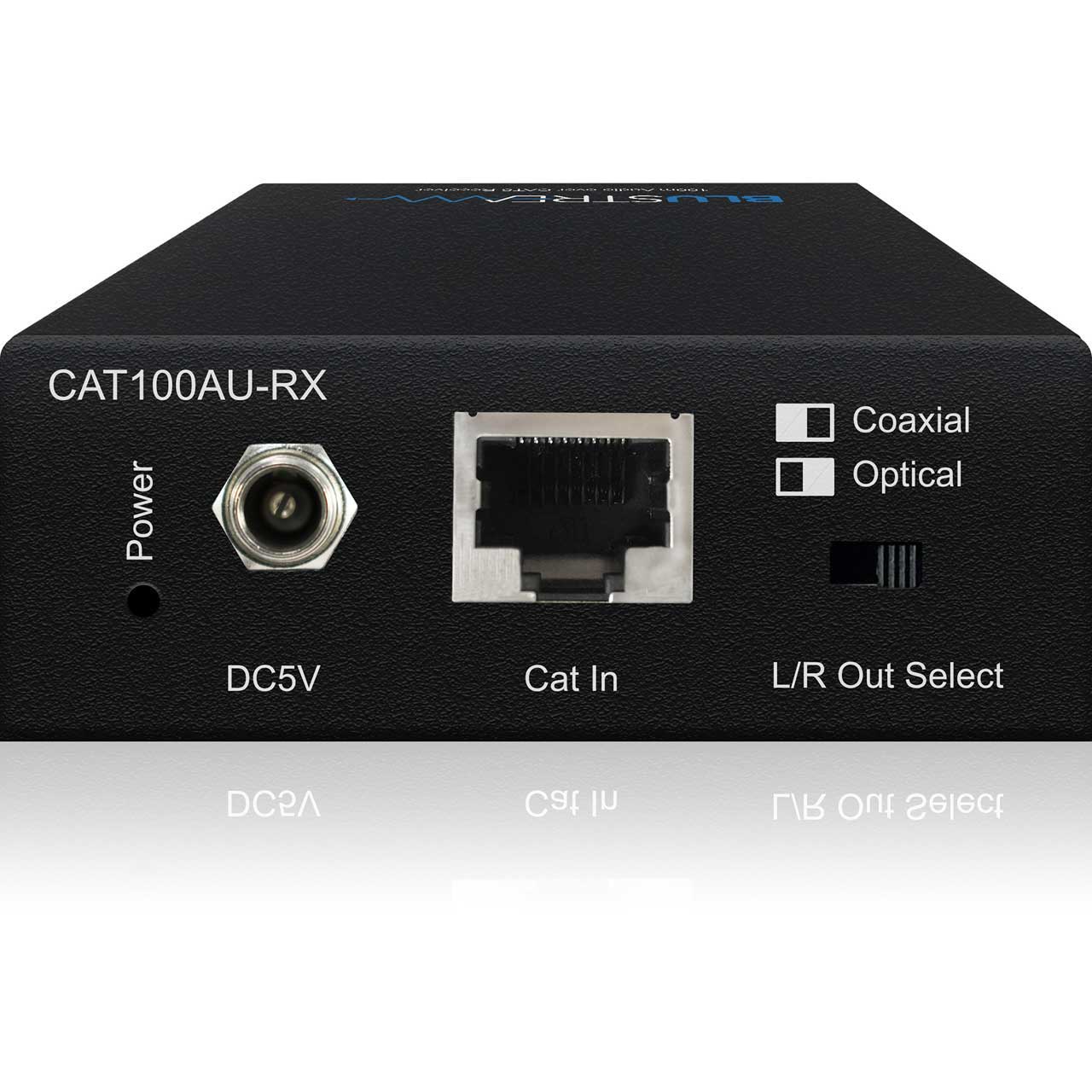

  • CAT100AU-RX - Receiver
    Input Connectors: 1 x RJ45 & 5V/1A DC
    Output Connectors: 1 x Optical (S/PDIF), 1 x RCA (S/PDIF) & 1 x Analog left / right - 3.5mm stereo audio jack
  • Balun Dimensions (W x D x H): 65 x 80 x 25mm (with connections)
  • Balun Dimensions (W x D x H): 65 x 70 x 25mm (without connections)
  • Ind. Balun Weight: 0.13kg (excluding accessories)
  • Carton / Box Dimensions (W x D x H): 210 x 125 x 95mm
  • Shipping Weight: 0.6kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 5V/1A DC, barrel type connector


• Item Includes:

  • 1x CAT100AU-TX
  • 1x CAT100AU-RX
  • 1x 5V/1A DC power supply
  • 1x Mounting kit
  • 1x User manual


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242000675
