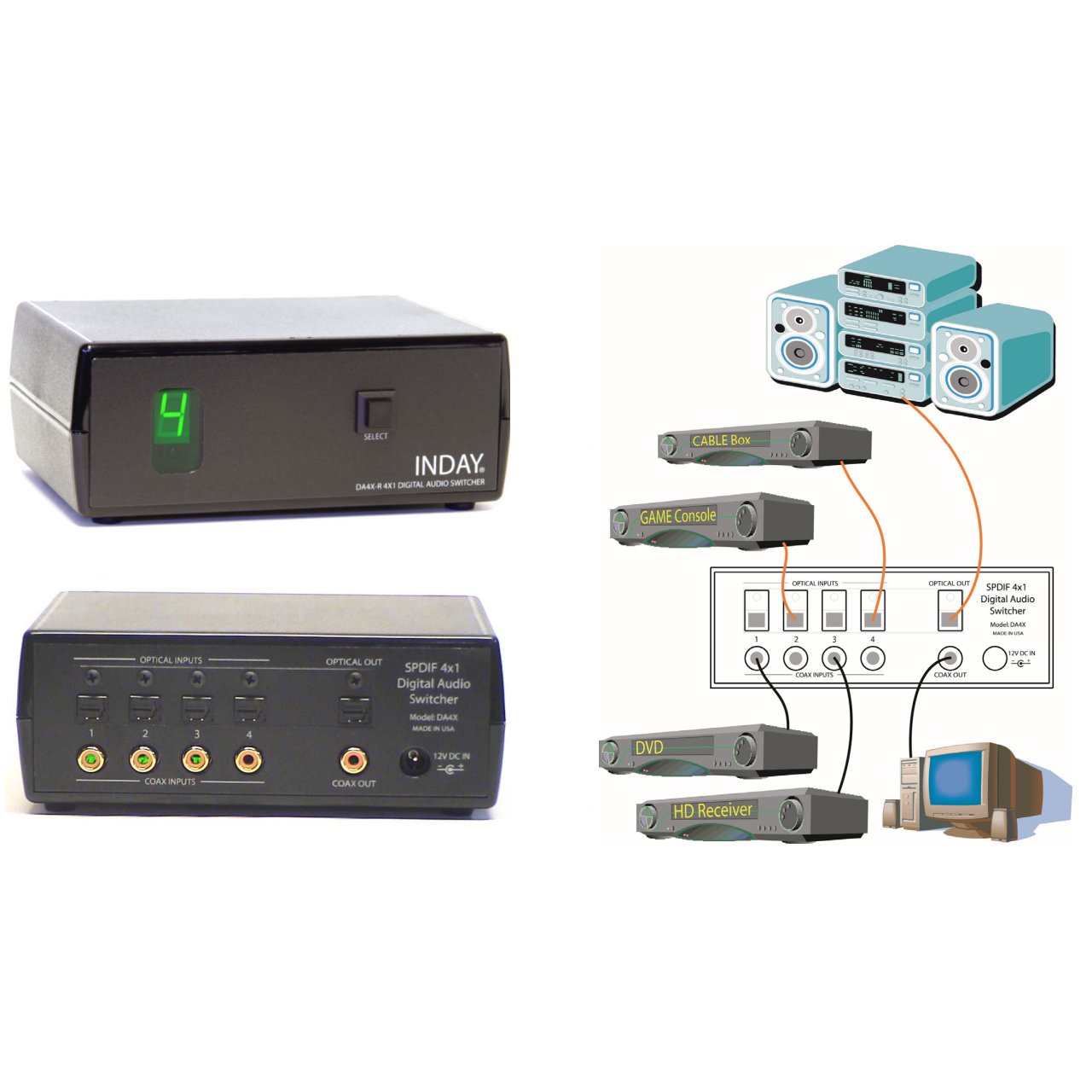

Inday DA4X-R 4x1 SPDIF Digital Audio Switcher with Power Supply and IR Remote

DA4X-R - Overview

• Features:

  • Remote Controllable! Works with the RGB4X-R.
  • SPDIF Digital Audio 4-Input to 1-Output Switcher.
  • 192kHz Digital Audio Compatible (12.288Mb/s), ADAT compatible.
  • Accepts Toslink or Coax inputs.
  • Switch any format, PCM, DTS, AC3.
  • Two simultaneous outputs: Coax and Toslink.
  • Input is automatically converted and sent to both outputs.
  • Small Size, 2x6x4". All Connectors are Gold Plated RCA.
  • Toslink connectors with Shutter openings. No Toslink Plugs!
  • Expand the input selection of your AV Receiver or Home Theater system.
  • Easy integration with Discrete IR Codes and Serial Control (RS-232).
  • Made in the Oregon, USA!


• Specifications:

  • Inputs:
    - 4x Gold Plated RCA
    - 4x Toslink with Shutters
    - Accepts any standard SPDIF format
  • Output:
    - 1x Gold Plated RCA
    - 1x Toslink with Shutter
  • Power:
    - 12VDC-Unregulated (18VDCMax) @ 200ma Max
    - Wall Transformer supplied
  • Dimensions: 4"W x 6"L x 2"H
  • Temperature: 32 to 122°F
  • Humidity: 0 TO 90% (non-condensing)
  • RS-232 Serial Interface:
    -3.5mm Stereo Jack
    - Tip: Tx, Ring: Rx, Sleeve: Gnd


• Item Includes:

  • 1x Power Supply
  • 1x IR Remote
