DA11AU - Overview

The Blustream DA11AU has been designed to convert unbalanced or balanced 2ch analog audio to Dante® digital signal. The DA11AU allows any non-Dante® audio source such as mixing consoles, amplifiers, computers, and Blustream Matrix or distribution products to be connected as a source within a Dante® network. The DA11AU is a plug & play device that is powered using PoE (Power over Ethernet) from any PoE network switch and supports AES67 RTP audio transport.

Features:
- Analog audio inputs support both balanced and unbalanced audio signals
- Supports 44.1, 48 & 96kHz sample rates @ 24 bit
- Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
- Supports AES67 RTP audio transport
- Features Class 1 802.3af PoE for powering of product from any PoE switch
Specifications:

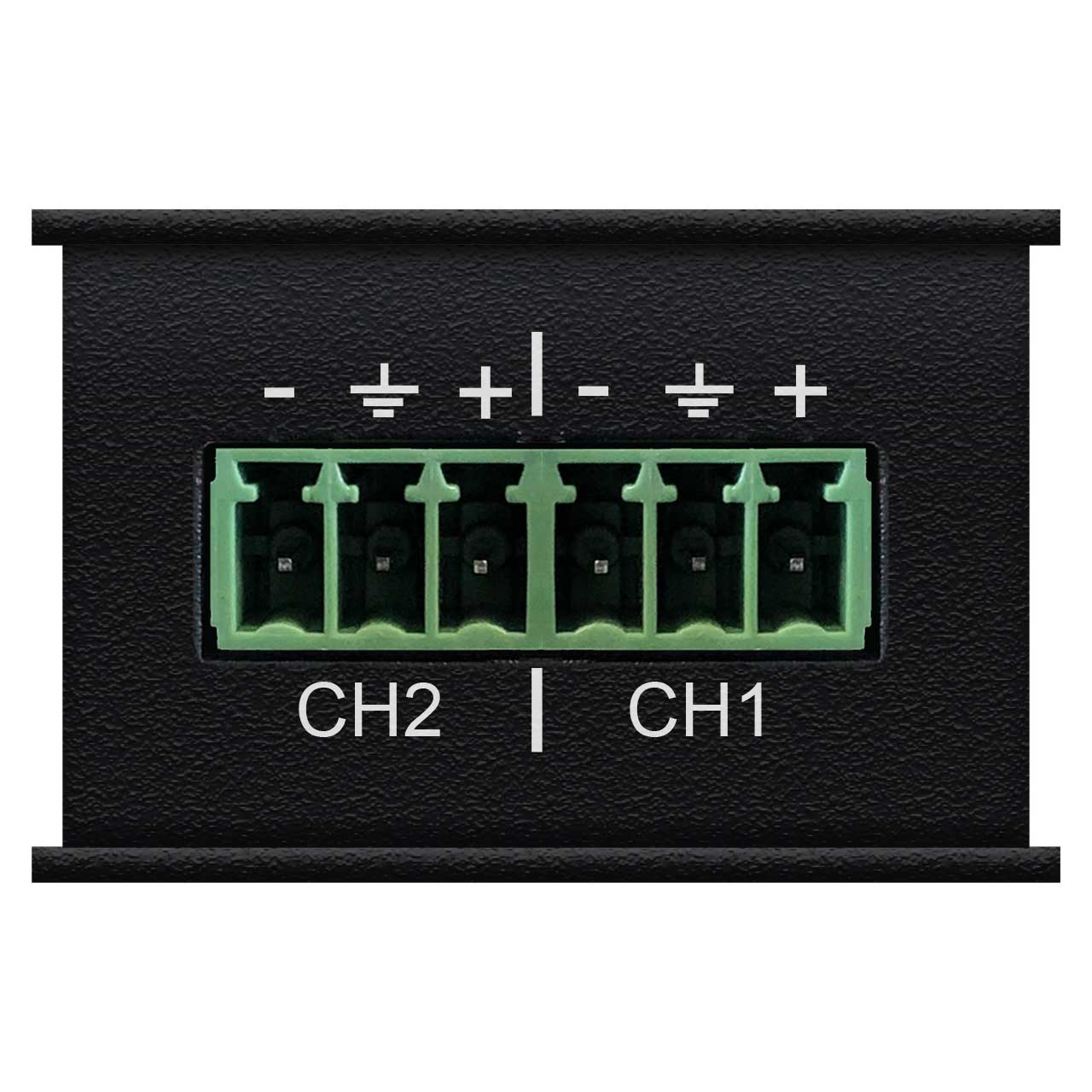

- Audio Input Connectors: 6-PIN Phoenix connector (2ch balanced / un-balanced analog audio)

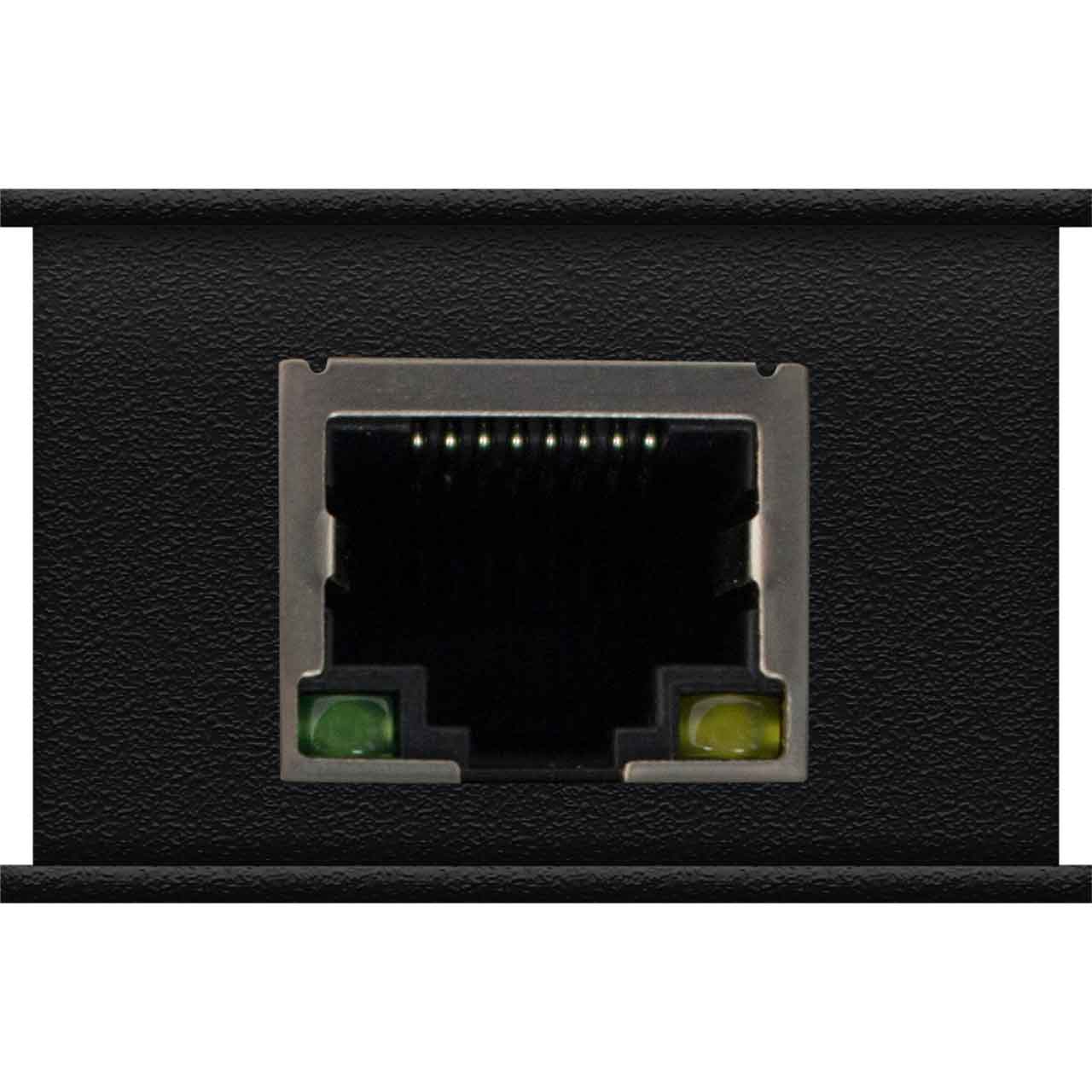

- Audio Output Connectors: 1 x RJ45, female (100Mbps Dante® network)
- Casing Dimensions (W x H x D): 120mm x 23mm x 34mm
- Shipping Weight: 0.2kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Power Supply: Class 1 IEEE 802.3af POE PD
Item Includes:
- 1x DA11AU
- 1x Quick Reference Guide
Warranty:
- 3 Year Warranty
GTIN:
9340242003171
