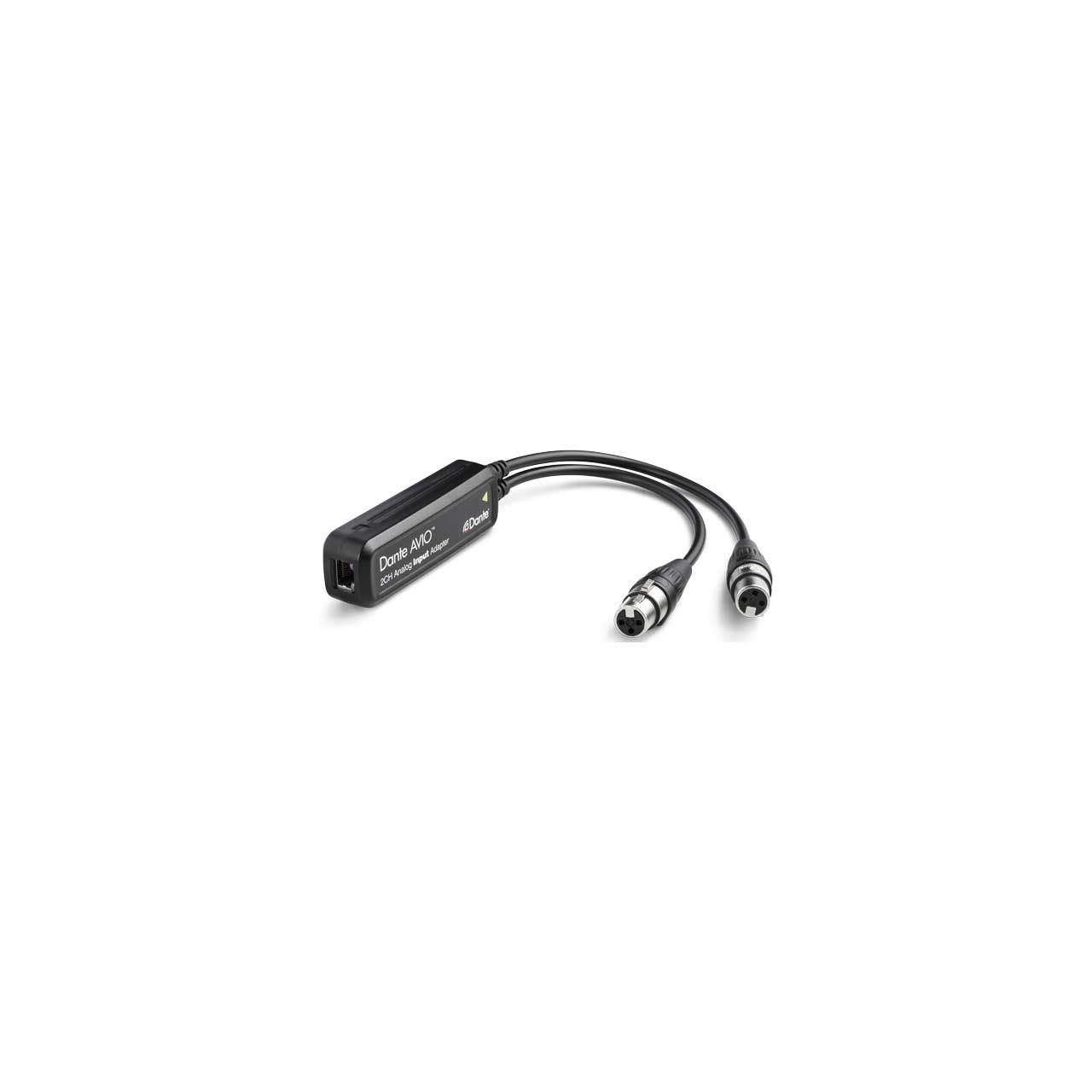

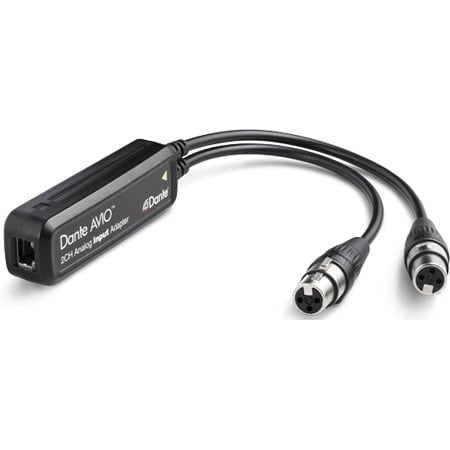

Audinate ADP-DAI-AU-2X0 Dante Audio Converter Analog Input Adapter - RJ45 to 2-Channel XLR Female

ITEM #: ADN-ADPDAI-AU2X0 MFG #: ADP-DAI-AU-2X0

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$259.00

Our Price:

$199.00

Availability: In Stock
iAvailability Description Popup


    ADP-DAI-AU-2X0 - Overview

    The Audinate ADP-DAI-AU-2X0 is a 2 Channel Dante AVIO Analog Input Adapter with RJ45 and 2 XLR females. Dante AVIO Analog Adapters and Dante Audio Converters allow you to use the audio gear you already own with your Dante network. Don't abandon trusted compressors, equalizers or analog power amplifiers - adapt them to the world of audio networking with Dante AVIO. Dante AVIO Analog Adapters are available as balanced line-level single or dual-channel input or output adapters, with high-quality XLR connectors. Use the Analog Dante AVIO Adapters to add Dante networking to analog amplifiers, powered loudspeakers, signal processors, music players or any other analog audio device, for hum-free digital signal distribution throughout your audio network.

    Plug & Play
    Each Dante AVIO analog adapter is a complete, high performance Dante device, delivering all the automation and ease of use that have made Dante the most popular audio networking solution worldwide. Dante AVIO analog adapters are automatically discovered and ready to use when connected, and no separate power supplies are required - just use a common PoE (Power over Ethernet) switch and Dante AVIO analog adapters are ready to go.

    Built For The Road
    Audinate made Dante AVIO analog adapters road-ready and tour-tough. Sonically welded ABS enclosures and quality hardware are used throughout, while cable assemblies are stress-tested to ensure reliable operation under grueling conditions. Toss them in your toolbox, show after show

    Cost-Effective
    We've worked hard to make the Dante AVIO family of products a cost-effective addition to any system or piece of gear, so that everyone can enjoy the benefits of Dante. Audio networking has never been easier to or more affordable, no matter how you choose to use it.

    Dante AVIO Analog Input & Output
    Dante AVIO Analog Adapters allow you to use the audio gear you already own with your Dante network. Don't abandon trusted compressors, equalizers or analog power amplifiers - adapt them to the world of audio networking with Dante AVIO.

    Dante AVIO Analog Adapters are available as balanced line-level single or dualchannel input or output adapters, with high-quality XLR connectors. Use the Analog Dante AVIO Adapters to add Dante networking to analog amplifiers, powered loudspeakers, signal processors, music players or any other analog audio device, for hum-free digital signal distribution throughout your audio network.

    • Features:

      • Analog Input

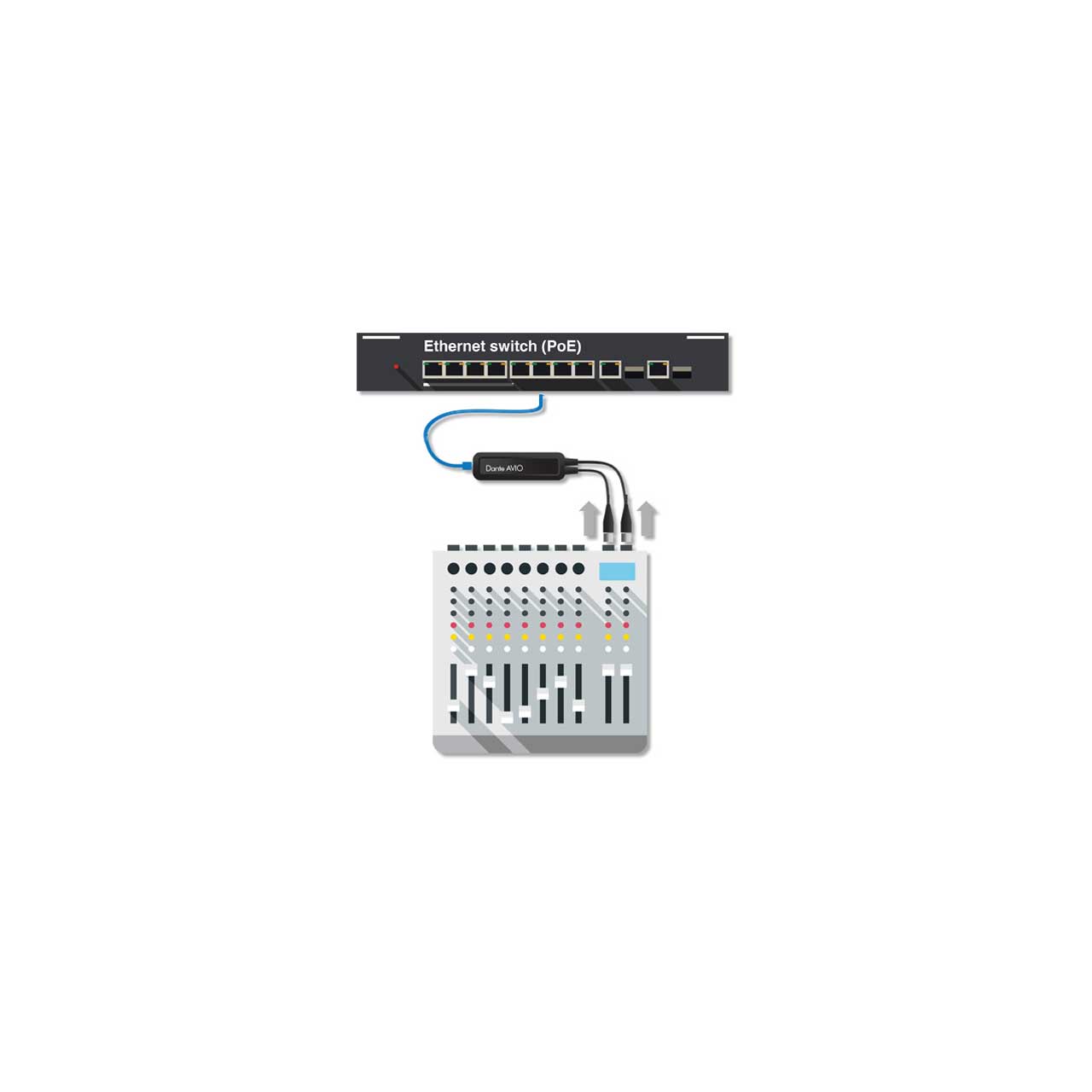

      • Connect legacy mixers and consoles to a Dante network
      • Patch favorite DSPs, analog compressors and equalizers into a Dante system using a combination of Input and Output adapters
      • Connect stage DI boxes and keyboard instruments directly to a Dante network
      • Connect your wireless mic receiver to a Dante network

        Analog Output
      • Connect analog powered speakers to your Dante audio network.
      • Send audio to analog power amplifiers over a Dante audio network.
      • Create easy drop-points for connecting cry rooms and overflow areas to a Dante network.
      • Connect non-networked hearing aid loop amplifiers to your Dante audio network.

        Other
      • Connect legacy mixers and consoles to a Dante network
      • Patch DSPs, analog compressors and equalizers into a Dante system using a combination of Dante AVIO Input and Output adapters
      • Connect stage DI boxes and keyboard instruments directly to a Dante network
      • Plug & play operation
      • Built for the road
      • Sample rates up to 96 kHz (48 kHz for USB)
      • Excellent dynamic range, SNR and THD performance
      • Configurable gain / attenuation (analog input and output models only)
      • Dante Audio over IP and AES67 RTP transport formats
      • Power over Ethernet (PoE) support
      • Dante Domain Manager ready

    • Specifications:

      • Channels: 2
      • Max Signal Level(balanced): +24dBu / +4dBu / 0dBu; 0dBV /-10dBV
      • Frequency Response: 20Hz to 20kHz (±0.5dB)
      • Impedance: 20k Ohm balanced 10k Ohm unbalanced
      • Dynamic Range: > 100dB
      • Signal to Noise Ratio: > 100dB
      • Total Harmonic Distortion: < 0.01% at +4dBu
      • Connectors: RJ45 & 1 XLR-F
      • Power: Class 1 802.3af PoE
      • Sample Rates: 44.1, 48, 96 kHz
      • Bit Depth: 24
      • Network Transport: Dante Audio over IP AES67 RTP

    • Item Includes:

      • 1x Audinate ADP-DAI-AU-2X0 Dante AVIO Analog Input Adapter with RJ45 and 2 XLR Female - 2 Channel Version
