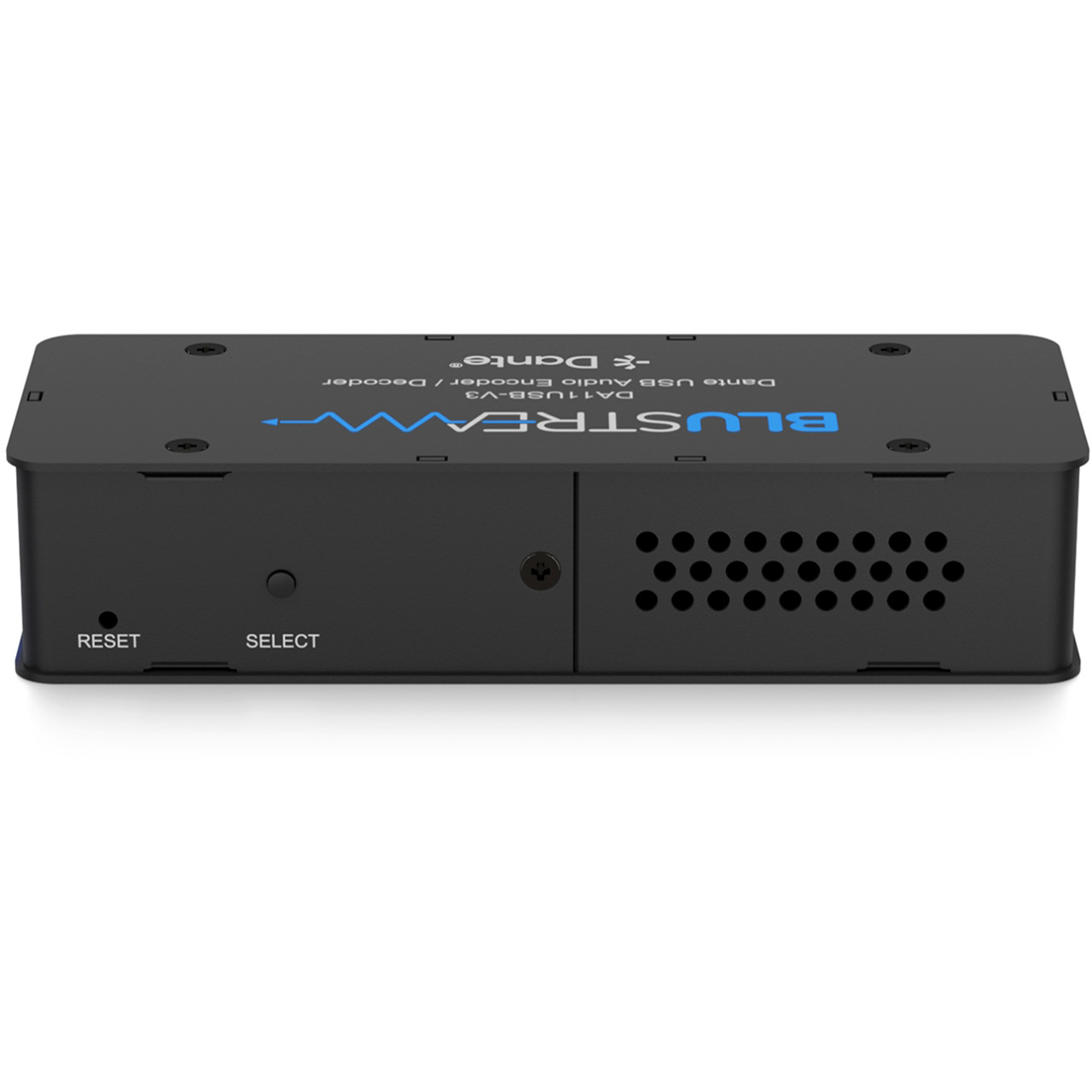

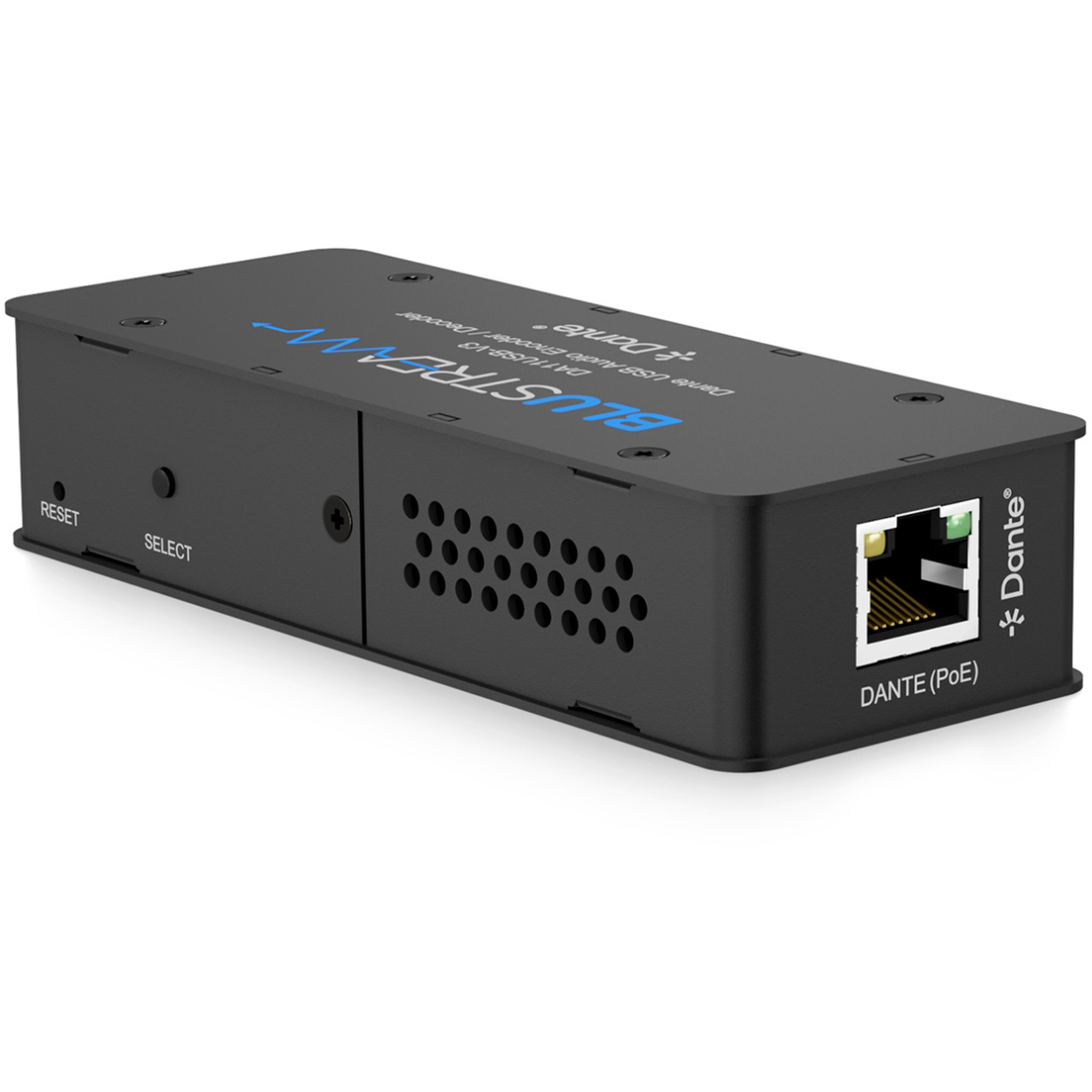

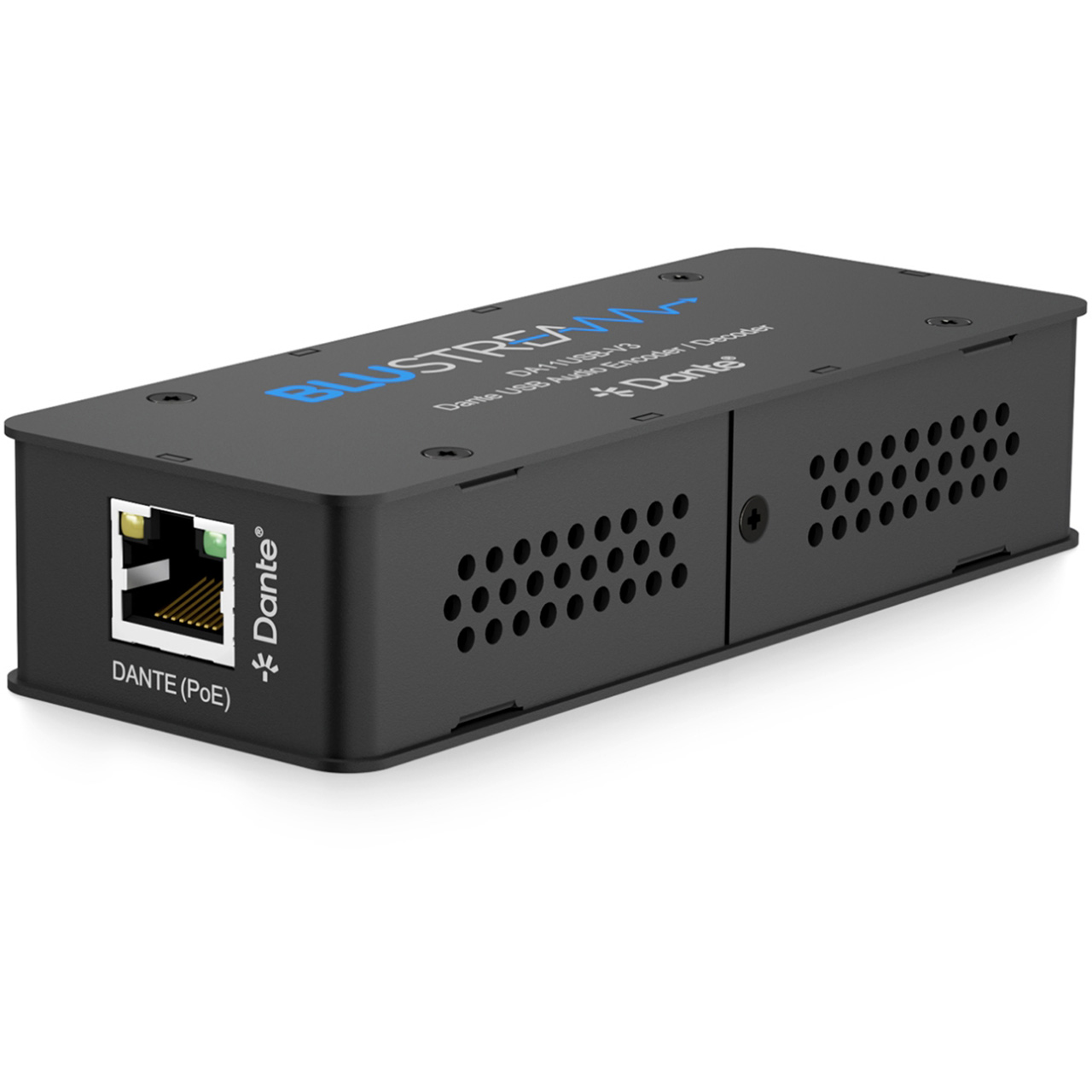

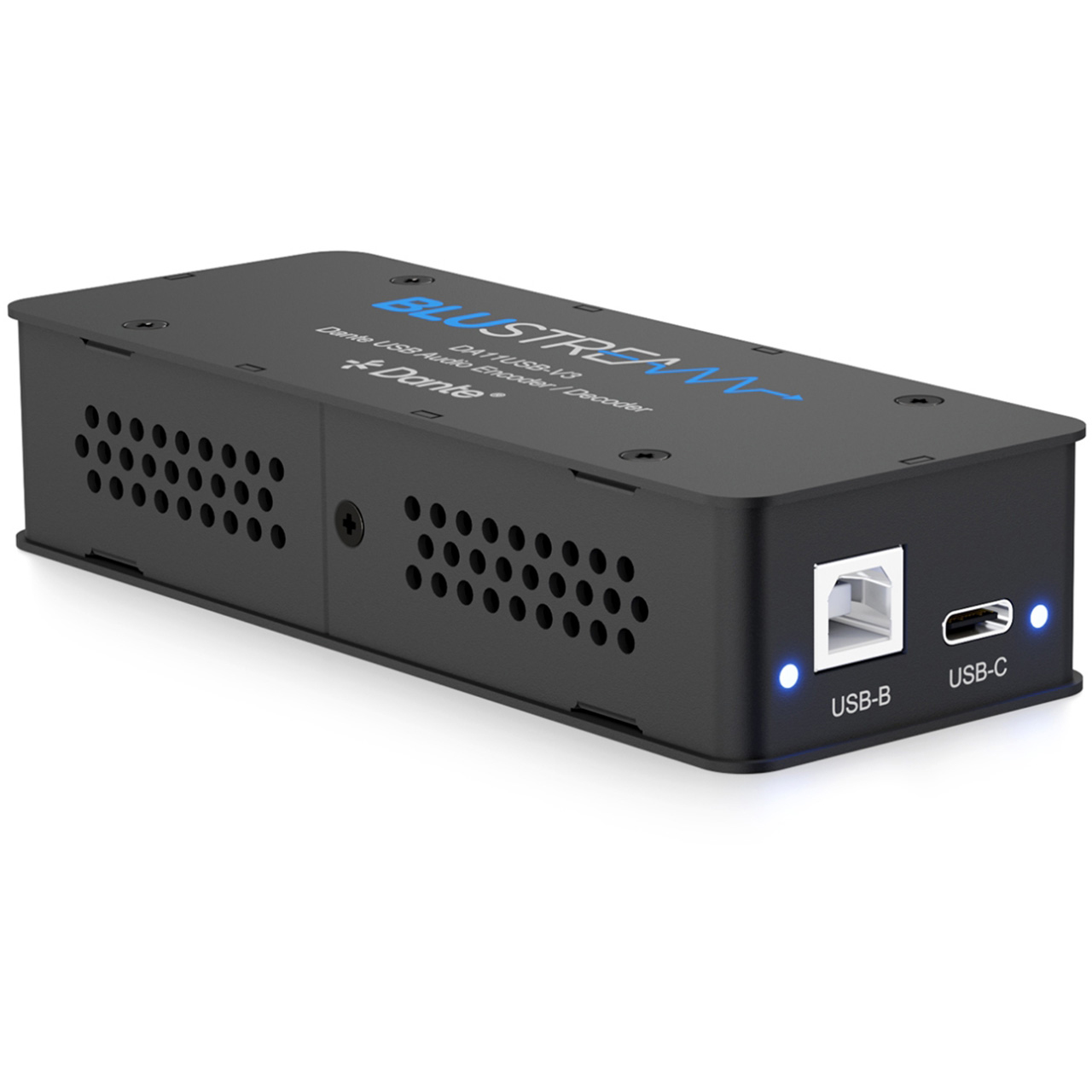

Blustream DA11USB-V3 2-Channel Dante USB Audio Encoder / Decoder with Stereo Input & Output

DA11USB-V3 - Overview

• Features:

  • Encodes 2ch USB audio to Dante digital signal
  • Decodes a mono Dante digital signal to USB audio
  • Selectable USB audio between USB Type-B and USB-C inputs
  • Compliant with USB Audio Device Class Specification V1.0
  • Supports 44.1kHz & 48kHz sample rates @ 16-bit
  • Configurable Dante device latency (supports 1ms, 2ms or 5ms configurable using Dante Controller)
  • Supports AES67 RTP audio transport
  • Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
  • Supports power via 5V USB where network switch does not support PoE


• Specifications:

  • Audio Input Connectors:
    - 1x RJ45, female (100Mbps Dante network)
    - 1x USB Type B female
    - 1x USB Type C female
  • Audio Output Connectors:
    - 1x RJ45, female (100Mbps Dante network)
    - 1x USB Type B female
    - 1x USB Type C female
  • Casing Dimensions (LxWxH): 1.85" x 4.72" x 1" (47mm x 120mm x 26mm)
  • Shipping Weight: 0.66lbs (0.3kg)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Power Supply: Class 0 IEEE 802.3af PoE or 5V USB


• Item Includes:

  • 1x DA11USB-V3
  • 1x 3ft (1m) USB-A to USB-B cable
  • 1x 3ft (1m) USB-C to USB-C cable
  • 1x Quick Reference Guide


• Warranty:

  • 5 Year Limited Warranty
